MPS 2023.3 Help

Source code navigation

You can quickly navigate through code in the editor using different actions and popups.

You can start with watching a video tutorial to check what navigation options are available in MPS.

Navigate with the caret

  • To navigate backwards, press Ctrl+Alt+Left. To navigate forward, press Ctrl+Alt+Right.

  • To navigate to the last edited location, press Ctrl+Shift+Backspace.

  • To find the current caret location in the editor, press Ctrl+M. This action might be helpful if you do not want to scroll through a large file.

    However, you can press the Up and Down arrow keys to achieve the same result.

  • To highlight a word at the caret you are trying to locate, select Edit | Find | Next Occurrence of the Word at Caret from the main menu. If you are using Windows, you can also press Ctrl+F3.

  • To see on what element the caret is currently positioned, press Alt+Q.

  • To move caret between matching code block braces, press Ctrl+Shift+M.

  • To navigate between code blocks, press Ctrl+[ or Ctrl+].

Move the caret

You can use different actions to move the caret through code. You can also configure where the caret should stop when moved by words and on line breaks.

  • To move the caret to the next word or the previous word, press Ctrl+Right or Ctrl+Left.

    By default, MPS moves the caret to the end of the current word.

    When you move the caret to the previous word, the caret is placed at the beginning of the current word. You can configure the position of the caret when you use these actions.

    In the Settings dialog (Ctrl+Alt+S) , go to Editor | General. In the Caret Movement section, use the When moving by words and Upon line break options to configure the caret's behavior.

  • To move the caret forward to the next paragraph or backward to the previous one, press Ctrl+Shift+A and search for the Move Caret Forward a Paragraph or Move Caret Backward a Paragraph action.

    You can also select a text and then move the caret forward or backward to a paragraph. Press Ctrl+Shift+A and search for the Move Caret Forward a Paragraph with Selection or Move Caret Backward a Paragraph with Selection action.

    If you need, you can assign shortcuts to these actions. For more information, refer to Configure keyboard shortcuts.

Find recent locations

You can also check your recently viewed or changed code using the Recent Locations popup.

  • To open the Recent Locations popup, press Ctrl+Shift+E. The list starts with the latest visited location at the top and contains code snippets.

  • While in the popup, use the same shortcut or select the Show changed only checkbox to see only the locations with changed code.

  • To search for a code snippet, in the Recent Locations popup, start typing your search query. You can search by the code text, filename, or breadcrumbs.

  • To delete a location entry from the search results, press either Delete or Backspace.

    Keep in mind that the deleted location is also removed from the list of entries that you access with the Ctrl+Alt+Left shortcut.

Use bookmarks for navigation

  • To create an anonymous bookmark, place the caret at the needed code line and press F11.

  • To create a bookmark with mnemonics, place the caret at the needed code line, press Ctrl+F11 and select a number or a letter for the mnemonics.

  • To show the next or the previous bookmark, in the main menu select Navigate | Bookmarks | Next Bookmark or Navigate | Bookmarks | Previous Bookmark.

  • To open the Bookmarks dialog, press Shift+F11. You can use this dialog to manage bookmarks, for example, delete, sort bookmarks, or supply them with a brief description.

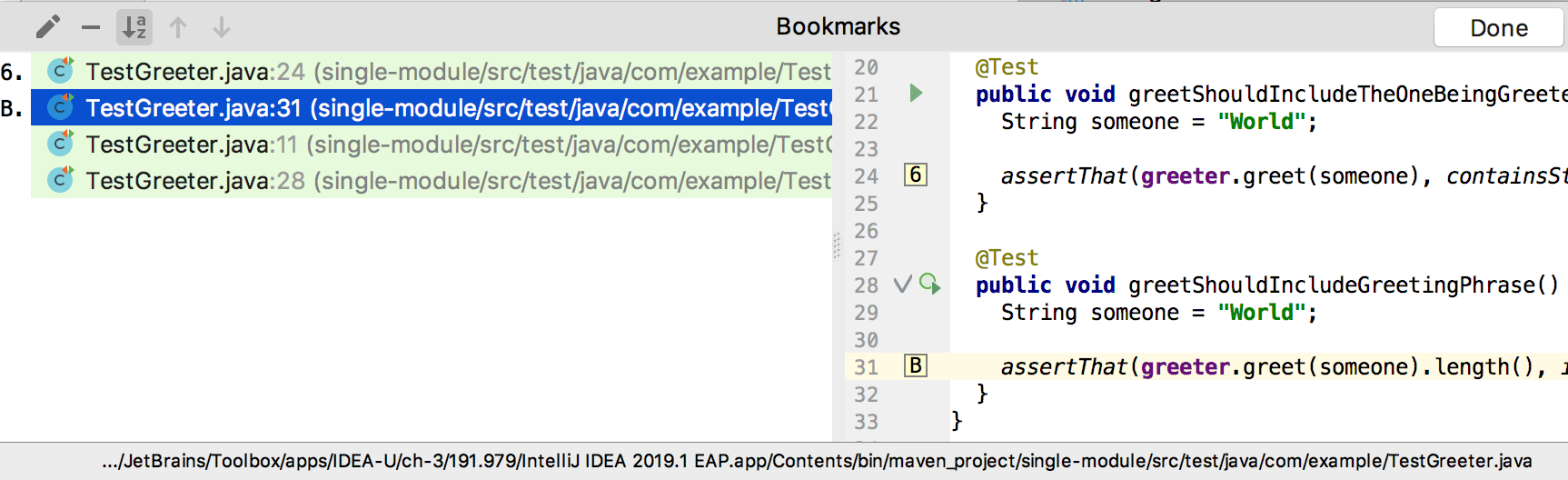

    Bookmarks dialog
  • To navigate to an existing bookmark with letter mnemonics, press Shift+F11 and then press a letter you need. MPS returns you to the editor and to the corresponding bookmark.

  • To navigate to an existing bookmark with number mnemonics, press Ctrl and the bookmark's number.

You can check how to toggle between bookmarks with mnemonics, in the settings (Ctrl+Alt+S), on the Keymap page under the Other node.

You can navigate to the initial declaration of a symbol and symbol's type from its usage.

Go to declaration and its type

  • Place the caret at the desired symbol and press Ctrl+B.

  • For a type declaration, press Ctrl+Shift+B.

Go to implementation

You can keep track of class implementations and overriding methods using the gutter icons in the editor, or by pressing the appropriate shortcuts, or by clicking Inheritors inlay hints.

  • Click one of the the Implemented method icon/the Implementing method icon, the Overridden method icon/the Overriding method icon gutter icons located in the editor and select the desired ascendant or descendant class from the list.

  • To navigate to the super method, press Ctrl+U.

  • To navigate to the implementation, press Ctrl+Alt+B.

  • Use Inheritors hints that are displayed next to a class or an interface and show the number of its descendants. Click the hint to jump to the descendant. If there are several implementations, select the relevant one from the list.

    Inheritors inlay hints are enabled by default. To turn them off, hover over a hint and select Hide 'Code Vision: Inheritors' Inlay Hints or Hide All 'Code Vision' Inlay Hints from the context menu.

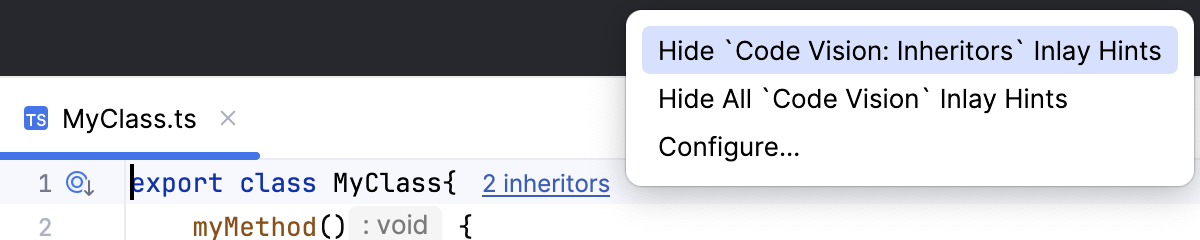

    Hide Inheritors hints in the editor

    By default, Inheritors hints are shown above classes and interfaces. To change this position, click Configure from the context menu of a hint.

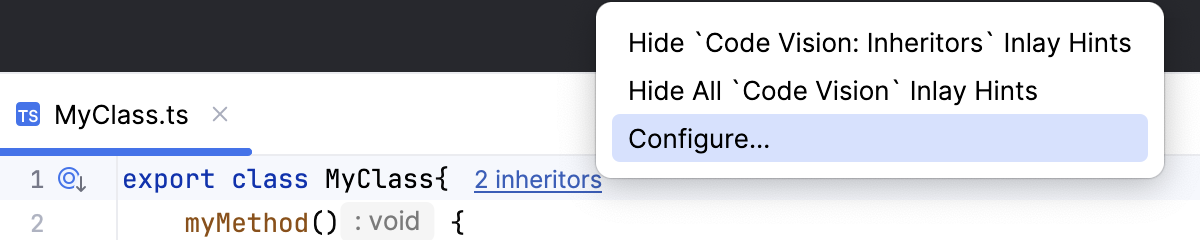

    Inheritors hints: configure position

    On the Inlay Hints page, that opens, select the appropriate setting from the Position list. Alternatively, select the Code vision node and change the Default position for metrics.

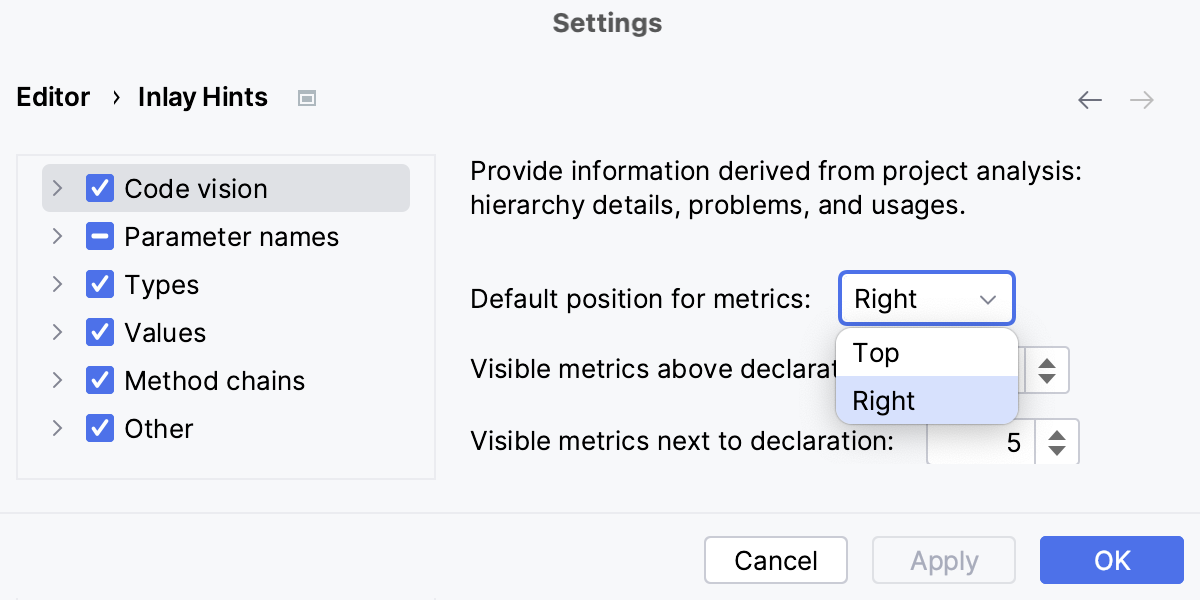

    Code vision: configure position in the Settings dialog

You can automatically locate a class in the Project tool window.

  1. If the class is opened in the editor, press Alt+F1 to open the Select In popup.

    Select in popup
  2. In the popup, select Project View and press Enter. MPS locates your target in the Project tool window.

Open files with one click and quickly locate files in the Project tool window

You can use the Open Files with Single Click (previously called Autoscroll to Source) and Always Select Opened Files (previously called Autoscroll from Source) actions to locate your file in the Project tool window.

  1. In the Project tool window, right-click the Project toolbar and from the context menu select Always Select Opened File. After that MPS will track the file that is currently opened in the active editor tab and locate it in the Project tool window automatically.

    Context menu
  2. You can also select the Open Files with Single Click option. In this case, when you click a file in the Project view, MPS will automatically open it in the editor.

Locate a code element with the Structure view popup

You can use the structure view popup to locate a code element in the file you are working on.

  1. To open the structure view popup, press Ctrl+F12.

  2. In the popup, locate an item you need. You can start typing a name of the element for MPS to narrow down the search. Press Enter to return to the editor and the corresponding element.

    While in the popup, you can sort file members, see anonymous classes and inherited members.

Browse through methods

  • Press Alt+Down or Alt+Up.

  • To visually separate methods in code, in the Settings dialog (Ctrl+Alt+S) , go to Editor | General | Appearance and select the Show method separators option.

  • To open the Structure tool window, press Alt+7.

Use the Lens mode

The lens mode lets you preview your code without actually scrolling to it. The mode is available in the editor by default when you hover over the scrollbar. It is especially useful when you hover over a warning or an error message.

  • To disable the lens mode, right-click the code analysis marker located on the right side of the editor and in the context menu clear the Show code lens on the scrollbar hover checkbox.

  • As an alternative, in the Settings dialog (Ctrl+Alt+S) , go to Editor | General | Appearance and clear the Show code lens on the scrollbar hover checkbox.

Use breadcrumbs for navigation

You can navigate through the source code with breadcrumbs that show names of classes, variables, functions, methods, and tags in the currently opened file. By default, breadcrumbs are enabled and displayed at the bottom of the editor.

  • To change the location of breadcrumbs, right-click a breadcrumb, in the context menu select Breadcrumbs and the location preference.

  • To edit the breadcrumbs settings, in the Settings dialog (Ctrl+Alt+S) , go to Editor | General | Breadcrumbs.

Find node by ID

  1. In the editor, press Ctrl+G.

  2. In the Find node in model dialog, specify an ID of the node to search for and click OK.

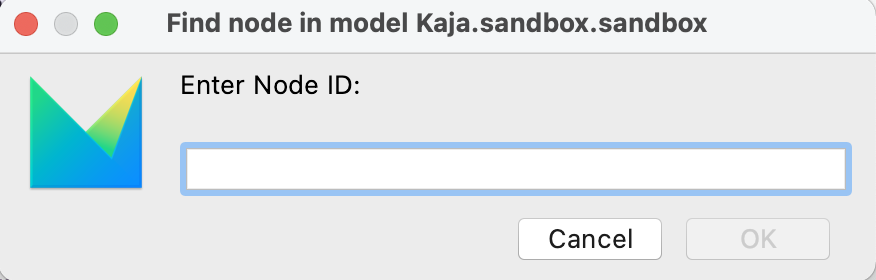

    Go to node by ID

Find a file path

  1. In the editor, press Ctrl+Alt+F12 or in the context menu, select Open in | Finder.

  2. In the Reveal in Finder popup, select a file or a directory to open in the path finder and press Enter.

Find recent files

You can search for the recent and recently edited files with the Recent Files popup.

  • To open the Recent Files popup with the list of recent files, press Ctrl+E.

  • To see only the recently edited files, press Ctrl+E again or select the Show changed only checkbox.

  • To search for items in the popup, use the Speed Search functionality. Just start typing a search query, and the Search for field appears. MPS displays the results based on your search query, the list shrinks as you type.

Tooltips

  1. In the editor hover over some cells. A small pop-up window with additional information will show up after a short delay.

  2. Not all cells have tooltips defined. Use the "tooltip radar" to visualize all cells with a tooltip defined - just press and hold the Control key and then move the mouse pointer.
