Debug tool window

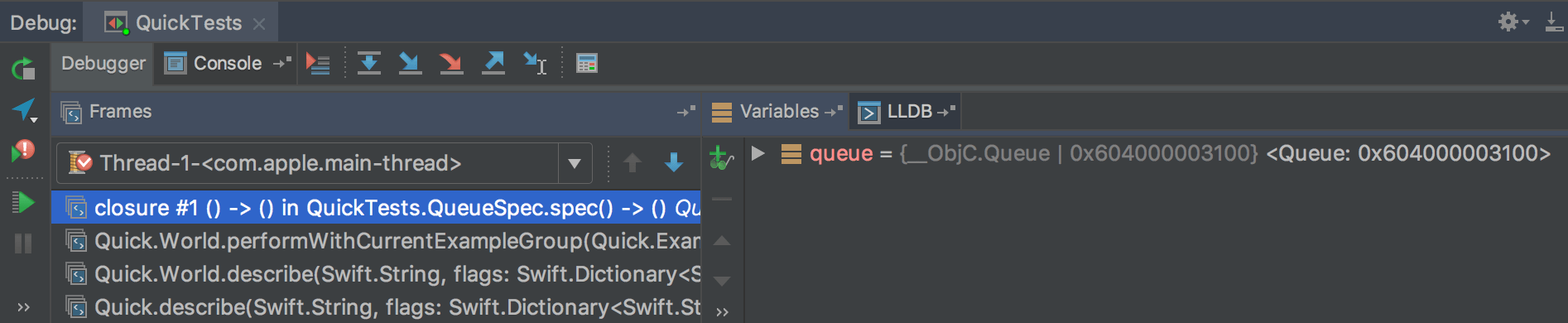

When you start a debugger session, the Debug tool window appears. Use this window to control the debugger session, display and analyze the program data (frames, threads, variables, and so on), and perform various debugger actions.
This is a brief overview of the Debug tool window. For general instructions on using tool windows, refer to Tool windows.
The available debug sessions are separated into tabs in the top part of the Debug tool window.
If you enable Services window for specific run/debug configurations, the entire view of the Debug window will be displayed inside the Services window when you debug any of these configurations.
To allow multiple debug sessions, go to Allow multiple instances checkbox in the dialog that opens. See more details in Run and debug on multiple simulators.from the main menu and select the

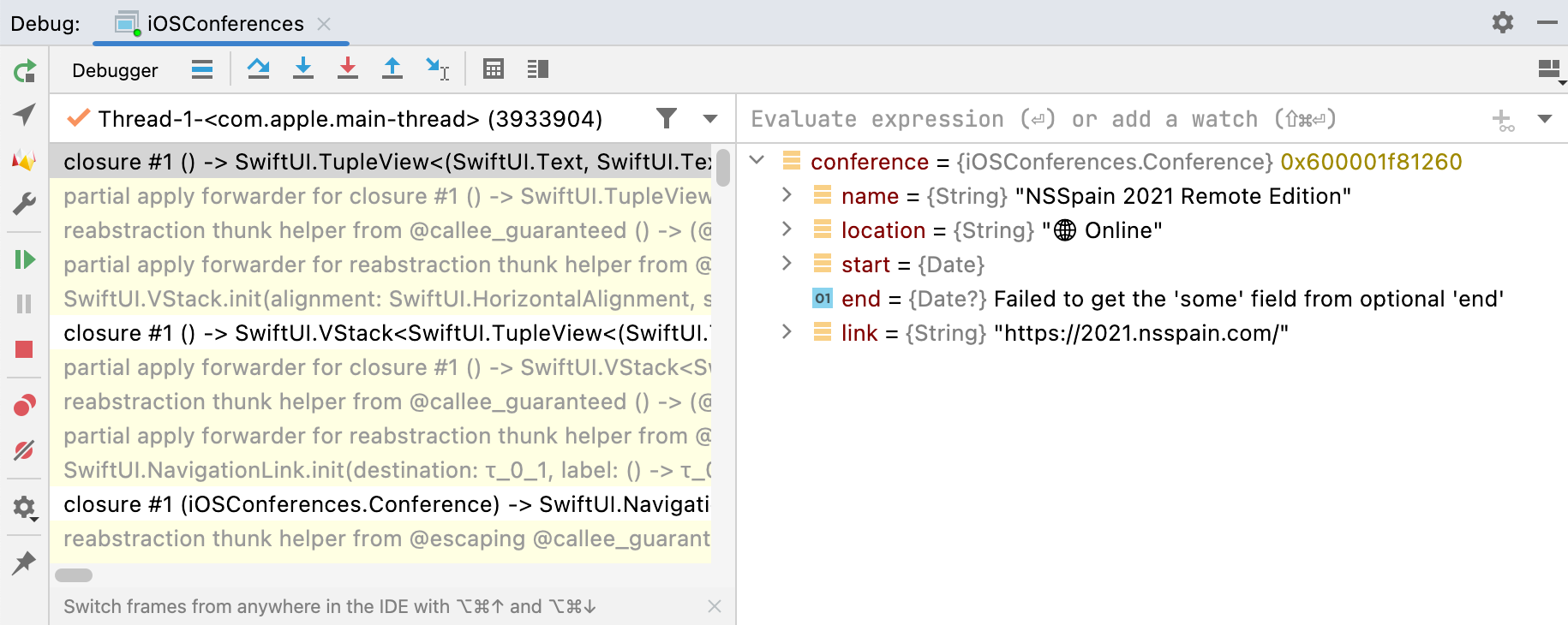

Debug tool window shows the following tabs for each session:
Frames: lets you navigate in call stacks of the threads.
Variables: lists the variables available in the current context and lets you analyze and modify the program state.
Watches: lets you manage watches. By default, watches are shown on the Variables tab for more efficient use of the screen space. If you have a lot of watches, consider viewing them in a separate tab.
Console: displays the program output.
For local sessions, the tab works the same as when you just run the program without the debugger attached. The only difference is that debugger output (for example, log messages from breakpoints) is added to the console.
When you attach to a process, the program output is not redirected and only the debugger output is shown in the debugger console.
LLDB: provides a console for LLDB command-line debugging.
Threads: displays the list of live threads and lets you switch between them. From this tab, you can export threads information in text format.
Memory View: shows raw memory of the running process (for Objective-C only).
Parallel Stacks: shows thread call stack information for all the threads in your application.
Click and select which tabs you want to see.
Restore default layout
If you changed the layout of the Debug tool window and don't like the new arrangement, you can revert it to the default state.
Click in the top-right corner of the Debug tool window, then click Restore Default Layout.
You can arrange the tabs to fit your preference. You can move a tab to another location or group a tab with another tab, so that they share the same space on the screen.
Drag the tab header to the desired location. The blue frame indicates the destination.
