Apache Derby

Enable the Database Tools and SQL plugin

This functionality relies on the Database Tools and SQL plugin, which is bundled and enabled in PhpStorm by default. If the relevant features are not available, make sure that you did not disable the plugin.

  1. Press Ctrl+Alt+S to open settings and then select Plugins.

  2. Open the Installed tab, find the Database Tools and SQL plugin, and select the checkbox next to the plugin name.

Before you begin

This topic presents a general procedure on how you can create a data source for the connection to your Apache Derby database in PhpStorm, and run a test connection. It is assumed that you already have the necessary connection details and the database is up and running.

For example, if you want to run a database on your machine and connect to that database, the corresponding DBMS software must be installed on the machine first.

To learn about your DBMS software, refer to its official documentation.

Connect to an Apache Derby database

  1. To connect to the database, create a data source that will store your connection details. You can do this using one of the following ways:

    • In the main menu, go to File | New | Data Source and select Apache Derby.

    • In the Database tool window ( View | Tool Windows | Database) , click the New icon (the New icon) in the toolbar. Navigate to Data Source and select Apache Derby.

    Create a new data source
  2. In the General tab of Data Sources and Drivers dialog right pane, specify the driver and connection type.

    1. From the Driver list, select the JDBC driver for your connection.

      For Apache Derby, the supported drivers are Apache Derby (Embedded) and Apache Derby (Remote). For more information about Apache Derby databases, refer to the official documentation: embedded databases, remote databases.

    2. From the Connection type list, select the connection type depending on the connection details that you have:

      Connection types for Apache Derby (Embedded)
      • Embedded: connect by using the path to the database folder.

      • In-Memory: connect to a temporary database stored entirely in the main memory.

      • URL only: connect by using only the URL.

      Connection types for Apache Derby (Remote)
      • default: connect by using Host, Port, Database, and URL.

      • URL only: connect by using only the URL.

      For the URL only connection type, the JDBC URL that you enter is used and as is, including the database credentials.

      For the other connection types, the JDBC URL is broken down into connection details. You can either specify them separately and use the automatically generated URL, or you can enter the URL directly in the corresponding field.

    General tab of the Data Sources and Drivers dialog
  3. Check if there is a Download missing driver files link at the bottom of the connection settings area. Click this link to download drivers that are required to interact with a database. For a direct download link, refer to the JetBrains JDBC drivers page.

    Location for the downloaded JDBC drivers is the PhpStorm configuration directory.

    The Download missing driver files link

    You can also use your drivers for the database instead of the provided ones. For more information about connecting to a database with your driver, refer to Add a user driver to an existing connection.

    If there is no Download missing driver files link, then you already have the required drivers.

  4. Specify the database connection details. Alternatively, paste the JDBC URL in the URL field.

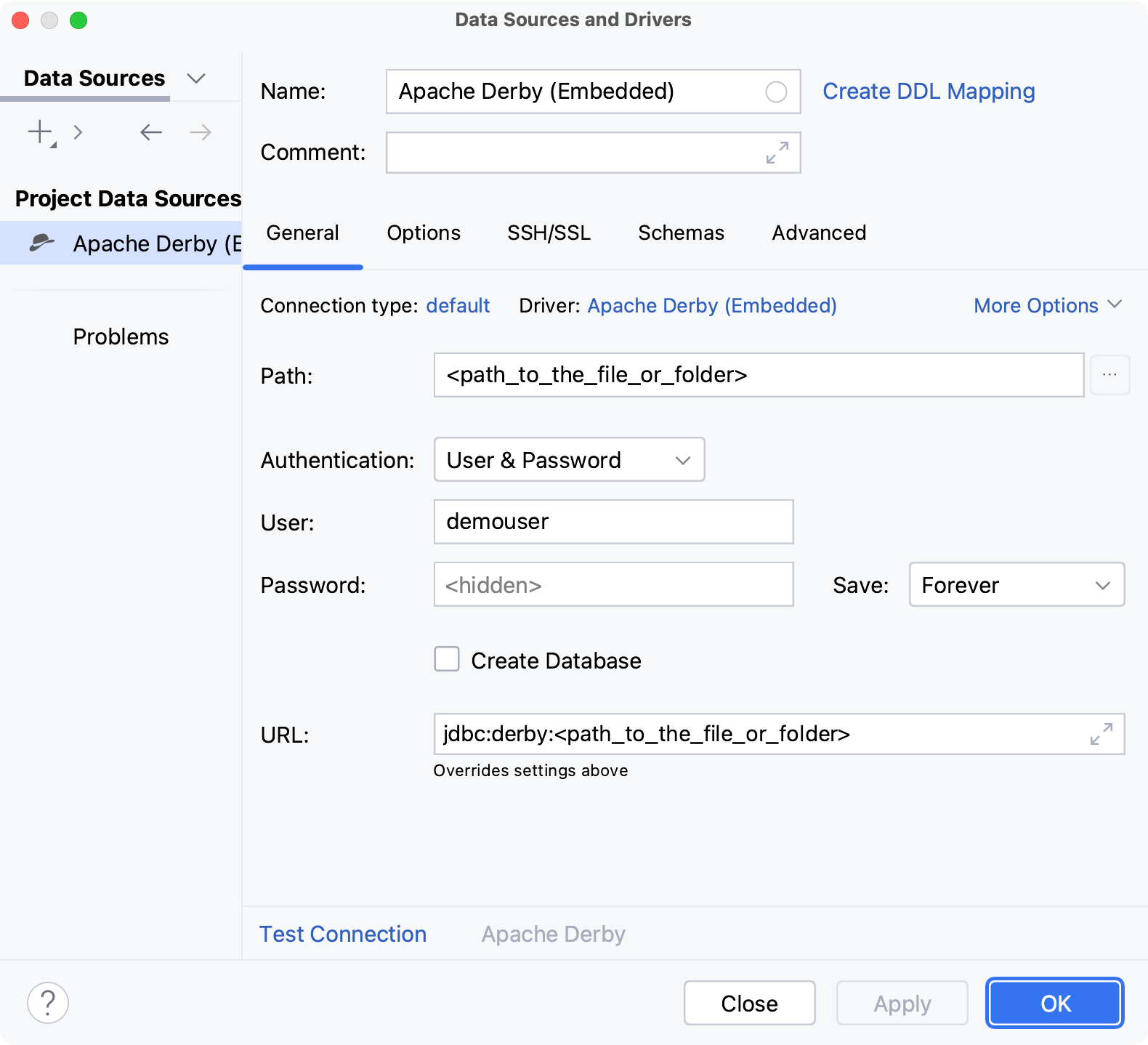

    Connection types and settings for Apache Derby (Embedded)
    1. Enter the path to the database file or folder in Path. Alternatively, click the Open icon (the Open button) and navigate to it.

    2. From the Authentication list, select the authentication method that you want to use to authenticate the connection. The following options are available:

      • User & Password: by using your login and password.

      • No auth: authentication is not required.

    3. In the User and Password fields, type your user credentials.

      To use no password, leave the Password field empty.

      To delete a once entered password, right-click the Password field and select Set Empty.

      the Set Empty context menu action
    4. Tick the Create Database checkbox to create a new database and connect to it.

      For more information, refer to the DBMS-specific General tab reference.

    5. In the URL field, PhpStorm generates the JDBC URL automatically using the values of other connection settings.

      If you need to use a JDBC URL with certain additional settings, paste it in the URL field. The general URL to use is as follows:

      • Format: jdbc:derby:<path_to_the_file_or_folder>

      • Example: jdbc:derby:myDatabase

      For more information about the URL format, refer to the Apache Derby official documentation.

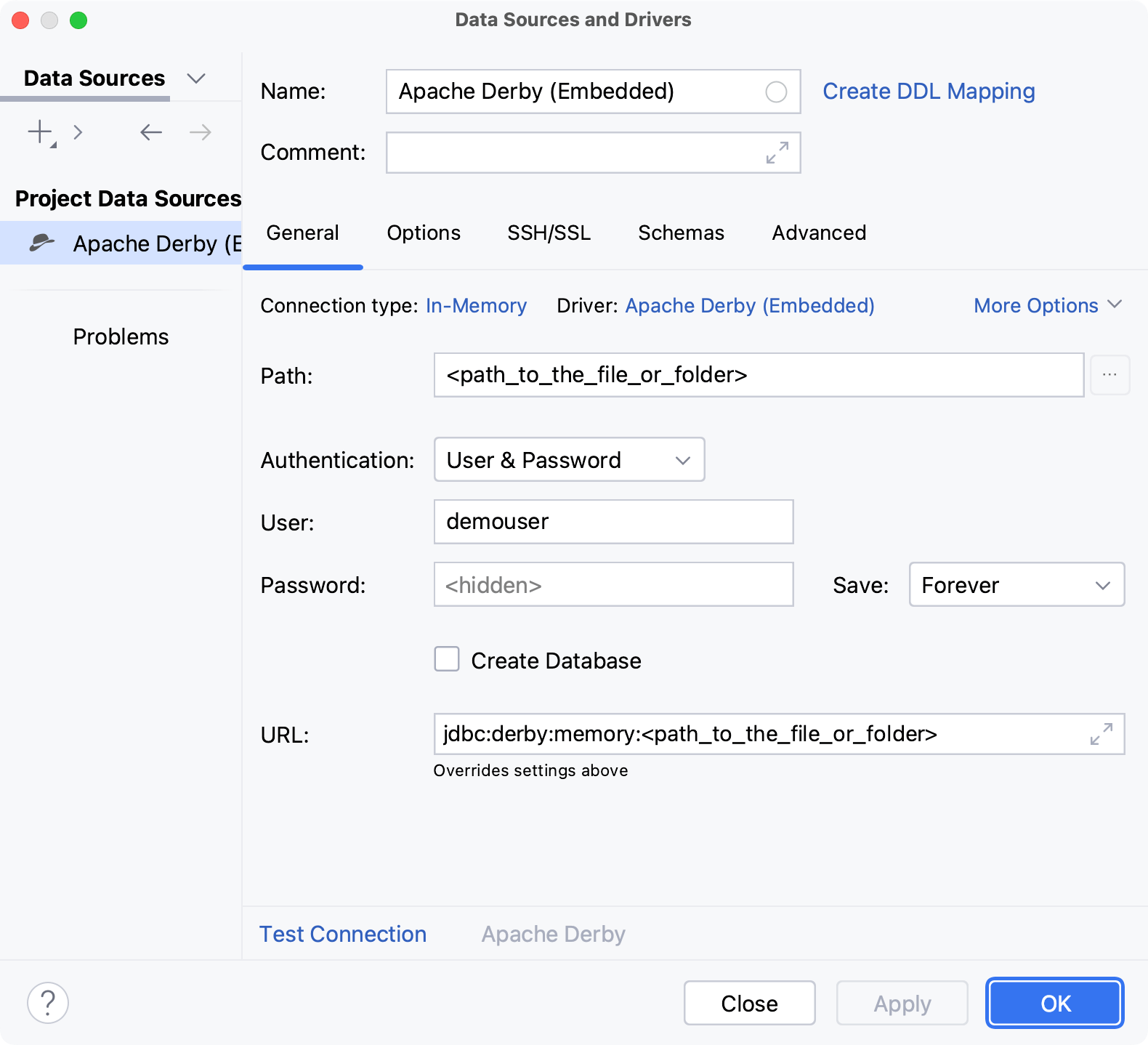

    Database connection details
    1. Enter the path to the database file or folder in Path. Alternatively, click the Open icon (the Open button) and navigate to it.

    2. From the Authentication list, select the authentication method that you want to use to authenticate the connection. The following options are available:

      • User & Password: by using your login and password.

      • No auth: authentication is not required.

    3. In the User and Password fields, type your user credentials.

      To use no password, leave the Password field empty.

      To delete a once entered password, right-click the Password field and select Set Empty.

      the Set Empty context menu action
    4. Tick the Create Database checkbox to create a new database and connect to it.

      For more information, refer to the DBMS-specific General tab reference.

    5. In the URL field, PhpStorm generates the JDBC URL automatically using the values of other connection settings.

      If you need to use a JDBC URL with certain additional settings, paste it in the URL field. The general URL to use is as follows:

      • Format: jdbc:derby:memory:<path_to_the_file_or_folder>

      • Example: jdbc:derby:memory:myDatabase

      For more information about the URL format, refer to the Apache Derby official documentation.

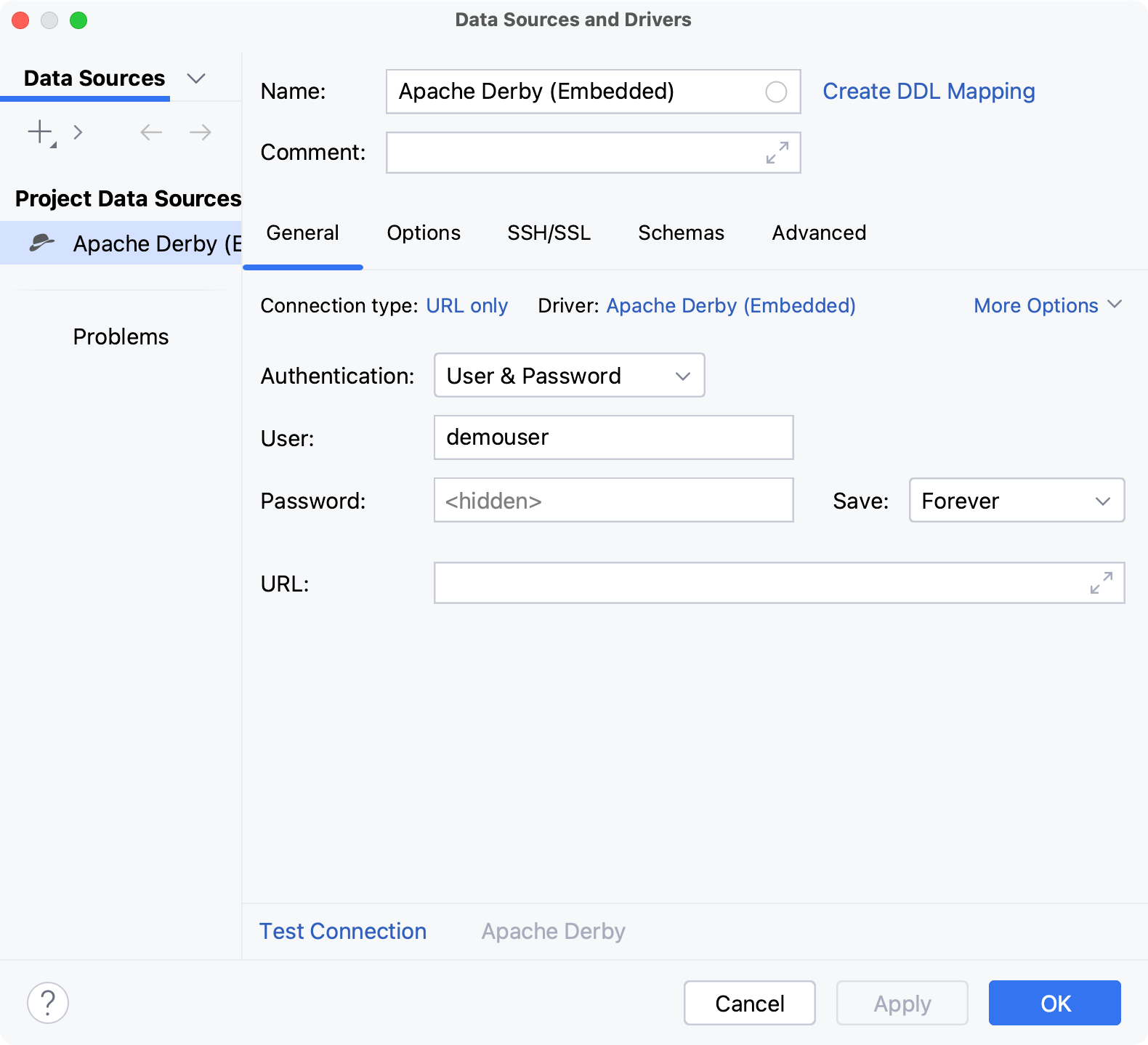

    Database connection details
    1. From the Authentication list, select the authentication method that you want to use to authenticate the connection. The following options are available:

      • User & Password: by using your login and password.

      • No auth: authentication is not required.

    2. In the User and Password fields, type your user credentials.

      To use no password, leave the Password field empty.

      To delete a once entered password, right-click the Password field and select Set Empty.

      the Set Empty context menu action
    3. In the URL field, PhpStorm generates the JDBC URL automatically using the values of other connection settings.

      If you need to use a JDBC URL with certain additional settings, paste it in the URL field.

      For more information about the URL format, refer to the Apache Derby official documentation.

    Database connection details

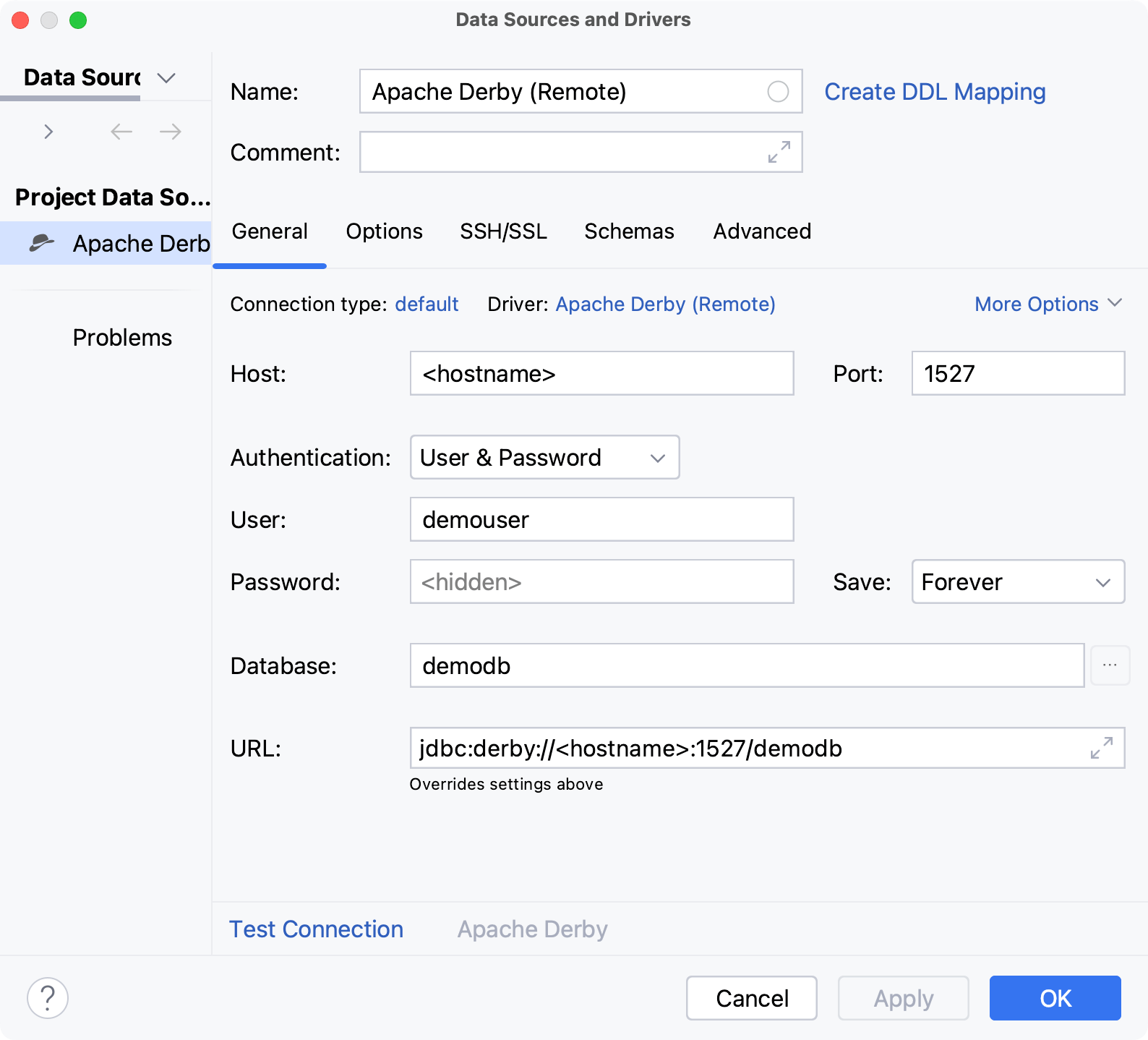

    Connection types and settings for Apache Derby (Remote)
    1. In the Host field, type your server address.

    2. In the Port field, type the port of Apache Derby. The default port is 1527.

    3. From the Authentication list, select the authentication method that you want to use to authenticate the connection. The following options are available:

      • User & Password: by using your login and password.

      • No auth: authentication is not required.

    4. In the User and Password fields, type your user credentials.

      To use no password, leave the Password field empty.

      To delete a once entered password, right-click the Password field and select Set Empty.

      the Set Empty context menu action
    5. In the Database field, type the database name to which you want to connect.

    6. In the URL field, PhpStorm generates the JDBC URL automatically using the values of other connection settings.

      If you need to use a JDBC URL with certain additional settings, paste it in the URL field. The general URL to use is as follows:

      • Format: jdbc:derby://<host_address>:<port_number>/<database_name>

      • Example: jdbc:derby://127.0.0.1:1527/myDatabase

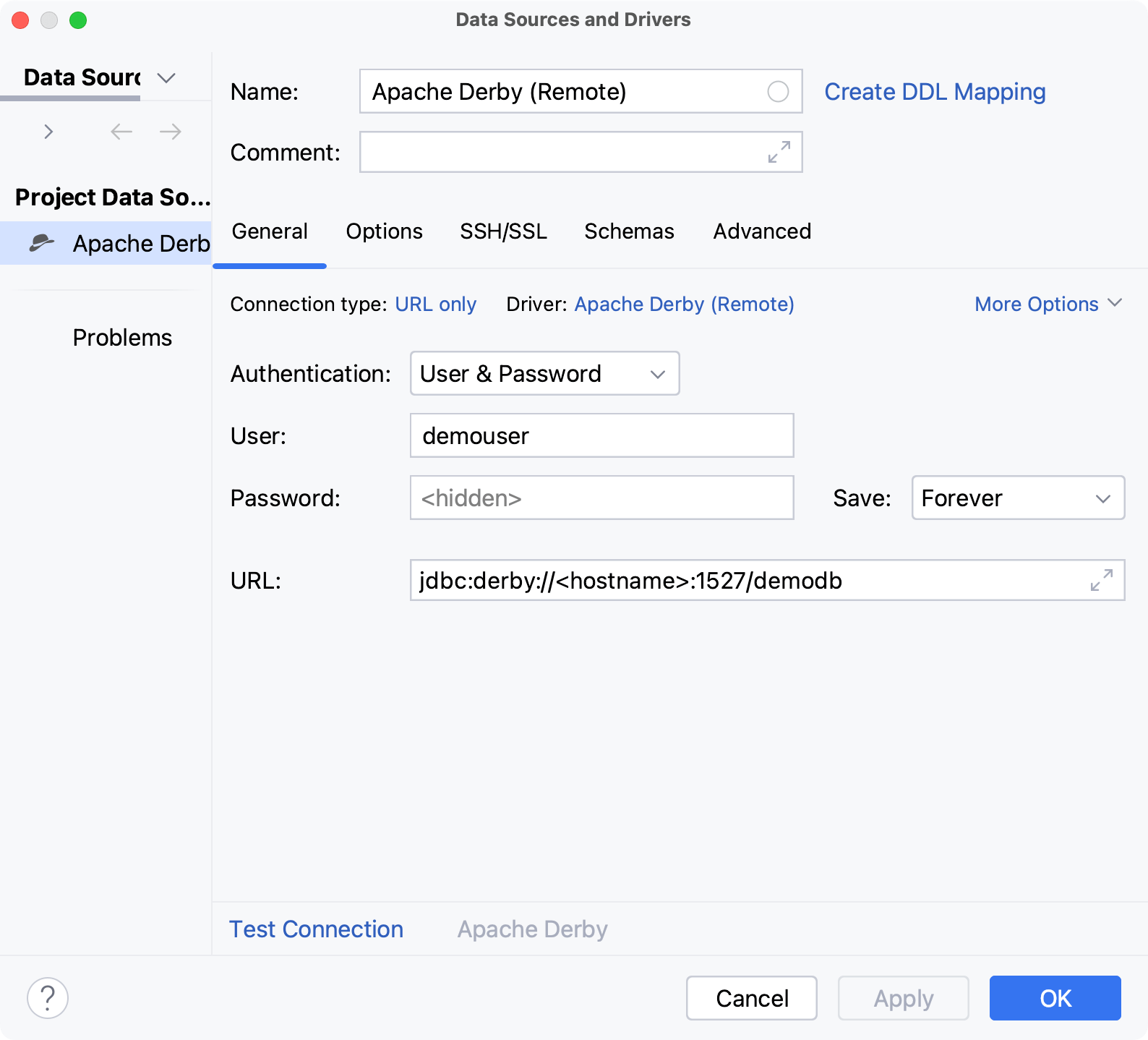

    Database connection details
    1. From the Authentication list, select the authentication method that you want to use to authenticate the connection. The following options are available:

      • User & Password: by using your login and password.

      • No auth: authentication is not required.

    2. In the User and Password fields, type your user credentials.

      To use no password, leave the Password field empty.

      To delete a once entered password, right-click the Password field and select Set Empty.

      the Set Empty context menu action
    3. In the URL field, PhpStorm generates the JDBC URL automatically using the values of other connection settings.

      If you need to use a JDBC URL with certain additional settings, paste it in the URL field. The general URL to use is as follows:

      • Format: jdbc:derby://<host_address>:<port_number>/<database_name>

      • Example: jdbc:derby://127.0.0.1:1527/myDatabase

    Database connection details

    For the reference information about connection settings and properties on the General and other tabs of Data Sources and Drivers dialog (Ctrl+Alt+Shift+S) , see Connection settings and DBMS-specific properties.

  5. Ensure that the connection to the database can be established using the provided details. To do that, click the Test Connection link at the bottom of the connection details area.

    Test Connection link

    In case of any connection issues, refer to the Cannot connect to a database page.

  6. (Optional) By default, only the default schema is introspected and available to work with. If you also want to work with other schemas, in the Schemas tab, select them for the introspection.

    Schemas tab of the Data Sources and Drivers dialog
  7. Click OK to create the data source.

  8. Find your new data source in the Database tool window (⌘ 1) .

    • For more information about the Database tool window, see the corresponding reference topic.

    • For more information about working with database objects in PhpStorm, refer to Database objects.

    • To write and run queries, open the default query console by clicking the data source and pressing F4.

    • To view and edit data of a database object, open Data editor and viewer by double-clicking the object.

Connection settings and DBMS-specific properties

Connection settings

For the reference information about connection settings (for example, Host, Port, and so on) on the General and other tabs of Data Sources and Drivers dialog (Ctrl+Alt+Shift+S) , see Data Sources.

DBMS-specific properties

General tab

Item

Description

Connection type

Path

The path to the database file or folder.

Driver: Apache Derby (Embedded)

Connection type: default, In-Memory

Create Database

Adds an argument to the URL to create a database.
