Connect to Oracle with OCI
Enable the Database Tools and SQL plugin
This functionality relies on the Database Tools and SQL plugin, which is bundled and enabled in PhpStorm by default. If the relevant features aren't available, make sure that you didn't disable the plugin.
Press Control+Alt+S to open the IDE settings and then select.
Open the Installed tab, find the Database Tools and SQL plugin, and select the checkbox next to the plugin name.
Official documentation and software
For full information about Oracle, refer to the official documentation.
To download Oracle database software, refer to the official software downloads.
For more versions of Oracle JDBC driver, refer to the official JDBC driver downloads.
Download the following Oracle Instant Client (OCI) packages for your operating system from the Oracle Instant Client Downloads page at oracle.com:
JDBC Supplement Package
PhpStorm uses JDBC drivers to connect to the Oracle server through the TNS protocol.
In thin mode, the JDBC driver always connects to the TNS listener. In this mode, various versions of the JDBC driver can be used.
In OCI mode, the JDBC driver uses native libraries. In this case, the JDBC driver's version must be the same as the version of these native libraries.
Required files and settings
Running Oracle instance with access permissions for your user.
Configured tnsnames.ora file. For full information about tnsnames.ora file, refer to the official documentation.
Creating the Oracle OCI connection

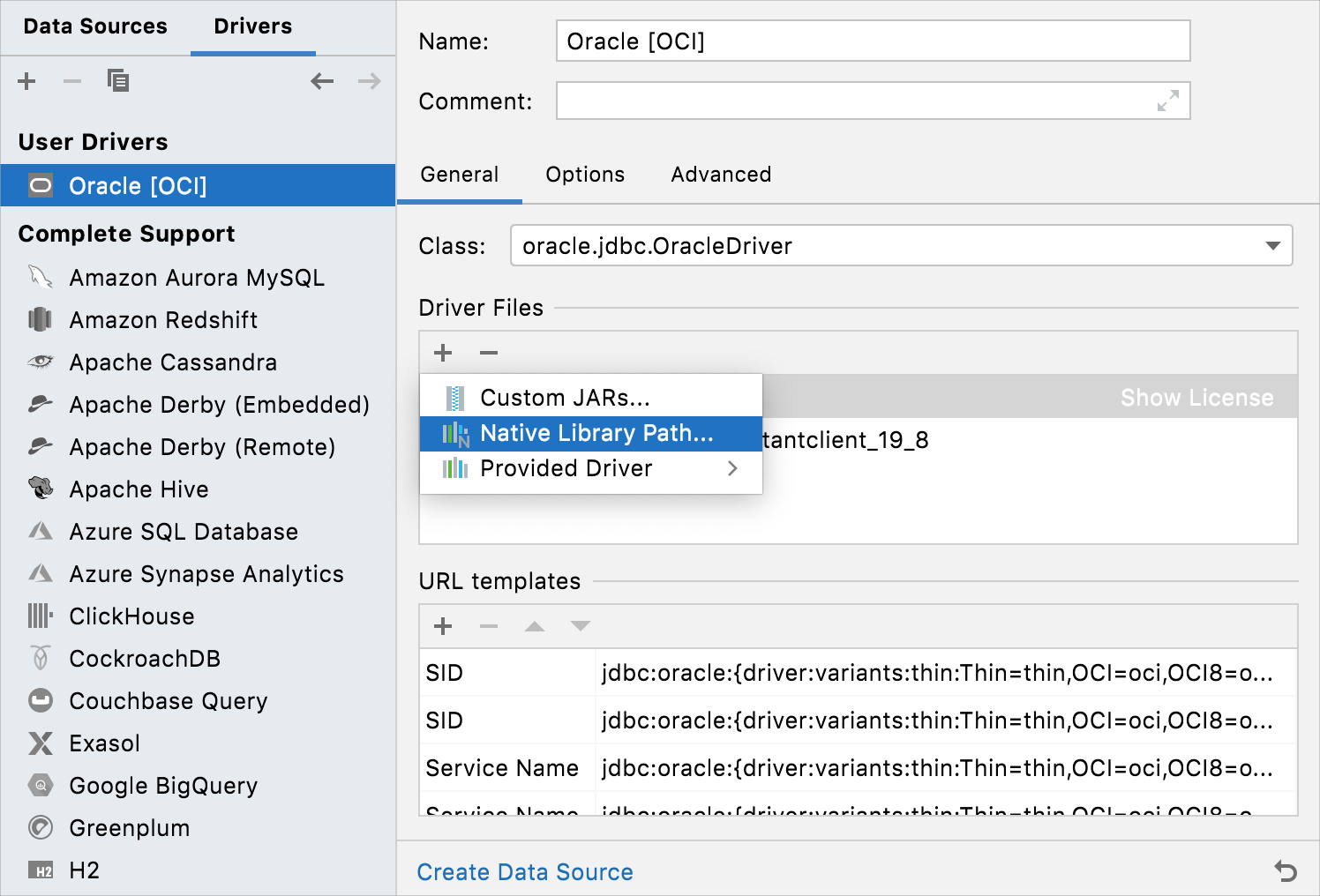

Step 1. Prepare a driver for the OCI connection
Open data source properties. You can open data source properties by using one of the following options:
In the Database tool window ( ) , click the Data Source Properties icon .
In the Data Sources and Drivers dialog, click the Drivers tab.
In the list of drivers, right-click the Oracle driver and select Duplicate.
Change the name of the duplicated Oracle driver (for example,
In the Driver Files pane, click the Add icon () and select Native Library Path….
In the file browser, navigate to the directory of the Instant Client created previously (for example, ~/Oracle/instantclient_19_8) and click Open.

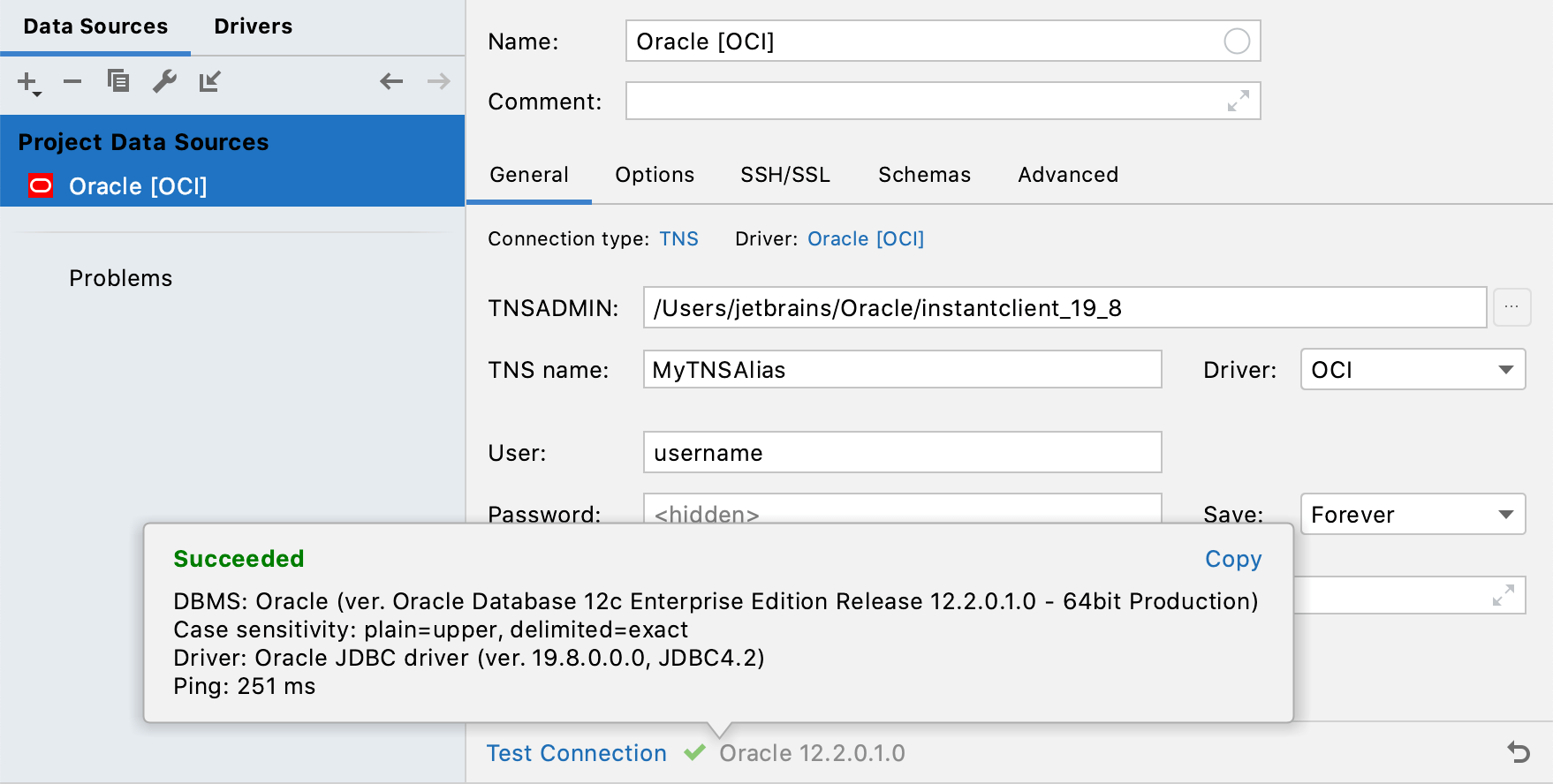

Step 2. Create the OCI connection
To connect to the database, create a data source that will store your connection details. You can do this using one of the following ways:
From the main menu, navigate to Oracle.and select
In the Database tool window ( ) , click the New icon () in the toolbar. Navigate to Data Source and select Oracle.
From the Connection type list, select TNS.
From the Driver list, select OCI.
Click the Driver link and select the driver entry that you created on Step 1.
In the TNSADMIN field, click the browse button and navigate to the directory with the Instant Client (in our case, ~/Oracle/instantclient_19_8/).
In the TNS name field, specify what service name to use (see a value of an alias in the tnsnames.ora file).
Specify credentials for the Oracle user.
Ensure that the connection to the database can be established using the provided details. To do that, click the Test Connection link at the bottom of the connection details area.
In case of any connection issues, refer to the Cannot connect to a database page.
(Optional) By default, only the default schema is introspected and available to work with. If you also want to work with other schemas, in the Schemas tab, select them for the introspection.
Click OK to create the data source.
Find your new data source in the Database tool window (Alt+1) .
For more information about the Database tool window, see the corresponding reference topic.
For more information about working with database objects in PhpStorm, refer to Database objects.
To write and run queries, open the default query console by clicking the data source and pressing F4.
To view data of a database object, open Data editor and viewer by double-clicking the object.
