Opening a Function or a Class in a New Tab

Opening in a new tab displays a new tab where the selected function or the particular class is a root of the call tree. The selected function's time is considered as 100% for this tab.

Opening a function in a new tab helps you:

  • Study the current function call and all its incoming and outgoing calls.
  • Merge all calls of the current function from different call stacks and study them.
  • Study the particular class and all its public functions.

To open a snapshot node in a new tab

  1. Select a snapshot node.
  2. Do one of the following:
    • On the menu bar, choose View | Open in New Tab | Open Current Method Instance.
    • Right-click the node, and choose Open Current Method Instance in the context menu.
    • Press Ctrl+T.

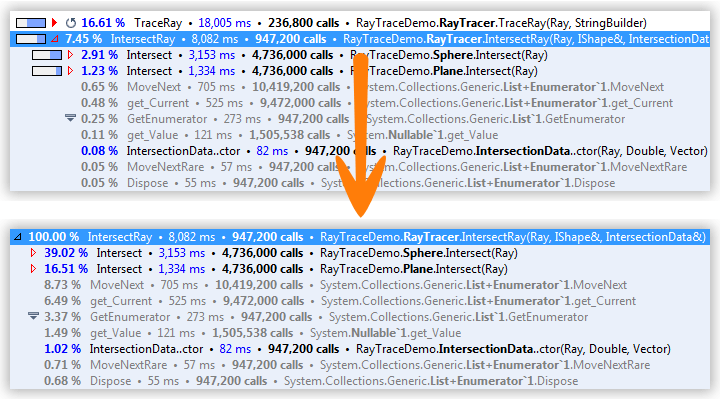

Studying Profiling Results Opening in a New Tab

To open a snapshot node and all its instances in a new tab

  1. Select a snapshot node.
  2. Do one of the following:
    • On the menu bar, choose View | Open in New Tab | Open All Method Instances Merged.
    • Right-click the node, and choose Open All Method Instances Merged in the context menu.
    • Press Ctrl+Shift+T.

To open a class and all its public methods in a new tab

  1. Select a snapshot node.
  2. Do one of the following:
    • On the menu bar, choose View | Open in New Tab | Open All Public Methods of Class.
    • Right-click the node, and choose Open All Public Methods of Class in the context menu.
    • Press Ctrl+Alt+T.
Last modified: 4 September 2018
