Remote Debugging with PyCharm

Introduction

What to do, if the interpreter you are going to use, is located on the other computer? Say, you are going to debug an application on Windows, but your favorite interpreter is located on Mac... With PyCharm, it's not a problem.

Before you start

Make sure that you have an SSH access to Mac computer!

Creating a project

On Windows, create a pure Python project, as described in the section Creating Pure Python Project.

In this tutorial, the project name is QuadraticEquation.

Preparing an example

Add a Python file to this project (Alt+Insert - Python File). Then, type the following code:

import math class Solver: def demo(self, a, b, c): d = b ** 2 - 4 * a * c if d > 0: disc = math.sqrt(d) root1 = (-b + disc) / (2 * a) root2 = (-b - disc) / (2 * a) return root1, root2 elif d == 0: return -b / (2 * a) else: return "This equation has no roots" if __name__ == '__main__': solver = Solver() while True: a = int(input("a: ")) b = int(input("b: ")) c = int(input("c: ")) result = solver.demo(a, b, c) print(result)

Using a remote interpreter

Configuring a remote interpreter on Windows

Note that any remote interpreter will do.

Click Ctrl+Alt+S to open the Settings dialog on the Windows machine (the whole process is described in the section Accessing Settings).

Next, click the Project Interpreter node. On this page, click the gear button (gear icon):

py gear button

Then choose the remote interpreter:

py remote interpreter choose

Next, in the Configure Remote Python Interpreter dialog box, click the Deployment Configuration radio-button:

py remote interpreter via deployment configuration

Then click the browse button (browseButton) next to the Deployment configuration field.

The Add server dialog box opens. There, enter the server name (let it be MySFTPConnection) and choose the server type from the drop-down list. Select SFTP to tell PyCharm to transfer files over the SSH connection. Next, the deployment settings dialog opens for MySFTPConnection. In the Connection tab, enter the following::

  • In the field Name, type the connection name. Here it's MySFTPConnection.
  • In the Type field, choose the connection type. Here it's SFTP.
  • In the SFTP host field, enter the address of your Mac computer (for example, IP).
  • Type user name on the Mac computer.
  • As the authentication type is set to Password, choose this option and enter your Mac password.

In general, it's recommended to use the default settings. The only setting worth checking is the check box Save password.

Next, click the Mapping tab. The Local path field is set by default. You have to specify the path on the server MySFTPConnection. To do that, click the browse button (browseButton) next to the Deployment path on server 'MySFTPConnection' field. The dialog box that opens shows the contents of your Mac computer:

py choose deployment path

Now your remote interpreter is ready.

Deploying your application to a remote host

Next, your application must be deployed to the remote host. Let's do it. On the Tools menu, point to Deployment node, and then choose Upload to MySFTPConnestion:

py deployment to sftp

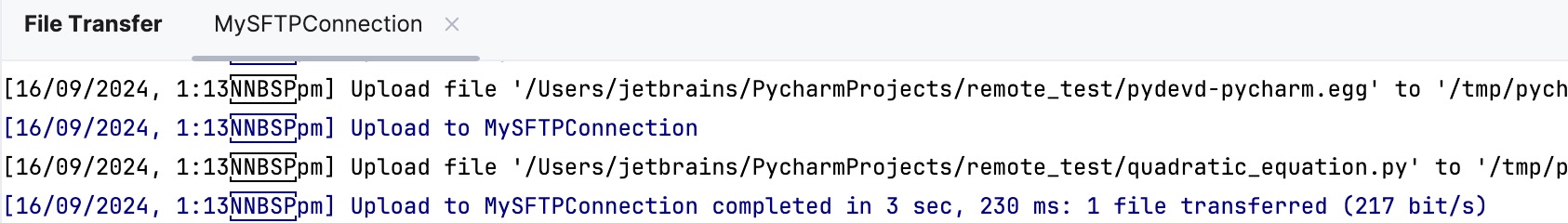

File Transfer tool window appears, with the balloon showing the number of transferred files.

Debugging your application

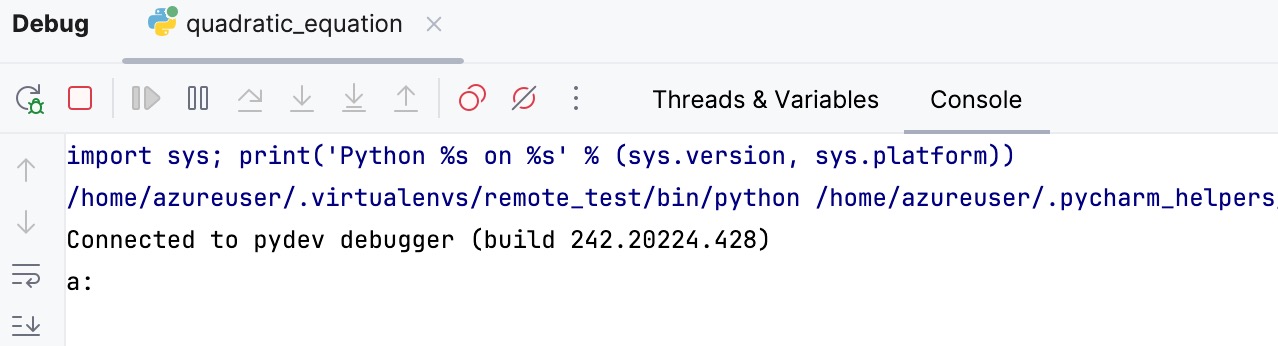

Now you are ready for debugging! Right-click the editor background and choose the Debug <name> (here Debug 'quadratic_equation').

Note that debugging actually takes place on the Mac computer!

py remote debugging using remote interpreter

Using the Python Remote Debug configuration

Let's do same not with the remote interpreter, as it has been done in the first part of this tutorial, but with the dedicated run/debug configuration, namely, Run/Debug Configuration: Python Remote Debug.

Creating run/debug configuration

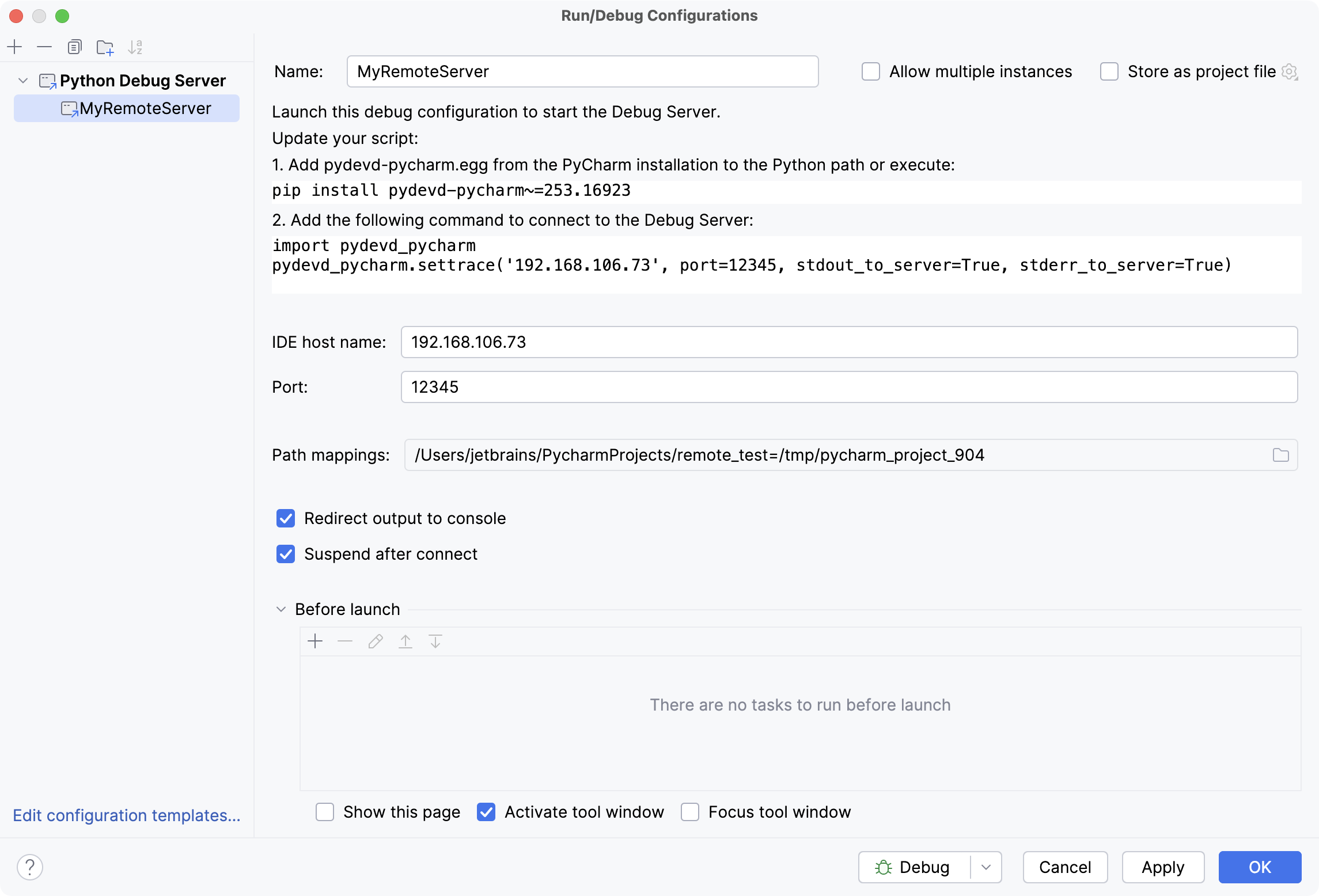

On the main menu, choose Run| Edit Configuration.... Run/Debug Configurations Dialog opens. You have to click add on the toolbar, and from the list of available configurations, select Python Remote Debug.

Enter the name of this run/debug configuration - let it be MyRemoteMac. Specify the port number (here 12345), and in the field Local host name change localhost to the IP address of the Windows computer.

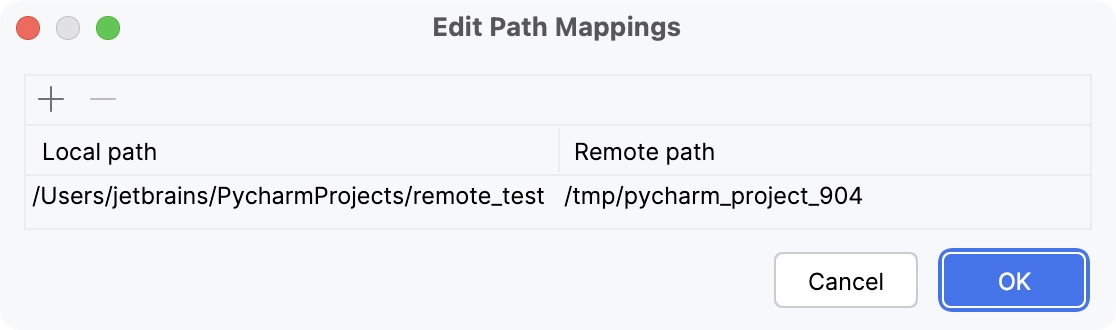

Don't forget to specify the path mappings! You have to map the local path on Windows to the remote path on Mac:

py path mapping in debug server

Then look at the dialog box. You see the message:

py message run config

Let's do what is suggested there and change the source code. First, let's copy the pycharm-debug-py3k.egg file to the project root. Second, let's change the quadratic_equation file as follows:

import math #==============this code added==================================================================================: import sys sys.path.append("pycharm-debug-py3k.egg") import pydevd pydevd.settrace('<address of the Windows machine>', port=12345, stdoutToServer=True, stderrToServer=True) #=============================================================================================================== class Solver: def demo(self, a, b, c): d = b ** 2 - 4 * a * c if d > 0: disc = math.sqrt(d) root1 = (-b + disc) / (2 * a) root2 = (-b - disc) / (2 * a) return root1, root2 elif d == 0: return -b / (2 * a) else: return "This equation has no roots" if __name__ == '__main__': solver = Solver() while True: a = int(input("a: ")) b = int(input("b: ")) c = int(input("c: ")) result = solver.demo(a, b, c) print(result)

Creating a SFTP connection

First, create the folder on Mac, where the file quadratic_equation.py should be uploaded. To do it, in the Terminal create the directory QuadraticEquation__:

mkdir QuadraticEquation__

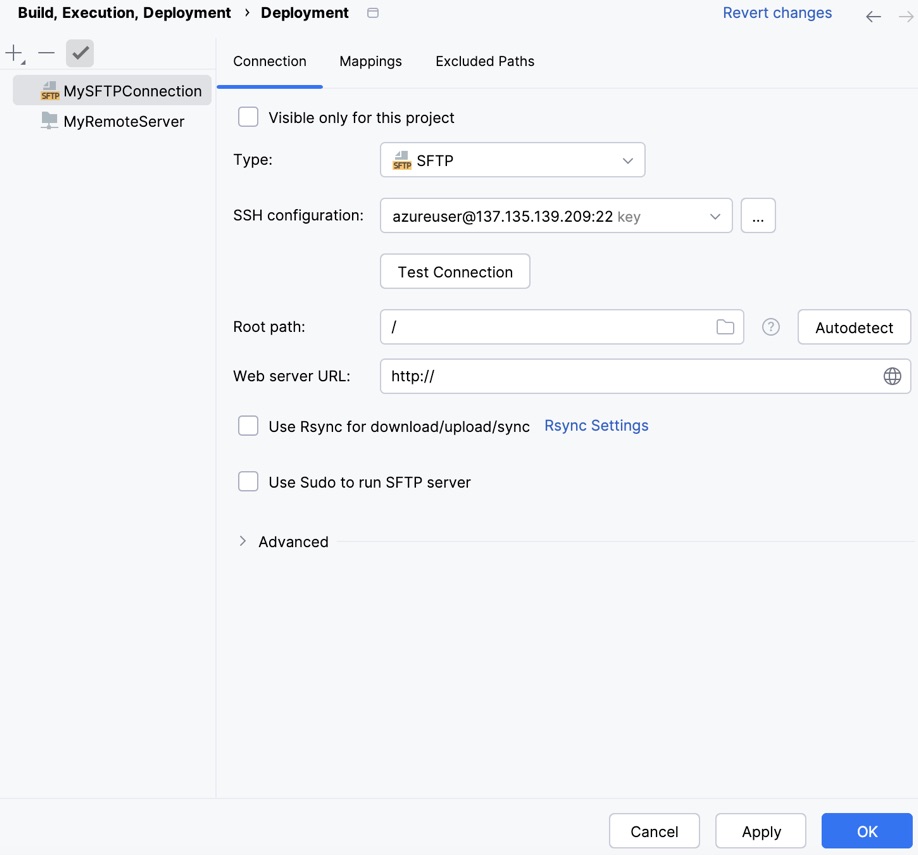

Now, considering that we should upload this code, let's create a connection profile. To do it, on the main menu, choose Tools | Deployment - Configuration.... In the dialog box that opens, click add, and in the Add Server dialog select the connection type (here SFTP) and enter its name (here MySFTPConnection.)

In the Connection tab, specify the SFTP host (address of the Mac computer), user name and password (for Mac).

Note that the user should have an SSH access to Mac computer!

Next, click Mappings tab, and enter the deployment path in server. The server is MySFTPConnection, so click the browse button and select the required folder. Note that the browse button shows the contents of Mac! Apply changes and close the dialog.

Deploying files to Mac

Next, you have to deploy the two files (copy of pycharm-debug-py3k.egg and quadratic_equation.py) from Windows to Mac.

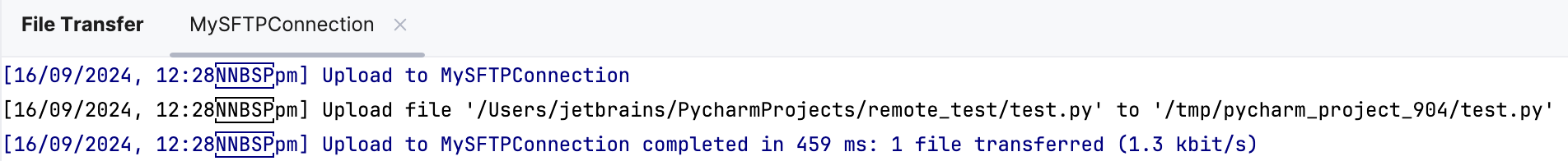

Then on Windows, in the Project Tool Window, select the two files (pycharm-debug-py3k.egg and quadratic_equation.py), right-click the selection and choose Upload to MySFTPConnection. The files from Windows will be uploaded to Mac, which is reflected in the File Transfer tool window:

py upload results

Launching the Debug Server

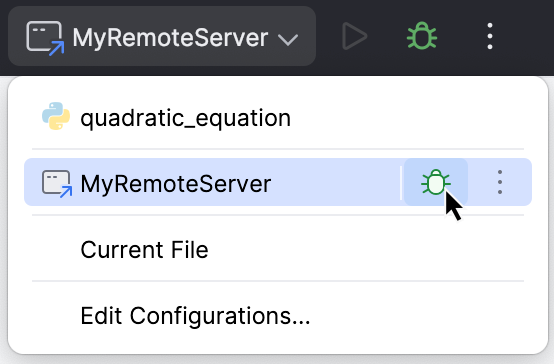

Choose the run/debug configuration created in the section Remote Debugging with PyCharm, and click debug:

py remote debug

The Debug Tool Window shows the Waiting for process connection.. message, until you launch your script on Mac, and this script will connect to the Debug Server.

Launching file on Mac

Next, you have to launch the quadratic_equation.py file on Mac. To do that, in the Terminal, enter the following command:

...$python3 quadratic_equation.py

Debugging on Windows

Now lo and behold! Your code on Windows shows the results of the inline debugging and hit breakpoint; the Debug tool window switches to the Debugger tab and shows the stepping toolbar, frames and variables with their values (entered on Mac):

py remote debug result

Note that the code is actually executed on Mac, but debugged on Windows!

Summary

In order to debug with a remote interpreter, you have to start your program through PyCharm, which is not always possible. On the other hand, when using the Debug Server, you can connect to a running process.

Compare the two approaches.

In the first case, we

In the second case, we

It's up to you to choose the way you debug your scripts.
