Project tool window

The Project tool window lets you take a look at your project from various viewpoints and perform different tasks such as creating new items (directories, files, classes, and so on), opening files in the editor, navigating to the necessary code fragments, and more.

Most of the functions in this tool window are accessed as context menu commands in the content pane and via associated shortcuts.

Also, the view contains the Scratches and Consoles folder that lets you manage created scratch files, database consoles, and extension scripts.

Views

The tool window has several views:

  • Project view. This view displays all the project items along with their dependencies (SDKs and libraries). The emphasis is on the directory structure, although the packages are also shown.

  • Scopes views (Project Files, Open Files, and so on). These views display the contents of the predefined and user-defined scopes. In other respects, depending on the currently selected view options, a scope view may resemble the Project view.

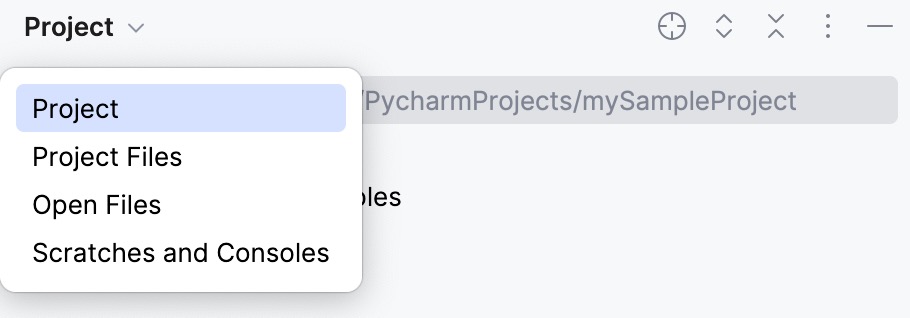

The necessary view is selected from the list in the left-hand part of the title bar or, if the views are represented by tabs, by clicking the corresponding tab.

project tool window views

To configure a view, use the corresponding options in the title bar context menu. The necessary options can also be accessed by clicking Settings on the title bar.

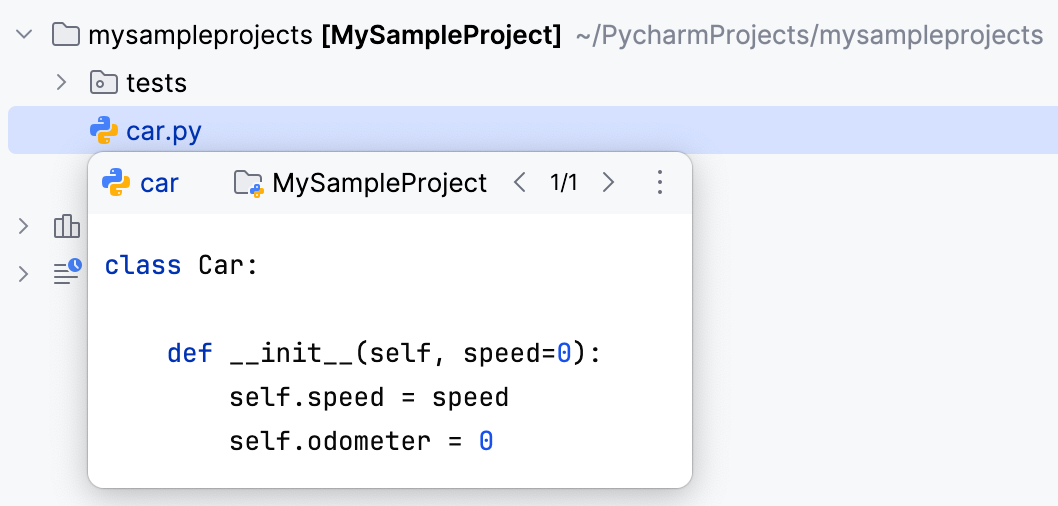

Preview files from the tool window

If you want to take a look at a file without opening it in a separate tab, you preview it in a popup. Select the necessary file in the Project tool window and press Space.

You can also use the preview tab to look through files without opening each file in a new tab.

Show tree indent guides

In the Project tool window, you can display vertical lines that mark indent levels and help you better understand the hierarchy of the components in your project. To display these lines, enable Show tree indent guides on the Appearance and Behavior | Appearance page of the Settings/Preferences Ctrl+Alt+S.

Title bar context menu

The context menu that appears by right-clicking the title bar or clicking Settings, provides settings for project views , viewing modes, as well as for switching between the views, resizing the tool window, and more .

The following table lists and briefly explains the available commands and options.

Item Shortcut Description

Select Next View or Tab

Select Previous View or Tab

Show List of Views or Tabs

 Alt+Right
Alt+Left
These are the commands for switching between different views.
Edit Scopes

Open the Scopes dialog in which you can create and edit used-defined scopes.

Note that this command is available only if the current view is a scope view.

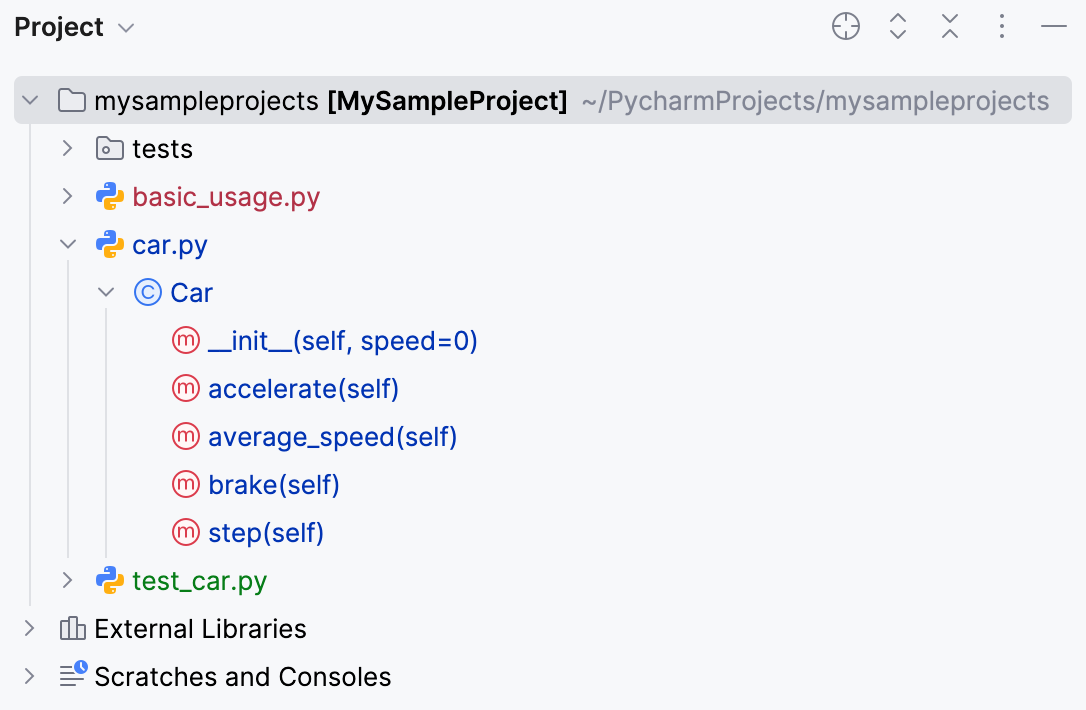

Show Members

If this option is on, the files in the tree that contain classes turn into nodes. When such node is unfolded, the contained classes with their fields, methods, and other members of the selected item are shown.

Show class members in the Project tool window
Open Files with Single Click If this option is on, PyCharm will automatically open the selected item in the editor. Otherwise, you need to double-click items to open them.
Always Select Opened File If this option is on, PyCharm automatically locates documents that you open in the editor in the current view of this window.
Sort by Type If the option is off, the items (files, classes, and so on) are sorted alphabetically. If the option is on, the files are sorted by their extensions.
Folders Always on Top If the option is on, folders are shown above the files. Otherwise, all items are sorted alphabetically, and files and folders appear intermixed.

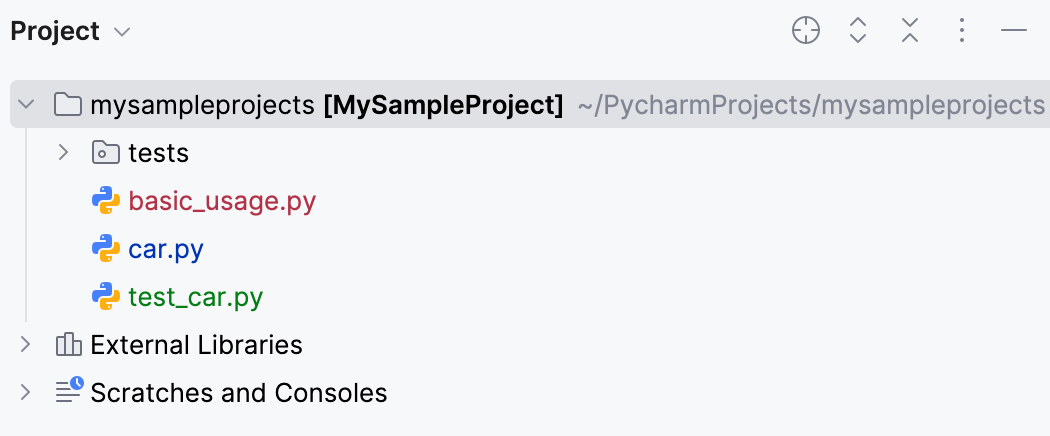

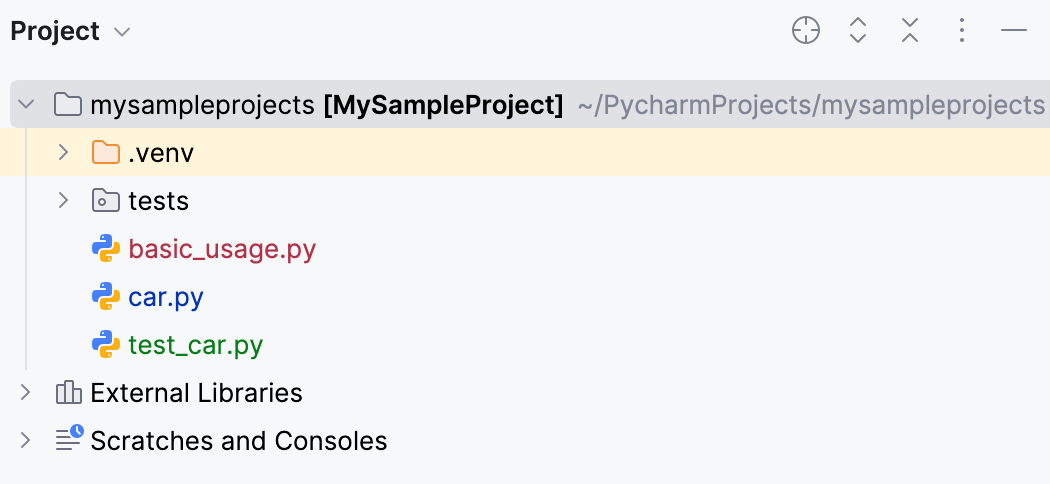

Show Excluded Files

This option is available only in the Project view.

Turn this option on or off to show or hide excluded folders and files.

File Nesting Opens the File nesting dialog where you can configure presentation of files that have same names but different extensions.

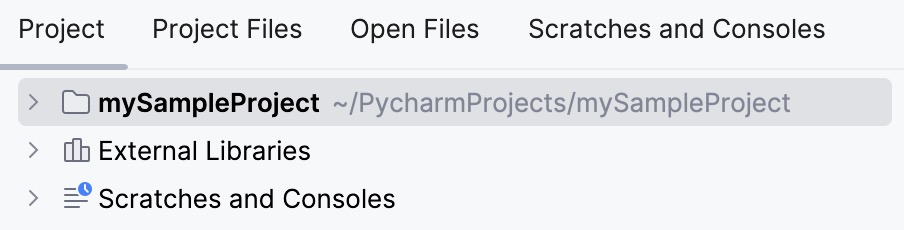

Group Tabs If this option is on, there is a list in the left-hand part of the title bar from which you can select the necessary view. If this option is off, the views are represented by tabs which appear in the left-hand part of the title bar.
show views as tabs
View Mode This option lets you control general appearance and behavior of the tool window. See Tool window view modes.
Move to To associate the tool window with a different tool window bar, select this command, and then select the destination tool window bar (Top, Left, Bottom or Right).
Resize

To resize the tool window by moving one of its borders, select this command, and then select the necessary Stretch to option.

Note that this command is not available for the floating mode.

Remove from Sidebar

This command hides the tool window, removes the associated tool window button from the tool window bar and removes the tool window from the quick access menu ( tb shown or tb hidden).

To open the tool window again (and restore the associated features), use the main menu: View | Tool Windows | <Window Name> or press Alt+1.

Hide Shift+Escape Hide the tool window.

Title bar buttons

Item Shortcut Description

Select Next View or Tab

Select Previous View or Tab

 Alt+Right
Alt+Left

If the views are currently shown as tabs (the Group Tabs option is off), this button appears to the right of the last visible tab.

Open the list of views, for example, to select a different view.

Select Opened File Navigate from a file in the editor to the corresponding node (file, class, field, method, and so on) in the Project tool window.

This icon is not available if the Always Select Opened File option is currently on.

collapse all Ctrl+NumPad - Collapse all the nodes.
settings

Open the menu for configuring the current view and changing the tool window viewing modes. The available options are a subset of the title bar context menu items.

Note that most of the menu items are options that you can turn on or off. An option which is on has a check mark to the left of its name.

Hide tool window Shift+Escape

Hide the tool windowShift+Escape.

To hide all the tool windows, press Ctrl+Shift+F12.

Content pane

The content pane shows the project items such as directories, files, and so on.

The icons for the main categories (node types) are shown and briefly explained in the following table. The icons used for the main symbols (classes, fields, methods, and so on.), visibility modifiers, and bookmarks are shown in Symbols.

Item Description
Package A package
Folder

A folder (directory). Different folder categories have different colors.

  • A plain folder a plain folder

  • Excluded root an excluded root

Library External Libraries, a category for grouping third party software associated with the project. The node is only shown when the Project view is selected.
Scratches and Consoles Your scratch files and consoles are grouped under this node.

Context menu commands for the content pane items

The context menu of an item provides access to all the functions available for this item.

Item Shortcut Description

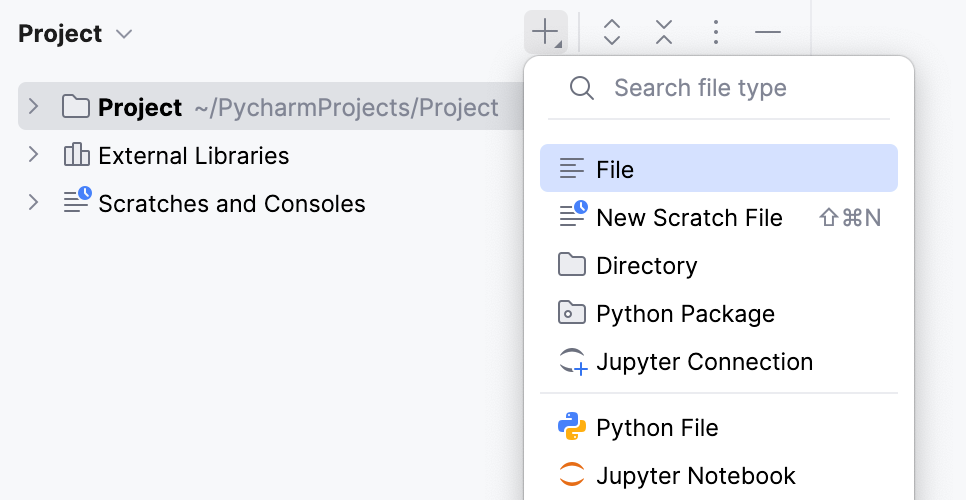

New Alt+Insert Create a new item (directory, file, or class) within the selected one. (project or directory).
Change Course Information

Choose this command to show the Change Course Information dialog, where you can change the course title, description and author.

Generate Course Archive

Choose this command to create a zip archive of your course in the specified location.

Upload Course to Stepic

Choose this command to share your course via Stepic. It is essential to have a Stepic account.

Cut Ctrl+X Move the selected item or items from the current location to the clipboard.
Copy

Use this command and one of the following options to copy the selected item(s) to the clipboard:

  • Copy (Ctrl+C): copies the selected item or items to the clipboard.

  • Copy as Plain Text: copies item as plain text.

  • Copy Path(Ctrl+Shift+C): copies the relative path(s) of the selected item or items to the clipboard.

  • Copy Reference (Ctrl+Alt+Shift+C): copies the reference of the selected item including the line number.

  • Absolute Path: copies the full path(s) of the selected item or items to the clipboard.

  • File Name: copies only the filename to the clipboard.

  • Path from Content Root: copies the full path of the directory that contains the application content files.

  • Toolbox URL: if you have PyCharm toolbox installed, you can insert the copied path in the browser to open the toolbox with the selected project.

Paste Ctrl+V Insert the contents of the clipboard into the selected location.
Jump to Source F4 Open the selected file in the editor. If the file is already open, the corresponding editor tab will become active.
Find Usages Alt+F7 Search for the usages of the selected item. (The Find Usages dialog will open.)
Find in Files Ctrl+Shift+F Perform a text search. (Find in Files dialog will open.)
Replace in Files Ctrl+Shift+R Perform text search-and-replace. (Replace in Path dialog will open.)
Refactor

Perform one of the refactorings available for the selected item.

For example, you can rename, move and copy files and directories.

Add to Favorites Alt+Shift+F Add the selected item to an existing or new list of favorite items.
Show Thumbnails View thumbnails for image files located in the selected directory. (The Thumbnails tool window will open.)
Reformat Code Ctrl+Alt+L

Reformat the source code in the selected file or in all files in the current directory. (The Reformat Code dialog will open.)

See also, Reformat and rearrange code.

Delete Delete

Delete the selected item. Use with care!

Run '<item_name>' Ctrl+Shift+F10 Run a test configuration.
Debug '<item_name>' Ctrl+Shift+D Debug a test configuration.
Run '<item_name>' with Coverage Use this command to run a test configuration with coverage.py. To enable Coverage, select the Use bundle coverage.py checkbox in Settings/Preferences | Build, Execution, Deployment | Coverage.
Profile '<item_name>' With this command you can attach a Python profiler to the current run/debug configuration.
Concurrency Diagram for '<item_name>' With this command you can run the concurrency visualization session with the current run/debug configuration.
Local History View local history for the selected file or directory, or to create a label for the current version of your project.
Synchronize '<item_name>'

Synchronize the view in the tool window with the view saved in the file system.

If you change a file or directory contents externally, PyCharm, under certain circumstances, may not be aware of the corresponding changes unless you use this command.

Open in Right Split Split the editor into two parts and show the file in the right section. For more information, refer to Split screen.
Open in Open a file in your system file manager or in Terminal.
Open in terminal Use this command to open the directory corresponding to the selected item in the terminal.
File Path / Directory Path Ctrl+Alt+F12

This menu shows the path from the file system root to the selected element with individual directories as the menu items.

When you select an item in this menu (for example, a directory), a file browser (for example, Windows Explorer or Finder) opens, and the selected item is shown there.

Compare With Ctrl+D Compare the selected file or directory with another file or directory. See Compare files, folders and text sources and Differences viewer for folders.
Compare File with Editor Compare the selected file with the file open on an active editor tab. See Compare files, folders and text sources and Differences viewer for files.
Mark Directory As Make the selected directory a source root or a test source root , to make the directory excluded, and so on.

The necessary category for the directory is selected from the submenu.

For more information on the categories for directories, see Content root.

Diagrams Ctrl+Alt+Shift+U or Ctrl+Alt+U Open a diagram (for example, a UML diagram) for the selected item.
Create Gist Use this command to share code by using gists.

File status highlights

If VCS integration is enabled for the current project, PyCharm uses colors to denote VCS file status in the Project tool window. The following table presents information about the meaning of the colors.

Color File Status Description
Color sample: dark green #0A7700 Added The file in the active changelist is scheduled for addition to the repository.
Color sample: green #0EAA00 Added in not active changelist The file in an inactive changelist is scheduled for addition to the repository. This file status is available if the Highlight files from non-active changelists option is enabled in Settings/Preferences | Version Control | Changelists.
Color sample: red #FF0000 Changelist conflict The file in an inactive changelist has been modified in the active changelist. In this case, a new dialog will open prompting you to resolve the changelist conflict. This file status is available if all options are enabled in Settings/Preferences | Version Control | Changelists.
Color sample: dark green #0A7700 Copied If a file is a copy of another file, its metadata is tracked, and such a file is marked as copied.
Color sample: grey #616161 Deleted The file is scheduled for deletion from the repository.
Color sample: dull purple #773895 Deleted from file system The file has been deleted locally, but hasn't been scheduled for deletion, and it still exists in the repository.
Color sample: light grayish blue #8AA4C8 Have changed descendants If a file is modified, the IDE will recursively highlight all directories containing that file. This status is available if the Show directories with changed descendants option is enabled in Settings/Preferences | Version Control.
Color sample: bright blue #3264B4 Have immediate changed children If a file is modified, the IDE will highlight its parent directory. This status is available if the Show directories with changed descendants option is enabled in Settings/Preferences | Version Control.
Color sample: light brown #B28C00 Hijacked [Perforce, ClearCase, VSS] The file is modified without checkout.
Color sample: dark olive #727238 Ignored A file is intentionally untracked by VCS.
Color sample: purple #7503DC Merged The file is merged by your VCS as a result of an update.
Color sample: red #FF0000 Merged with conflicts During the last update, the file has been merged with conflicts.
Color sample: red #FF0000 Merged with property conflicts During the last update, the IDE has detected differences between the properties of the local file and its server version.
Color sample: red #FF0000 Merged with text and property conflicts Text and property conflicts happen when two or more developers modify the same lines of a file and the same file properties.
Color sample: bright navy #0032A0 Modified The file has changed since the last synchronization.
Color sample: blue #0047E4 Modified in not active changelist The file in an inactive changelist has been modified. This file status is available if the Highlight files from non-active changelists option is enabled in Settings/Preferences | Version Control | Changelists.
Color sample: Olive #7C7C00 Obsolete The file should no longer be in your working copy of the repository.
Color sample: teal #007C7C Renamed Since the last update, the file has been renamed.
Color sample: dark cyan #08978F Switched [SVN] The file is taken from a different branch than the whole project.
Color sample: brown #993300 (Unknown) Unversioned The file exists locally, but is not in the repository, and is not scheduled for addition.
Color sample: black None (default color) Up to date The file hasn't been changed.
Color File Status Description
Color sample: dull green #629755 Added The file in the active changelist is scheduled for addition to the repository.
Color sample: dull green #629755 Added in not active changelist The file in an inactive changelist is scheduled for addition to the repository. This file status is available if the Highlight files from non-active changelists option is enabled in Settings/Preferences | Version Control | Changelists.
Color sample: dull red #D5756C Changelist conflict The file in an inactive changelist has been modified in the active changelist. In this case, a new dialog will open prompting you to resolve the changelist conflict. This file status is available if all options are enabled in Settings/Preferences | Version Control | Changelists.
Color sample: green #0A7700 Copied If a file is a copy of another file, its metadata is tracked, and such a file is marked as copied.
Color sample: grey #6C6C6C Deleted The file is scheduled for deletion from the repository.
Color sample: dull purple #6C6C6C Deleted from file system The file has been deleted locally, but hasn't been scheduled for deletion, and it still exists in the repository.
Color sample: light blue #6897BB Have changed descendants If a file is modified, the IDE will recursively highlight all directories containing that file. This status is available if the Show directories with changed descendants option is enabled in Settings/Preferences | Version Control.
Color sample: light blue #6897BB Have immediate changed children If a file is modified, the IDE will highlight its parent directory. This status is available if the Show directories with changed descendants option is enabled in Settings/Preferences | Version Control.
Color sample: white None (default color) Hijacked [Perforce, ClearCase, VSS] The file is modified without checkout.
Color sample: light olive #848504 Ignored A file is intentionally untracked by VCS.
Color sample: light purple #9876AA Merged The file is merged by your VCS as a result of an update.
Color sample: dull red #D5756C Merged with conflicts During the last update, the file has been merged with conflicts.
Color sample: dull red #D5756C Merged with property conflicts During the last update, the IDE has detected differences between the properties of the local file and its server version.
Color sample: dull red #D5756C Merged with text and property conflicts Text and property conflicts happen when two or more developers modify the same lines of a file and the same file properties.
Color sample: light blue #6897BB Modified The file has changed since the last synchronization.
Color sample: light blue #6897BB Modified in not active changelist The file in an inactive changelist has been modified. This file status is available if the Highlight files from non-active changelists option is enabled in Settings/Preferences | Version Control | Changelists.
Color sample: white None (default color) Obsolete The file should no longer be in your working copy of the repository.
Color sample: strong cyan #3A8484 Renamed Since the last update, the file has been renamed.
Color sample: white None (default color) Switched [SVN] The file is taken from a different branch than the whole project.
Color sample: soft red #D1675A (Unknown) Unversioned The file exists locally, but is not in the repository, and is not scheduled for addition.
Color sample: white None (default color) Up to date The file hasn't been changed.
Color File Status Description
Color sample: green #62CC47 Added The file in the active changelist is scheduled for addition to the repository.
Color sample: green #62CC47 Added in not active changelist The file in an inactive changelist is scheduled for addition to the repository. This file status is available if the Highlight files from non-active changelists option is enabled in Settings/Preferences | Version Control | Changelists.
Color sample: dull red #FF6666 Changelist conflict The file in an inactive changelist has been modified in the active changelist. In this case, a new dialog will open prompting you to resolve the changelist conflict. This file status is available if all options are enabled in Settings/Preferences | Version Control | Changelists.
Color sample: green #62CC47 Copied If a file is a copy of another file, its metadata is tracked, and such a file is marked as copied.
Color sample: orange #ED864A Deleted The file is scheduled for deletion from the repository.
Color sample: orange #ED864A Deleted from file system The file has been deleted locally, but hasn't been scheduled for deletion, and it still exists in the repository.
Color sample: vivid cyan #4FF0FF Have changed descendants If a file is modified, the IDE will recursively highlight all directories containing that file. This status is available if the Show directories with changed descendants option is enabled in Settings/Preferences | Version Control.
Color sample: vivid cyan #4FF0FF Have immediate changed children If a file is modified, the IDE will highlight its parent directory. This status is available if the Show directories with changed descendants option is enabled in Settings/Preferences | Version Control.
Color sample: white None (default color) Hijacked [Perforce, ClearCase, VSS] The file is modified without checkout.
Color sample: light olive #A9B837 Ignored A file is intentionally untracked by VCS.
Color sample: light purple #ED94FF Merged The file is merged by your VCS as a result of an update.
Color sample: dull red #FF6666 Merged with conflicts During the last update, the file has been merged with conflicts.
Color sample: dull red #FF6666 Merged with property conflicts During the last update, the IDE has detected differences between the properties of the local file and its server version.
Color sample: dull red #FF6666 Merged with text and property conflicts Text and property conflicts happen when two or more developers modify the same lines of a file and the same file properties.
Color sample: vivid cyan #4FF0FF Modified The file has changed since the last synchronization.
Color sample: vivid cyan #4FF0FF Modified in not active changelist The file in an inactive changelist has been modified. This file status is available if the Highlight files from non-active changelists option is enabled in Settings/Preferences | Version Control | Changelists.
Color sample: white None (default color) Obsolete The file should no longer be in your working copy of the repository.
Color sample: vivid cyan #4FF0FF Renamed Since the last update, the file has been renamed.
Color sample: white None (default color) Switched [SVN] The file is taken from a different branch than the whole project.
Color sample: soft red D1675A (Unknown) Unversioned The file exists locally, but is not in the repository, and is not scheduled for addition.
Color sample: white None (default color) Up to date The file hasn't been changed.
Last modified: 12 January 2021
NPM tool window File nesting dialog
