Get Started with Version Control

JetBrains Rider includes a full-fledged VCS client that supports all major version control systems. Let's take Git as an example and walk through basic VCS features — we'll create a local Git repository for our solution, start tracking changes in our code, and then associate it with a remote repository so that our solution becomes available to other contributors.

Step 1. Get Git

If you have ever worked with Git on your machine, you can skip this step — Git is already installed and Rider will find it automatically.

Otherwise, download Git from the official page (https://git-scm.com/downloads) and run the installer.

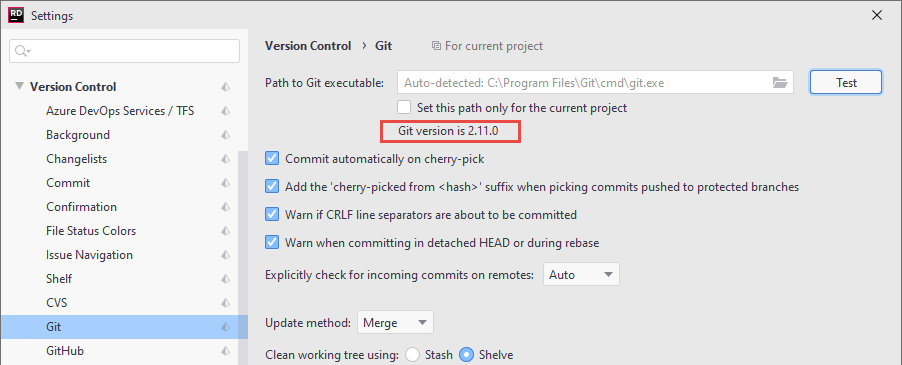

To be sure that Rider has found the Git executable, go to the Version Control | Git page of JetBrains Rider settings Ctrl+Alt+S In most cases, you will see the detected path, but if your system environment is customized and the Git path is empty, specify the path manually. Once you have the correct path, click Test:

JetBrains Rider: Checking the status of Git executable

Step 2. Create a Git repository

To version your solution with Git, you need to create a Git repository at the root directory of your solution. JetBrains Rider can do that for you.

  1. Choose VCS | Enable Version Control Integration from the menu.

  2. Select Git as the version control system and click OK.

    JetBrains Rider: Enabling Git integration

  3. After VCS integration is enabled, JetBrains Rider will ask you whether you want to share the project settings files via VCS. You can choose Always Add to synchronize project settings with other repository users who work with JetBrains Rider.

    Notification prompting to select how to treat configuration files
    For more information, see Sharing directory-based settings.

Step 3. Decide what you want to version

As soon as your solution is associated with a Git repository, you can start versioning your code.

  1. The first place to go is the Local Changes tab of the Version Control window Alt+9. You will see all your project files under Unversioned Files.

  2. Group the files by directory to visualize your directory structure.

    JetBrains Rider VCS: Grouping unversioned files by directory

  3. Ignore files and directories that you don't want to version. These normally include bin and obj project directories as well as DotSettings.user file with user-specific settings.

    Git lets you list ignored file patterns in .gitignore files in the VCS root directory and its subdirectories. If there is no .gitignore file in the VCS root directory, you can switch the Explorer window to the File System view, right-click the root node, choose Add | File and type .gitignore in the New File dialog.

    JetBrains Rider: .gitignore in the project root

    Now when you have .gitignore in the VCS root, you can right-click any unversioned file or folder that you want to ignore and choose Git | Add to .gitignore:

    JetBrains Rider: adding files to .gitignore
  4. It is recommended to version — that is, not to ignore — the .gitignore files and the project settings files that you see under the .idea directory.

Step 4. Commit your changes

Unversioned files are not tracked. To log the addition of a new file in Git, you need to add the file (or, using the Git terms, to stage it) and then to commit it to the repository. In Rider, you can do these two things as one command — that is, you can commit unstaged files — but we'll do it with two separate commands to better understand file states.

  1. Right-click a file or directory that you want to stage (in our case it's the entire Unversioned Files node) and choose Add to VCS from the context menu.

  2. Notice the change of the file color. Brown means unstaged, green means newly staged for commit.

  3. Now when all the files are staged, click Commit or press Ctrl+Shift+Alt+K — this will log the snapshot of the current solution state in Git and we'll be able to return to this snapshot at any time in the future.

  4. In the dialog that opens, review the committed items and provide a meaningful commit message.

  5. Click Commit in the dialog. You will see that there is no more untracked changes - everything is saved it your Git repository.

Step 5. Tracking changes

When your code is under a VCS, you can always see what and how is changing.

  1. Make an edit and you will notice a blue gutter mark notifying you that the line is changed.

  2. Click the gutter mark to see what was different before the change. You can click Rollback Lines to revert the edit.

    JetBrains Rider: Viewing VCS changes in the editor

  3. All tracked and modified files will appear in blue in the Local Changes tab of the Version Control window. You can open the diff preview and check changes for the selected file.

  4. If you are happy with the changes, click Commit or press Ctrl+Shift+Alt+K. You can review your changes once again right in the Commit Changes dialog.

  5. You can find all your commits in the Log tab of the Version Control window.

  6. When you select a commit in the history, you will see its details and all files changed in this commit. You can also pick Show Diff Ctrl+D from the context menu of a file to see what exactly was changed in this file.

Step 6. Distributed storage

We have now set up our Git repository locally and this already allows us to study the history of changes and revert to any of the committed states.

But to get the most out of Git, your local repo should be associated with a remote repo, also called origin. This will additionally allow you to keep your code and its history safe if the local repo is damaged, and most importantly, to collaborate with others working on the same project.

Let's use GitHub — arguably the most popular Git hosting service — to create a remote repo for our example.

  1. Log in to github.com (you can create a free account if you don't have one) and switch to the Repositories view.

  2. Click New, specify any name for you repo, and then click Create Repository.

    Creating a new repository on GitHub

  3. When the repo is created, you will see its URL. Click the button next to it to copy it to the clipboard.

  4. Going back to Rider, choose VCS | Git | Remotes from the menu and add a new remote using the GitHub URL you copied.

  5. Choose VCS | Git | Push from the menu or press Ctrl+Shift+K. In the dialog that opens, you can see the list of commits you've done so far. Click Push in the dialog to transfer them to the remote.

  6. As soon as you provide your GitHub credentials, your commits will be pushed to the remote repo that we've just created on GitHub.

Now you can use the GitHub repository URL to access your code from other machines and to share your project with others.

Last modified: 18 October 2019
