JetBrains Rider 2024.1 Help

Languages and frameworks: OpenAPI

An OpenAPI Specification (OAS) is a description format for REST APIs. Swagger is a set of tools based on this specification for writing, documenting, and consuming REST APIs. For more information, refer to Swagger documentation.

JetBrains Rider provides coding assistance for OpenAPI definitions in YAML and JSON files, and integration with Swagger Codegen for generating server stubs, client libraries (SDKs), and documentation based on your OpenAPI specification.

You can use the Endpoints tool window to see all endpoints defined in your OpenAPI specifications.

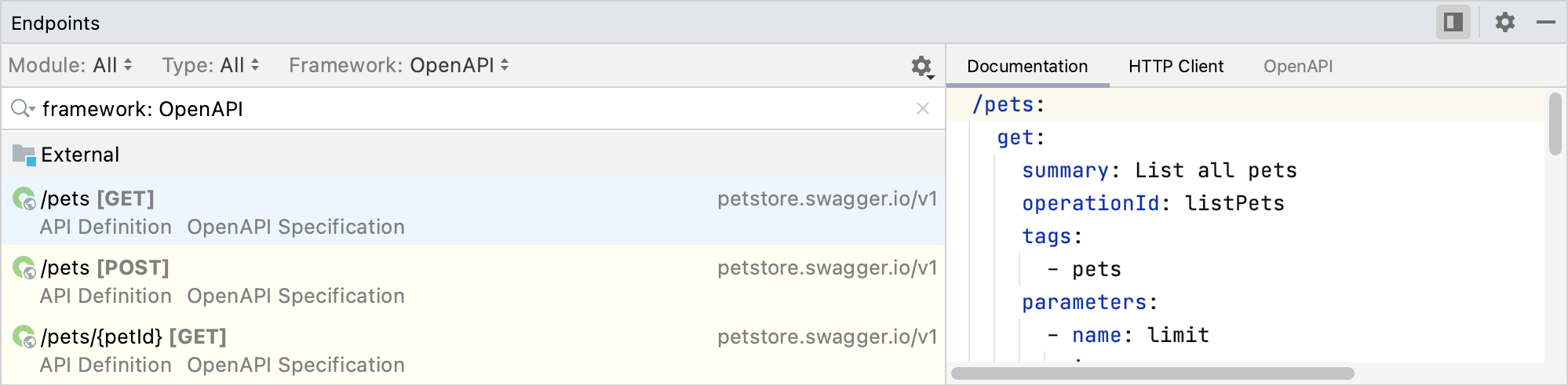

Endpoints from an OpenAPI specification

Additionally, you can create HTTP requests to defined endpoints right from an OpenAPI Specification and execute them via the built-in HTTP Client.

Create an OpenAPI specification

JetBrains Rider recognizes a dedicated OpenAPI Specification file type with relevant coding assistance. These are regular YAML or JSON files with the definition of the OpenAPI specification version.

Create an OpenAPI Specification manually

  1. In the Project tool window, press Alt+Insert and select OpenAPI Specification from the context menu.

  2. Specify a name for the file and select the specification version and file format.

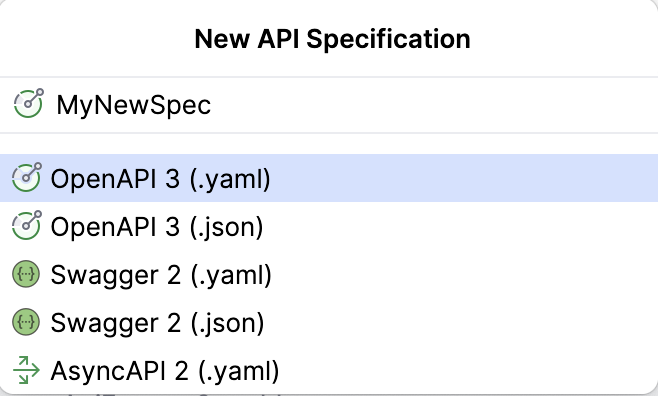

    New OpenAPI specification

In an OpenAPI specification opened in the editor, use the Add icon gutter icons to quickly add specification sections.

OpenAPI gutter icons

You can disable the Add icon gutter icon in the IDE settings, under Languages & Frameworks | OpenAPI Specifications using the Gutter icons for quick specification edits checkbox.

Depending on the format and version, the new OpenAPI specification file contains the following template:

openapi: 3.0.0 info: title: Title description: Title version: 1.0.0 servers: - url: 'https' paths:
{ "openapi": "3.0.0", "info": { "title": "Title", "description": "Title", "version": "1.0.0" }, "servers": [ { "url": "https" } ], "paths": { } }
swagger: "2.0" info: title: Title description: Title version: 1.0.0 host: www schemes: - https paths:
{ "swagger": "2.0", "info": { "title": "Title", "description": "Title", "version": "1.0.0" }, "host": "www", "schemes": [ "https" ], "paths": { } }

If you start with an empty YAML or JSON file, you can type opnp or swag and press Tab to insert the corresponding live template.

Reference a definition from a separate file

With OpenAPI 3.0, you can reference a definition hosted on any location using the $ref keyword. JetBrains Rider provides you with path completion, validation, and quick navigation. For completion, JetBrains Rider understands the context of the current file and of external files, and suggests using pointers to relevant elements.

  1. Enter the $ref keyword.

  2. Start typing the path to the external definition.

You can press Ctrl+B to quickly navigate to the file and element you refer to.

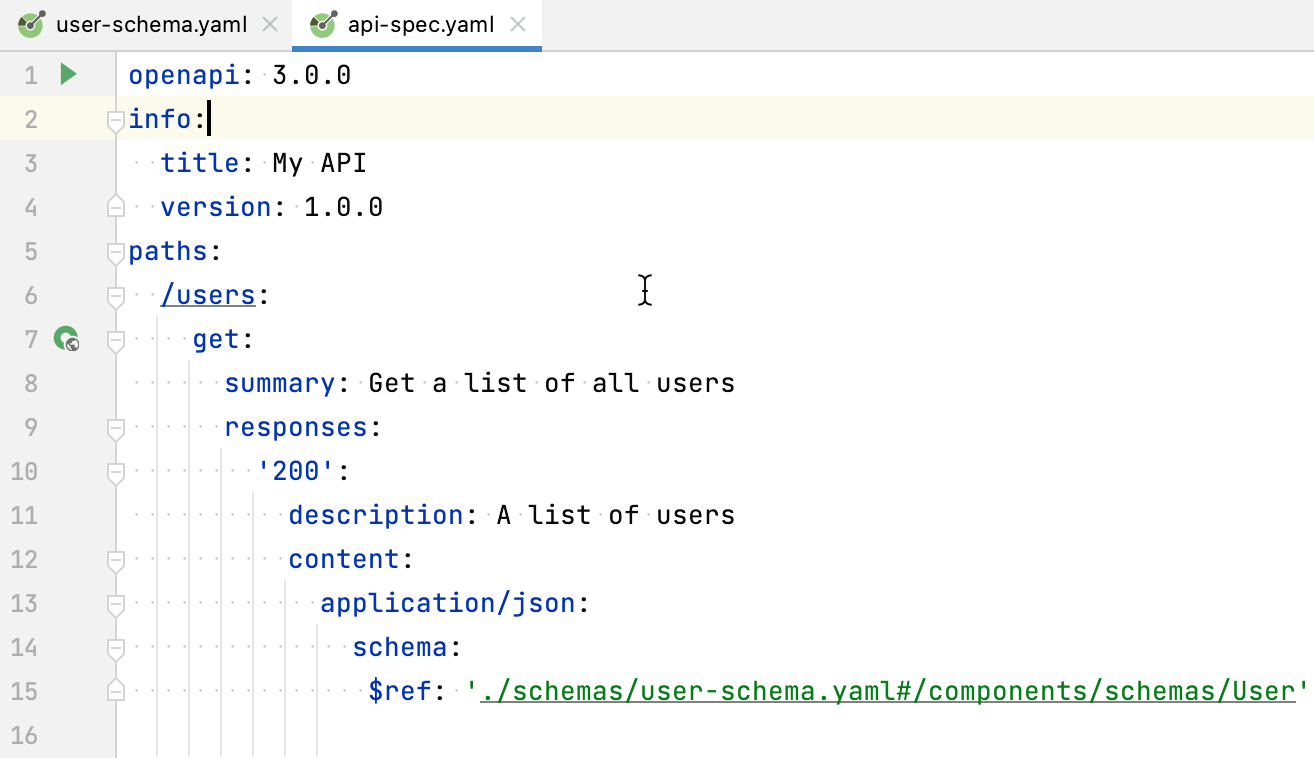

OpenAPI use ref

Preview an OpenAPI specification

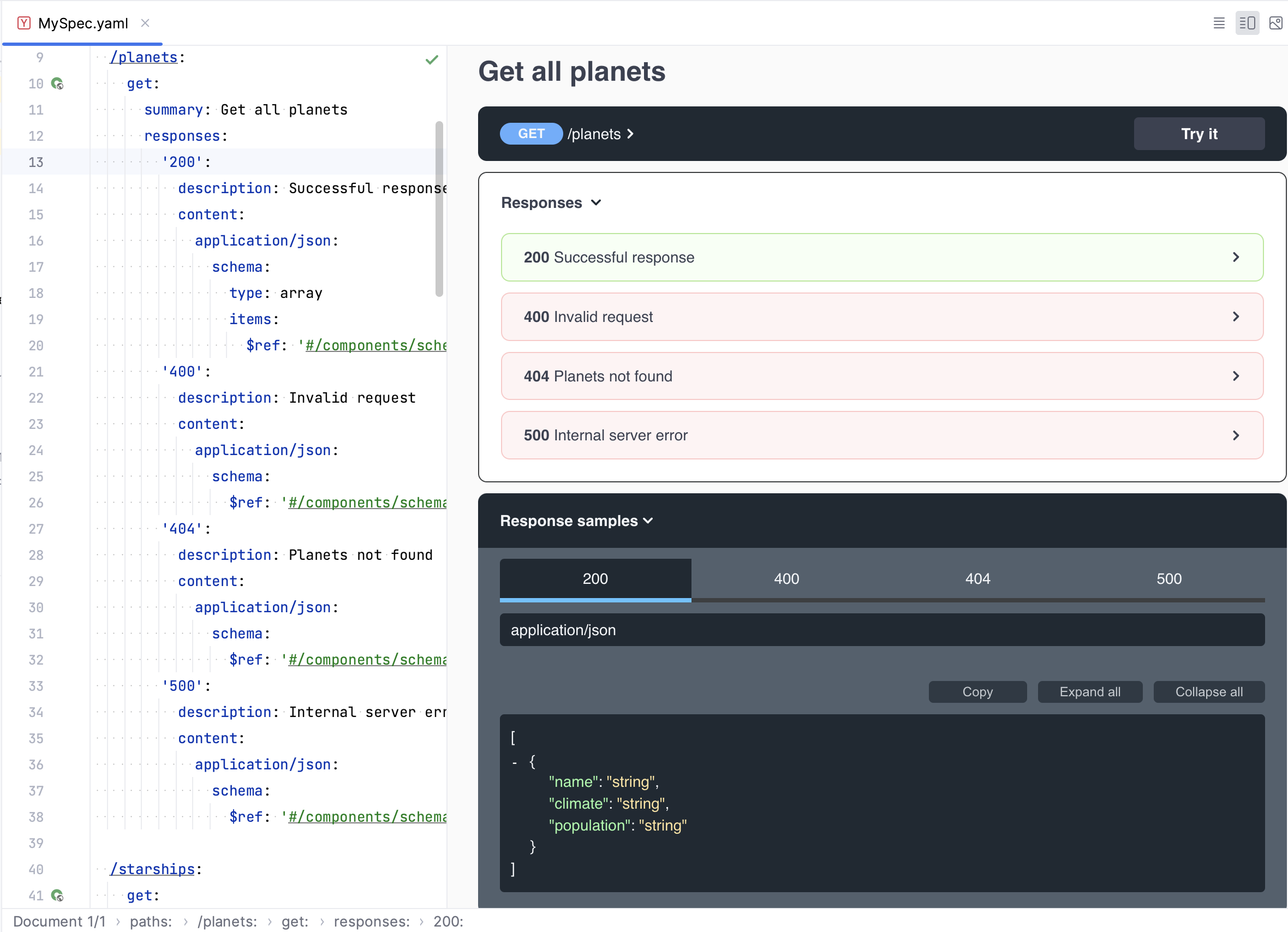

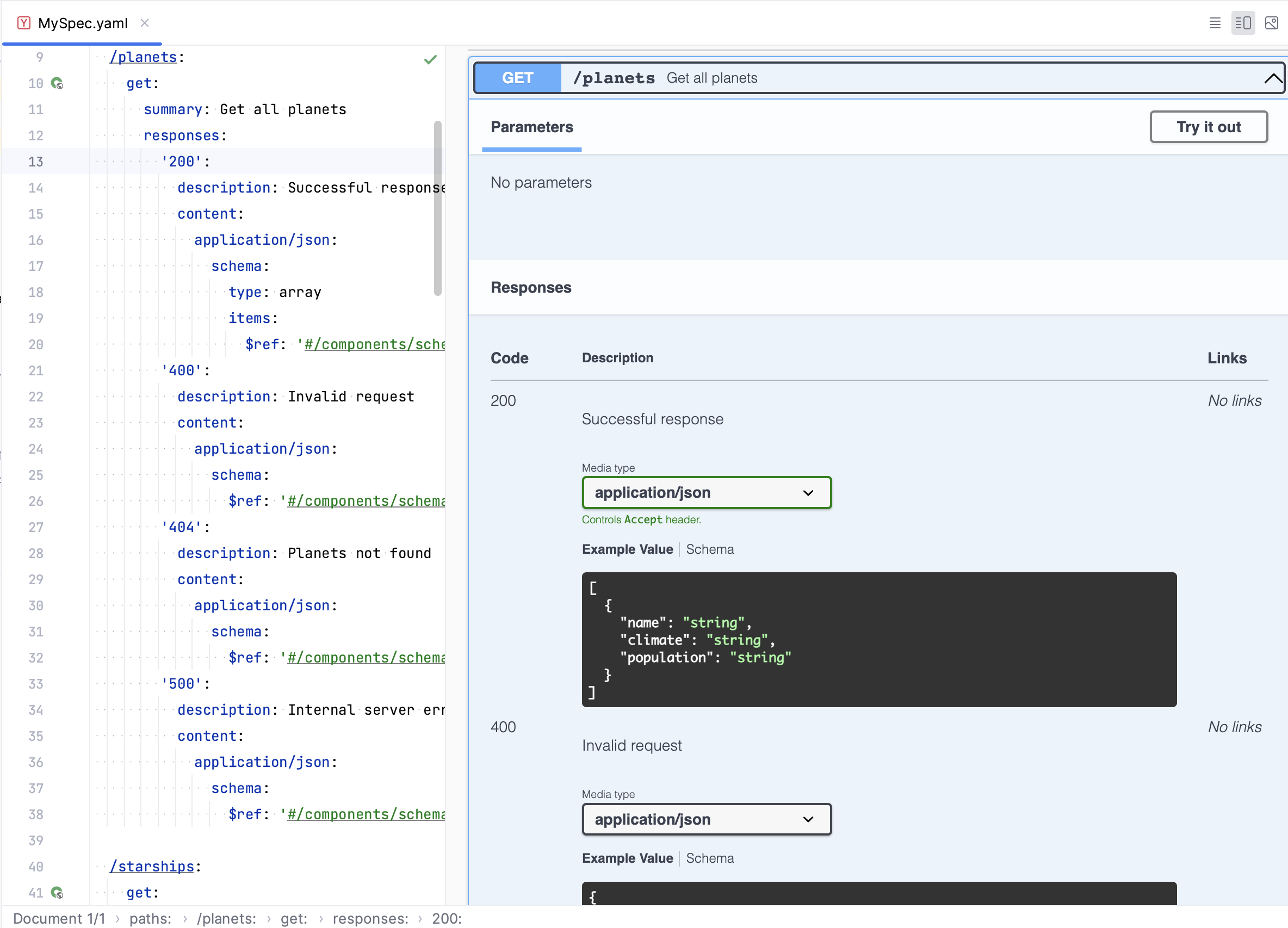

You can preview an OpenAPI specification using the integrated Swagger UI or Redoc UI. When an OpenAPI specification file is opened in the editor, use the Open Editor Preview button and the Editor only button in the top-right corner to show or hide the preview.

To switch between Swagger UI and Redoc UI, hover over the preview area and click Switch View.

Swagger Preview
Swagger Preview

Split editor and preview horizontally

By default, the editor and the preview are split vertically (side by side), which is convenient for wide monitors. You can also split it horizontally, so that the preview is displayed in the lower part of the editor, which is more convenient for portrait displays.

  1. In the top-right corner of the editor, click the Open Editor Preview button to open the Editor Preview pane.

  2. Click the Open Editor Preview button to split the editor and the preview horizontally.

Add a remote OpenAPI specification

Endpoint URLs that you define in OpenAPI specifications in your project are available for code completion. If you are writing client code for an external specification, there is no need to add it as a file to your project for auto-completing endpoint URLs. You can add a link to the relevant remote specification.

  1. In the Settings/Preferences dialog (Ctrl+Alt+S) , select Languages & Frameworks | OpenAPI Specifications.

  2. Click the Add button in the Remote Specifications list and specify the URL of an OpenAPI specification file or find an OpenAPI specification on SwaggerHub.

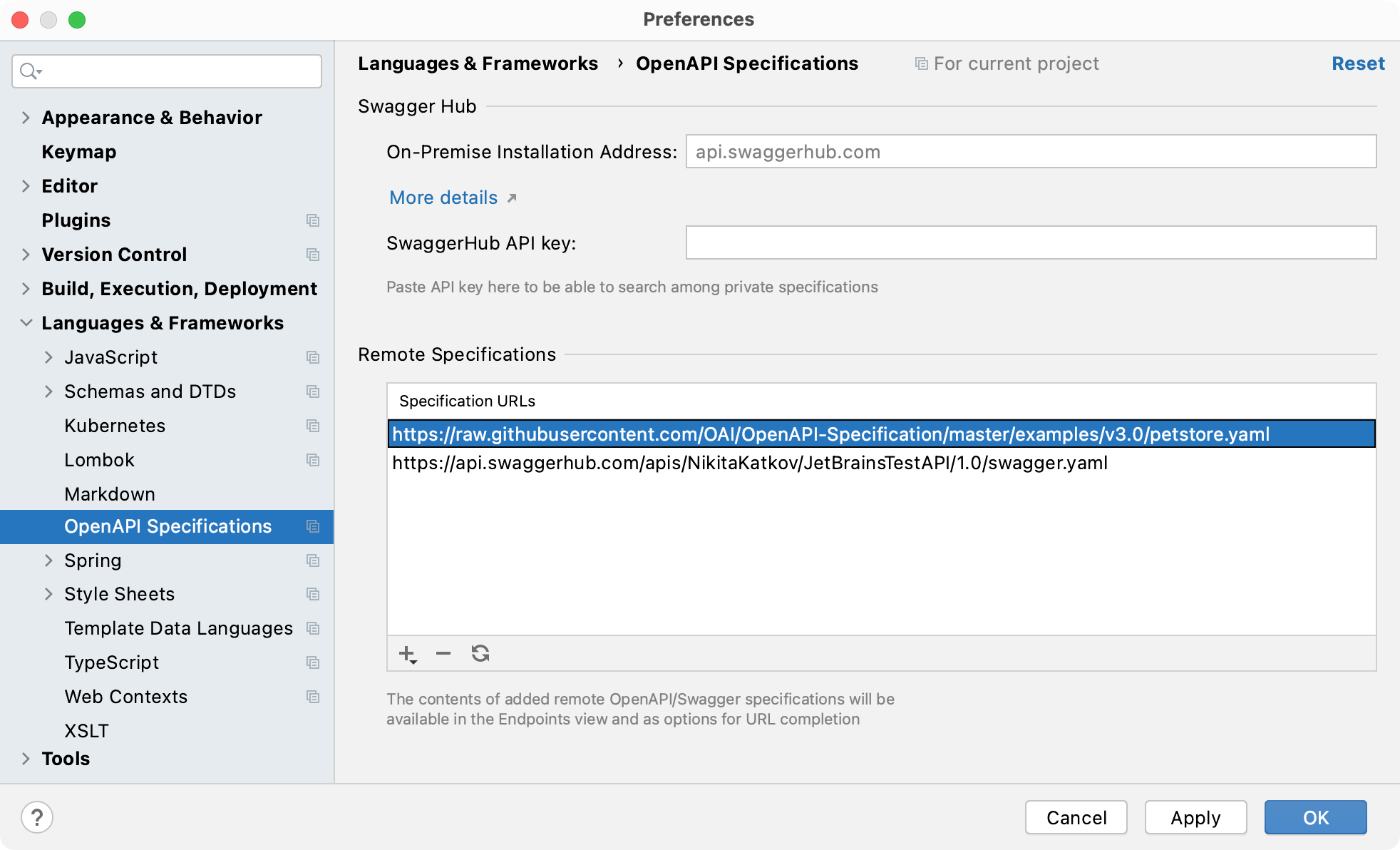

The OpenAPI Specification settings

Use The Reload All Specifications button to reload specifications that were modified.

To add private OpenAPI specifications, provide your API key.

To add OpenAPI specifications from a self-hosted SwaggerHub On-Premise instance, specify the URL of your instance.

Compare OpenAPI specifications

When there is a newer specification version, you probably want to compare it against the older version to make sure that they are compatible. One way is to look at the diff Ctrl+D and compare lines that changed. However, not all changes are critical for compatibility. JetBrains Rider can compare the structure of OpenAPI specifications and create a summary of changed paths, parameters, responses, and any other elements that may break the compatibility.

  • In the Project tool window, select two OpenAPI specification files, right-click them and select Compare OpenAPI Specifications.

This generates a Markdown file with a summary of modified specification elements. The file opens in the editor with a preview panel that makes it easy to navigate the changes. It shows the changes in the file that you selected second compared to the first one.

Generate code from an OpenAPI specification

When you have a valid OpenAPI specification open, JetBrains Rider suggests generating code from it:

Generate code based on the OpenAPI specification

Click the Run button in the gutter and select Run 'openapi file'. JetBrains Rider generates source code files in the specified location and shows a notification with options to open the files or import them into your project as a separate module.

Swagger Codegen run configuration

JetBrains Rider creates a OpenAPI/Swagger Code Generator run configuration when you run code generation for the first time for a particular file. To modify the run configuration, open Run | Edit Configurations and select the necessary configuration, or click the Run button in the gutter and select Modify Run Configuration.

You can configure the following common options at the top of the OpenAPI/Swagger Code Generator run configuration:


Specify a name for the run configuration to quickly identify it among others when editing or running.

Allow multiple instances

Allow running multiple instances of this run configuration in parallel.

By default, it is disabled, and when you start this configuration while another instance is still running, JetBrains Rider suggests stopping the running instance and starting another one. This is helpful when a run configuration consumes a lot of resources and there is no good reason to run multiple instances.

Store as project file

Save the file with the run configuration settings to share it with other team members. The default location is .idea/runConfigurations. However, if you do not want to share the .idea directory, you can save the configuration to any other directory within the project.

By default, it is disabled, and JetBrains Rider stores run configuration settings in .idea/workspace.xml.

General Settings

If some of the settings are hidden, click Modify options to show them.



Specification Path

Path to the OpenAPI specification.

Output Directory

Path to the directory for the generated files.

Code Generator

Select a type of code generator.


The target language of the generated code.


Java runtime to use for running Swagger Codegen

Custom Templates Path

Path to a directory with your Mustache templates.

Generation Parameters

Provide configuration parameters depending on the target language. For more information, refer to the swagger-codegen/

Test your OpenAPI specification in the HTTP client

When working with OpenAPI Specification files, you can create HTTP requests to the specified endpoints and execute them via the built-in HTTP client.

Create an HTTP request to an endpoint

  • In an OpenAPI specification file, click the Open in HTTP Client button in the editor gutter next to the endpoint definition.

  • Alternatively, open View | Tool Windows | Endpoints, right-click an endpoint, and select Generate Request in HTTP Client.

JetBrains Rider will create a new HTTP request and save it in the generated-requests.http scratch file.

If you want to quickly send a request to an endpoint and do not want to save it, you can use the HTTP Client tab in the Endpoints tool window.

JetBrains Rider provides completion for the request URL and for the request body (in JSON format) based on the available OpenAPI specifications. This applies not only to local, but also to remote specifications (add them in the IDE settings to enable completion).

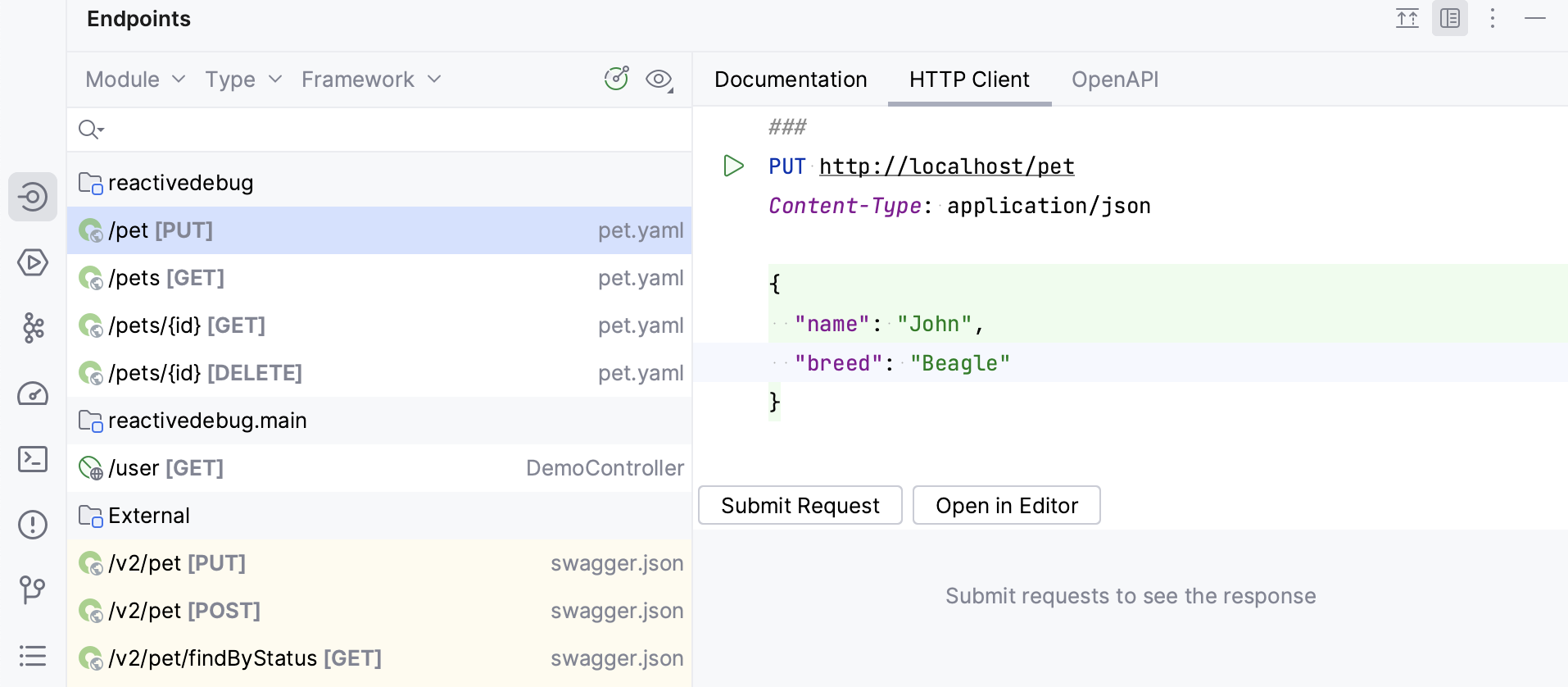

Body completion

Rename an endpoint and its usages

Use the Rename refactoring to rename the defined endpoint and its usages in HTTP requests simultaneously.

  1. Do any of the following:

    • In an OpenAPI specification file, place the caret at the endpoint's definition you want to rename.

    • In an HTTP request file, place the caret at the URL path segment you want to rename.

  2. Select Refactor | Rename from the main menu or the context menu, or press Shift+F6.

  3. In the Rename dialog that opens, specify the new endpoint's name.

  4. Preview and apply changes.

JetBrains Rider will rename the endpoint and its usages.
