JetBrains Rider 2020.2 Help

Unity window

View | Tool Windows | Unity

This window helps you to work with Unity projects in Rider. The window is available only if Rider is connected to the Unity editor.

Log tab

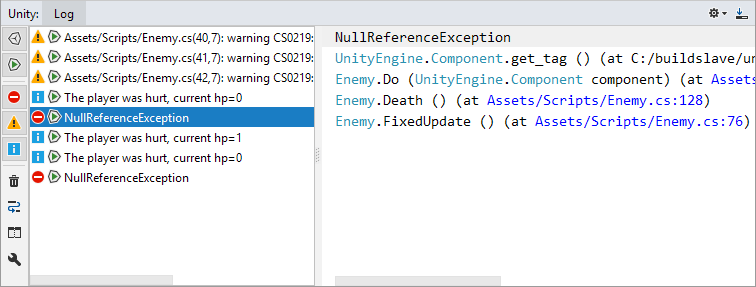

JetBrains Rider: Unity log window

The Log tab of the Unity tool window brings Unity's Console into Rider. The tab shows Unity log entries and is updated as events are logged in Unity.

The Output part of the window on the right shows the content of the currently selected log entry. Rider makes the content interactive, so that you can navigate to any source file, class, method or property mentioned in the log entry.

Unit Test Explorer displays tests from the entire solution

When the Explorer tab, or any unit test session tab is open, you can use the following controls on the left-hand toolbar:

Toolbar Controls

ControlNameDescription
icons.actions.toggleSoftWrap.pngUse Soft Wraps Use this button to enable line wrapping for lines exceeding the current width of the output area.
ThemedIcon StatusAll Screen Gray pngAll Tests Show all tests in the current test session.
ThemedIcon Success Screen Gray pngPassed Tests Only show successful tests and hide all other tests.
ThemedIcon StatusFailedPassive Screen Gray pngFailed Tests Only show failed tests and hide all other tests.
ThemedIcon Ignore Screen Gray pngIgnored Tests Only show ignored tests and hide all other tests. A test is ignored if it has the corresponding attribute, or if the whole category where it belongs is ignored.
unity log edit mode pngShow/Hide 'Edit' mode Shows/hides log entries from Unity edit mode.
unity log play mode pngShow/Hide 'Play' mode Shows/hides log entries from Unity play mode.
unity log errors pngShow/Hide Errors Shows/hides error log entries.
unity log warnings pngShow/Hide Warnings Shows/hides warning log entries.
unity log messages pngShow/Hide Warnings Shows/hides message log entries.
icons.actions.gc.pngClear Clear the log.
icon toggle output position pngToggle Output Position Position the Output part of the window either vertically or horizontally.
ThemedIcon Settings Screen Gray pngUnity Plugin Settings Quick access to the Unity plugin settings.
Last modified: 03 September 2020
