Visualize data structures

When debugging, JetBrains Rider lets you visualize data structures in your code in a tabular form. This helps you quickly understand the structure, contents, and transformations of your data. It simplifies the process of understanding complex patterns in your code, which ultimately enhances your debugging efficiency.

Imagine that in the debugging context you have orders variable that contains the results of a database query, and you want to study the contents of this variable. One way to approach this would be to use the Evaluate Expression dialog and write different expressions involving orders.

A much more convenient way is to explore the contents visually in a tabular view. To do so, we can locate the orders variable in the Debug window and click View next to it:

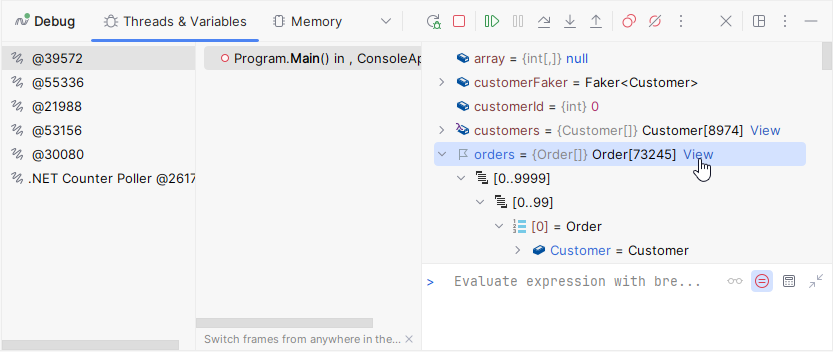

JetBrains Rider: Open tabular visualization for a complex variable

This will open the Collection view dialog displaying the variable contents:

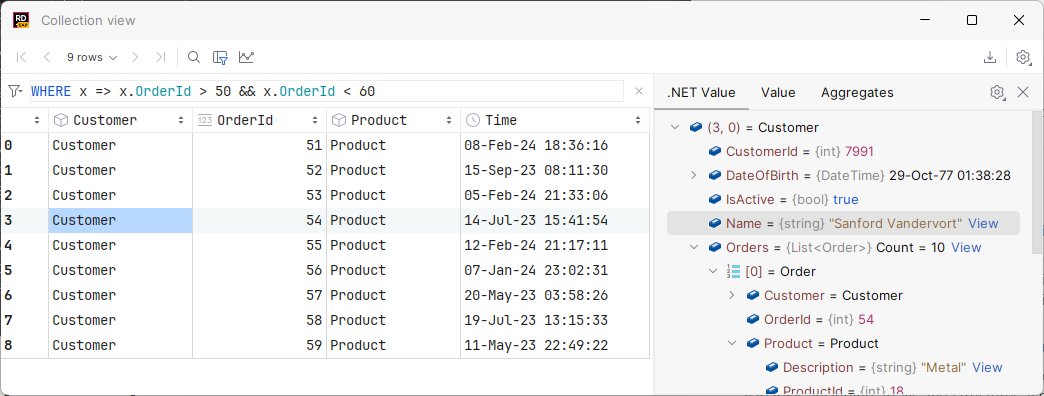

JetBrains Rider: Tabular visualization for a complex variable

The dialog works as a familiar table viewer with all typical features.

Set a number of rows in the result set

  • By default, when you issue a query, the number of returned rows is limited to 500. This limitation is introduced to avoid an overload (for example, when your SELECT statement returns one million rows).

    To change this limit, open settings Ctrl+Alt+S and navigate to Tools | Database | Data Editor and Viewer. In the Limitations | Limit page size to field, specify a new number. To disable the limitation, clear the Limit page size to checkbox.

  • Click the current row range on the toolbar and select the desired value.

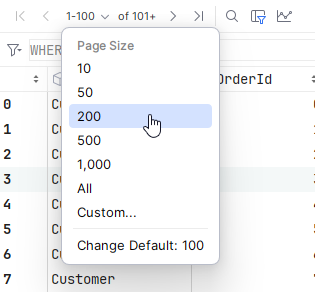

    JetBrains Rider: Tabular visualization. change page size

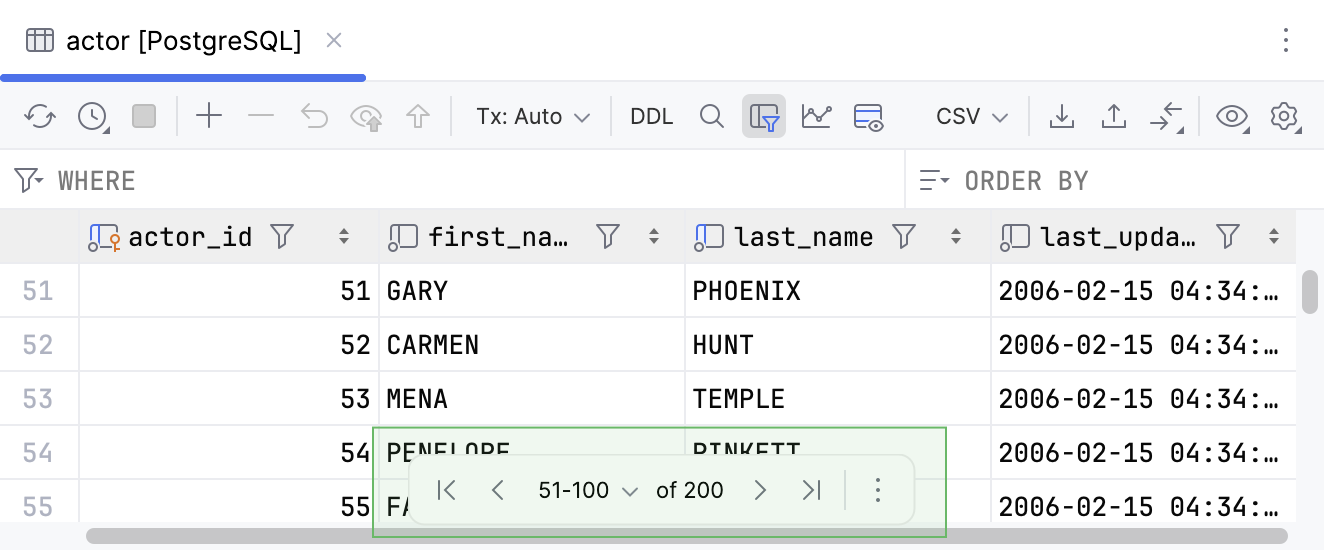

Depending on the value of the Limit page size to parameter, the result set might be divided into several pages. For example, you set the Limit page size to parameter to 100, but your query returned 200 rows. You will have two pages of rows, with 100 rows on each page. To navigate between pages, use the following controls:

  • The first page icon: Navigates to the first page of the result set.

  • The previous page icon: Navigates to the previous page of the result set. Alternatively, press Ctrl+Alt+Up.

  • The next page icon: Navigates to the next page of the result set. Alternatively, press Ctrl+Alt+Down.

  • Go to the last page icon: Navigates to the last page of the result set.

Search, examine, filter, and sort the data

  • To find textual occurrences on the current page, press Ctrl+F or click Find on Current Page , and then use the text field and search options that appear.

  • To examine the data in specific sells, click a cell or click multiple cells while holding down Ctrl. The selected object will be displayed on the right.

  • To filter the data globally, write a query in the filter area above the table.

    To filter data in specific rows, click Enable Local Filter on the toolbar, and then use the filter icons that appear on the column headers.

  • To sort data rows by a specific column value, click the corresponding column header.

Export data to a file

  1. Click Export Data on the toolbar.

  2. Configure export preferences and click Export to File.

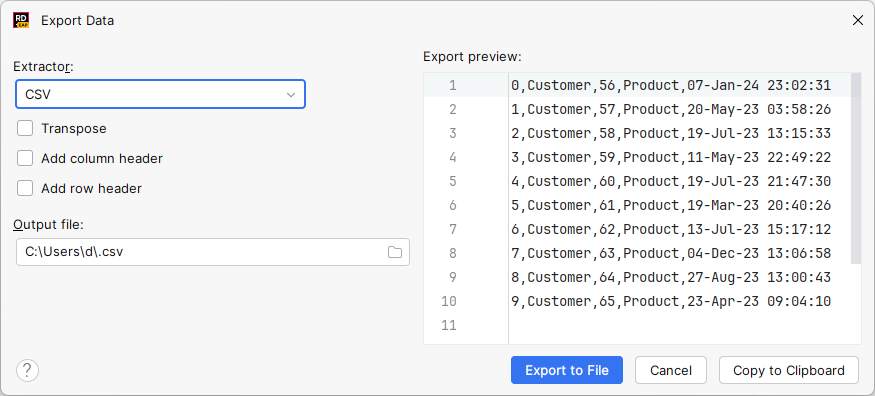

    JetBrains Rider: export data to file
Last modified: 21 February 2024
