Vue.js

Vue.js is a framework for developing user interfaces and advanced single-page applications. JetBrains Rider provides support for the Vue.js building blocks of HTML, CSS, and JavaScript with Vue.js-aware code completion for components, including components defined in separate files, attributes, properties, methods, slot names, and more.

With the built-in debugger, you can debug your Vue.js code right in JetBrains Rider, which can automatically generate the necessary run/debug configurations you need: an npm configuration that launches the development server and starts your application in the development mode and a JavaScript Debug configuration that launches a debugging session.

Before you start

  1. Download and install Node.js.

  2. Make sure the Vue.js bundled plugin is enabled on the Settings/Preferences | Plugins page, see Managing plugins for details.

Creating a new Vue.js application

The recommended way to create a new Vue.js app is Vue CLI, which JetBrains Rider downloads and runs for you using npx.

Install Vue.js in an existing solution

  • In the embedded Terminal (Alt+F12), type:

    npm install vue

Writing and editing your code

In .vue files, JetBrains Rider recognizes script, style, and template blocks. You can use JavaScript and TypeScript inside script tags, Style Sheet languages inside style tags, and HTML and Pug inside template tags.

When you use TypeScript inside a script tag, JetBrains Rider invokes the TypeScript Language Service for type checking and shows detected errors in the Errors and Compile errors tabs of the TypeScript tool window. Alternatively, you can use TsLint as described in Linting TypeScript in Vue.js components using TSLint

Vue.js components

JetBrains Rider recognizes the .vue file type and provides a dedicated .vue file template for Vue.js components.

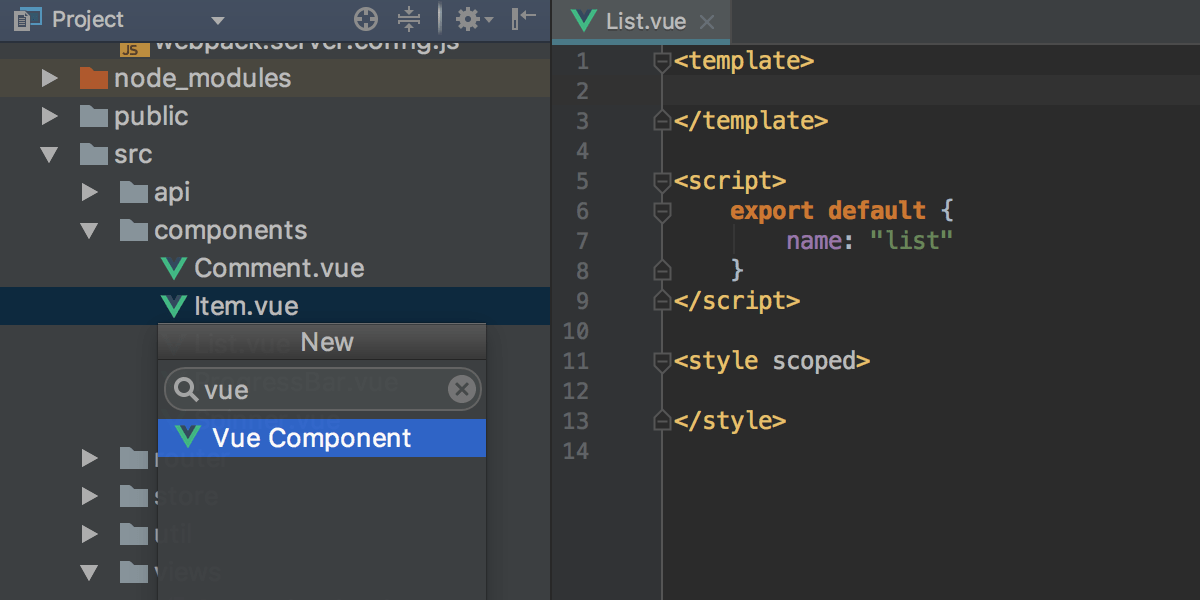

Create a Vue.js component

  • In the Solution explorer, select the parent folder for the new component and choose Vue Component from the list.


You can also extract a new Vue.js component from an existing one without any copying and pasting but using a dedicated intention action or refactoring. All the data and methods used in the newly extracted template stay in the parent component. JetBrains Rider passes them to the new component with properties and copies the related styles.

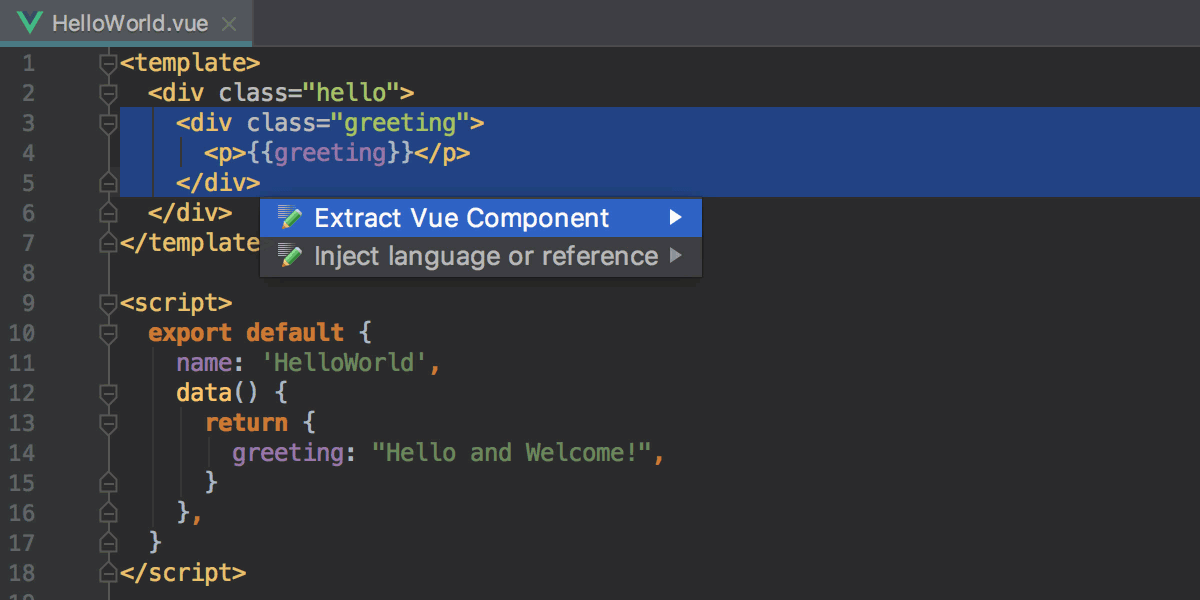

Extract components

  1. Select the template fragment to extract and invoke component extraction:

    • To use the intention action, press Alt+Enter, and then choose Extract Vue Component from the list.

    • To use the refactoring, choose Refactor | Extract | Extract Vue Component from the main menu or from the context menu of the selection.

  2. Type the name of the new component. If this name is already used or invalid, JetBrains Rider shows a warning. Otherwise a new single-file component is created and imported into the parent component.


Code completion

Complete code inside script, style, and template blocks

  • By default, JetBrains Rider provides code completion for ECMAScript 6 inside script blocks and for CSS inside style blocks.

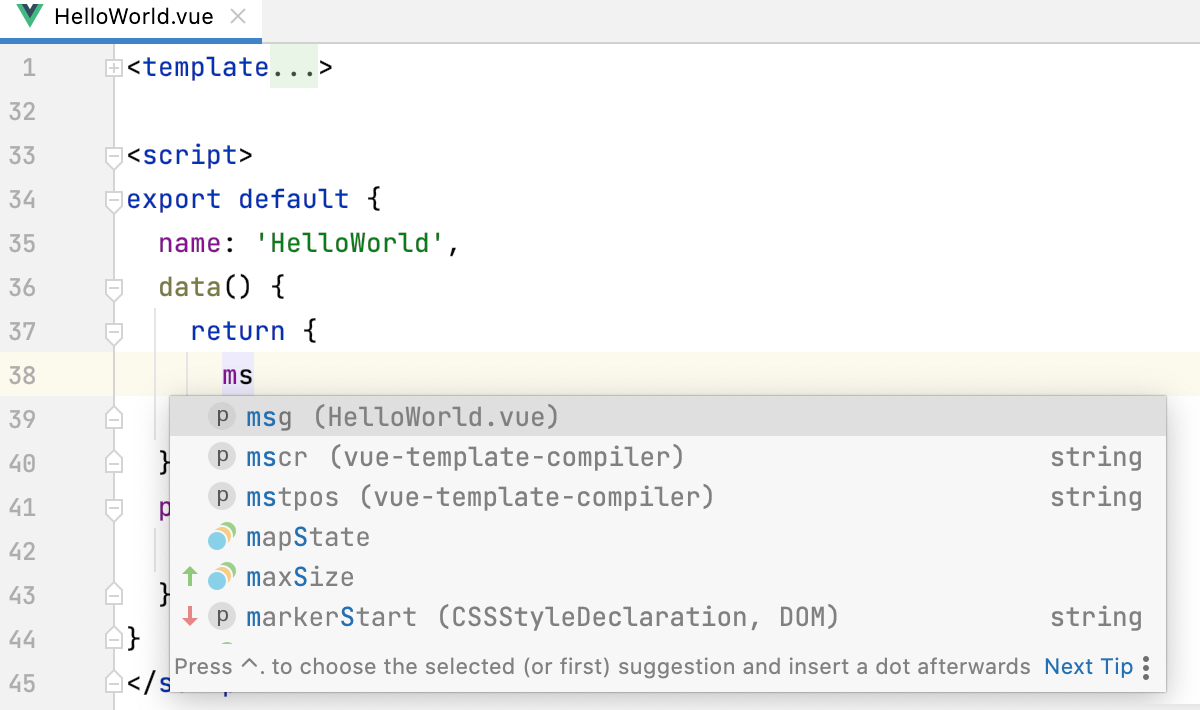

    Vue.js: completion for ES6 inside <script> tag
  • Inside the template tag, code completion Ctrl+Space and navigation to the definition Ctrl+B for Vue.js components and attributes is available.

    Vue.js: completion inside template tags

Complete Vue.js properties and methods

  • JetBrains Rider also suggests completion for Vue.js properties, properties in the data object, computed properties, and methods.

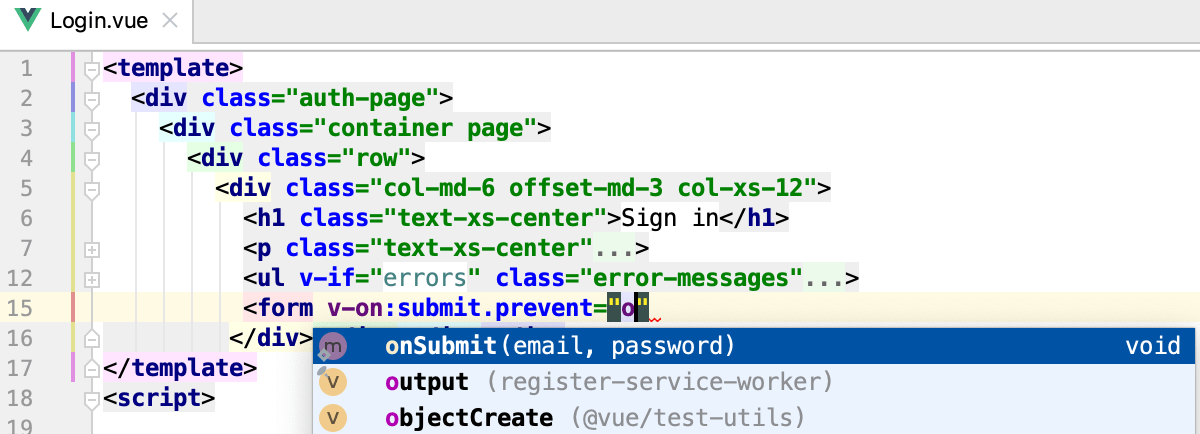

    Vue.js: completion for interpolations

Complete slot names

  • JetBrains Rider provides completion for the names of slots from library components and from components defined in your project.

    If your project contains a component with named slots, JetBrains Rider shows suggestions for these names in the v-slot directive of a template tag.

  • If you’re using Vuetify, Quasar, or BootstrapVue, code completion for slot names is also available.

Complete components defined in separate files

  • If a component is defined in several files, JetBrains Rider recognizes the links between the parts of the component and provides proper code completion for properties, data, and methods.

    For example, if the parts of your component are defined in separate JavaScript and stylesheet files that are linked in the vue file through the src attribute, properties defined in JavaScript are properly completed in the template as methods do.

  • Templates inside template literals in the template property of a component get completion just as if this code were inside a template tag.

    Completion is also available if a template is defined in a separate HTML file and then linked to the template property.

Complete code inside Vue.js injections

Within Vue.js injections inside HTML files, JetBrains Rider recognizes Vue.js syntax and highlights your code accordingly. You can also get completion for symbols from Vue.js libraries that are linked from a CDN in an HTML file without adding these libraries to your project dependencies.

Download libraries linked via CDN
  1. Open the HTML file with a CDN link to an external Vue.js library. JetBrains Rider highlights the link.

  2. To enable completion for the library, press Alt+Enter on the link and select Download library from the list. Alternatively, hover the mouse over the link and click Download library.

The library is added to the list of JavaScript libraries on the Settings/Preferences | Languages and Frameworks | JavaScript | Libraries page, see Configuring a library added via a CDN link for details.

Parameter hints

Parameter hints show the names of parameters in methods and functions to make your code easier to read. By default, parameter hints are shown only for values that are literals or function expressions but not for named objects.

Configure parameter hints

  1. Open the Settings/Preferences dialog Ctrl+Alt+S and go to Editor | Inlay Hints | Vue.

  2. Select Parameter hints from the list, make sure the Show parameter hints checkbox is selected, and then specify the context where you want parameter hints shown.

  3. For some methods and functions, JetBrains Rider does not show parameter hints in any context. Click Exclude list... to view these methods and functions, possibly enable parameter hints for them, or add new items to the list.

Vue.js live templates

With JetBrains Rider, you can use a collection of Live templates for Vue.js adapted from the collection created by Sarah Drasner.

  1. Type the abbreviation of the template to use or press Ctrl+J and select it from the list of available templates.

  2. To expand the template, press Tab.

  3. To move from one variable to another inside the template, press Tab again.


Nuxt.js in Vue.js applications

With JetBrains Rider, you can use the Nuxt.js framework in your Vue.js applications. The recommended way to set up a Nuxt.js app in JetBrains Rider is use the create-nuxt-app command. Alternatively, you can install Nuxt.js in an existing solution.

Install Nuxt.js in an existing solution

  • Open the embedded Terminal (Alt+F12) and type:

    npm install --save nuxt

Install the @types/nuxt package

With the @types/nuxt package, you can get better code completion.

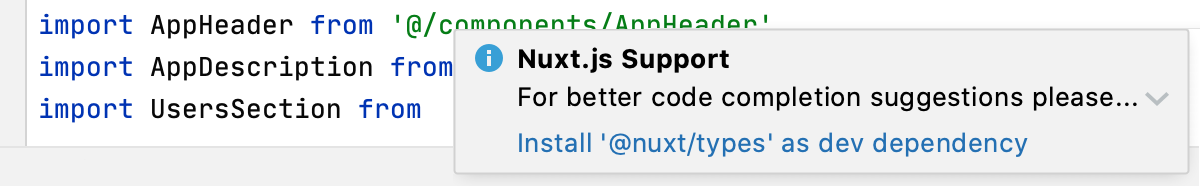

  • If you’re using a Nuxt.js version from 2.9.0 onwards and don’t have the @nuxt/types package installed, JetBrains Rider notifies you about it and suggests installing it as a development dependency. Click the Install @nuxt/types as dev dependency link in the notification popup.

    Notification about missing @nuxt/types

    If you close the popup, you can still install @nuxt/types by clicking the Install @nuxt/types as dev dependency link in the Event Log tool window (View | Tool windows | Event Log ).

  • Alternatively, open the embedded Terminal (Alt+F12) and type:

    npm install --save-dev @nuxt/types

Nuxt.js-aware coding assistance

JetBrains Rider suggests code completion and shows quick documentation for all core Nuxt.js components.

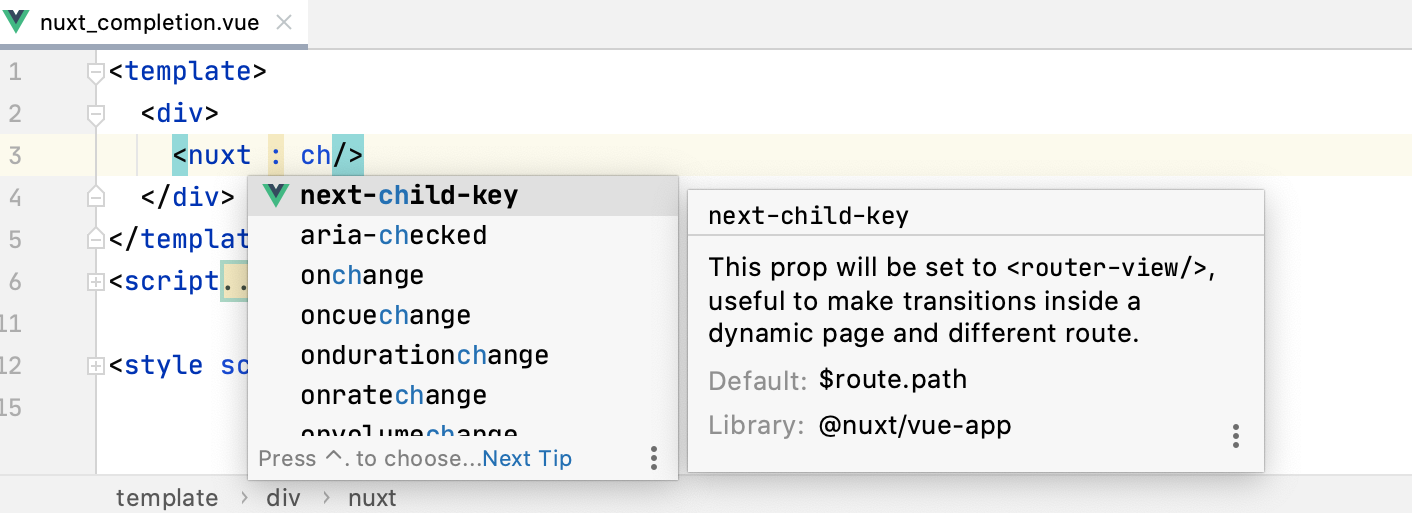

Completion and quick doc for Nuxt component

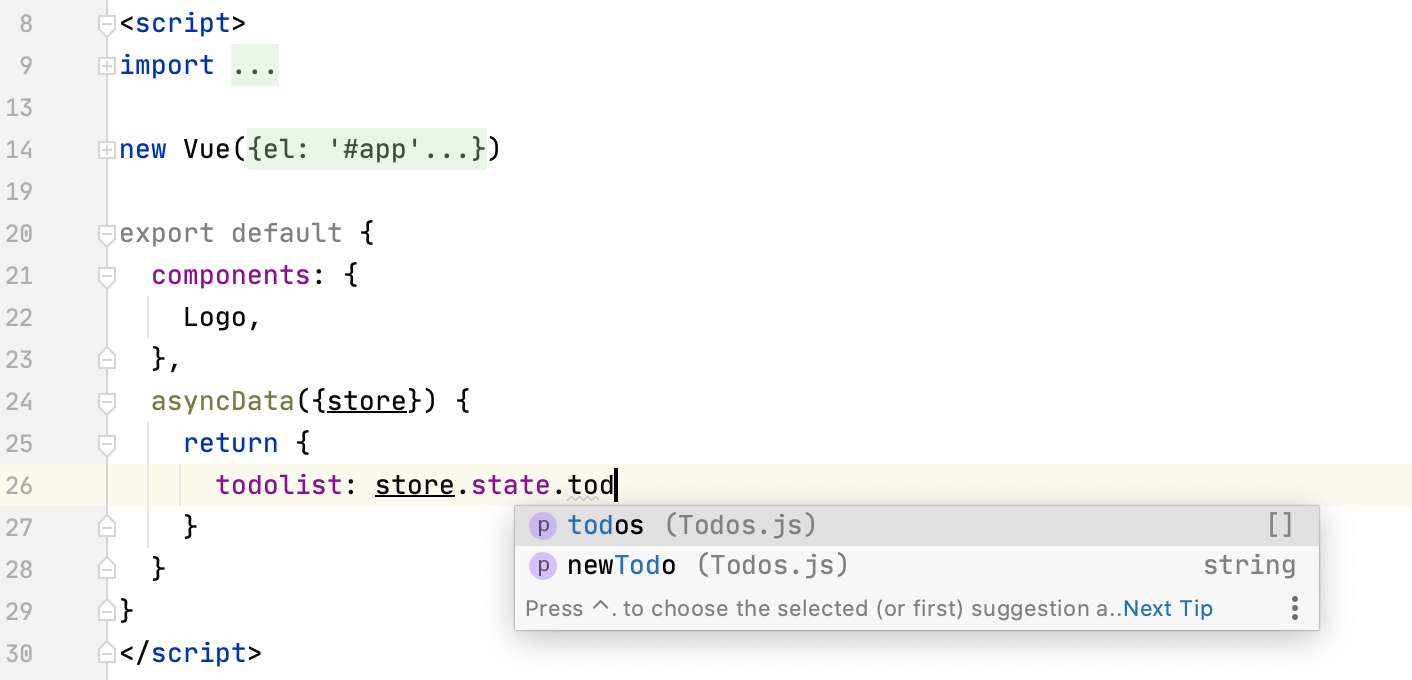

JetBrains Rider resolves references to the Vuex store and provides highlighting and completion for them.

Code completion for Vuex store

JetBrains Rider resolves all references to assets stored in the static folder in the <img src='/logo.png/> format.

Edit nuxt.config.js

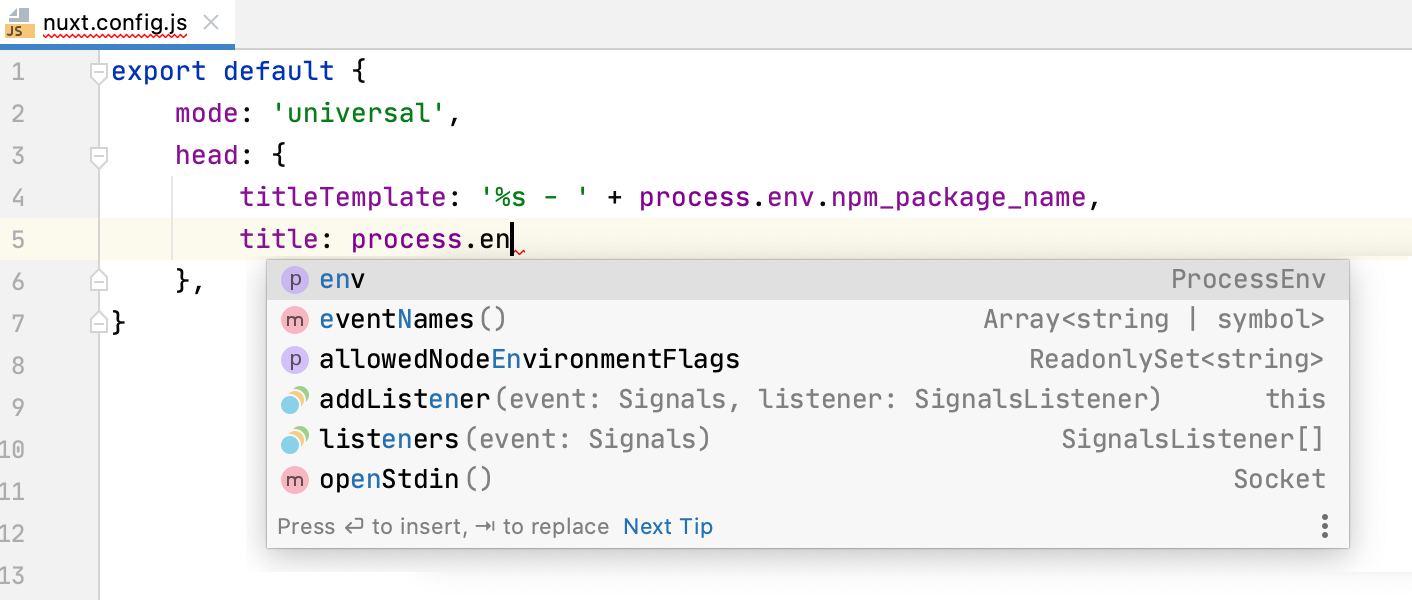

JetBrains Rider provides proper completion suggestions for the nuxt.config.js configuration file.

Code completion in nuxt.config.js

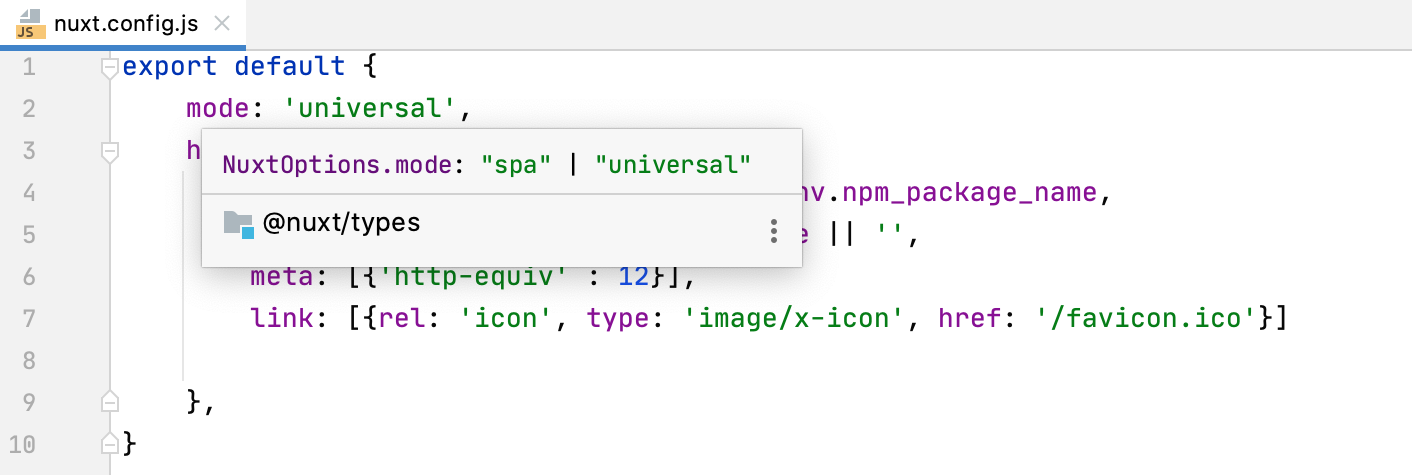

On hover, you’ll also see the Documentation popup showing the type information for the Nuxt options used in the file.

Quick documentation popup in nuxt.config.js

Module resolution

JetBrains Rider supports Nuxt.js-specific webpack setup. Starting with Nuxt.js 2.12.0, JetBrains Rider automatically finds the webpack.config.js configuration file and uses the module resolution rules from it for coding assistance.

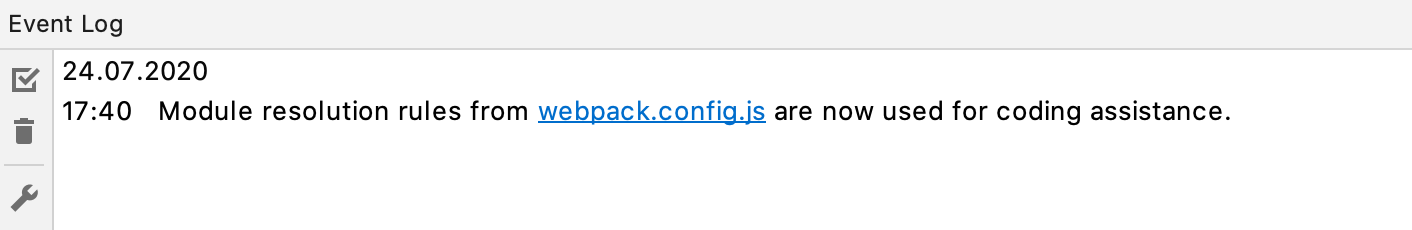

Notification about using webpack.config.js for module resolution and code completion

Formatting in Vue.js applications

Configure indentation

By default, code within top-level tags is indented uniformly, in the Vue.js-specific style. You can configure this indentation to depend on the language used, for example, be HTML or Pug-specific.

  1. In the Settings/Preferences dialog Ctrl+Alt+S, go to Editor | Code Style | Vue, and open the Tabs and Indents tab.

  2. By default, the contents of all top-level tags are indented uniformly, in the Vue.js-specific style. Accept the default indentation settings or customize them using the controls on the page. As you change the settings, the Preview in the right-hand pane shows how the the changes affect code formatting.

    To have the code inside top-level tags indented with regard to its language, select Specific to the language in the block.

  3. In the Indent children of top-level tag field, specify the top-level tags where the code should have initial indentation.

    By default, only the code inside template tags has initial indentation. If necessary, add other tags using commas as separators. For example, if you specify script in the field, the code inside all script tags gets initial indentation as shown in the Preview pane.

Configure spaces

  1. In the Settings/Preferences dialog Ctrl+Alt+S, go to Editor | Code Style | Vue, and open the Spaces tab.

  2. By default, JetBrains Rider automatically inserts spaces after the opening curly brace ({) and before the closing one (}) in Vue.js text interpolations with Mustache syntax.

    To suppress inserting spaces automatically, clear the Interpolations checkbox.

Configure wrapping and braces

  1. In the Settings/Preferences dialog Ctrl+Alt+S, go to Editor | Code Style | Vue, and open the Wrapping and Braces tab.

  2. If a JavaScript expression inside a Vue.js interpolation has line breaks, JetBrains Rider automatically starts this JavaScript expression from a new line and adds a new line after it.

    Clear the New line after '{{' and the New line before '}}' checkboxes to change this default behavior.

  3. Configure multiple right margins as described in Vue.js code style: Visual guides.

  4. Configure wrapping in interpolations as described in Wrapping options.

Reformatting Vue.js code with Prettier

You can configure Prettier to reformat specific files every time such file is changed and the changes are saved automatically or manually.

Also, Prettier can be set as default formatter for specific files. It will run against such files every time you reformat your code with Ctrl+Alt+L.

See Reformat code with Prettier for details.

Reformat code with Prettier

  • In the editor, select the code fragment to reformat. To reformat a file or a folder, select it in the Solution explorer. Then select Reformat with Prettier from the context menu.

  • To run Prettier automatically against specific files, open the Settings/Preferences dialog Ctrl+Alt+S, go to Languages and Frameworks | JavaScript | Prettier, and use the On code reformatting and On save checkboxes to specify the actions that will trigger Prettier.

    For details, see Run Prettier automatically on save and Set Prettier as default formatter.

JetBrains Rider can apply the key code style rules from the Prettier's configuration to the JetBrains Rider Code Style settings so that generated code (for example, after refactoring or quick-fix) and the code that is already processed with Prettier are formatted consistently.

Apply Prettier code style rules

  • In the project where Prettier is enabled, open package.json and click Yes in the pane at the top of the tab.

    Pane above package.json: apply Prettier code style
  • To re-apply the Prettier code style (after you've clicked No in the pane or modified the code style), press Ctrl+Shift+A and select Apply Prettier Code Style Rules from the Find Action list.

Linting TypeScript in Vue.js components using TSLint

You can lint TypeScript code in your Vue.js single file components using typescript-tslint-plugin.

Because typescript-tslint-plugin works only with TypeScript that is installed in the current project, make sure the typescript package from your project node_modules folder is selected in the TypeScript field on the TypeScript page of the Settings/Preferences dialog Ctrl+Alt+S.

Install and configure typescript-tslint-plugin

  1. In the embedded Terminal (Alt+F12), type:

    npm install --save-dev typescript-tslint-plugin

  2. In the plugins property of your tsconfig.json file, type:

    { "compilerOptions": { "plugins": [{"name": "typescript-tslint-plugin"}] } }

  3. When you are using typescript-tslint-plugin, TSLint is running via the TypeScript Language Service so you can disable the TSLint integration with JetBrains Rider to avoid duplicate error reporting.

    To do that, open the Settings/Preferences dialog Ctrl+Alt+S, go to Languages and Frameworks | TyprScript | TSLint, and select Disable TSLint.

Running and debugging a Vue.js application

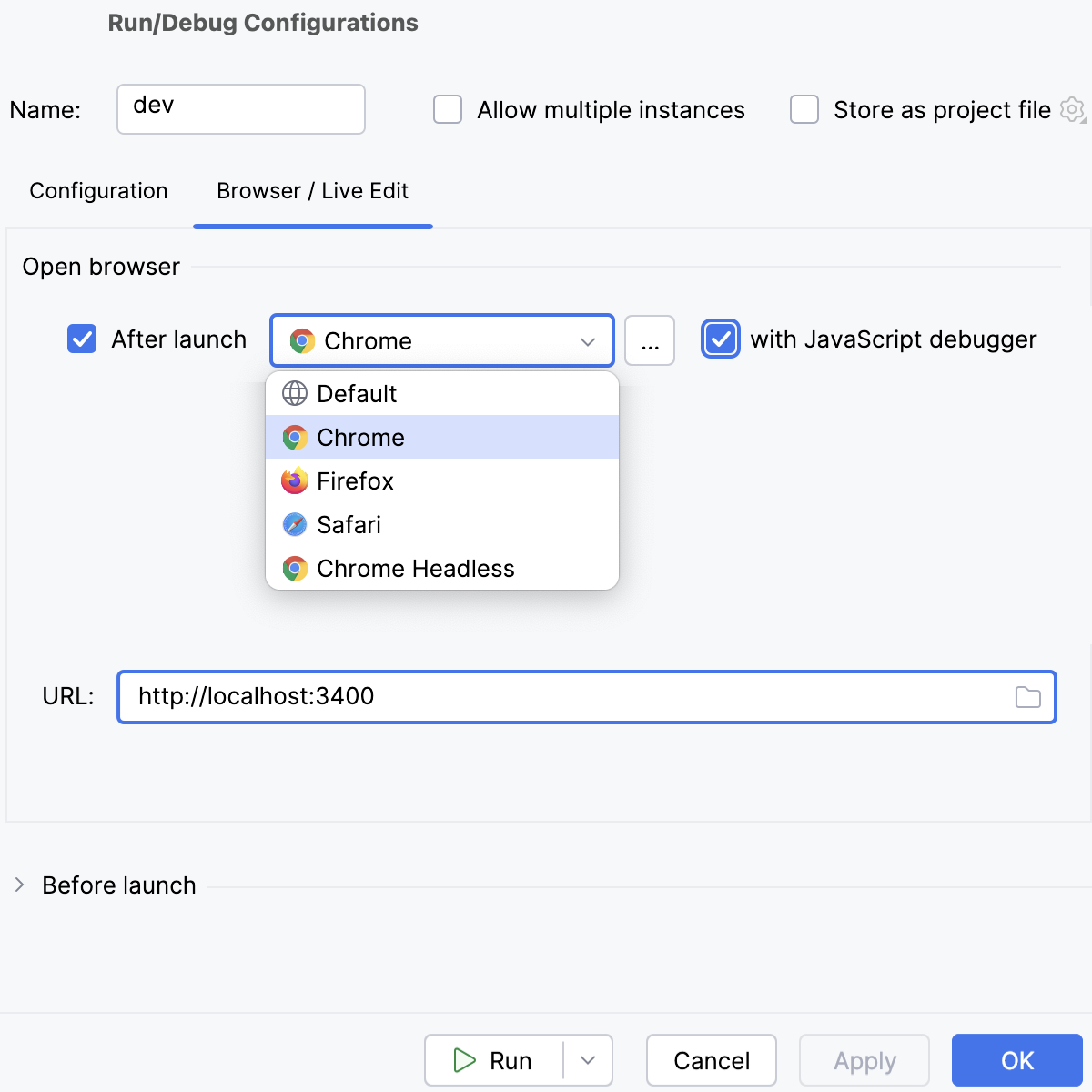

For applications created with Vue CLI, JetBrains Rider generates two run/debug configurations with default settings:

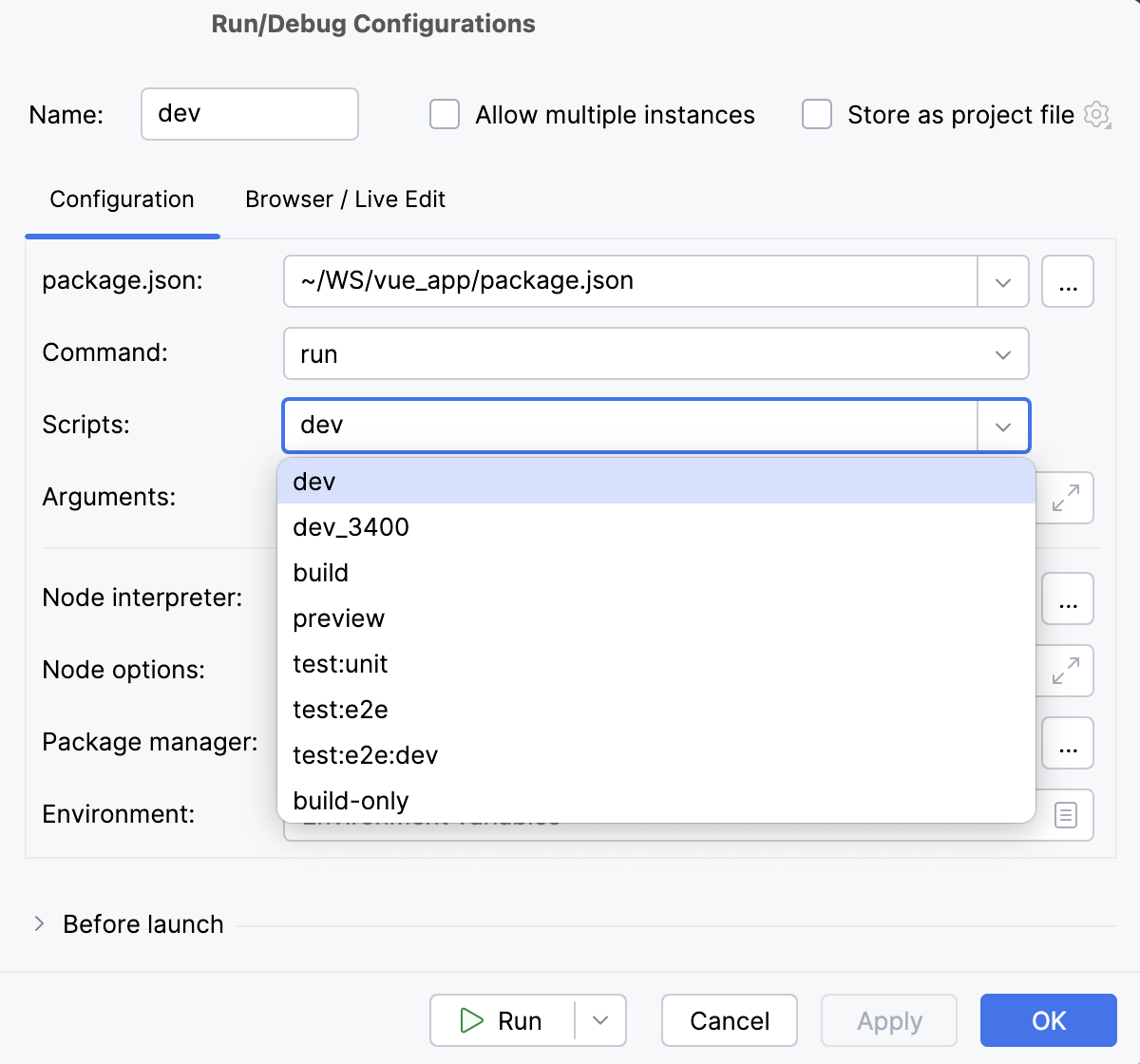

  • An npm configuration with the default name npm serve. This configuration runs the npm serve command that launches the development server and starts your application in the development mode.

  • A JavaScript Debug configuration with the default name Debug Application. This configuration launches a debugging session.

Run a Vue.js application

  1. Select the npm serve run configuration from the list on the toolbar and click Run next to the list.

    Alternatively, run npm start in the Terminal Alt+F12 or double-click the start task in the npm tool window (View | Tool Windows | npm ).

  2. Wait till the application is compiled and the development server is ready.

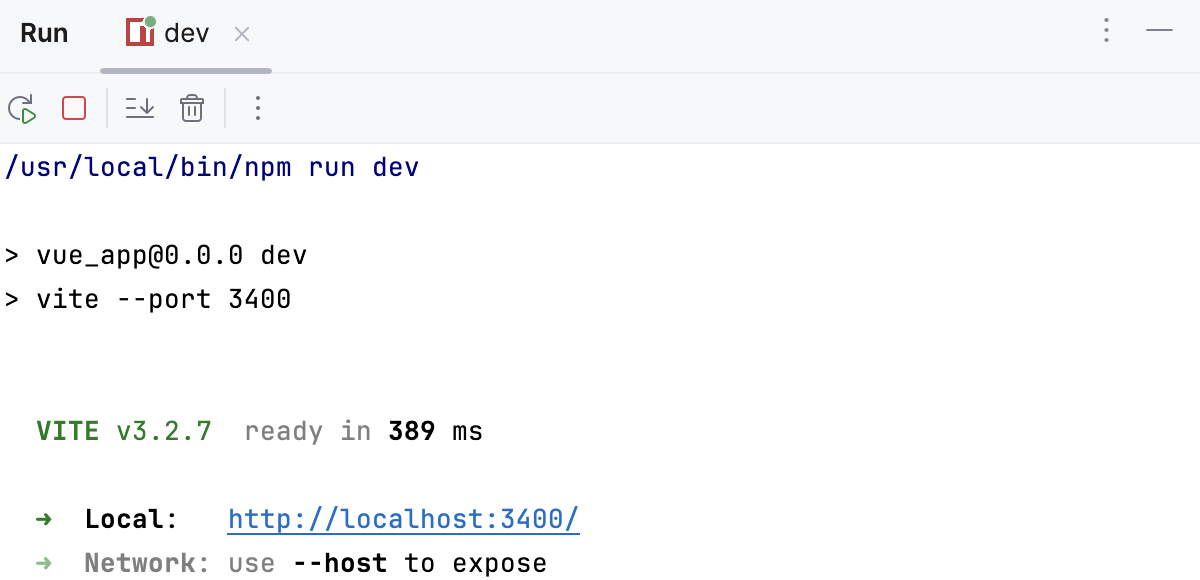

    The Run tool window or the Terminal shows the URL at which your application is running, by default it is http://localhost:8080/. Click this link to view the application.

    Vue.js app is running

When the development server is running, your application is automatically reloaded as soon as you change any of the source files and save the updates.

Debug a Vue.js application

You can start a debugging session in different ways depending on how your application was created and where it is running.

Debug applications created with Vue CLI

  1. Set the breakpoints in your code.

  2. Start the application in the development mode as described above and wait till the application is compiled and the development server is ready.

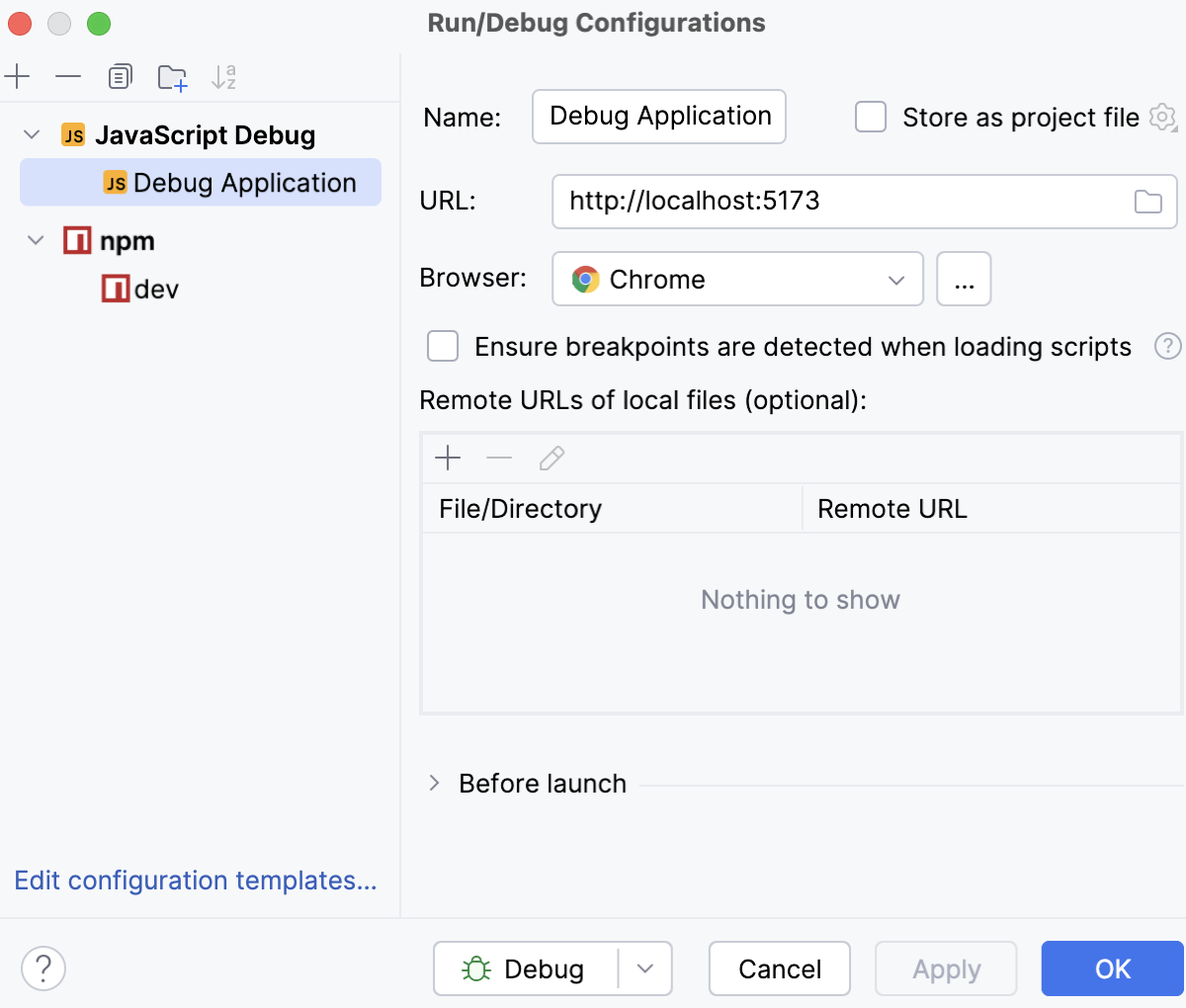

  3. Select the autogenerated Debug Application configuration from the list and click the Debug button next to the list.

    Start debugger for Vue.js app created with Vue CLI

Debug applications running on localhost

  1. Set the breakpoints in your code.

  2. Start the application in the development mode as described above and wait till the application is compiled and the development server is ready.

  3. The Run tool window or the Terminal shows the URL at which your application is running, by default it is http://localhost:8080/. Hold Ctrl+Shift and click this URL link. JetBrains Rider starts a debugging session with an automatically generated Debug Application configuration of the type JavaScript Debug.

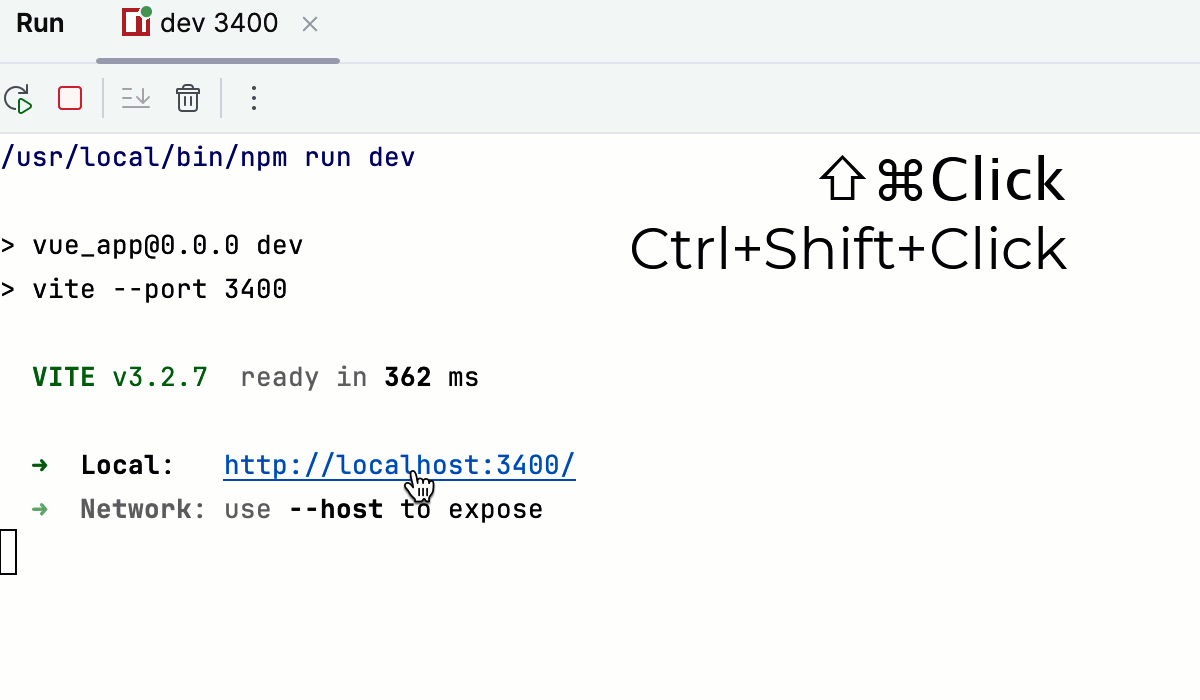

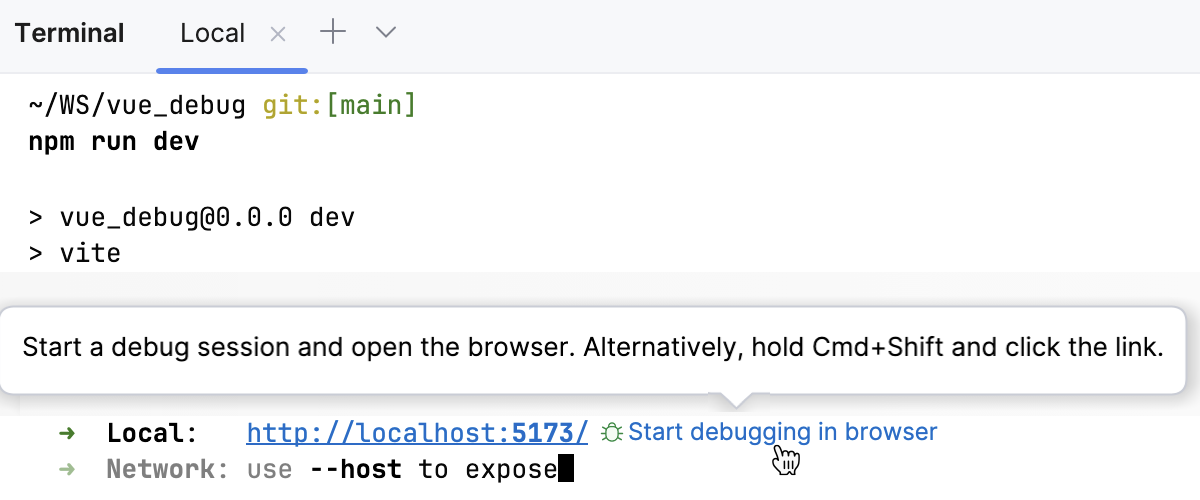

    Starting a debugging session from the Run tool window

Debug applications running on custom URLs

  1. Set the breakpoints in your code.

  2. Start the application in the development mode as described above and wait till the application is compiled and the development server is ready.

  3. The Run tool window or the Terminal shows the URL at which your application is running. Copy this URL address, you will later specify it in a debug configuration. To view your application, just click the link.

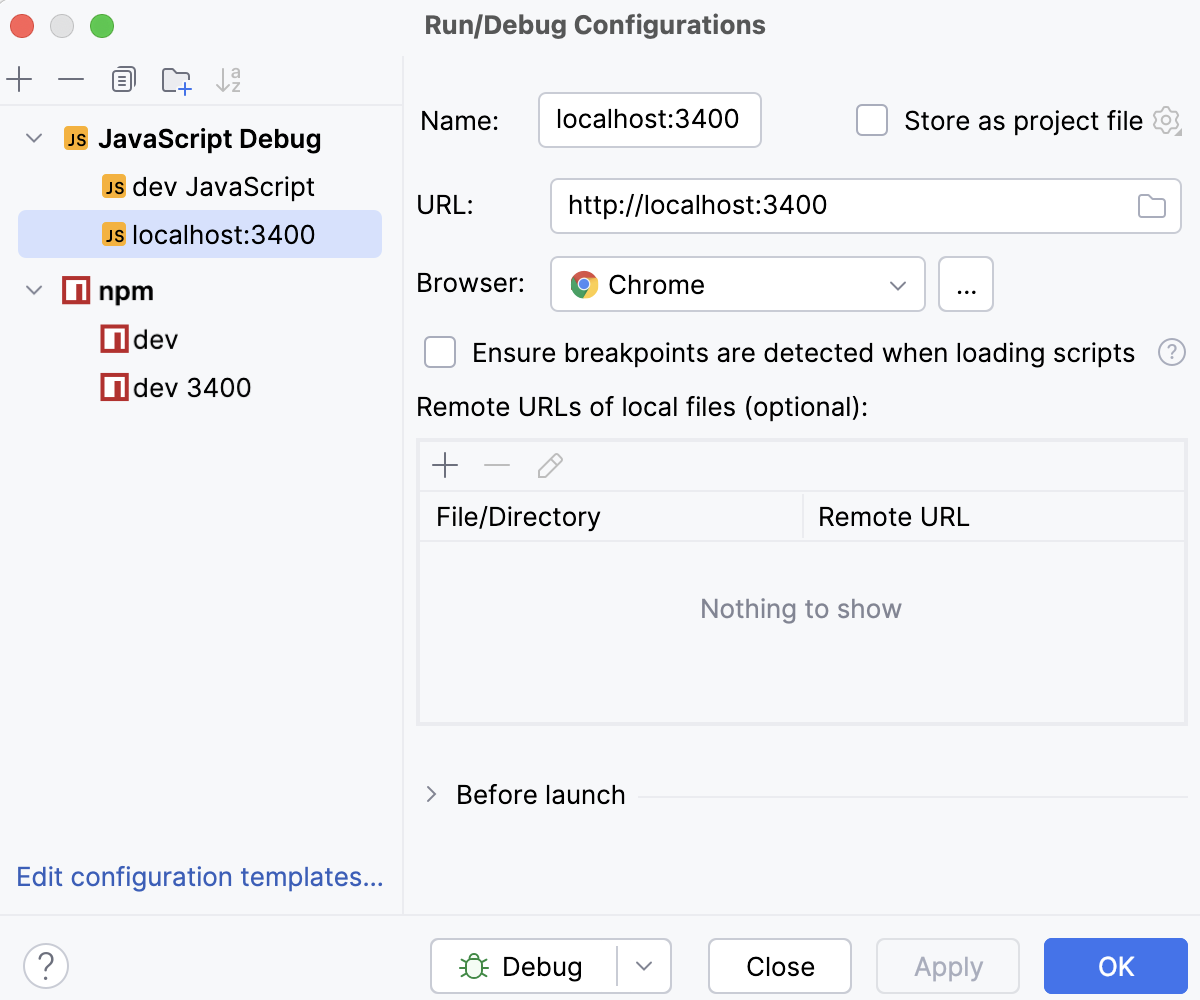

  4. Create a JavaScript Debug configuration. To do that, go to Run | Edit Configurations on the main menu, click the Add icon, and select JavaScript Debug from the list. In the Run/Debug Configuration: JavaScript Debug dialog, paste the saved URL in the URL field and save the configuration.

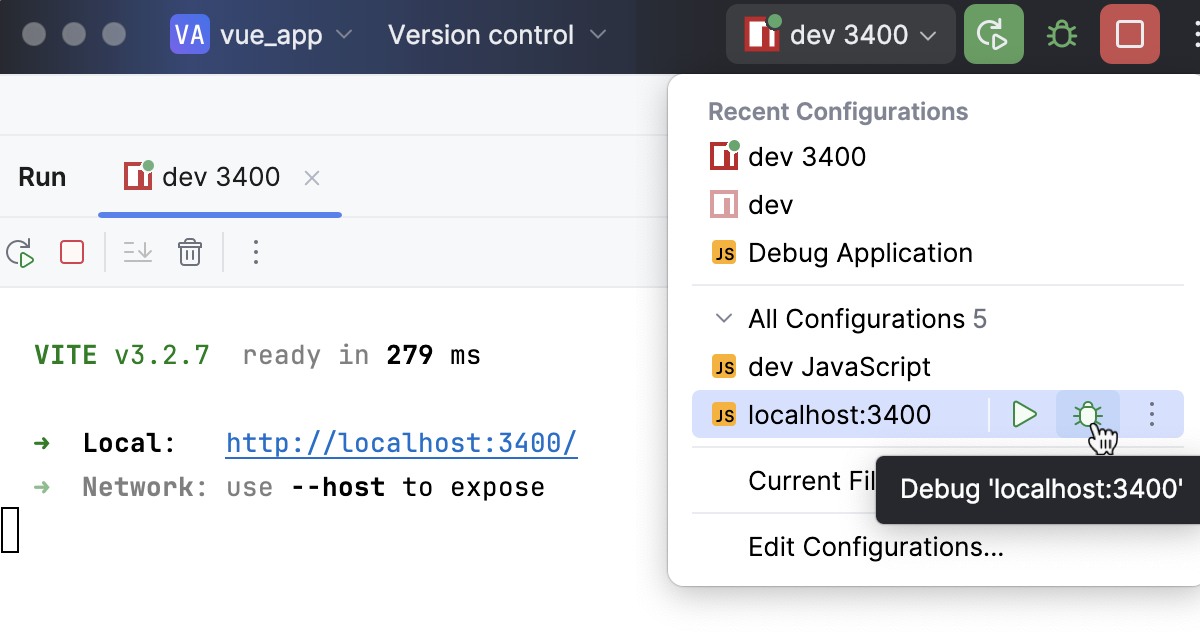

  5. To launch your newly created configuration, select it from the list of configurations and click the Debug button next to the list.

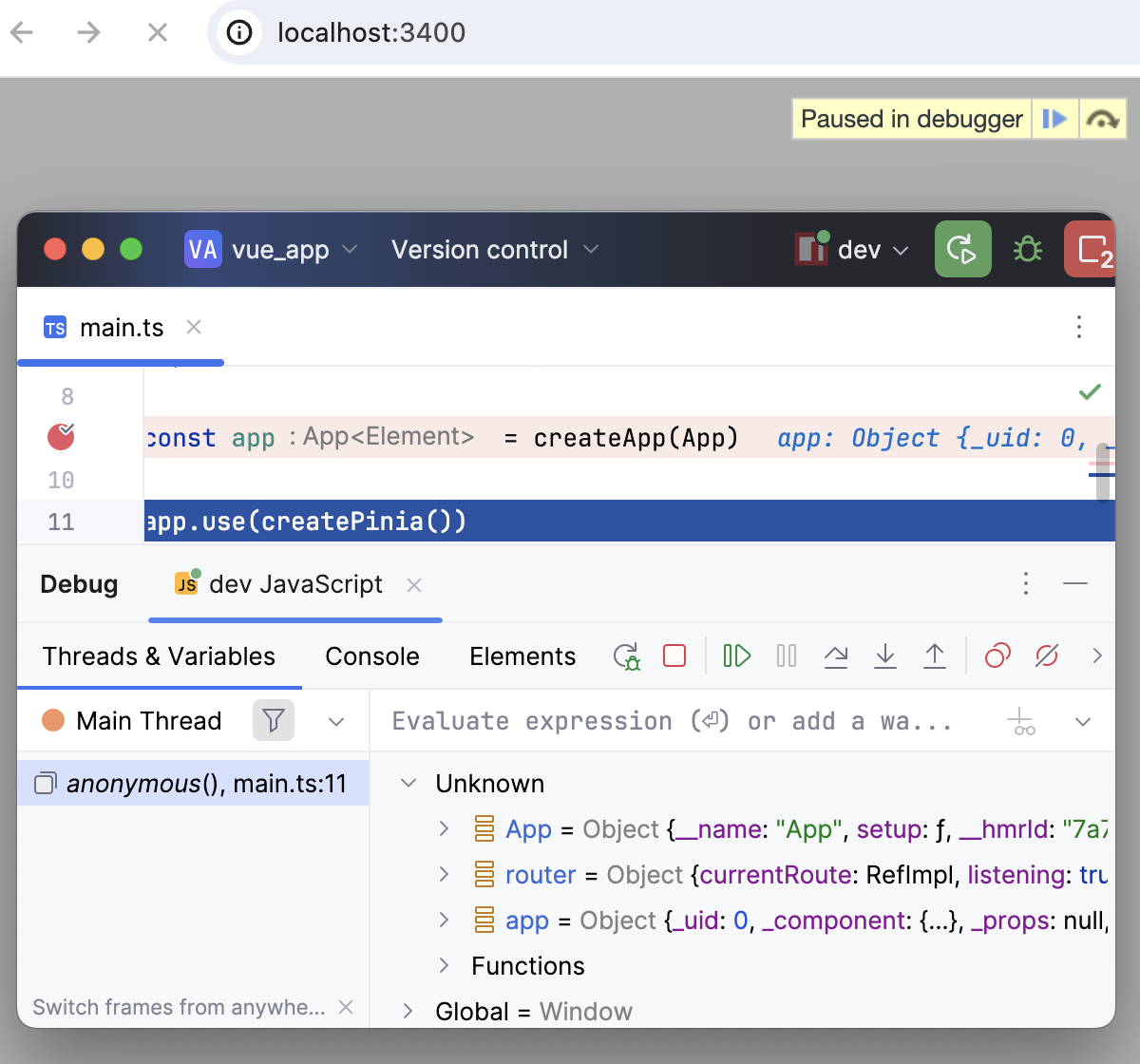

When the first breakpoint is hit, switch to the Debug window and proceed as usual: step through the program, stop and resume program execution, examine it when suspended, explore the call stack and variables, set watches, evaluate variables, view actual HTML DOM, and so on.
