Navigating within a project

Expanding revision entry

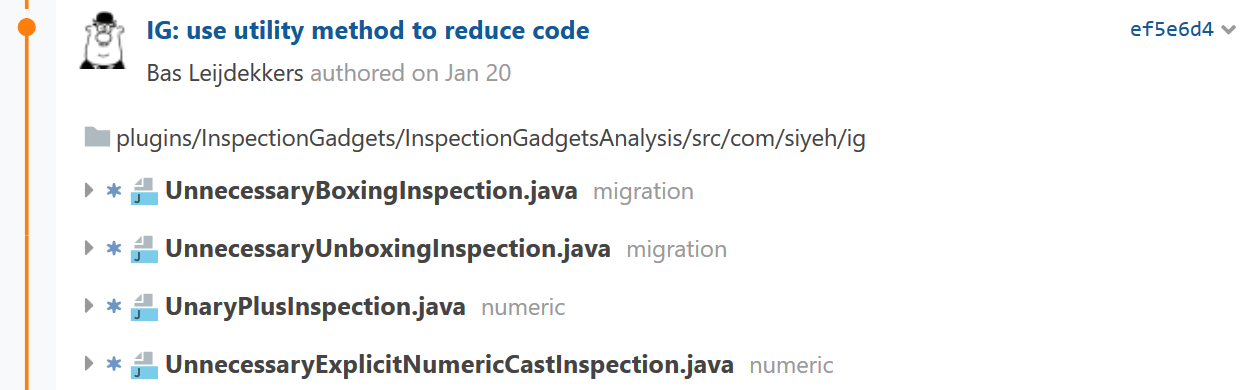

A revision entry can be expanded to list all the files affected by the revision — just click the entry field:


The list can contain files that were:

  • modified_star modified

  • renamed_icon renamed

  • added_plus added

  • removed_minus removed

  • commented_file_icon commented on

Each listed file entry can be in turn expanded to show its inline diff — just click the file name:


From this inline diff view you can go to a side-by-side diff view or a file view— for that click a corresponding button at the upper-right corner of the diff pane.

Opening a revision

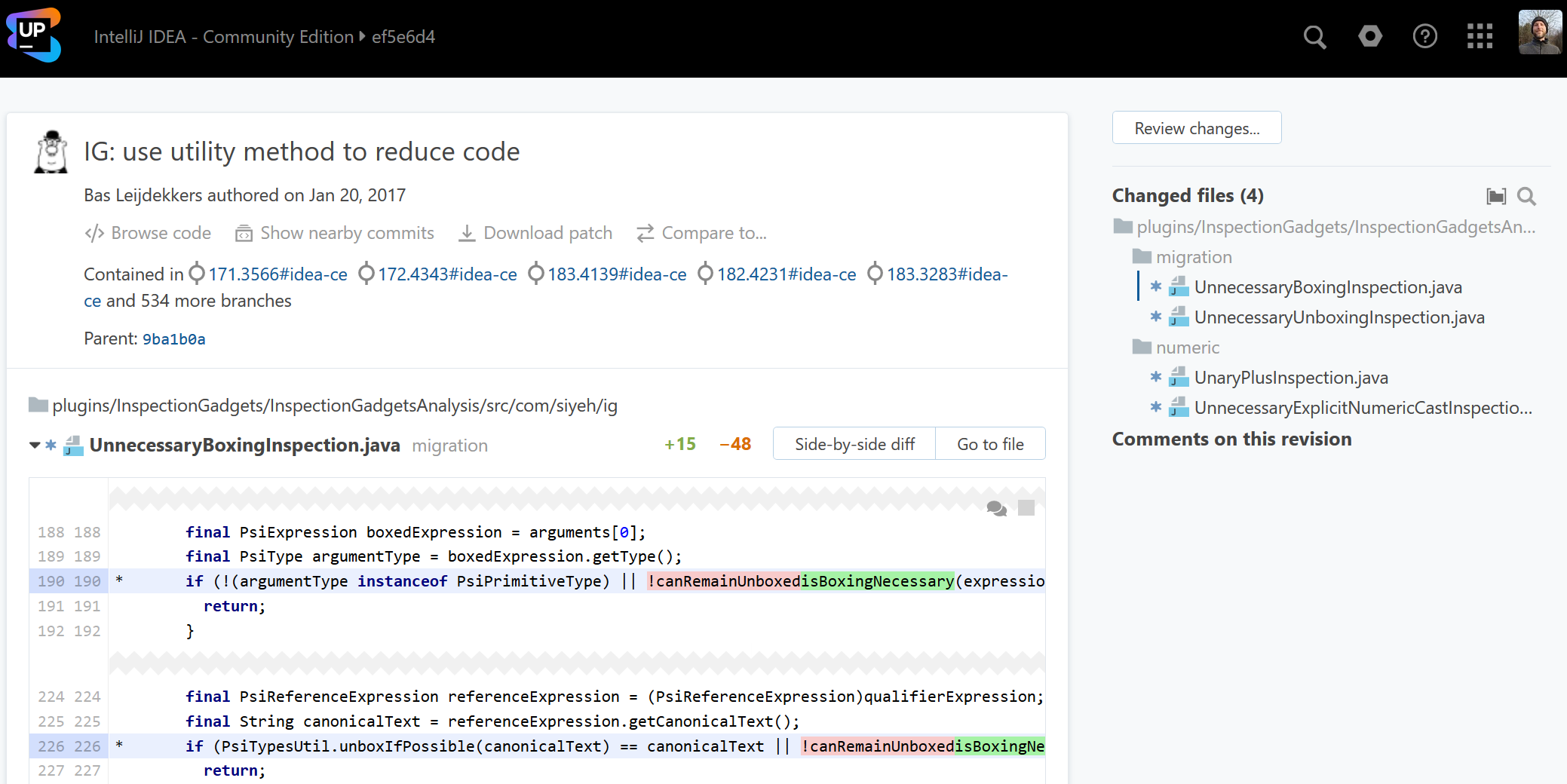

To open a revision, click on its message text or ID. You'll be redirected to a revision view where all the files included in the revision will be displayed along with an inline diff underneath each of them:

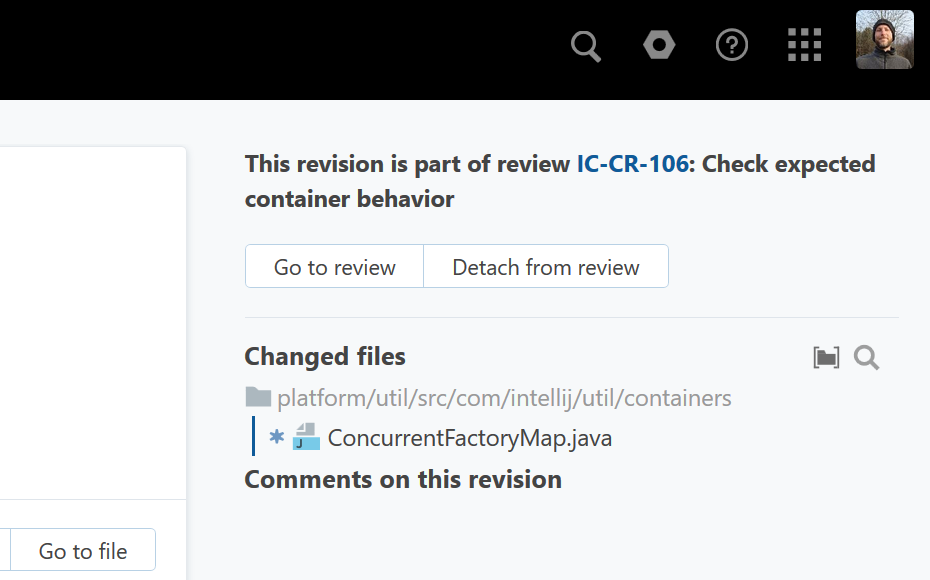

If the revision is covered by a review, you can go to that review or detach the revision from it:

revision_view_options

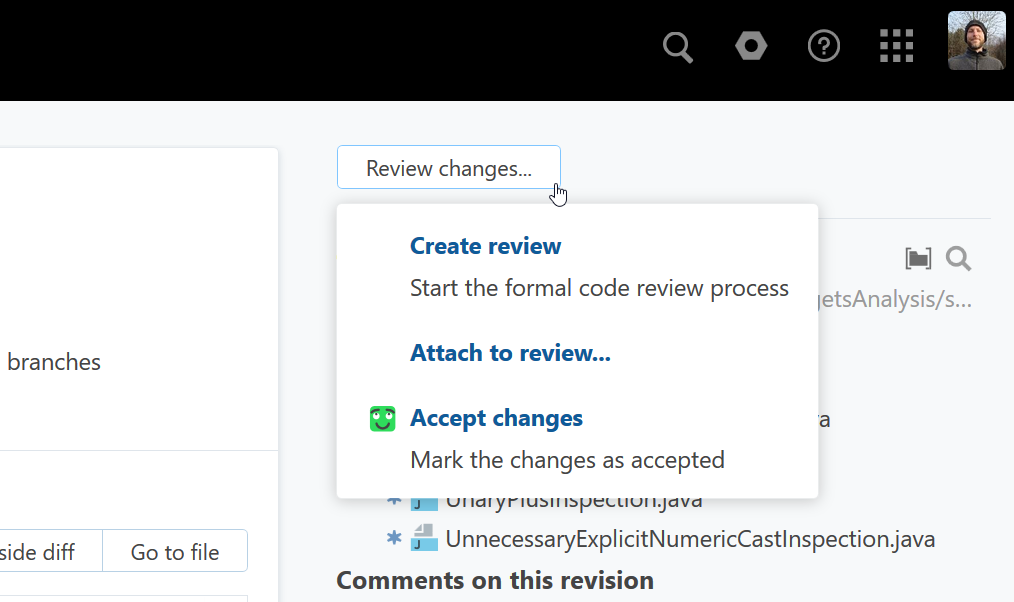

Or, if it's not part of any review, you can create a new review for it or attach it to an already existing one:

revision_view_options2

Each inline diff view also has buttons allowing you to open a side-by-side diff view or a file view.

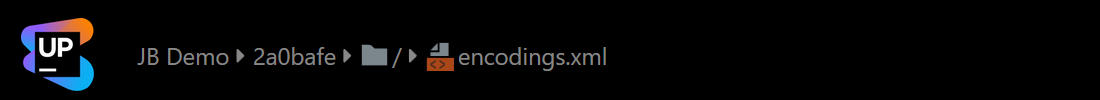

You can always see where you are in the project and go back to a revision view or a project home view using the navigation bar at the top:

nav_bar
