Upsource 2020.1 Help

Viewing history of changes in a repository

Upsource entry page displays configured projects, where each project corresponds to a specific VCS repository.

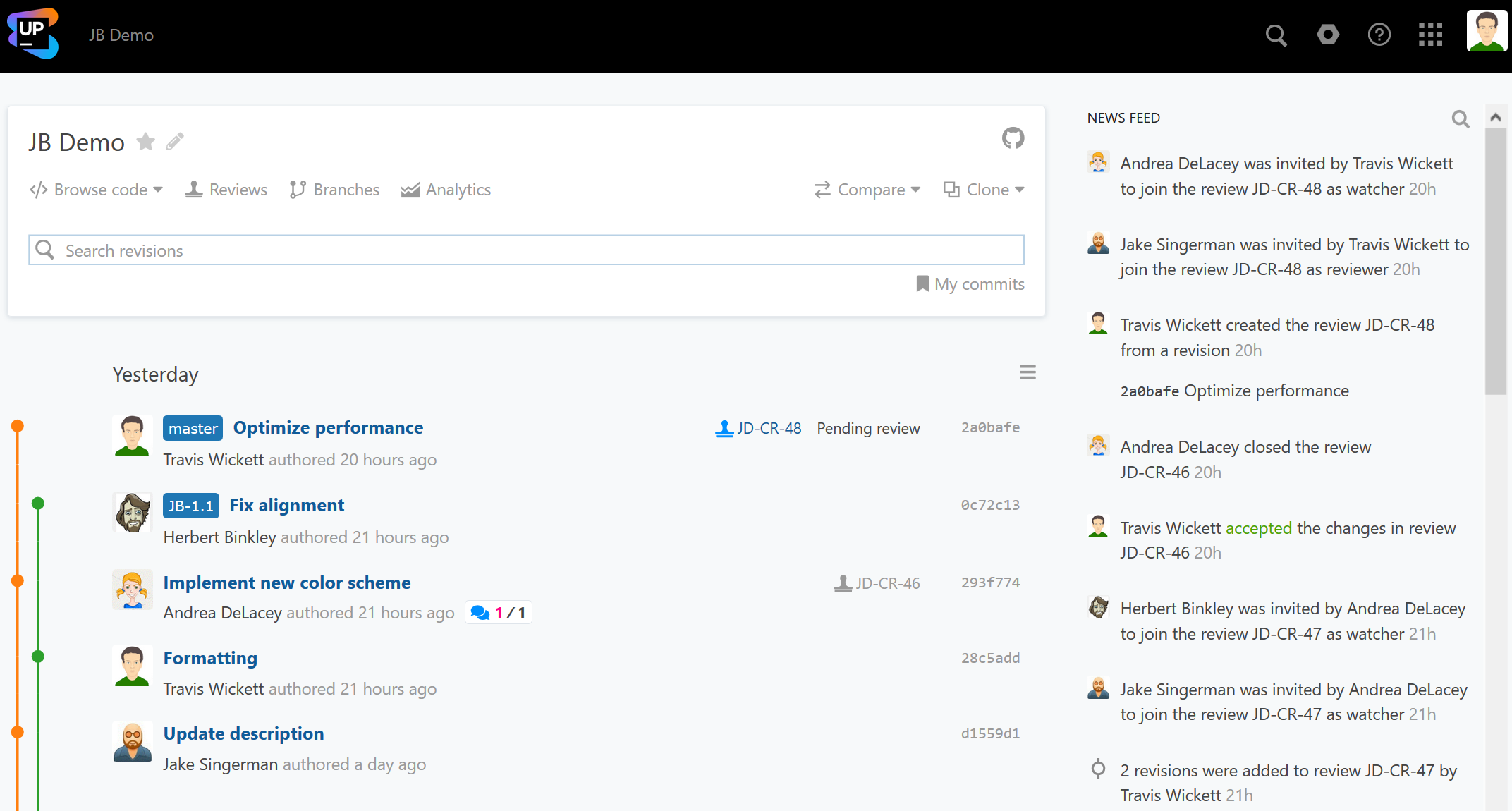

To open a particular project, just click its name. The project home view will be displayed:


In the main pane you see a list of recent revisions of that project displayed in chronological order.

Each entry shows:

  • a committer userpic (if any)

  • a committer username

  • a branch name branch_name

  • a commit message

  • a revision ID

  • a commit timestamp (when the commit took place)

  • a review icon (CR_reviewIcon open and closed_review_icon closed) and ID linking to the review (if this revision is included in a review)

  • a discussion counter discussion_counter (shows the number of discussion threads if this revision contains any)

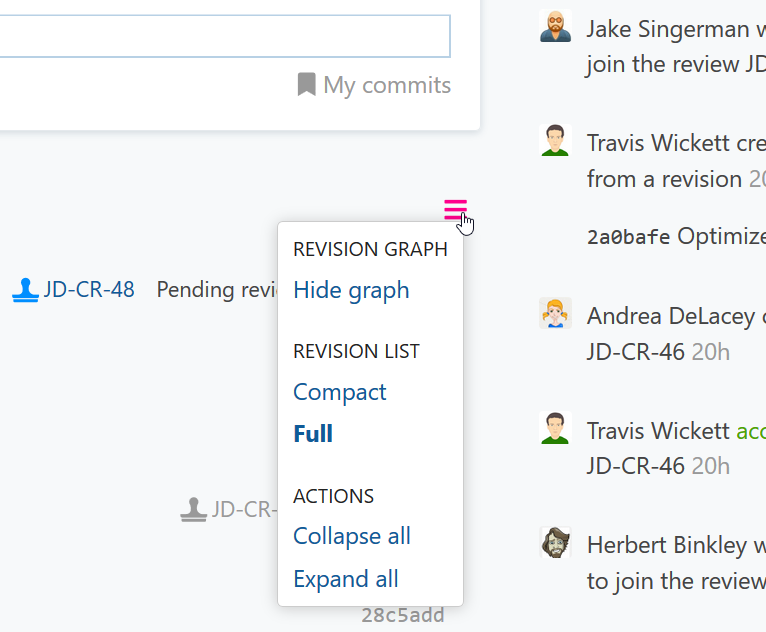

View options allow you to customise the way the revision list is displayed:

revision_list_view_options

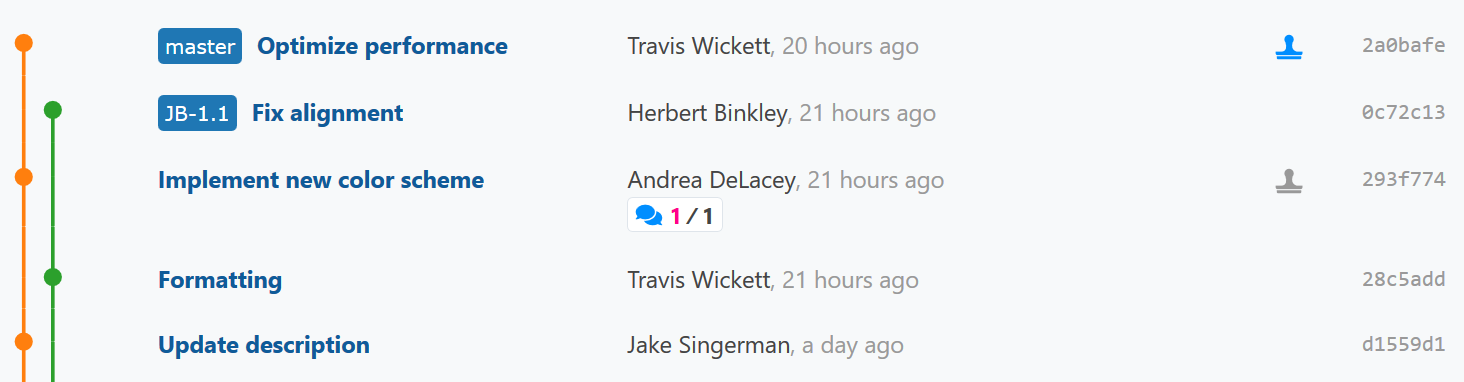

The list is displayed in a Full view by default. Switching to a Compact view hides userpics and lets the list take less space in your browser window:


You can also expand all revision entries to show affected files contained in each revision.

Clicking more_button at the bottom of the list brings out the next portion of older revisions.

The list of revisions is accompanied by a commit graph that helps visualize the history of commits, branches, and merges in your repository:

commit_graph

You can hide it using View options.

Last modified: 02 April 2021
