Overview of the user interface

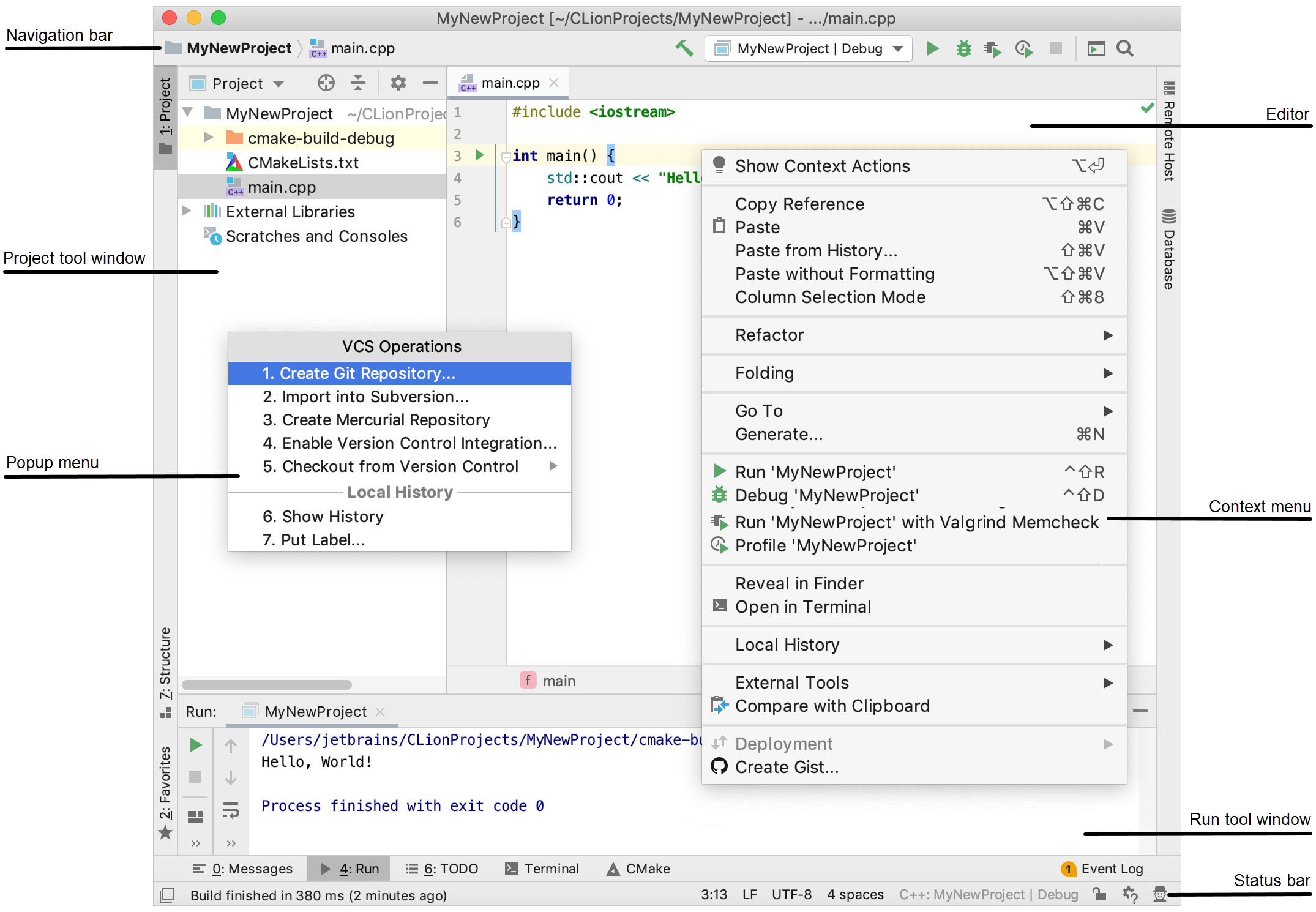

When you open a project in CLion, the default user interface looks as follows:

The Main window

Depending on the set of plugins and configuration settings, your IDE may look and behave differently.


Focus: Escape

Use the editor to read, write, and explore your source code .

Action indicators and action list

Open action list: Alt+Enter

Different icons that appear in the left editor gutter are action indicators that help you notice available quick fixes quick fix and other actions.

Quick fixes and other commands relevant for the current caret position are available in the action list that you can open with Alt+Enter or by cliking an action indicator.

Status bar

Show/hide: View | Appearance | Status Bar

The left part of the status bar at the bottom of the main window shows the most recent event messages and descriptions of actions when you hover over them with the mouse pointer. Click a message in the status bar to open it in the Event Log. Right-click the message in the status bar and select Copy to paste the message text when you are searching for a solution to a problem or need to add it to a support ticket or to the CLion issue tracker.

Use the quick access button Show tool windows or Hide tool windows to switch between tool windows and hide the tool window bars.

The status bar also shows the progress of background tasks. You can click Background tasks to show the Background Tasks manager.

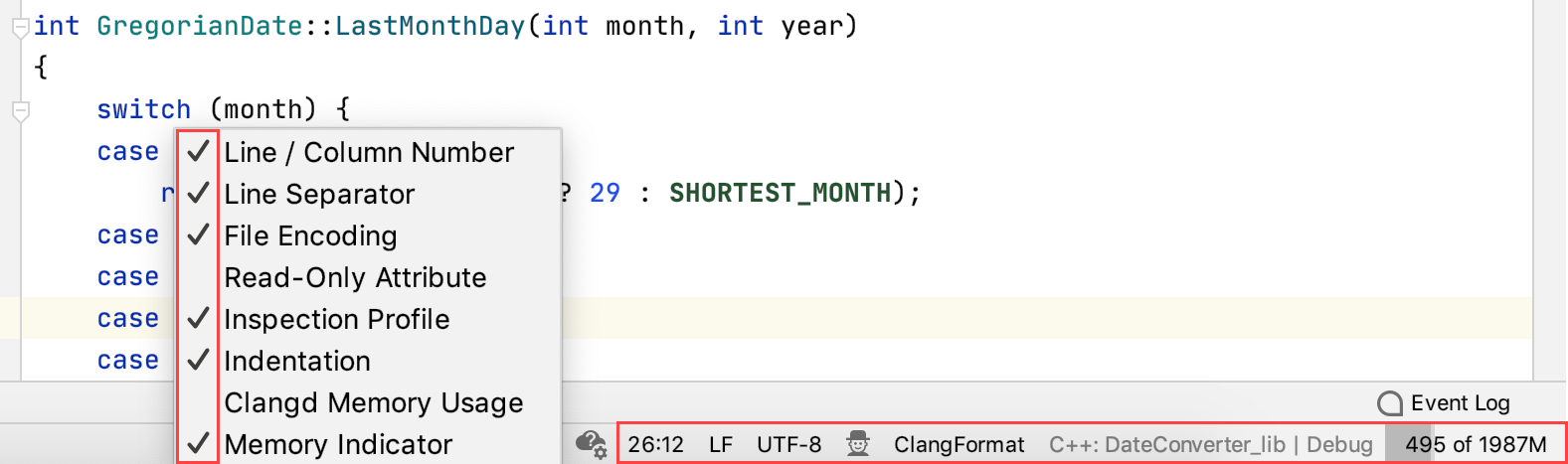

The right part of the status bar contains widgets that indicate the overall project and IDE status and provide access to various settings. Depending on the set of plugins and configuration settings, the set of widgets can change. Right-click the status bar to select the widgets that you want to show or hide.

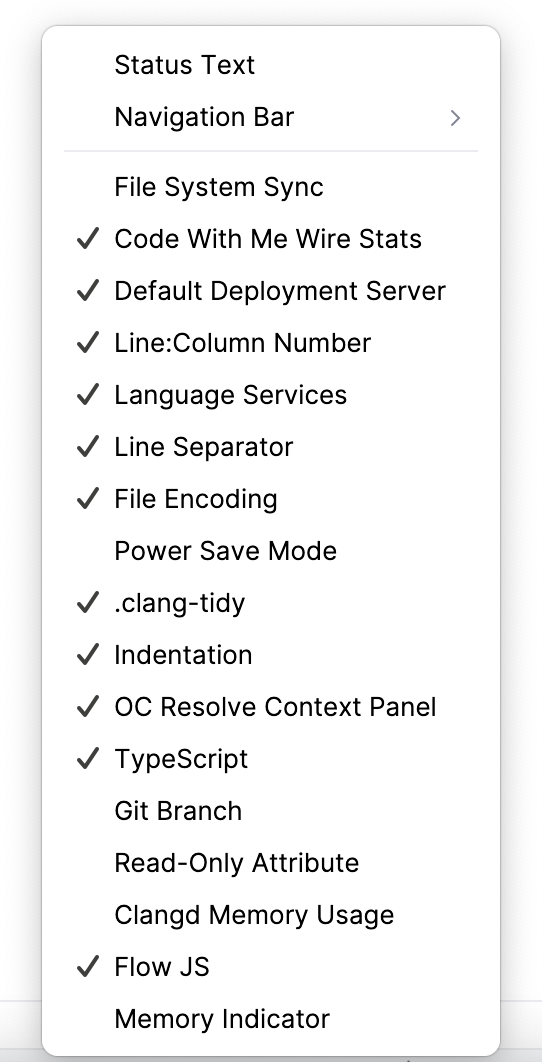

Customize the icons on the Status bar
Widget Description

Shows the line and column number of the current caret position in the editor. Click the numbers to move the caret to a specific line and column. If you select a code fragment in the editor, CLion also shows the number of characters and line breaks in the selected fragment.

Line endings
Shows the line endings used to break lines in the current file. Click this widget to change the line separators.
Encoding Shows the encoding used to view the current file. Click the widget to use another encoding.
Read-only Read and write Click to lock the file from editing (set it to read-only) or unlock it if you want to edit the file.
VCS branches If version control integration is enabled, this widget shows the current VCS branch. Click it to manage VCS branches.
Code style indents Shows the indent style used in the current file. Click to configure the tab and indent settings for the current file type or disable indent detection in the current project.
Memory indicator Shows the amount of memory that CLion consumes out of the total amount of heap memory. For more information, see Increase the memory heap of the IDE.

Tool windows

Show/hide: View | Tool Windows

Tool windows provide functionality that supplements editing code. For example, the Project tool window shows you the structure of your project, and the Run tool window displays the output of your application when you run it.

By default, tool windows are docked to the sides and bottom of the main window. You can arrange them as necessary, undock, resize, hide, and so on. Right-click the title of the tool window or click The Show Options Menu button in the title for its arrangement options.

You can assign shortcuts to quickly access the tool windows that you frequently use. Some of them have shortcuts by default. For example, to open the Project tool window, press Alt+1, and to open the Terminal tool window, press Alt+F12. To jump from the editor to the last active tool window, press F12.

Context menus

You can right-click various elements of the interface to see the actions available in the current context. For example, right-click a file in the Project tool window for actions related to that file, or right-click in the editor to see actions that apply to the current code fragment.

Most of these actions can also be performed from the main menu at the top of the screen or the main window. Actions with shortcuts show the shortcut next to the action name.

Main window

The main window contains all the information for a single CLion project. You can open multiple projects in multiple windows . By default, the window header contains the name of the project andthe name of the currently open file. If there are multiple modules, it will also show the name of the relevant module.

Show full paths in the header

  • In the Settings/Preferences dialog Ctrl+Alt+S, open Appearance & Behavior | Appearance and select the Always show full paths in window header checkbox.

This will show the path to the project and to the current file.

Last modified: 20 January 2021
