Qt projects

Qt is a cross-platform C++ framework for creating GUI applications. Qt uses its own build system, qmake, and also supports building with CMake starting from the version Qt4.

A pure Qmake project can't be imported in CLion directly. However, when converted into CMake, it can be opened and managed as a regular CMake application. You can also create a CMake-based Qt project in CLion using the New Project wizard.

CMake-based Qt projects

For CMake version 3.0 and newer, Qt ships the modules that let CMake find and use Qt4 and Qt5 libraries. Take the following steps to configure CMakeLists.txt for your Qt project.

CMakeLists.txt for a Qt project

  1. Add the find_package command to locate the required libraries and header files. For example:

    find_package(Qt5Widgets REQUIRED)

    Then, use target_link_libraries to make your target dependent on these libraries and headers:

    target_link_libraries(helloworld Qt5::Widgets)

  2. For find_package to perform successfully, CMake should be instructed on where to find the Qt installation.

    One of the ways to do this is by setting the CMAKE_PREFIX_PATH variable. You can either pass it via -D in the CMake settings dialog or via the set command before find_package.

    For example, in the case of MinGW on Windows:

    set(CMAKE_PREFIX_PATH "C:\\Qt\\Qt5.14.0\\5.14.0\\mingw73_32\\")
    or
    set(CMAKE_PREFIX_PATH "C:\\Qt\\Qt5.14.0\\5.14.0\\mingw73_32\\lib\\cmake\\")
  3. If your project uses MOC, UIC, or RCC, add the following lines to enable automatic invocation of the corresponding compilers:

    set(CMAKE_AUTOMOC ON) set(CMAKE_AUTOUIC ON) set(CMAKE_AUTORCC ON)
  4. List all the .ui and .qrc files in the add_executable() command along with your .cpp sources:

    add_executable( helloworld main.cpp mainwindow.cpp application.qrc )

Below you can find the full CMakeLists.txt script for a simple "Hello, world" application:

cmake_minimum_required(VERSION 3.10) project(Qt-CMake-HelloWorld) set(CMAKE_CXX_STANDARD 17) set(CMAKE_INCLUDE_CURRENT_DIR ON) set(CMAKE_PREFIX_PATH "C:\\Qt\\Qt5.14.0\\5.14.0\\mingw73_32\\") find_package(Qt5Widgets REQUIRED) set(CMAKE_AUTOMOC ON) set(CMAKE_AUTOUIC ON) set(CMAKE_AUTORCC ON) add_executable(helloworld main.cpp mainwindow.cpp application.qrc) target_link_libraries(helloworld Qt5::Widgets)

Setting up a Qt project in CLion

Toolchains on Windows

  1. When installing Qt on Windows, pick the distributive that matches the environment you are using in CLion, MinGW or MSVC.

    For MinGW, both the version and the bitness (32-bit MinGW or MinGW-w64) should match with your toolchain setup.

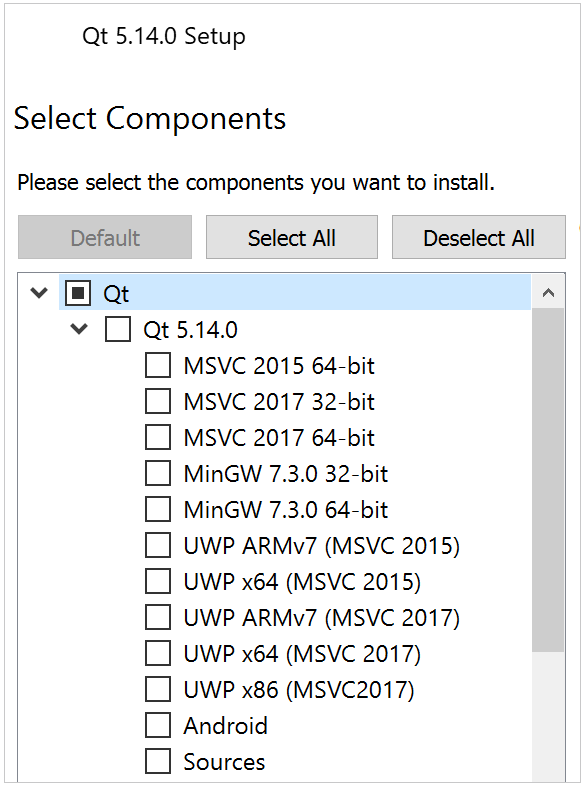

    Qt installer
  2. In CLion, go to Settings (Ctrl+Alt+S ), navigate to Build, Execution, Deployment | Toolchain and select the toolchain that matches your Qt installation.

    If you have several Qt installations, make sure to select the same toolchain as the one you specified in CMAKE_PREFIX_PATH.

    As an example, in the case of MinGW:

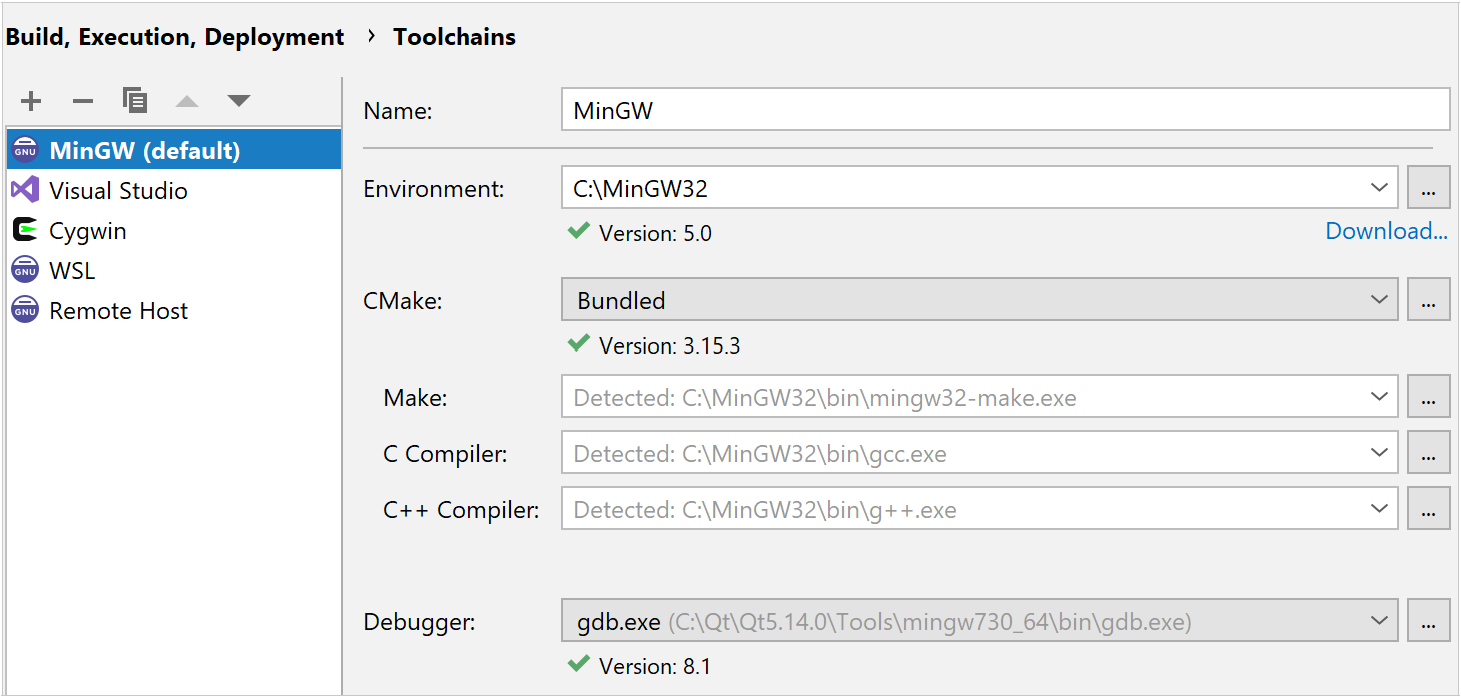

    MinGW toolchain

CMake settings

  • Qt projects are handled as regular CMake projects in CLion, so you can configure CMake settings in Settings/Preferences | Build, Execution, Deployment | CMake as necessary.

    For example, you can create different CMake profiles with different build types and set up CMake generators of your choice.

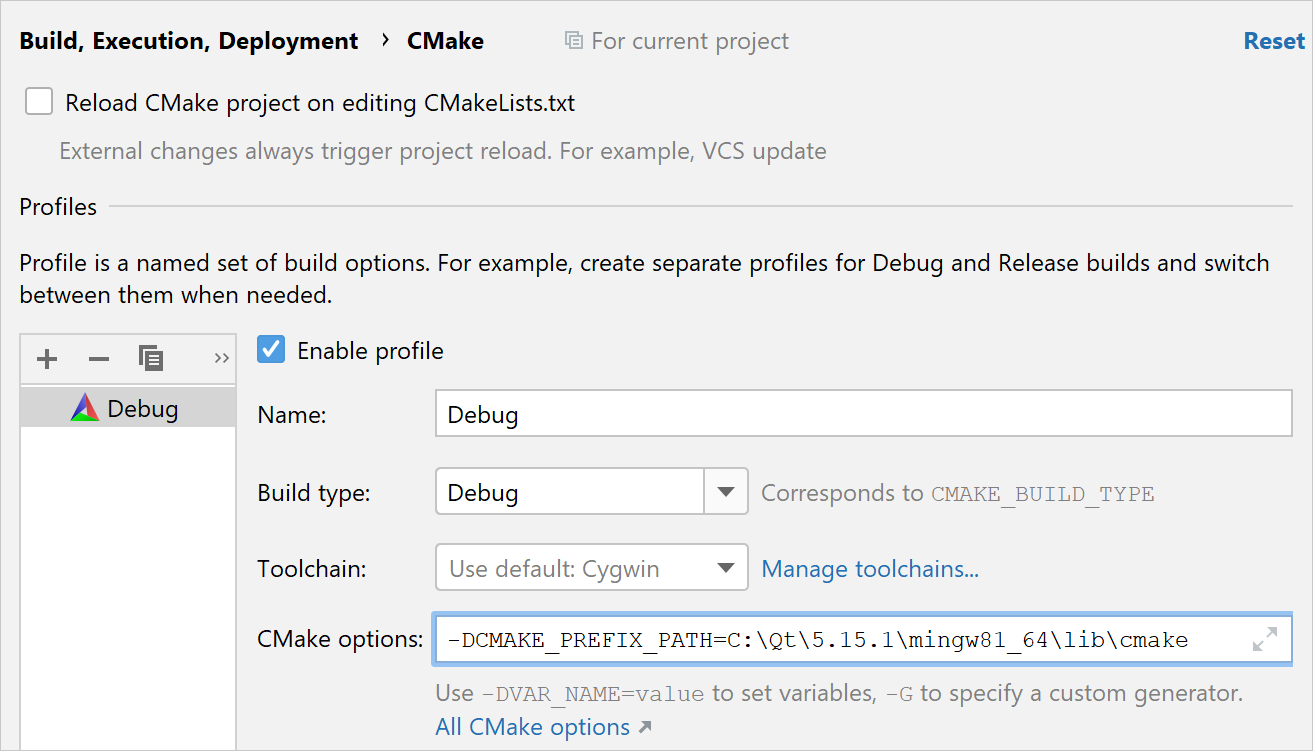

    In this dialog, you can also specify CMake options, such as CMAKE_PREFIX_PATH instead of setting them in CMakeLists.txt:

    CMake options for a Qt project

Debugger renderers

You can use Qt type renderers, which are usually shipped with Qt tools, for your project in CLion. However, for now, you need to set them manually either using the .gdbinit/ .lldbinit scripts or, in the case of MSVC, via native visualizers.

  • Windows MSVC

    CLion’s debugger for the MSVC toolchain can employ native visualizers if you have them in your project. Make sure to set the Enable NatVis renderers for LLDB option in Settings | Build, Execution, Deployment | Debugger | Data Views | C/C++.

    For example, copy qt5.natvis under your project root, and CLion will automatically detect and use it for rendering.

  • Windows MinGW / macOS / Linux

    For non-MSVC toolchains, a solution would be to configure the Qt renderers via .gdbinit/.lldbinit. These scripts are loaded on every invocation of GDB or LLDB, respectively.

    1. You can try KDevelop formatters for GDB, KDevelop formatters for LLDB, Lekensteyn's qt5printers (GDB), or create your own pretty-printers.

      To create custom pretty printers, follow the official instructions for LLDB or GDB. You can take the pretty-printers for Rust implemented in the IntelliJ Rust plugin as a reference.

    2. Point the debugger to your renderers via .gdbinit/ .lldbinit. Find an example in this github repo.

    3. Place the .gdbinit/ .lldbinit files under the project root and allow them in your home directory as described here.

Editing UI files in Qt Designer

By default, CLion opens .ui files in the editor. You can change this behavior in order to edit .ui files right in Qt Designer.

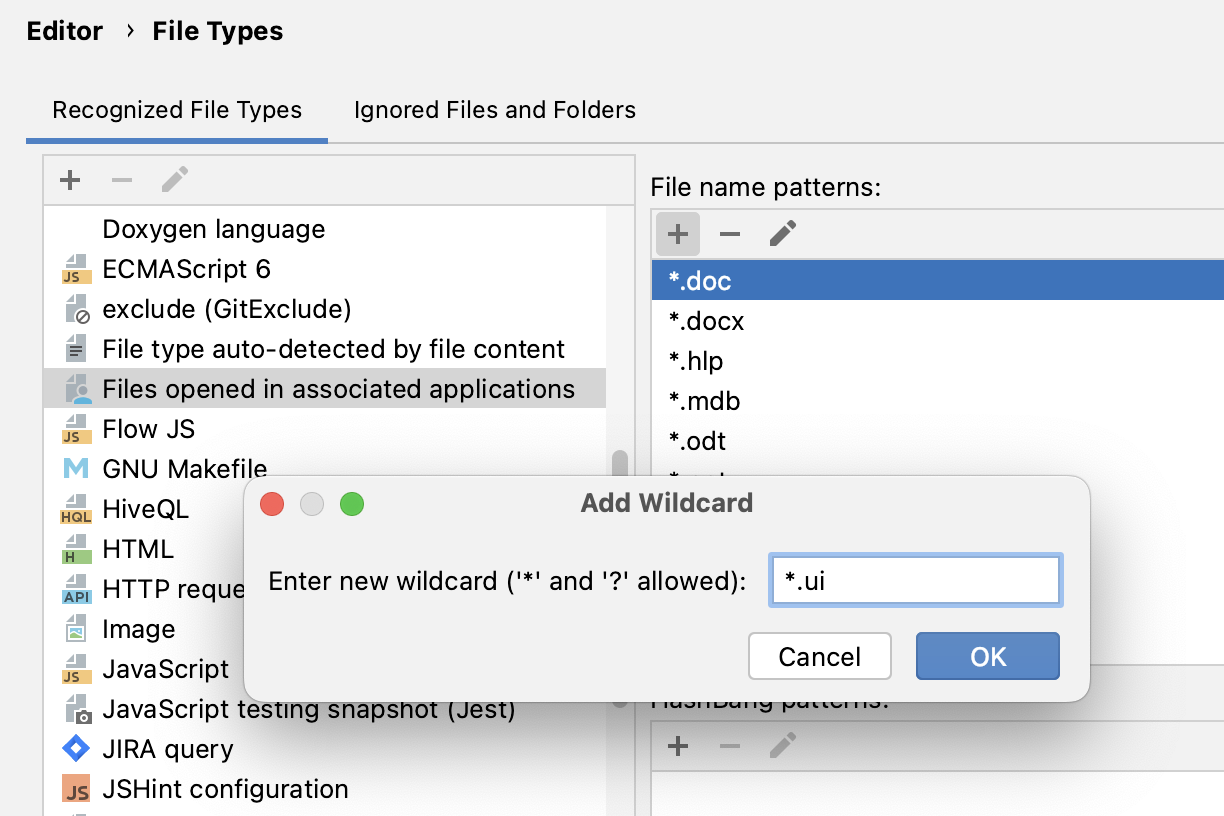

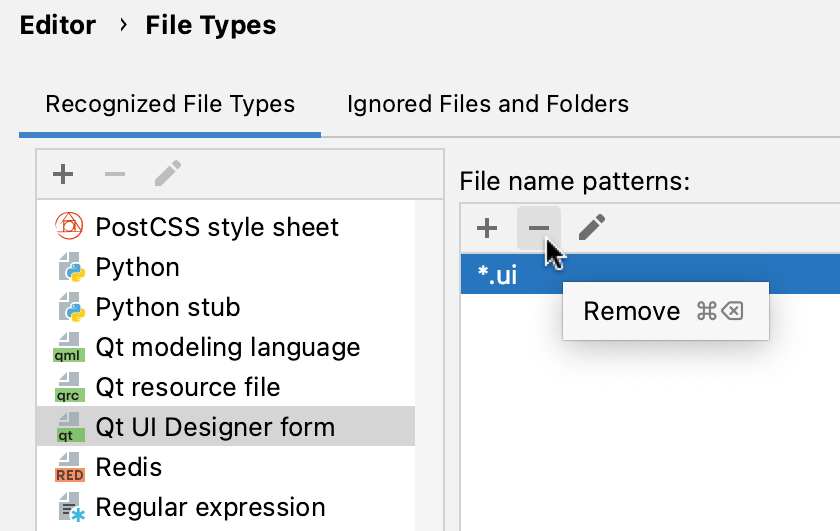

  1. Go to Settings / Preferences | Editor | File Types, select Qt UI Designer Form from the Recognized File Types list, and delete the associated file extension.

  2. Next time you click a .ui file for opening, set the Open in associated application checkbox, and the files of this type will always open in Qt Designer.

Creating a CMake-based Qt project

CLion provides two project templates for Qt: Qt Console Executable and Qt Widgets Executable.

Call File | New Project and select the project type in the left-hand pane. Specify the location, language standard, and Qt version. You can also provide the path to be used in CMAKE_PREFIX_PATH. Click Create when ready.

Qt project templates

CLion will generate a ready-to-go stub project with CMakeLists.txt filled in automatically, including the CMAKE_PREFIX_PATH variable:

Qt Console Executable template project

Qt UI class templates

You can quickly create a Qt class with the corresponding .ui, .cpp, and .h files.

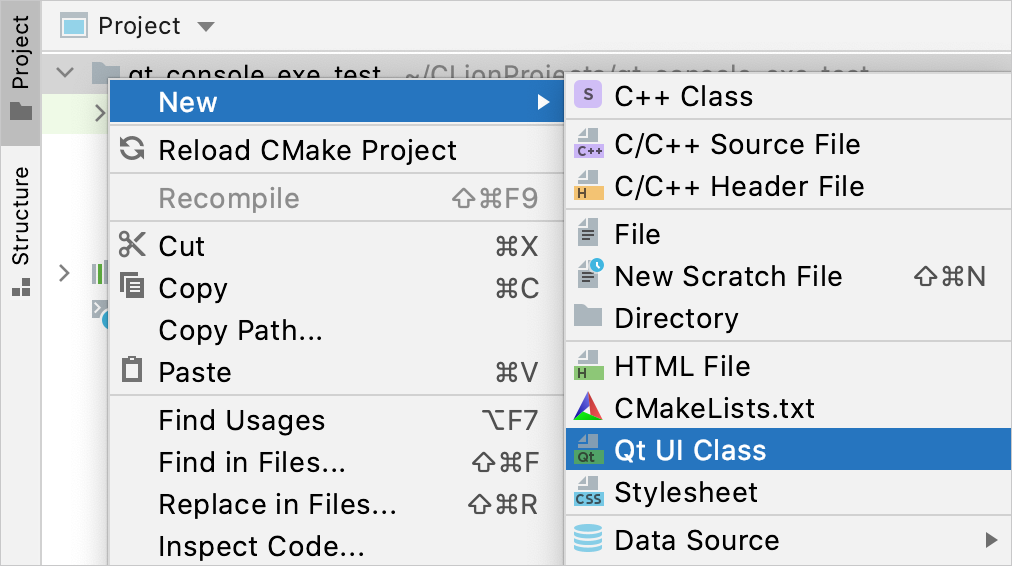

  1. In the Project view, select New from the context menu or press Alt+Insert. Choose Qt UI Class:

    New Qt UI Class menu option

  2. In the dialog that opens, fill in the class name and configure the following settings:

    • Filename base- specify the name for the .ui/ .cpp/ .h files to be generated.

    • Parent class- select QWidget, QMainWindow, QDialog, or a custom parent class.

    • Namespace- specify the enclosing namespace if required.

    • Add to targets- set this checkbox to automatically add the new files to the list of sources for the selected target(s).

    New Qt UI Class dialog
  3. CLion will generate the .ui, .cpp, and .h files following the templates defined in Settings / Preferences | Editor | File and Code Templates: Qt Designer Form, Qt Class, and Qt Class Header, respectively. If required, you can adjust these templates for your needs.

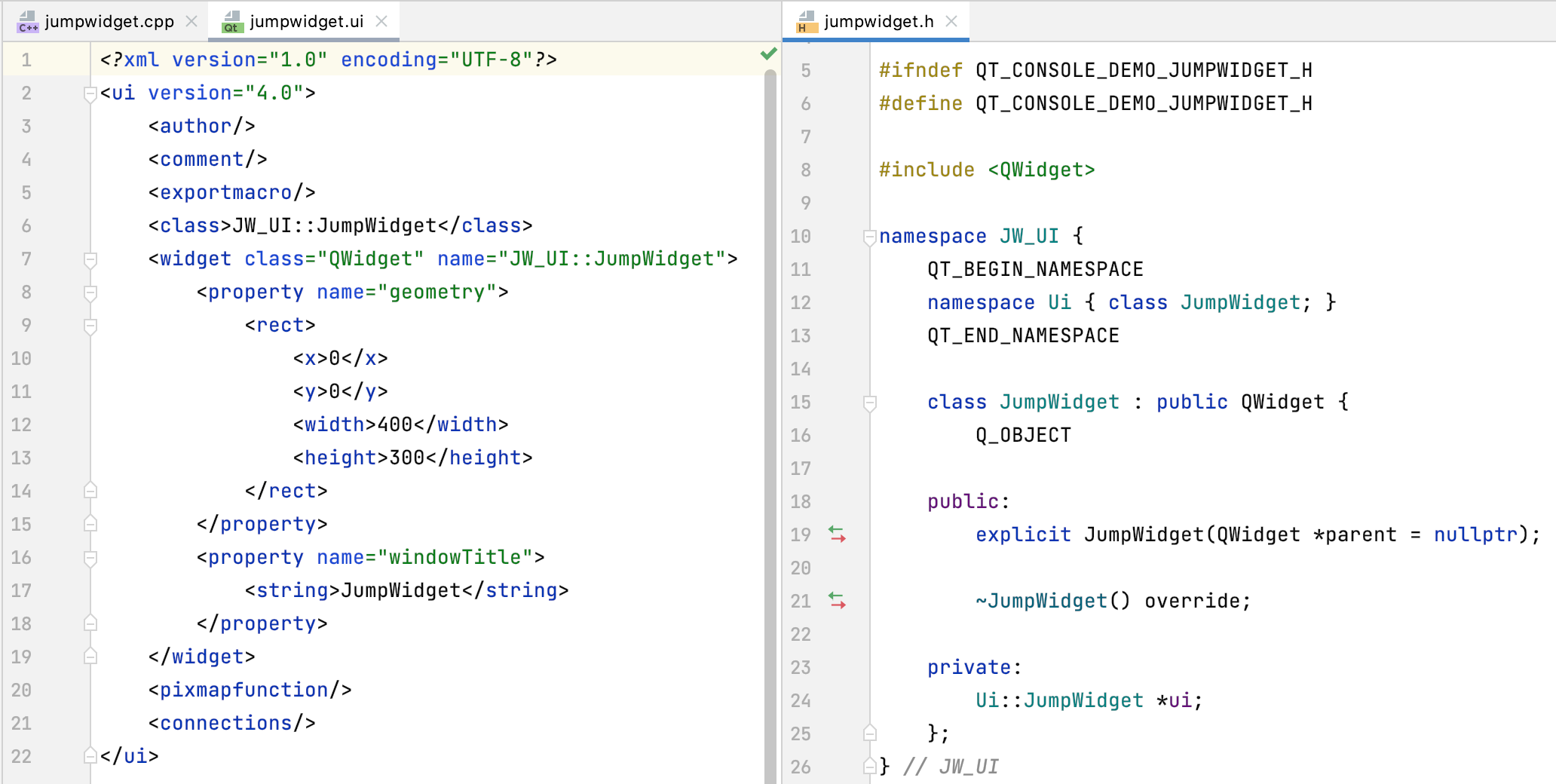

    Files generated for a new Qt UI class

Qt-specific code insight

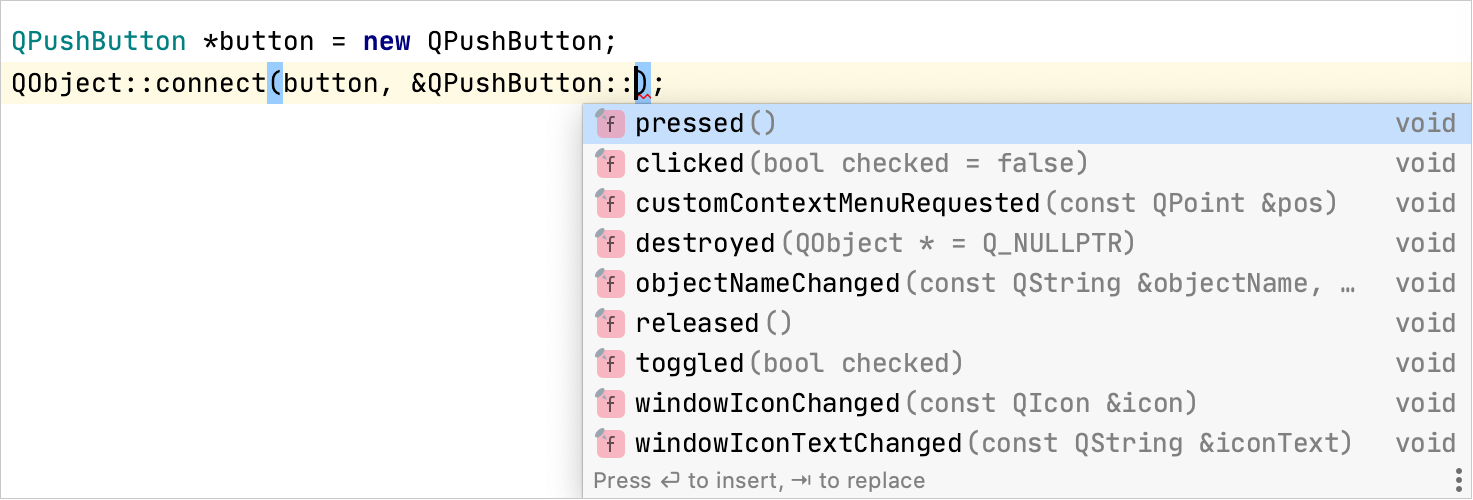

  • CLion provides code completion for Qt signals and slots, filtering the suggestion list to show only the corresponding members:

    Completion for Qt signals

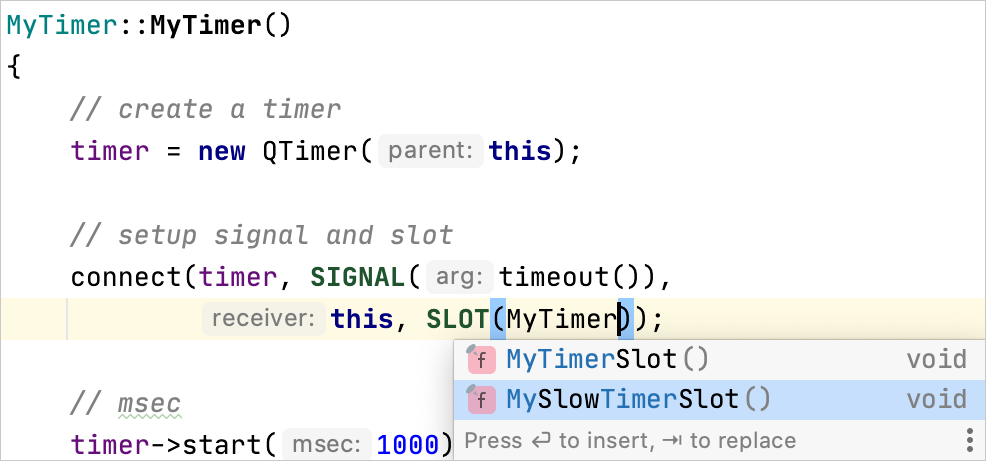

    Completion works for the SIGNAL() and SLOT() macros as well:

    Completion for the SLOT macro

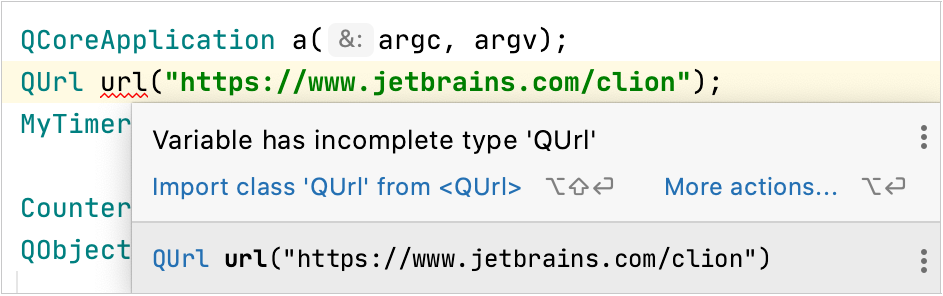

  • CLion's auto-import supports Qt-style header files, offering the shortest possible #include:

    Qt-style auto-import

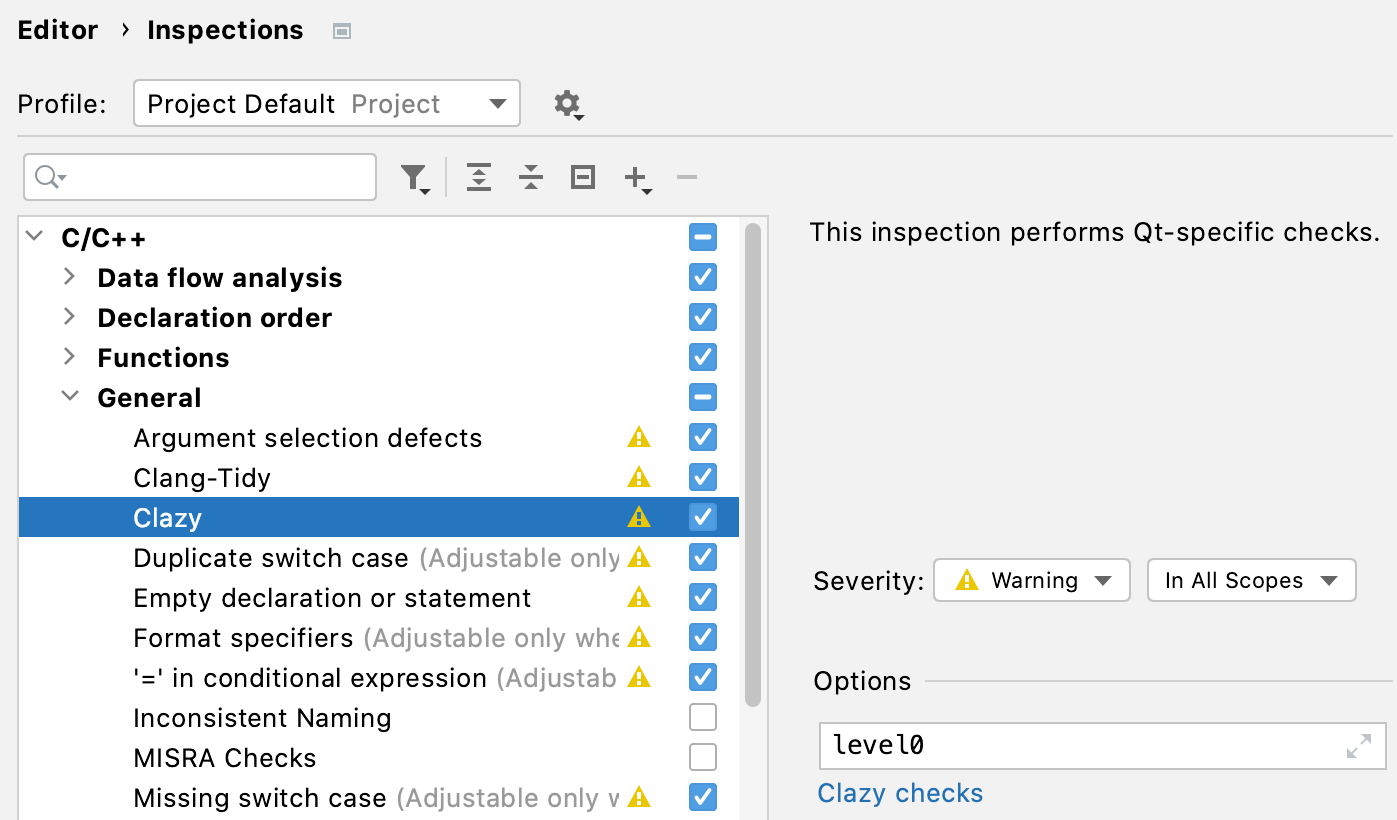

  • Also, CLion integrates with clazy, a Qt-oriented static code analyzer. You can configure the severity and level of clazy checks in Settings/Preferences | Editor | Inspections | C/C++ | General | Clazy:

    Clazy checks

QtCreator keymap

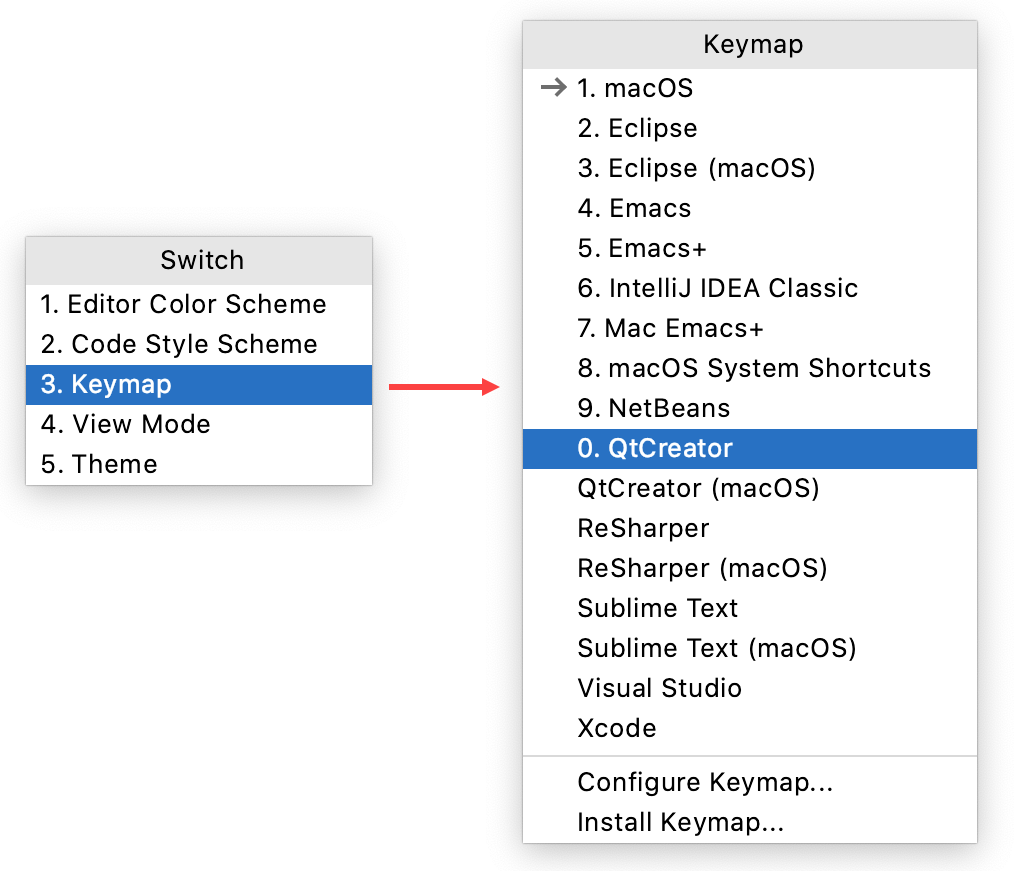

CLion bundles the QtCreator keymap. You can switch to it in Settings / Preferences | Keymap or by calling View | Quick Switch Scheme from the main menu (Ctrl+` ):

Switching to the Qt keymap

Current limitations

  • Some of the CLion's code generation features may not work for Qt macros, such as Q_PROPERTY, Q_SIGNAL, Q_SLOT, and others.

  • Although QML is not supported in CLion out of the box (see the feature request ), you can try the QML Support plugin.

Troubleshooting

If you get the Process finished with exit code -1073741515 (0xC0000135) error message when running on MinGW, the issue might relate to Qt deployment on Windows: dynamic libraries and Qt plugins must be found from the directory of the running binary. Try one of the workarounds described below.

Option 1

  • Add the path to bin under the MinGW directory in the Qt installation (for example, C:\Qt\5.15.1\mingw81_64\bin) to the system PATH or in the Environment variables field of the configuration settings.

    If this doesn't solve the issue for your project, try Option 2.

Option 2

  1. Copy the .dll -s located in bin under the MinGW directory in the Qt installation to your project’s generation folder, which is cmake-build-debug or cmake-build-release by default.

    The libraries you will most likely need are libstdc++-6.dll, Qt5Widgets.dll, Qt5Gui.dll, and Qt5Core.dll, but your setup might require other libraries as well.

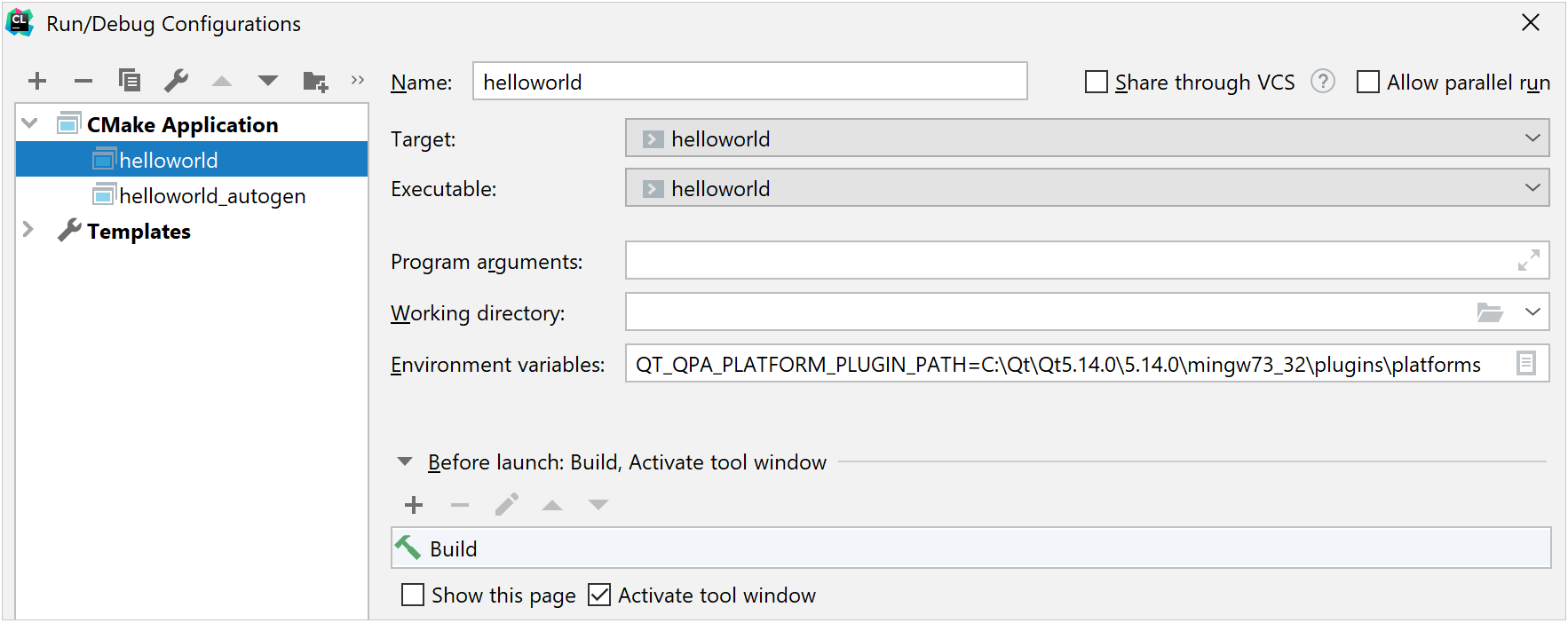

  2. In the settings of the configuration you use for running, set the QT_QPA_PLATFORM_PLUGIN_PATH environment variable to plugins\platforms under the MinGW directory:

    Environment variable for the Qt plugins path

    Refer to the Qt Plugins documentation for more details.
