Chart cells

Use chart cells to build customizable visualizations based on DataFrames in your notebooks. With this feature, you can do the following:

  • Plot multiple DataFrames on one canvas

  • Choose from the point, line, bar, area, correlation, and regression chart types

  • Use full or auto-sampled datasets

  • Customize the width, height, title, and axis labels of your chart

  • Choose from the reverse, continuous, discrete, sqrt, and log10 scale types

Visualize tab and chart cell compared

While both elements allow you to plot your data quickly and with no coding involved, they are not the same:

  • Visualize tab: Plotting is performed on the client side. Created visualizations are mainly used for quick exploratory analysis on sampled datasets. Find more information in Automatic plotting.

  • Chart cells: Plotting is performed on the server side. The feature facilitates collaboration and allows to build multilayered charts based on datasets of any size.

Build a simple chart in a chart cell

Before the procedure, make sure you have a DataFrame for plotting.

  1. Open a chart cell:

    • Right-click anywhere in the editor field, hover over Insert cell below or Insert cell above and select Chart.

    • Hover over the bottom border of a cell, click More, and select Chart.

  2. In the chart cell, click the Title text field to provide a chart title.

  3. (Optional) To customize the basic chart properties, click the settings icon in the Title field. In the Plot settings dialog, you can set the width and the height of the chart, and select if you want the plot updated automatically on the changes you make and if you want to use auto sampling.

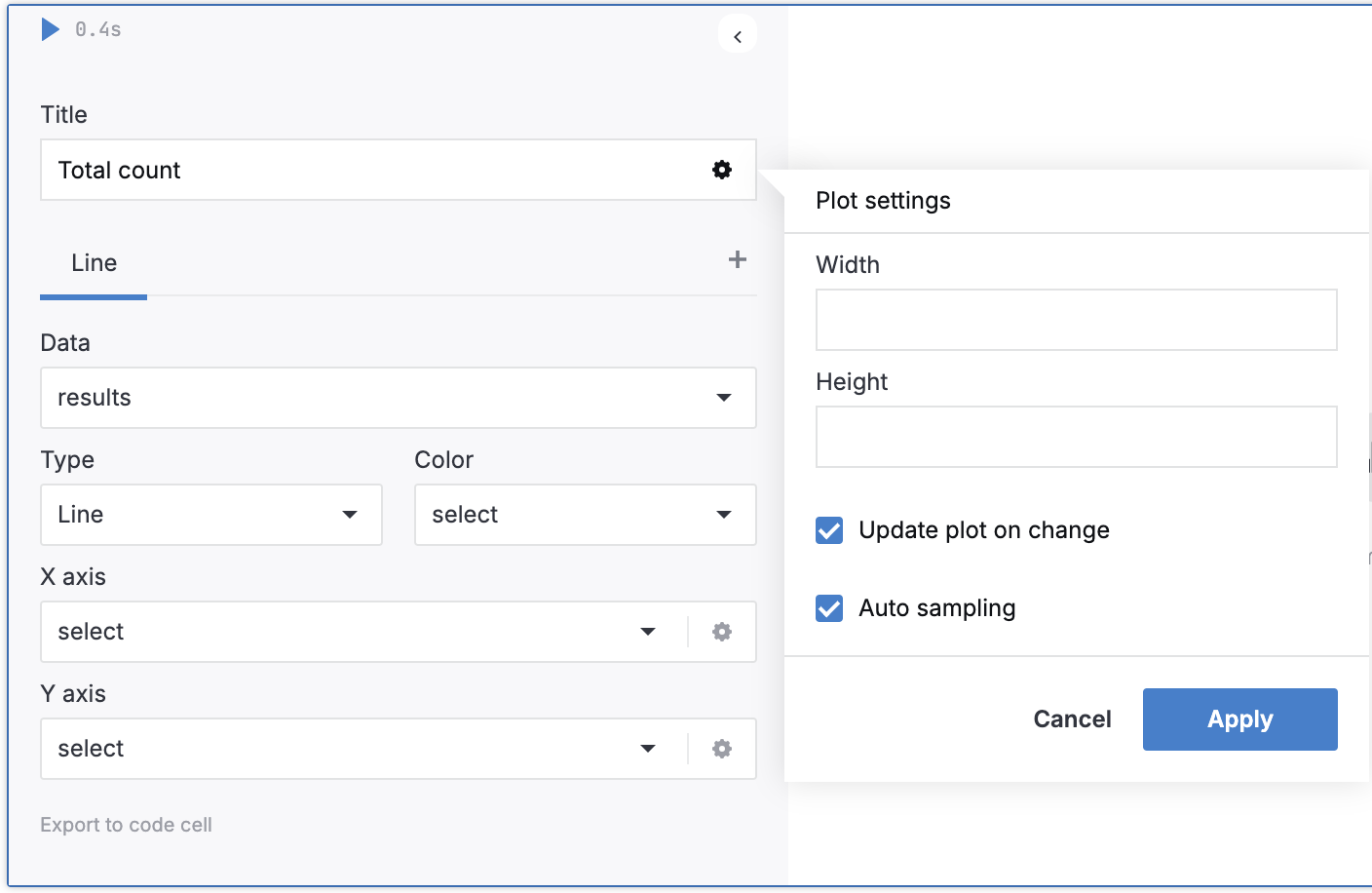

    Plot settings dialog

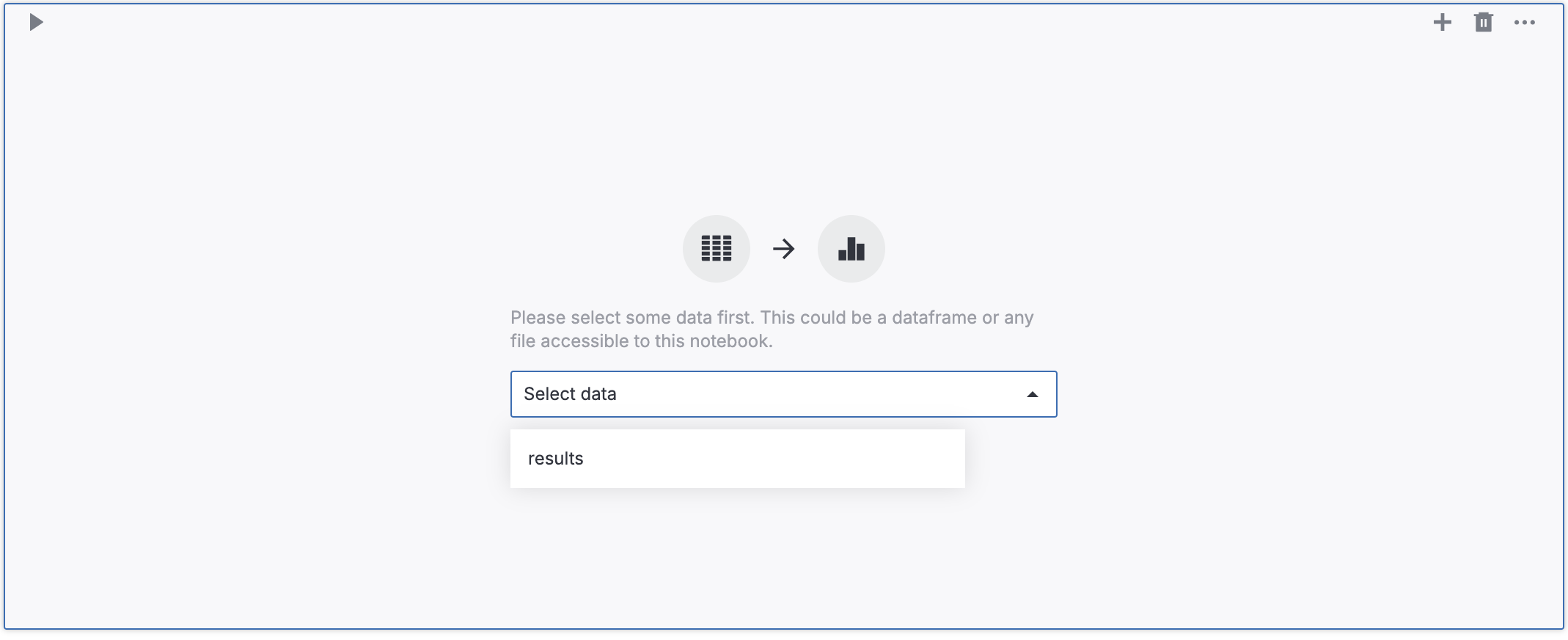

  4. Expand the Data list to select the DataFrame. This DataFrame will provide data for plotting.

  5. Expand the Type list to select a chart type. Line is the default option.

  6. Expand the Color list to pick a color for your chart or configure the palette based on the data from a selected column.

  7. Set up the chart axes. Expand the X axis and Y axis lists to select columns as data sources.

  8. (Optional) Customize the axes:

    • Click the settings icon for the respective axis.

    • In the axis settings dialog, you can provide an axis label, select a scale type, provide a number of bins (if applicable).

    • Click Apply.

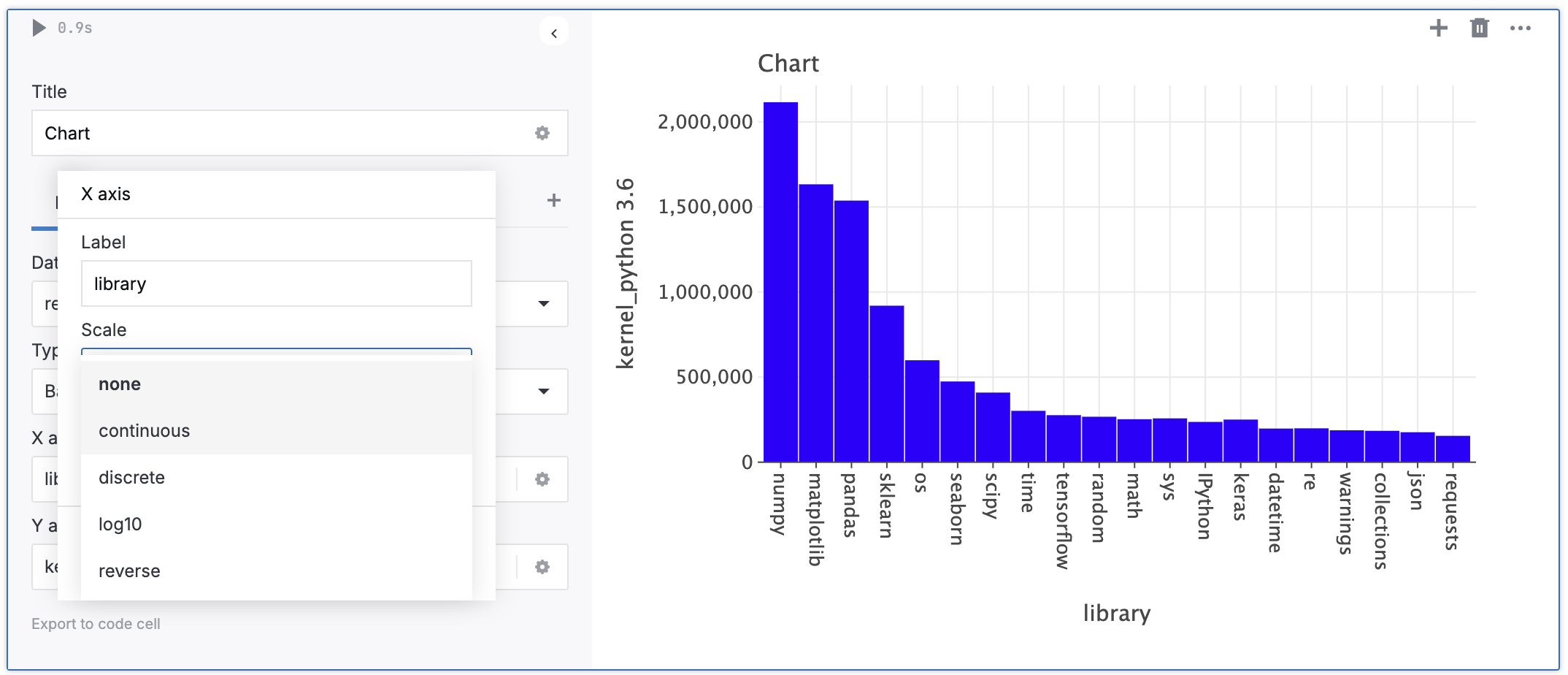

    X axis settings dialog

Build a layered chart in a chart cell

You can build charts with several layers based on different plots.

  1. In a chart cell, click the plus icon under the Title text field. This will add a tab for one more layer.

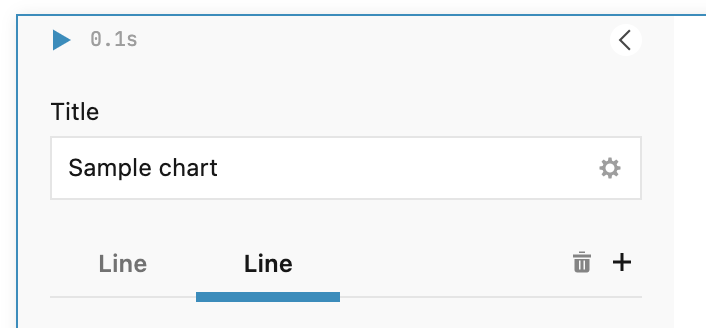

    Adding a layer
  2. Remain on the newly added tab and set up the chart as instructed in the procedure above. You can switch from tab to tab to edit all charts on the canvas.

  3. (Optional) To remove a layer, switch to the layer tab and click the Remove icon on the tab toolbar.

The image below shows two charts: one based on one plot, and one containing two layers with different plots.

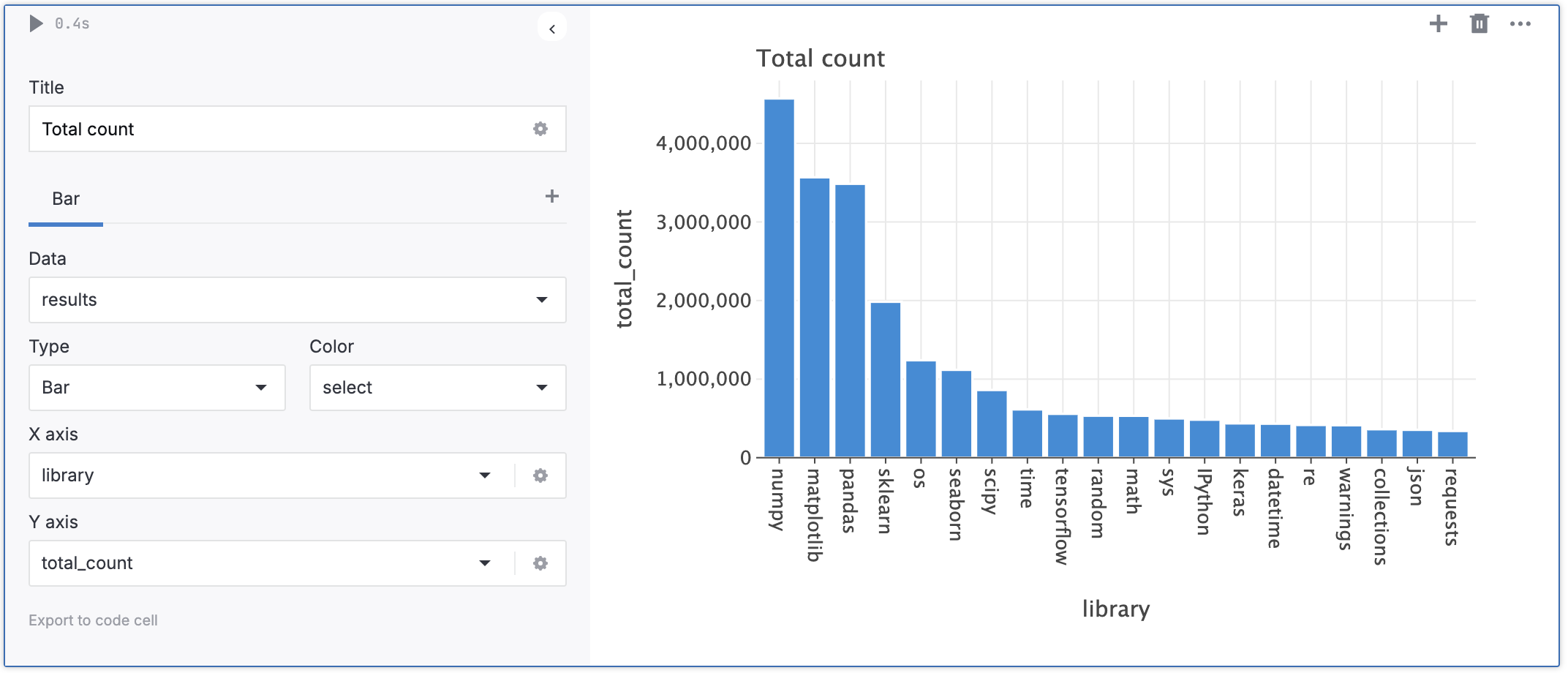

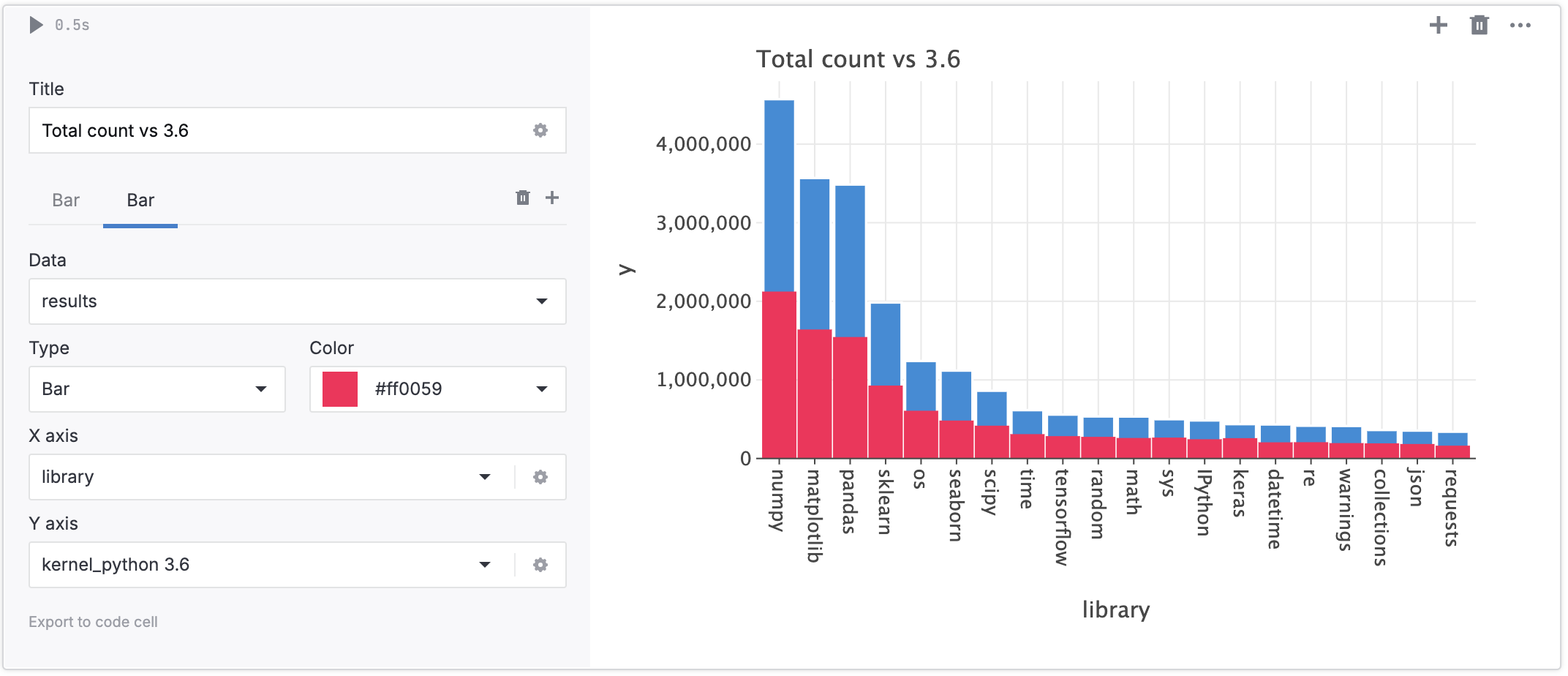

Simple and layered charts

How chart cells are exported

When exporting a notebook to .ipynb, the chart cells are converted into code cells with their input extracted as code for building the respective visualizations. This ensures that you can create the same charts once you open and run the exported notebook.

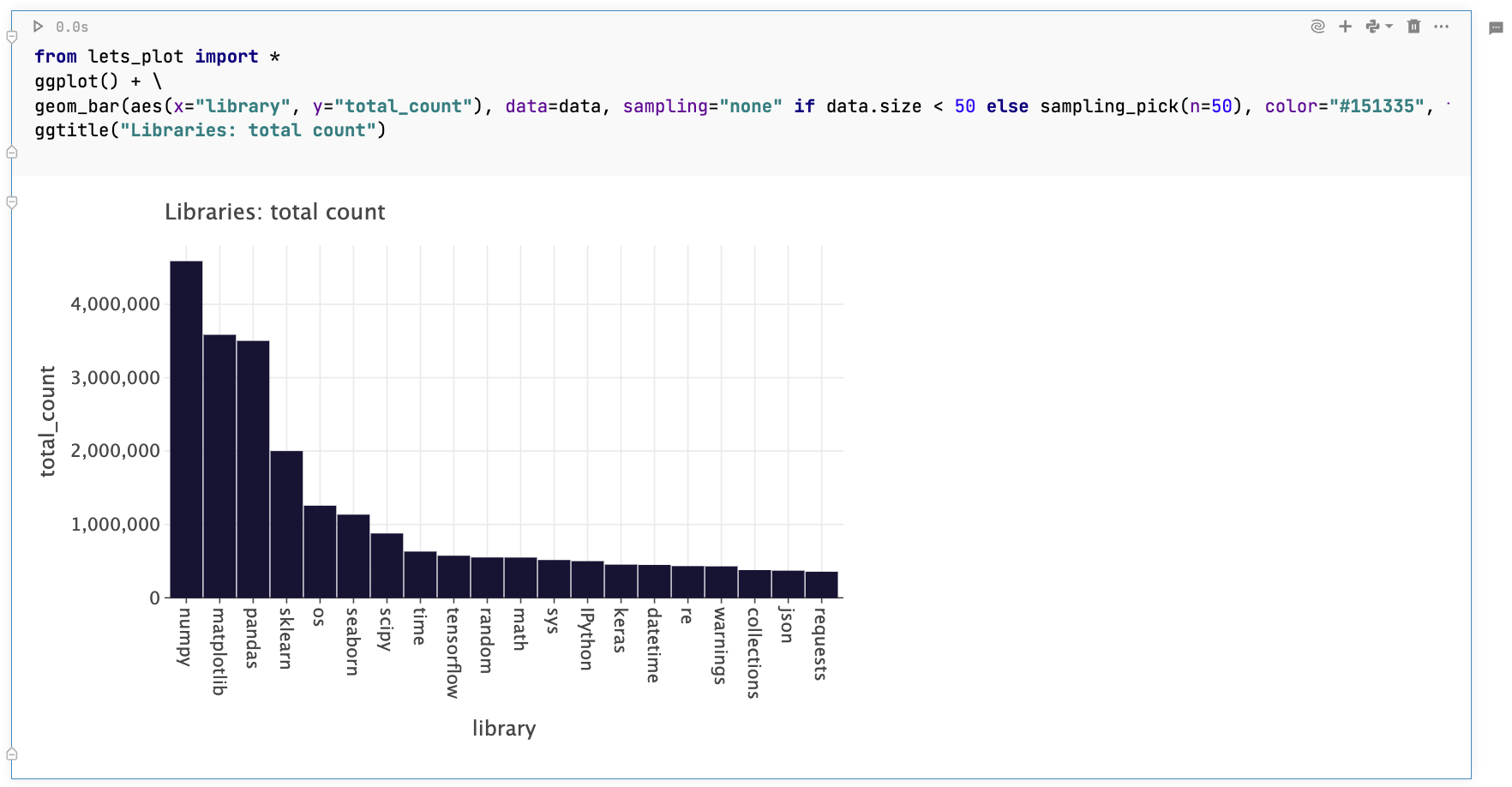

Below is an image showing a code cell with code extracted from a chart cell.

You can also export a chart cell into a code cell by clicking Export to code cell in the lower left corner of the chart cell.

Chart cell converted into code cell
