Go to Derived Symbols

This command gets the list of all derived symbols for a type or a member and lets you navigate directly to one of them, down the inheritance hierarchy. If you are looking for actual implementations and not interested in intermediate steps of the inheritance chain, use Go to Implementation.

You can invoke this command from the Solution Explorer, from the File Structure window and other tool windows. If necessary, you can navigate in the opposite direction with the Go to Base Symbols command.

Navigate to derived symbols

  1. Place the caret at a symbol in the editor or select the symbol in a tool window.

  2. Press Alt+Control+B or choose ReSharper | Navigate | Derived Symbols from the main menu . Alternatively, you can press Control+Shift+A, start typing the command name in the popup, and then choose it there.

  3. If the symbol has only one derived symbol, ReSharper will navigate to it directly.

    If necessary, you can change the default behavior so that even the single symbol is displayed in the list. To do so, clear the Go to Base/Inheritor if there is only one... checkbox on the Environment | Search & Navigation page of ReSharper options (Alt+R, O).

  4. If the symbol has several derived symbols, they will be listed in a drop-down. The list may contain items in both bold and regular font. Bold indicates that an item has direct inheritance, while the regular font is used for indirect inheritance.

    You can do one of the following:

    • Click the desired item to open it in the editor.

    • Select the desired item by pressing Up and Down and then press Enter to open it in the editor.

    • Start typing to filter results. Note that you can use CamelHumps here. If necessary, press Esc once to clear the filtering.

    • To view and analyze the list of matched items in the Find Results window, click Show in Find Results Themed icon search results screen gray, press Shift+Enter or + on the numeric keypad .

    • To show the matched items on the type dependency diagram, press Alt+Num+ or click Show on Diagram Themed icon type layout alt screen gray.

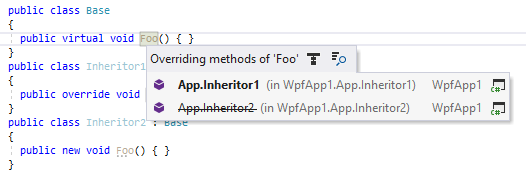

If there are members in derived classes that hide the member you're navigating from, such members are displayed as strikethrough:

ReSharper: Hidden inheritor

When a type or a member has inheritors in the current solution, ReSharper adds a special icon (for example, Themed icon has overrides screen gray) to the left of the declaration. You can click the icon to expand the list of derived symbols and navigate.

ReSharper: 'Interface is implemented' tooltip

To find out whether the type or a member has inheritors and display the corresponding gutter mark, ReSharper has to perform some calculations. Although these calculations are performed efficiently and without any performance impact in most cases, large inheritance hierarchies with the combination of weak hardware could lead to some performance degradation. If such cases, you can clear the Show gutter navigation marks for implemented and overridden types and members checkbox on the Environment | Editor | Appearance page of ReSharper options to avoid complex calculations and thus improve performance.

On the other hand, on-the-fly detection of base types or members is much cheaper performance-wise. Therefore, the hierarchy marks for types and members that implement or override other types or members are not disabled with this option.

This feature is supported in the following languages and technologies:

Language: C#

Language: VB.NET

Language: C++

Language: HTML

Language: ASP.NET

Language: Razor

Language: JavaScript

Language: TypeScript

Language: CSS

Language: XML

Language: XAML

Language: Resx

Language: Build Scripts

Language: Protobuf

Language: JSON

Feature is available in C#

Feature is available in Visual Basic .NET

Feature is available in C++

Feature is not available in HTML

Feature is available in ASP.NET

Feature is available in Razor

Feature is not available in JavaScript

Feature is available in TypeScript

Feature is not available in CSS

Feature is not available in XML

Feature is available in XAML

Feature is not available in Resource files

Feature is not available in build script files

Feature is not available in Protobuf

Feature is not available in JSON

The instructions and examples given here address the use of the feature in C#. For details specific to other languages, see corresponding topics in the ReSharper by language section.
