Deploy apps using Deployment configurations

RubyMine provides the capability to deploy applications to remote servers using deployment configurations. In this topic, we'll show you how to set up a remote deployment server, browse its file system right from the IDE, and upload your web application to this server.

Prerequisites

Before deploying your application to a remote server:

Configure a deployment server

You can configure the deployment server as follows:

  1. Open Settings/Preferences Ctrl+Alt+S and go to the Build, Execution, Deployment | Deployment page.

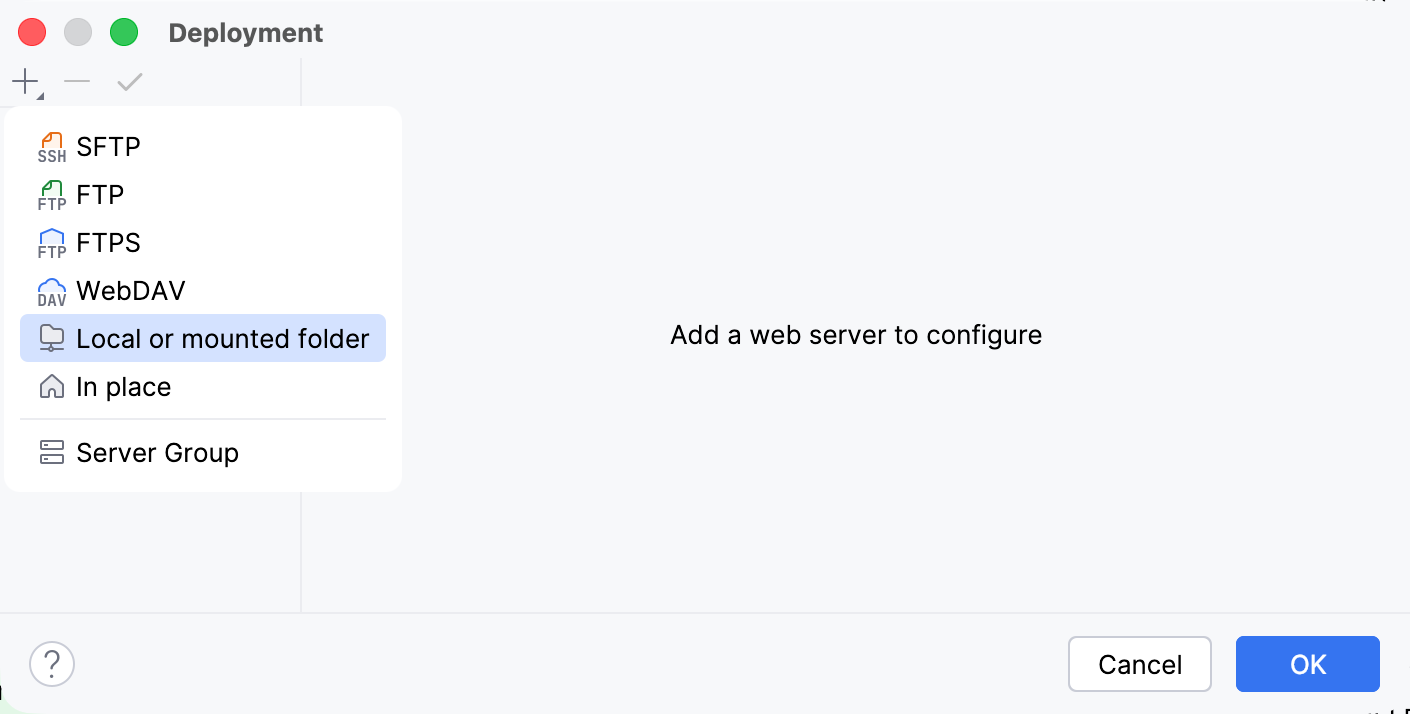

  2. Click Add and select a file transfer protocol, for example, SFTP.

  3. In the Create New Server dialog, specify the configuration name and click OK.

  4. Specify the following settings in the Connection tab:

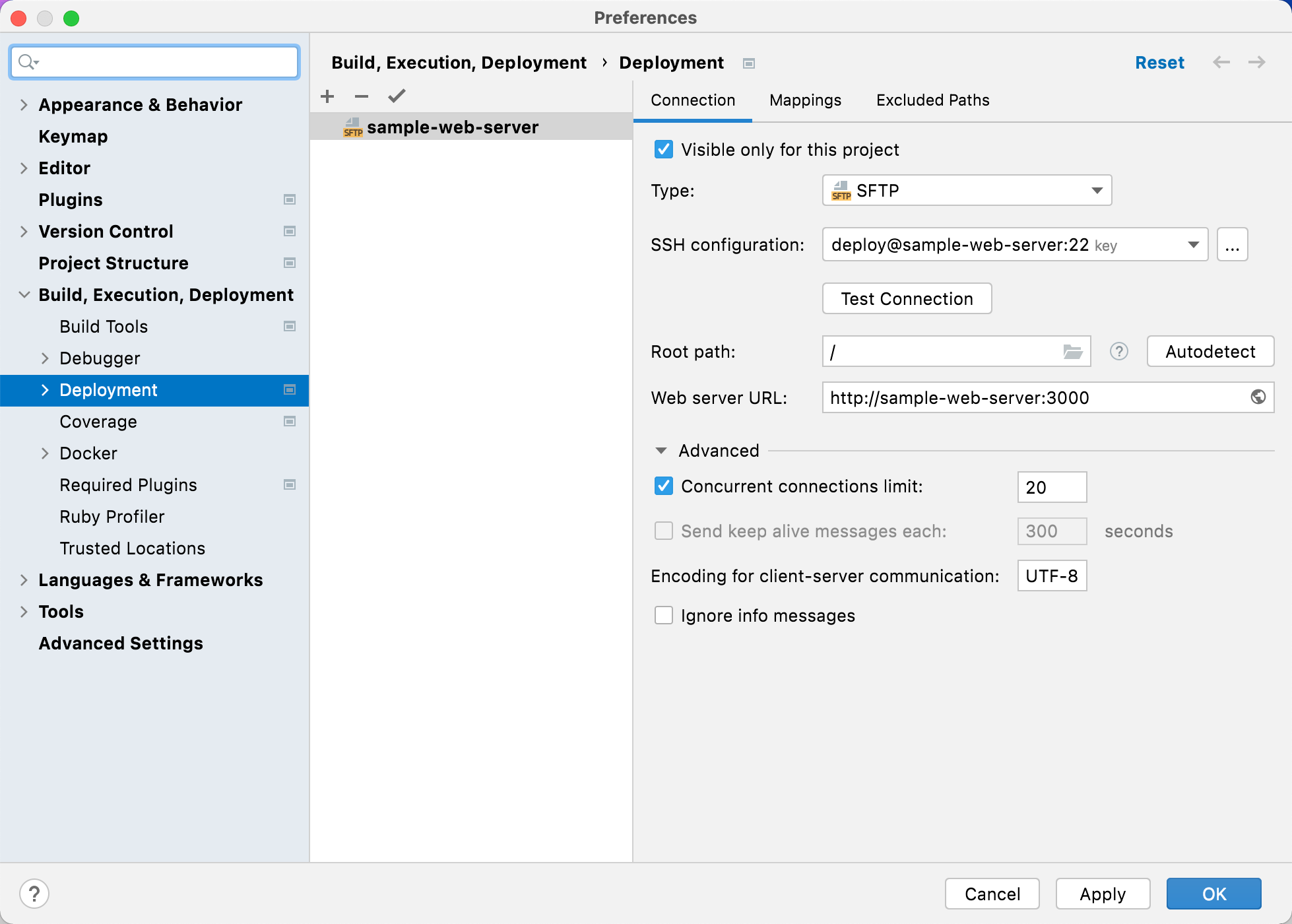

    Deployment configuration: Connection tab
    • Visible only for this project: enable this option if you do not want to share the configuration between projects.

    • Type: specify the way to access the server.

    • SSH configuration: select the existing SSH configuration used to access the server or click the ellipsis button to add a new one.

    • Root path: leave the default / path to point at the root folder on the server.

    • Web server URL: specify the root URL address.

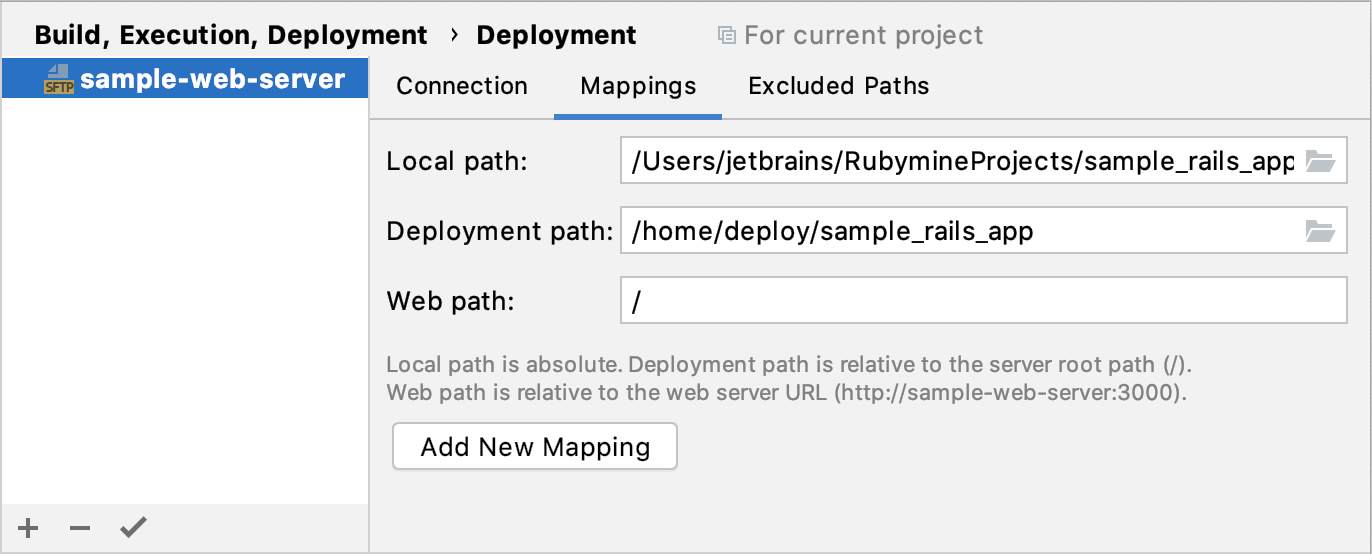

  5. Switch to the Mapping tab to specify where to deploy your application:

    Deployment configuration: Connection tab
    • Local path: specify the path to the project root on a local machine, for example, /Users/jetbrains/RubymineProjects/sample_rails_app.

    • Deployment path: specify the deployment folder on your server. In our case, it will be /home/deploy/sample_rails_app.

  6. (Optional) On the Excluded Paths tab, you can configure a list of local and remote folders that you do not want to be involved in upload/download.

Deployment server options

Common settings for all server types

Item

Description

Visible only for this project

Use this checkbox to configure the visibility of the server access configuration or server group.

  • Select the checkbox to restrict the use of the configuration or server group to the current project. Such configuration or server group cannot be reused outside the current project. It does not appear in the list of available configurations in other projects.

    The server records are stored in the .idea directory together with the project, which allows sharing them between team members through a VCS.

    In the server access configurations list in the left-hand pane, the configurations visible only in the current project are marked with the Visible only in current project icon icon.

  • When the checkbox is cleared, the configuration or server group is visible in all RubyMine projects. Its settings can be reused across several projects.

For details on setting up interpreters, see Node.js via SSH.

Type

In this list, choose the way to access the server. The available options are:

  • FTP: choose this option to have RubyMine access the server via the FTP file transfer protocol.

  • SFTP: choose this option to have RubyMine access the server via the SFTP file transfer protocol.

  • FTPS: choose this option to have RubyMine access the server via the FTP file transfer protocol over SSL (the FTPS extension).

  • Local or mounted folder: choose this option if the Web server is running in a local or a mounted folder and its document root is NOT the parent of the project root.

  • In place: choose this option if the Web server is running on your computer, your project is under its document root, and you do your development directly on the server.

Web server URL

In this field, specify the Web server root folder URL address. Click Open URL in browser icon in the field to make sure the specified server root URL address is accessible and points at the correct web page.

Both the HTTP and the HTTPS protocols are supported.

FTP and FTPS settings

Item

Description

Host

In this field, specify the host name of the server to upload the files to.

Port

In this field, specify the port to use. The default value is 21.

Root path

In this field, specify the server configuration root relative to the root folder on the server. This folder will be the highest one in the folder structure accessible through the current server configuration.

Do one of the following:

  • Accept the default / path, which points at the root folder on the server.

  • Type the path manually or click Browse button and select the desired folder in the Choose Root Path dialog that opens.

  • Click Autodetect. RubyMine detects the user home folder settings on the FTP/SFTP server and sets up the root path according to them. The button is only enabled when you have specified your credentials.

Autodetect

Click this button to have RubyMine detect the user home folder settings on the server and set up the root path accordingly.

User name

In this field, type your username for authentication to the server.

Password

In this field, type your password for authentication to the server.

Login as anonymous

Select this checkbox to enable anonymous access to the server with your email address as password.

Save password

Select this checkbox to have RubyMine remember the specified password.

Test Connection

Click this button to check that the specified settings ensure successful connection. The button is only enabled when you have specified your user credentials.

FTP and FTPS advanced settings

In the Advanced area, customize upload/download by specifying additional protocol-specific options for the FTP/FTPS server configurations.

Item

Description

Available for

TLS

Choose the method to invoke client security:

  • Explicit: the explicit (active) security is applied. Immediately after establishing connection, the FTP client on your machine sends a command to the server to establish secure control connection through the default FTP port.

  • Implicit: the implicit (passive) security is applied. In this case, security is provided automatically upon establishing connection to the server which appoints a separate port for secure connections.

    Note that the Implicit method is considered deprecated, and using it is discouraged.

FTPS

Data channel protection level

From this list, set the protection level for the PROT command:

  • <default>: the default server policy is applied.

  • Clear: raw data is transferred without applying security.

  • Private: the Transport Layer Security (TLS) or Secure Sockets Layer (SSL) applied.

For more information, see the articles on TLS, SSL 2.0, and SSL 3.0.

FTPS

Reuse SSL session

Select this checkbox to connect to a server that requires SSL session reuse between the control and data connections.

FTPS

Disable TLS 1.3

Select to disable TLS 1.3 features and have RubyMine fall back to connecting via TLS 1.2. Use this option if you experience issues with establishing a connection to a server or uploading certain files.

FTPS

Passive mode

Select this checkbox to set the client on your machine to passive mode, when it connects to the server to inform about being in the passive mode, receives the port number to listen to, and established data connection through the port with the received number. This mode is helpful when your machine is behind a firewall.

FTP, FTPS

Show and process hidden files

When this checkbox is selected:

  1. Hidden files and directories are shown in the Remote Host Tool Window.

  2. Hidden files and directories are involved in diff and synchronization operations.

The name of a hidden file or directory starts with a dot ..

FTP, FTPS

Use LIST command

Use the options in this area to configure the LIST command usage.

  • Compatible with old version of listing children: Select this checkbox to ensure compatibility in child file naming with your FTP server.

    This option is helpful if the remote FTP server reports the following error:

    Invalid descendant file name <file name>

    Selecting this option may slow down synchronization with the server.

  • Instead of MLSD: Select this checkbox to use the standard LIST command for listing instead of the MLSD command. This lets you avoid problems, for example, failure during upload with the Invalid descendent file name exception if the FTP server supports MLSD and returns cdir.

FTP, FTPS

Number of connections

In this field, specify the maximum number of connections to be supported simultaneously.

FTP, FTPS

Retrieve files timestamps

Use this list to specify the MDTM FTP command calling policy to retrieve the last-modified time of a given file on the remote host.

The available options are:

  • Always: select this option to have MDTM called for every file shown in the Remote Host tool window.

  • On copy: select this option to have MDTM called in the following cases:

    • To check whether a file is up to date when the Overwrite up-to-date files checkbox in the dialog is cleared.

    • To preserve the actual time stamp of a file during download.

  • Never: select this option to suppress calling MDTM.

FTP, FTPS

Send keep alive messages each

In this field, specify how often you want RubyMine to send commands to the server to reset the timeout and thus preserve the connection.

FTP, FTPS

Keep alive command

From this list, choose the commands to be sent to the server to reset the timeout and thus preserve the connection.

FTP, FTPS

Encoding for client-server communication

In this field, specify the encoding that matches the encoding used by your server. Accept the default value if you are not sure that it supports UTF-8 encoding.

FTP, FTPS

SFTP settings

Item

Description

SSH configuration

From this list, choose one of the created SSH configurations, or click the Browse button and create a new configuration.

Test Connection

Click this button to check that the specified settings ensure successful connection. The button is only enabled when you have specified your user credentials.

Root path

In this field, specify the server configuration root relative to the root folder on the server. This folder will be the highest one in the folder structure accessible through the current server configuration.

Do one of the following:

  • Accept the default / path, which points at the root folder on the server.

  • Type the path manually or click Browse button and select the desired folder in the Choose Root Path dialog that opens.

  • Click Autodetect. RubyMine detects the user home folder settings on the FTP/SFTP server and sets up the root path according to them. The button is only enabled when you have specified your credentials.

SFTP advanced settings

In the Advanced area, customize upload/download by specifying additional protocol-specific options for the SFTP server configurations.

Item

Description

Use rsync for download/upload

Select this checkbox to have RubyMine use Rsync for uploading and downloading files, which can increase file transfer speeds.

Make sure that the paths to the rsync and ssh executables are provided on the Tools | Rsync page of the Settings/Preferences dialog (Ctrl+Alt+S).

  • On macOS and Linux, the tools are preinstalled and the paths are filled automatically.

  • On Windows, you need to manually install Cygwin with the rsync and openssh packages first. The tools' executables are commonly located in the <Cygwin installation>\bin folder.

Number of connections

In this field, specify the maximum number of connections to be supported simultaneously.

Send keep alive messages each

In this field, specify how often you want RubyMine to send commands to the server to reset the timeout and thus preserve the connection.

Encoding for client-server communication

In this field, specify the encoding that matches the encoding used by your server. Accept the default value if you are not sure that it supports UTF-8 encoding.

Local or mounted folder settings

Item

Description

Folder

In this field, specify the server configuration root.

The server configuration root is the highest folder in the file tree on the server that can be accessed through the server configuration. The easiest way is to use the document root of your Web server as defined in the Web server configuration file. However you can appoint any other existing folder under the document root.

Item

Description

Local Path

In this field, specify the full path to the desired local folder. In the simplest case it is the project root.

Type the path manually or click Browse button and select the desired location in the Choose Local Path dialog that opens.

Deployment Path

In this field, specify the folder on the server where RubyMine will upload the data from the folder specified in the Local Path field. Type the path to the folder relative to the server configuration root.

If the folder with the specified name does not exist yet, RubyMine will create it, provided that you have selected the Create Empty directories checkbox in the Options dialog.

The field is not available for In-place server configurations.

Web Path

In this field, type the path to the folder on the server relative to the server configuration root. Actually, type the relative path you typed in the Deployment Path field.

Add item

Click this button or press Alt+Insert to have a new line added to the list of mappings.

Remove item

Click this button or press Alt+Delete to remove the selected mapping from the list.

Item

Tooltip and shortcut

Description

Add item

Add

Alt+Insert

Click this button to have an empty line added to the list. Then select the type of the path from the popup menu:

  • To add a local path, select Local path and specify the location of the folder to be protected against upload/download. Type the path manually or click Browse button and choose the required folder in the dialog that opens.

  • To add a deployment path, select Deployment path. Click Browse button and select the required folder in the Select remote excluded path dialog.

Remove item

Remove

Alt+Delete

Click this button to remove the selected item from the list. The button is only available when a line is selected.

Browse a remote host

After you've configured the deployment server, you can browse its file system right from the IDE:

  1. Select Tools | Deployment | Browse Remote Host from the main menu.

  2. In the invoked Remote Host tool window, you can perform various actions, for example:

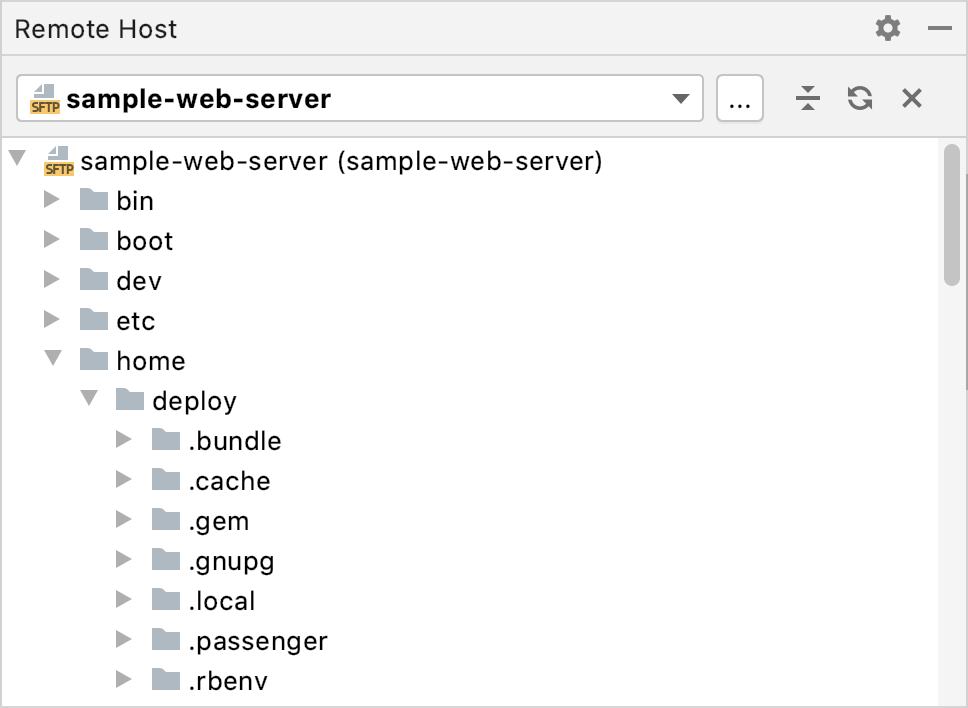

    Remote Host
    • Drag files between the remote server and local machine (by using the Remote Host and Project Alt+1 tool windows).

    • Create and remove files and directories.

    • Compare and synchronize files of the local and remote projects.

Upload your app to a server

After you've configured a deployment server, you can upload your project to this server:

  1. In the Project view Alt+1, right-click the root project directory and select Deployment | Upload to <configuration name>.

  2. Wait until RubyMine copies the project files to the remote host. You can see the deployment status in the File Transfer tool window (View | Tool Windows | File Transfer).

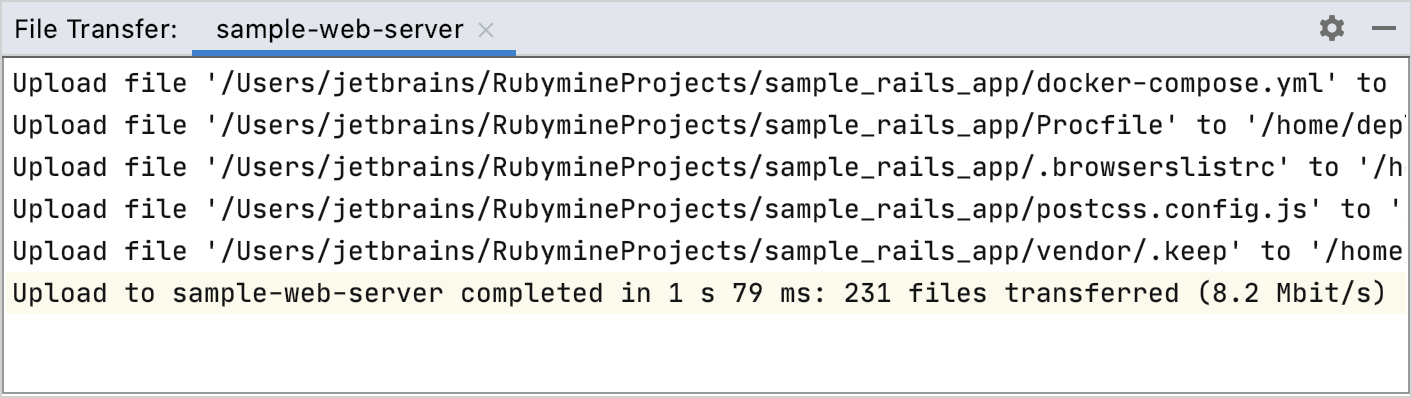

    File Transfer

    To learn how to synchronize changes between the local and remote projects, see Synchronize changes.

Synchronize changes

After you've made changes in your local project, you need to upload new files to the remote server. RubyMine allows you to compare local and remote files/directories, synchronize changes manually, or enable automatic upload.

Synchronize changes manually

  1. In the Project view Alt+1, select the required file or directory for synchronizing. For example, if you want to synchronize the entire project, select the project root.

  2. From the main menu, select Tools | Deployment | Sync with <configuration name>.

  3. In the invoked dialog, you can select individual files and compare their local and remote versions.

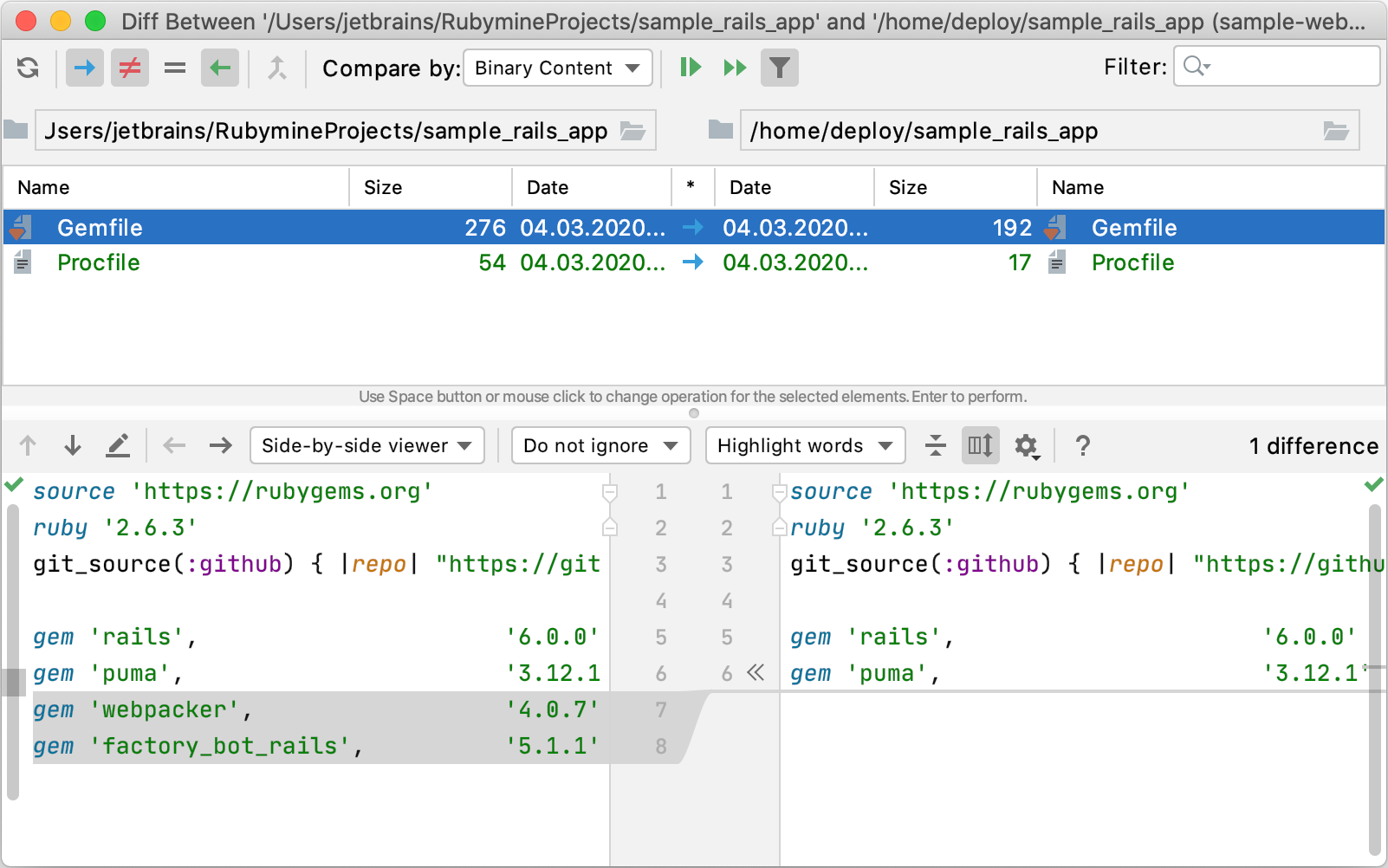

    Diff between files

    Use the Synchronize Selected button Enter to upload changes for the selected file. Synchronize All Ctrl+Enter allows you to upload all files at once.

Enable automatic uploading

  1. Specify the default upload server. Open Settings/Preferences | Build, Execution, Deployment | Deployment, select the desired server, and click Use as Default.

  2. Go to the Build, Execution, Deployment | Deployment | Options page and set the Upload changed files automatically to the default server option to Always, or On explicit save action.

Disable uploading external changes

By default, RubyMine also uploads the files if they are changed by some external process, such as a VCS branch change, compilation of SASS or LESS, or a File Watcher. To change this behavior:

  1. Open Settings/Preferences and go to the Build, Execution, Deployment | Deployment | Options page.

  2. Set Upload changed files to the default server to Always and enable the Skip external changes option.

Configure deployment options

To configure deployment options, open Settings/Preferences Ctrl+Alt+S and go to the Preferences | Build, Execution, Deployment | Deployment | Options page. Use this page to specify additional configuration settings for uploading and downloading project files to and from local and remote servers.

Options

Item

Description

Exclude items by name

In this field, specify patterns for the names of files and folders that you do not need to be deployed.

Use semicolons ; as delimiters, asterisks * to match zero or more characters, and question marks ? to match a single character.

For example, if you have a folder stylesheets with three files style.css, style1.css, and style2.scss, then style* excludes the entire folder, style?.css excludes style.css, and style?.* excludes style1.css and style2.scss.

Learn more from Regular-Expressions.info.

The exclusion is applied recursively. This means that if a matching folder has subfolders, the contents of these subfolders are not deployed either.

Operations logging

Use this list to specify how much detailed logging you need to have. The available options are:

  • Errors only: select this option to have the log show only errors occurred during upload.

  • Brief: select this option to have all events reflected in the log but without details.

  • Detailed: select this option to have more details on the upload shown in the log, for example, full file paths.

Overwrite up-to-date files

If this checkbox is selected, all files will be uploaded uploaded no matter whether they have been changed since the previous upload or not.

Otherwise, if this checkbox is not selected, only the files that have been changed since the previous upload will be uploaded.

Preserve files timestamps

Select this checkbox to prevent resetting timestamps of files on upload.

Delete target items when source ones do not exist

If this checkbox is selected, any file in the destination directory will be removed if the file with this name is not involved in the current upload.

This option is applicable when synchronization if performed from the Project tool window or from the Remote Host tool window.

Create empty directories

Select this checkbox to have an empty directory on the server created automatically if a new local directory has been created in your project since the last upload in the source folder.

Prompt when overwriting or deleting local items

Select this checkbox to have RubyMine ask you for confirmation before overwriting or deleting local items for synchronization during download.

Upload changed files automatically to the default server

From this list, choose when you want RubyMine to automatically upload a file to the default server or server group. The available options are:

  • Always: choose this option to have a file uploaded upon each save, no matter automatic or explicitly invoked.

  • On explicit save action: choose this option to have a file uploaded after save only if this save was invoked manually by choosing File | Save all or pressing Ctrl+S.

  • Never: choose this option to suppress automatic upload.

The default server configuration or a server group is appointed on the Deployment page by selecting the desired item in the list and clicking the Use as Default toolbar button icon use web server configuration as default.

Skip external changes

Select this checkbox to exclude local changes that were made using a third-party tool (a VCS, a script, and so on) from automatic upload.

The checkbox is available only when the Always or On explicit save action option is selected in the Upload changed files automatically to the default server list.

Delete remote files when local are deleted

Select this checkbox to have RubyMine automatically delete remote files during automatic uploads in case the local ones are deleted. The checkbox is available only when the Always or On explicit save action option is selected in the Upload changed files automatically to the default server list.

Note that this option serves as an extra safety measure and may result in unwanted files remaining on the remote server. As an example, consider a local file Foo.php, which is renamed to Bar.php. Since renaming a file is technically indistinguishable from deleting the file and creating a new one, the following will happen after automatic upload:

  • If the option is enabled, the remote server will only contain Bar.php.

  • If the option is disabled, the remote server will contain both Foo.php and Bar.php after automatic upload. You will probably need to delete Foo.php manually afterwards.

Override default permissions on files

Select this checkbox to change the default permissions assigned to uploaded files on remote hosts. Click Browse the Browse button to open the Files Default Permissions dialog, where you can manage access to uploaded files on remote hosts by assigning permissions.

Override default permissions on folders

Select this checkbox to change the default permissions assigned to uploaded folders on remote hosts. Click Browse the Browse button to open the Folders Default Permissions dialog, where you can manage access to uploaded folders on remote hosts by assigning permissions.

Warn when uploading over newer file

Use this list to define the version-control policy to apply when uploading files to remote hosts. Depending on this choice, RubyMine either checks whether any changes have been made to the corresponding files on the remote host since you downloaded them or just overwrites the remote files.

  • No choose this option to have the file on the remote host overwritten with its local copy silently. All the changes made to the remote file since your last synchronization will be abandoned.

  • Compare timestamp & size if you choose this option, RubyMine performs two checks:

    1. Compares the sizes of the local and remote files.

    2. Compares the remote file timestamp set at the moment of the last synchronization with the current remote file timestamp.

    If the files differ in their size or the remote file timestamps differ, RubyMine opens a Difference Viewer for Files, where you can explore and integrate the differences.

    This type of check depends on the timezone setting. If the timezone setting on your local machine is different from that on the remote host, the check may be successful even though the file versions actually differ.

  • Compare content when this option is chosen, RubyMine compares the content of the local and remote files. If any diversions are detected, RubyMine opens a Difference Viewer for Files, where you can explore and integrate the differences.

Notify of remote changes

Select this checkbox to receive notifications about changes on the remote host. The checkbox is available only when the Compare timestamp and size: or Compare content: option is selected in the Warn when uploading over newer file list.

Last modified: 20 October 2021
