IntelliJ IDEA 2020.3 Help

Create a new project

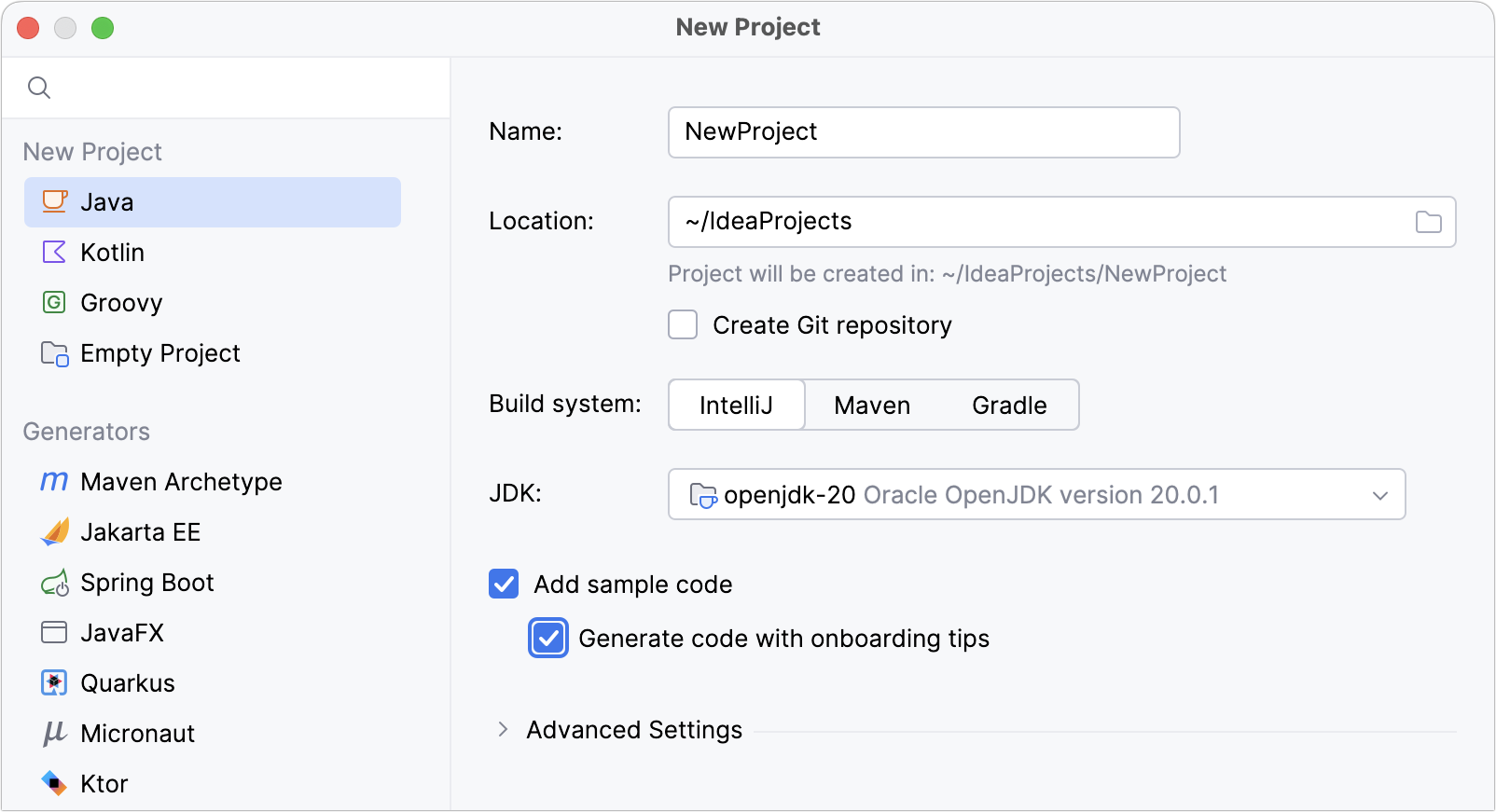

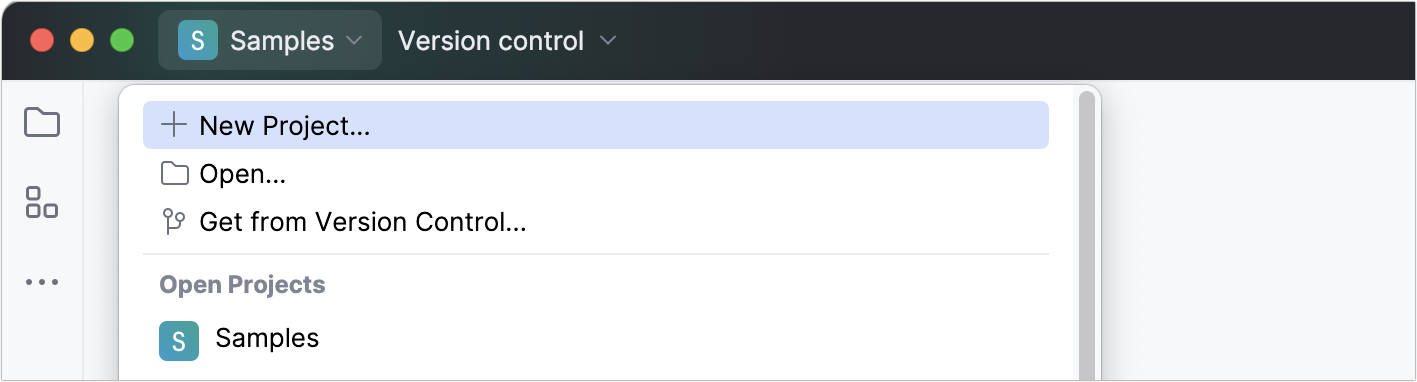

  1. Launch IntelliJ IDEA.

    If the Welcome screen opens, click New Project.

    Otherwise, from the main menu, select File | New | Project.

  2. From the list on the left, select the framework that you want to use in your application.

  3. If suggested, configure the project SDK. To develop Java-based applications, you need a JDK (Java Development Kit).

    If the necessary JDK is already defined in IntelliJ IDEA, select it from the Project SDK list.

    If the JDK is installed on your computer, but not defined in the IDE, select Add JDK and specify the path to the JDK home directory (for example, /Library/Java/JavaVirtualMachines/jdk-12.0.1.jdk).

    Configuring an SDK for the new project

    If you don't have the necessary JDK on your computer, select Download JDK. In the next dialog, specify the JDK vendor, version, and change the installation path if required.

    Downloading a JDK for the new project
  4. Other options differ depending on the framework that you have selected. Refer to the list below for the detailed description of options for each framework.

Java

Additional Libraries and Frameworks

Select the technologies, frameworks and languages that you want your project to support, and specify the associated settings.

For more information, refer to Additional libraries and frameworks.

Create project from template Create a simple Java application that includes a class with main() method.
Project name Specify the project name.
Project location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
Module name

Specify the module name. By default, the project name is used.

For more information on modules and the difference between projects and modules, refer to Configure projects and Modules.

Content root Specify the path to the module content root folder (the folder that stores your source code). It's recommended that you use the default path.
Module file location Specify the path to the folder where the .iml module file should be created. By default, this file is created in the module content root folder (recommended).
Project format It's recommended that you use the directory-based format.

Maven

Create from archetype

Select this checkbox if you want to use a predefined project template for your project. You can configure your own archetype by clicking Add Archetype.

Name Specify the project name.
Location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
GroupId Specify a package of a new project.
ArtifactId Specify the name of your project.
Version Specify a version of a new project. By default, this field is specified automatically.
Maven home directory Select a bundled Maven version that is available or the result of resolved system variables such as MAVEN_HOME or MAVEN2_HOME. You can also specify your own Maven version that is installed on your machine.
User settings file

Specify the file that contains user-specific configuration for Maven in the text field.

If you need to specify another file, select the Override checkbox, click the Browse button, and select another file.

Local repository

By default, this field shows the path to the local directory under the user home that stores downloads and contains the temporary build artifacts that you have not yet released.

If you need to specify another directory, select the Override checkbox, click the Browse button, and select another directory.

Properties

By default, the columns in this area display system properties that are passed to Maven for creating a project from the archetype.

You can add, remove, and edit these properties.

Gradle

Kotlin DSL build script

Select this checkbox if you want to use the script.

Additional Libraries and Frameworks

Select the technologies, frameworks and languages that you want your project to support, and specify the associated settings.

For more information, refer to Additional libraries and frameworks.

Name Specify the project name.
Location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
GroupId Specify groupId of the new project. You can omit this field if you plan to deploy your project locally.
ArtifactId Specify artifactId that is added as a name of your new project.
Version Specify version of the new project. By default, this field is filled in automatically.

JavaFX

Project name Specify the project name.
Project location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.

Android

Select the type of project you want to create from categories of device form factors that are shown as tabs at the top of the wizard.

Creating a new Android project
Name Specify the name for your project.
Package name Specify the package name. By default, this package name also becomes your application ID. If necessary, you will be able to change it later.
Save location Use this field to specify the location of your project.
Language Select the Language you want to use for creating sample code for your new project.
Minimum SDK Select the minimum API level that you want to use in the project. If you are not sure which level to select, click the Help me choose link in the dialog.
This project will support instant apps Select the checkbox if your project supports instant experiences though Google Play Instant, and you want to enable it for your application.

IntelliJ Platform Plugin

Project SDK Select the SDK that you want to use for developing your plugin.
Additional Libraries and Frameworks

Select the technologies, frameworks and languages that you want your project to support, and specify the associated settings.

For more information, refer to Additional libraries and frameworks.

Project name Specify the project name.
Project location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
Module name

Specify the module name. By default, the project name is used.

For more information on modules and the difference between projects and modules, refer to Configure projects and Modules.

Content root Specify the path to the module content root folder (the folder that stores your source code). It's recommended that you use the default path.
Module file location Specify the path to the folder where the .iml module file should be created. By default, this file is created in the module content root folder (recommended).
Project format It's recommended that you use the directory-based format.

Java Enterprise

Project template Select a template for your application. IntelliJ IDEA will pre-configure your project accordingly.
Application server

Specify the application server that you want to use in this application.

IntelliJ IDEA provides integration with various application servers, enabling you to start and stop local servers, connect to running remote servers, and deploy your artifacts on those servers.

Build tool Select a build tool that you want to use in your project: Maven or Gradle.
Test runner Select a test framework: JUnit or TestNG.
Languages Select a language: Java, Kotlin, or Groovy.
Version Select the Java EE version that you want to use.
Libraries and Frameworks Select the technologies, frameworks and languages that you want your project to support.
Name Specify the project name.
Location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
Group Specify a package of a new project.
Artifact Specify the name of your project.
Version Specify a version of a new project. By default, this field is specified automatically.

Spring Initializr

Choose starter service URL

Specify the Spring Initializr instance URL. By default, the https://start.spring.io instance is specified, but you can use any other custom instance.

Group Specify the group name (for example, com.example).
Artifact Specify the name of the package that will be created together with the project.
Type Select a build tool and the project configuration type.
Language Select the language for your application: Java, Kotlin, or Groovy.
Packaging Select a packaging option: Jar or War.
Java Version If you want to build your project on a Java version different from your project JDK version, you can select it here.
Version Specify a version of a new project. By default, this field is specified automatically.
Name Specify the project name.
Description Provide a short description for your application.
Package Specify the name for the package that will be created together with the project.

Select starters and dependencies. If you select technologies that require additional plugins, the IDE will notify you about it once the project is created, and will suggest installing or enabling them.

Spring boot
Project name Specify the project name.
Project location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
Module name

Specify the module name. By default, the project name is used.

For more information on modules and the difference between projects and modules, refer to Configure projects and Modules.

Content root Specify the path to the module content root folder (the folder that stores your source code). It's recommended that you use the default path.
Module file location Specify the path to the folder where the .iml module file should be created. By default, this file is created in the module content root folder (recommended).
Project format It's recommended that you use the directory-based format.

Quarkus

Choose starter service URL

Specify the URL of the starter service that you want to use in your application. By default, the https://code.quarkus.io instance is specified, but you can use another custom service.

Build tool Select a build tool that you want to use: Maven or Gradle.
Group Specify the group name (for example, com.example).
Artifact Specify the name of the package that will be created together with the project.
Version Specify a version of a new project. This field is filled in automatically.

Select extensions that you want to use in your project. If you select technologies that require additional plugins, the IDE will notify you about it once the project is created, and will suggest installing or enabling them.

Selecting extensions for the new Quarkus project
Project name Specify the project name.
Project location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
Module name

Specify the module name. By default, the project name is used.

For more information on modules and the difference between projects and modules, refer to Configure projects and Modules.

Content root Specify the path to the module content root folder (the folder that stores your source code). It's recommended that you use the default path.
Module file location Specify the path to the folder where the .iml module file should be created. By default, this file is created in the module content root folder (recommended).
Project format It's recommended that you use the directory-based format.

For more information, refer to Quarkus.

Micronaut

Choose starter service URL

Specify the URL of the starter service that you want to use in your application. By default, the https://micronaut.io/launch/ instance is specified, but you can use another custom service.

Build tool Select a build tool that you want to use: Maven or Gradle.
Group Specify the group name (for example, com.example).
Artifact Specify the name of the package that will be created together with the project.
Application type Select the application type from the list. For example, you can use select a command-line application or gRPC application.
Java version Select a Java version from the list.
Language Select a language that you want to use: Java, Kotlin, or Groovy.
Test framework Select the checkbox next to the framework that you want to use in your project: JUnit, Spock, or Kotlintest.

Select extensions that you want to use in your project. If you select technologies that require additional plugins, the IDE will notify you about it once the project is created, and will suggest installing or enabling them.

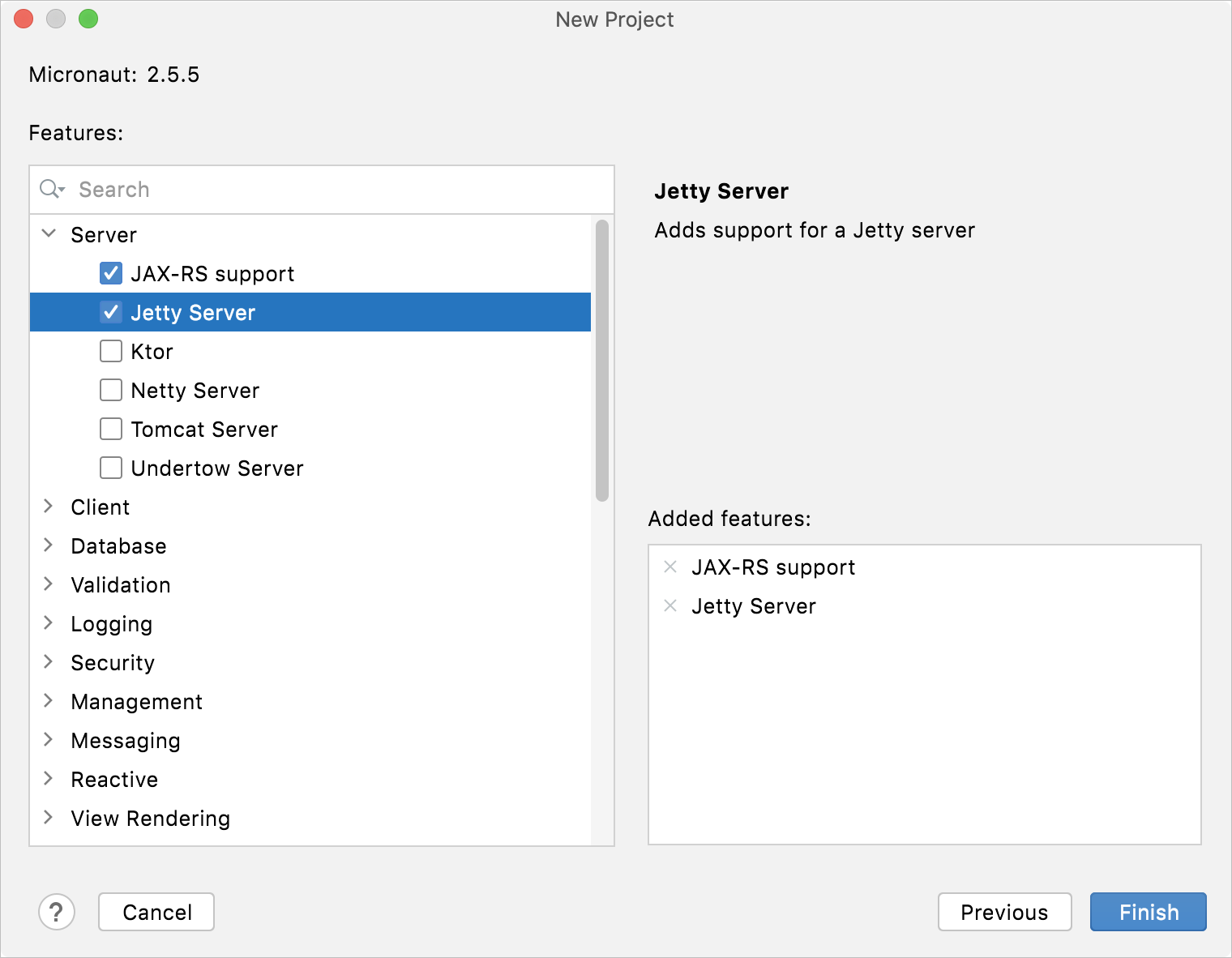

Selecting extensions for the new Micronaut project
Project name Specify the project name.
Project location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
Module name

Specify the module name. By default, the project name is used.

For more information on modules and the difference between projects and modules, refer to Configure projects and Modules.

Content root Specify the path to the module content root folder (the folder that stores your source code). It's recommended that you use the default path.
Module file location Specify the path to the folder where the .iml module file should be created. By default, this file is created in the module content root folder (recommended).
Project format It's recommended that you use the directory-based format.

For more information, refer to Micronaut.

MicroProfile

Choose starter service URL

Specify the URL of the starter service that you want to use in your application. By default, the https://start.microprofile.io/ instance is specified, but you can use another custom service.

Group Specify the group name (for example, com.example).
Artifact Specify the name of the package that will be created together with the project.
MicroProfile Version Select the MicroProfile version from the list.
MicroProfile Runtime Select the runtime that you want to use.

Select specifications that you want to use in your project. If you select technologies that require additional plugins, the IDE will notify you about it once the project is created, and will suggest installing or enabling them.

Selecting specifications for the new MicroProfile project
Project name Specify the project name.
Project location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
Module name

Specify the module name. By default, the project name is used.

For more information on modules and the difference between projects and modules, refer to Configure projects and Modules.

Content root Specify the path to the module content root folder (the folder that stores your source code). It's recommended that you use the default path.
Module file location Specify the path to the folder where the .iml module file should be created. By default, this file is created in the module content root folder (recommended).
Project format It's recommended that you use the directory-based format.

Groovy

Groovy library If the necessary version of Groovy is already defined in IntelliJ IDEA, select it from the list. Alternatively, click Create and select the Groovy installation directory.
Additional Libraries and Frameworks

Select the technologies, frameworks and languages that you want your project to support, and specify the associated settings.

For more information, refer to Additional libraries and frameworks.

Project name Specify the project name.
Project location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
Module name

Specify the module name. By default, the project name is used.

For more information on modules and the difference between projects and modules, refer to Configure projects and Modules.

Content root Specify the path to the module content root folder (the folder that stores your source code). It's recommended that you use the default path.
Module file location Specify the path to the folder where the .iml module file should be created. By default, this file is created in the module content root folder (recommended).
Project format It's recommended that you use the directory-based format.

Grails

Grails SDK Home Specify your local Grails version installation that is represented by a library.
create-app or create-plugin Select one of these options depending on the type of the application that want to create.
Options Use this field for additional options. For example, you can specify a profile such as --profile=web for Grails.
Project name Specify the project name.
Project location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
Module name

Specify the module name. By default, the project name is used.

For more information on modules and the difference between projects and modules, refer to Configure projects and Modules.

Content root Specify the path to the module content root folder (the folder that stores your source code). It's recommended that you use the default path.
Module file location Specify the path to the folder where the .iml module file should be created. By default, this file is created in the module content root folder (recommended).
Project format It's recommended that you use the directory-based format.

Application Forge

Project Type Select an application type (Application or Plugin).
Grails Version Select the Grails version that you want to use in your application.
Profile Select the necessary application profile.
Features Select the necessary checkboxes to specify features for your project.
Project name Specify the project name.
Project location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
Module name

Specify the module name. By default, the project name is used.

For more information on modules and the difference between projects and modules, refer to Configure projects and Modules.

Content root Specify the path to the module content root folder (the folder that stores your source code). It's recommended that you use the default path.
Module file location Specify the path to the folder where the .iml module file should be created. By default, this file is created in the module content root folder (recommended).
Project format It's recommended that you use the directory-based format.

Kotlin

During step 1, the global project properties are defined.

Name The project name.
Location The path to the directory where the project will be located. If not specified, IntelliJ IDEA uses the default directory (Settings/Preferences | Appearance & Behavior | System settings).
Project Template

Defines the initial project structure. Depending on the purpose, select one of the following templates.

JVM:

  • Application: backend application with Kotlin/JVM.

  • Console Application: console application with Kotlin/JVM. Use it for prototyping or testing purposes.

Multiplatform:

  • Mobile Application: mobile applications for iOS and Android with Kotlin Multiplatform Mobile, which supports sharing common code between platforms.

  • Mobile Library: library that supports sharing code between iOS and Android.

  • Application: applications for different platforms that support sharing common code.

  • Library: library for sharing common code among different platforms.

  • Native Application: application with Kotlin/Native that works as a standalone application under a specific platform.

  • Full-stack Web Application: full-fledged web application using Kotlin/JS for the frontend and Kotlin/JVM for the backend.

Kotlin/JS:

  • Frontend Application: frontend application with Kotlin/JS and non-Kotlin backend. If you use Kotlin for backend, the better option is Full-stack Web Application.

Build system The build tool that will be used for managing dependencies, testing, packaging, automating the build process, and so on.
Project JDK

The JDK that will be used in the project (version 1.8 or later is recommended). The JDK:

  • is essential for projects built with IntelliJ IDEA build system.

  • used for coding assistance in projects built with Gradle and Maven

If you don't have a JDK installed, you can download it right in the dialog.

Group ID The unique identifier of your organization. Not applicable for IntelliJ build system.
Artifact ID The unique name of the primary artifact for this project. Not applicable for IntelliJ build system.
Version The version of the primary artifact generated by the project. Not applicable for IntelliJ build system.
Kotlin Runtime The Kotlin Runtime library that will be used in the project. Only required for IntelliJ build system.

During step 2, the module structure of the project is configured. This step is optional.

Common settings

The settings in this section are applicable to all module types irrespective of the selected template.

Name The name of the module.
Test framework The framework that will be used for unit testing.
Module dependencies The list of modules the current module depends on.

Module templates

Module templates determine the initial module setup. Depending on the selected module template, modules may have different settings.

None A blank project with minimal initial configuration.
Console application Console application with Kotlin/JVM. Use it for prototyping or testing purposes.

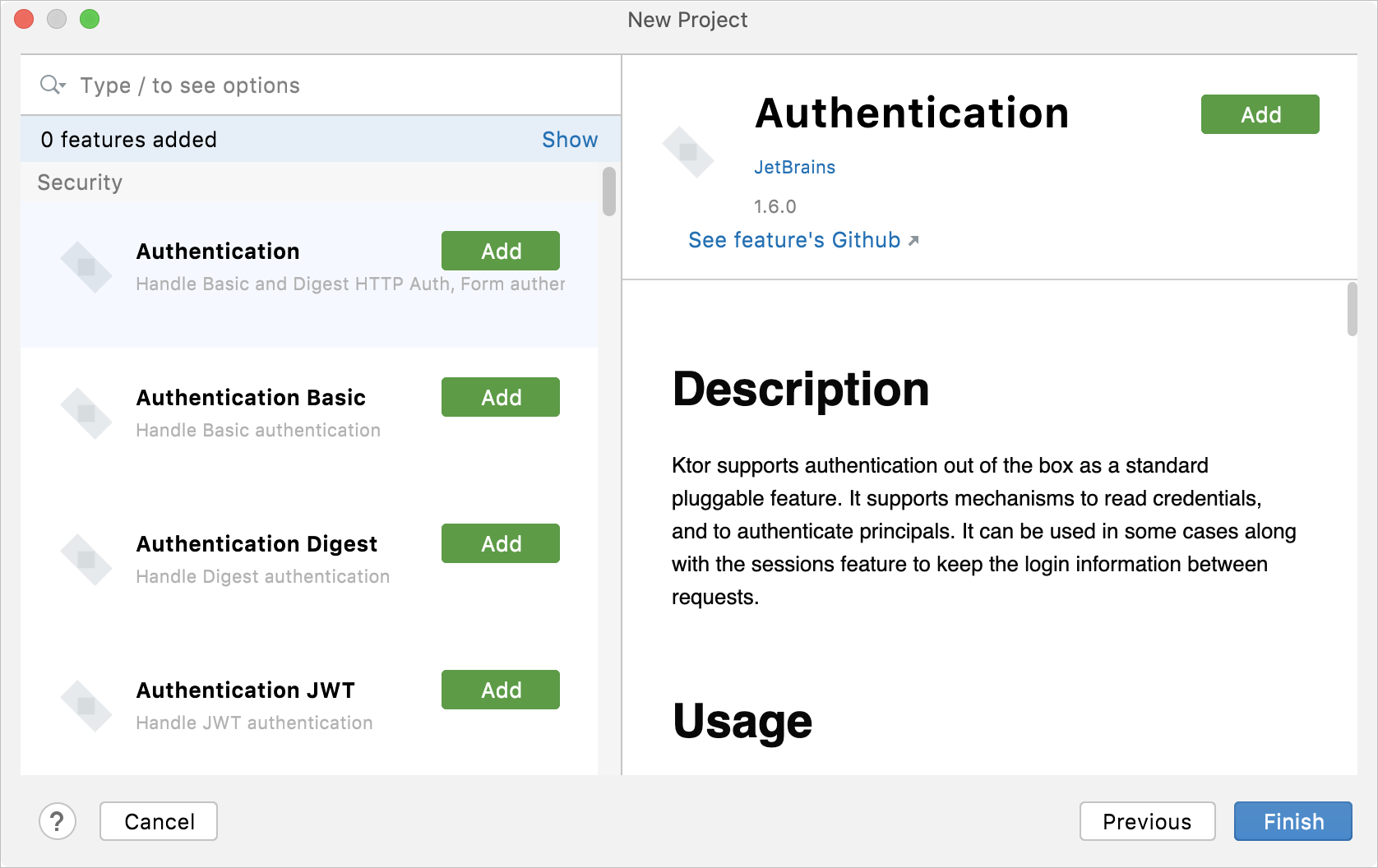

Ktor server Asynchronous client/server application with Ktor. The Ktor server engine setting specifies the server engine that will be used: Netty, Tomcat, or Jetty.
Frontend application

Frontend application with Kotlin/JS. For this template, Rendering engine needs to be specified:

  • Statically-typed Kotlinx.html DSL: provides an easy way to write simple web applications without relying on a framework. It allows you to write typesafe HTML, but remains unopinionated about how your application should behave or render.

  • Kotlin-wrapped React library: allows you to leverage one of the most popular web frameworks, React, to build reactive web frontend in Kotlin. By using interoperability with JavaScript, you can also re-use third-party components in your application.

  • Kotlin-wrapped React library with Styled Components: in addition to allowing you to write reactive apps, also allows you to define your stylesheets in a typesafe Kotlin DSL. Styled-components make it easy to add (even dynamic) stylesheets to components in your React application.

Native application Application with Kotlin/Native that works as a standalone application under a specific platform.

JVM-specific settings

The settings in this section are only applicable to JVM targets/modules.

Target JVM version The version of the JVM bytecode that will be produced as the result of compiling this module.
Java language support Allows you to write Java code in the selected target.

Android-specific settings

The settings in this section are only applicable to Android targets/modules.

Android plugin Android Gradle plugin that will be used for the current module.
Android SDK Android SDK that will be used for the current module.

JavaScript-specific settings

The settings in this section are only applicable to JavaScript targets/modules.

Target kind Specifies what will be produced as the result of compiling this module/target: a JavaScript application or JavaScript library.
CSS support Enables webpack loaders for styles and CSS. If you are using SASS or LESS, diable this option.

JavaScript (Static Web)

Select the necessary framework:

Creating a new JavaScript project
Project name Specify the project name.
Project location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
Module name

Specify the module name. By default, the project name is used.

For more information on modules and the difference between projects and modules, refer to Configure projects and Modules.

Content root Specify the path to the module content root folder (the folder that stores your source code). It's recommended that you use the default path.
Module file location Specify the path to the folder where the .iml module file should be created. By default, this file is created in the module content root folder (recommended).
Project format It's recommended that you use the directory-based format.
Project name Specify the project name.
Project location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
Version Specify the version of the template in accordance to which the stub will be generated. Click the Refresh button to refresh the list of available template versions.
Module name Specify the module name. By default, the project name is used.
Content root Specify the path to the module content root folder (the folder that stores your source code). It's recommended that you use the default path.
Module file location Specify the path to the folder where the .iml module file should be created. By default, this file is created in the module content root folder (recommended).
Project format It's recommended that you use the directory-based format.
Project name Specify the project name.
Project location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
Node interpreter

Specify the Node.js interpreter that you want to use in this project. You can select a configured interpreter from the list or click Add to configure a new one.

If you have no Node.js on your computer, select Download Node.js from the list.

create-react-app

Select npx create-react-app.

Alternatively, for npm version 5.1 and earlier, install the create-react-app package yourself by running npm install --g create-react-app in the Terminal Alt+F12 . When creating an application, select the folder where the create-react-app package is stored.

Scripts version Specify a custom package to use instead of react-scripts during the project generation. This can be one of the packages forked from react-scripts, for example, react-awesome-scripts, custom-react-scripts, react-scripts-ts, and so on.
Create TypeScript project Select this checkbox to enable TypeScript for your project.
Module name Specify the module name. By default, the project name is used.
Content root Specify the path to the module content root folder (the folder that stores your source code). It's recommended that you use the default path.
Module file location Specify the path to the folder where the .iml module file should be created. By default, this file is created in the module content root folder (recommended).
Project format It's recommended that you use the directory-based format.
Project name Specify the project name.
Project location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
Version Specify the version of the template in accordance to which the stub will be generated. Click the Refresh button to refresh the list of available template versions.
Module name Specify the module name. By default, the project name is used.
Content root Specify the path to the module content root folder (the folder that stores your source code). It's recommended that you use the default path.
Module file location Specify the path to the folder where the .iml module file should be created. By default, this file is created in the module content root folder (recommended).
Project format It's recommended that you use the directory-based format.
Project name Specify the project name.
Project location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
Node interpreter

Specify the Node.js interpreter that you want to use in this project. You can select a configured interpreter from the list or click Add to configure a new one.

If you have no Node.js on your computer, select Download Node.js from the list.

React Native

Select npx --package react-native-cli react-native.

Alternatively, for npm version 5.1 and earlier, install the react-native-cli package yourself by running npm install -g react-native-cli in the Terminal Alt+F12 . When creating an application, select the folder where the react-native-cli package is stored.

Module name Specify the module name. By default, the project name is used.
Content root Specify the path to the module content root folder (the folder that stores your source code). It's recommended that you use the default path.
Module file location Specify the path to the folder where the .iml module file should be created. By default, this file is created in the module content root folder (recommended).
Project format It's recommended that you use the directory-based format.
Project name Specify the project name.
Project location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
Node interpreter

In this field, specify the Node.js interpreter to use. This can be a local Node.js interpreter or a Node.js on Windows Subsystem for Linux. .

Package manager Specify the location of the Node.js package manager file npm.cmd. In most cases, IntelliJ IDEA detects the Node.js executable and fills in the field automatically.
Module name Specify the module name. By default, the project name is used.
Content root Specify the path to the module content root folder (the folder that stores your source code). It's recommended that you use the default path.
Module file location Specify the path to the folder where the .iml module file should be created. By default, this file is created in the module content root folder (recommended).
Project format It's recommended that you use the directory-based format.
Project name Specify the project name.
Project location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
Node interpreter

In this field, specify the Node.js interpreter to use. This can be a local Node.js interpreter or a Node.js on Windows Subsystem for Linux. .

Package manager Specify the location of the Node.js package manager file npm.cmd. In most cases, IntelliJ IDEA detects the Node.js executable and fills in the field automatically.
Version Select the version of the template in accordance to which the stub will be generated. Click the Refresh button to refresh the list of available template versions..
View Engine Select the template engine that you want to use.
Stylesheet Engine Select the CSS preprocessor for your project.
Module name Specify the module name. By default, the project name is used.
Content root Specify the path to the module content root folder (the folder that stores your source code). It's recommended that you use the default path.
Module file location Specify the path to the folder where the .iml module file should be created. By default, this file is created in the module content root folder (recommended).
Project format It's recommended that you use the directory-based format.
Project name Specify the project name.
Project location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
Version Specify the version of the template in accordance to which the stub will be generated. Click the Refresh button to refresh the list of available template versions.
Module name Specify the module name. By default, the project name is used.
Content root Specify the path to the module content root folder (the folder that stores your source code). It's recommended that you use the default path.
Module file location Specify the path to the folder where the .iml module file should be created. By default, this file is created in the module content root folder (recommended).
Project format It's recommended that you use the directory-based format.
Project name Specify the project name.
Project location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
Node interpreter

Specify the Node.js interpreter that you want to use in this project. You can select a configured interpreter from the list or click Add to configure a new one.

If you have no Node.js on your computer, select Download Node.js from the list.

Angular CLI

Select npx --package @angular/cli ng.

Alternatively, for npm version 5.1 and earlier, install the @angular/cli package yourself by running npm install -g @angular/cli in the Terminal Alt+F12 . When creating an application, select the folder where the @angular/cli package is stored.

Additional parameters

(Optional) Specify the extra ng new options to pass to Angular CLI.

Code completion is available in this field: as you start typing the name of an option or press Ctrl+Space , IntelliJ IDEA shows you the available options and their description.

Module name Specify the module name. By default, the project name is used.
Content root Specify the path to the module content root folder (the folder that stores your source code). It's recommended that you use the default path.
Module file location Specify the path to the folder where the .iml module file should be created. By default, this file is created in the module content root folder (recommended).
Project format It's recommended that you use the directory-based format.

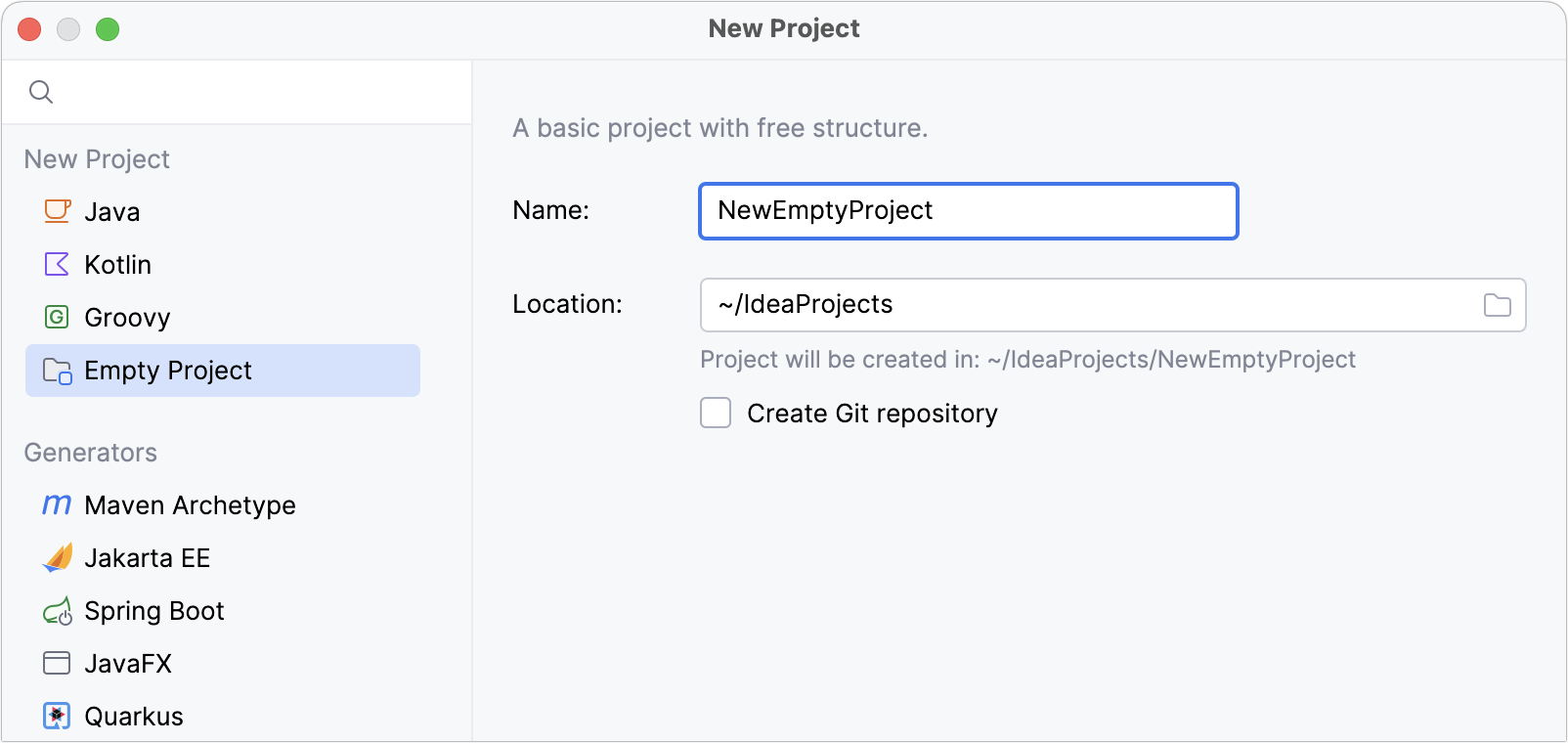

Empty Project

Empty projects are created without modules. For such projects, you need to manually create at least one module, add content roots, and configure an SDK.

Select Empty Project and click Next.

Creating a new empty project
Project name Specify the project name.
Project location Specify the path to the directory in which you want to create the project. By default, the IDE creates a directory with the same name as the project.
Project format It's recommended that you use the directory-based format.
Last modified: 11 January 2021
