Get started with MAUI in Rider
JetBrains Rider supports creating and working with .NET MAUI projects for Android, iOS, macOS, and Windows. Although JetBrains Rider does not provide a designer or a previewer for XAML, you can tweak the visuals right in the emulator or a connected device and observe the differences with XAML Hot Reload. You can also benefit from code analysis, coding assistance, and debugging features in C# and other languages, as well as from general IDE features, such as the integrated VCS client.
If other tools that .NET MAUI relies on (for example, Android SDK, Android Emulator) are configured properly, you will be able to build, run, and publish your .NET MAUI application right from the JetBrains Rider IDE.
On macOS, JetBrains Rider provides synchronization with Xcode, which you will need to configure resources and targets, and to sign the applications.
Before you start
OS-independent steps
To enable MAUI support on your computer, run the following command in the terminal:
dotnet workload install mauiThis installs MAUI workloads for all targets (maui-ios, maui-android, maui-maccatalyst and maui-windows).
Optionally, install only specific MAUI workloads:
maui-ios maui-android maui-maccatalyst maui-windowsMake sure that you have OpenJDK 17 or later.
If you need to run or publish your applications for Android, install the Rider Android Support plugin.
Depending on your OS, configure the following:
On Windows, you can develop MAUI applications for any platform, but local build and run/debug is limited to Blazor apps and Android devices and emulators.
You can build and run your application on iOS and macOS. To do so,select from the main menu, add a new connection and click Connect. The Mac Agent that Rider deploys configures a remote Mac automatically. It checks macOS configuration and installs the necessary MAUI workloads and .NET SDK to ensure that the current project executes without any issues.
On macOS, you can develop, build, and run MAUI applications.
To configure resources and targets, and to sign the applications, make sure that Xcode is installed on your machine. You will need an Apple ID for installing and signing in to Xcode. If you do not already have it, you can create a new one at https://appleid.apple.com.
JetBrains Rider will detect Xcode automatically. If you have several Xcode versions, you can choose which one to use on the page of JetBrains Rider settings Ctrl+Alt+S.
On Linux, you can create and develop MAUI Android native apps using the Android target. Make sure that the following software is installed on your machine:
.NET MAUI Android workload (run
dotnet workload install maui-androidto install)

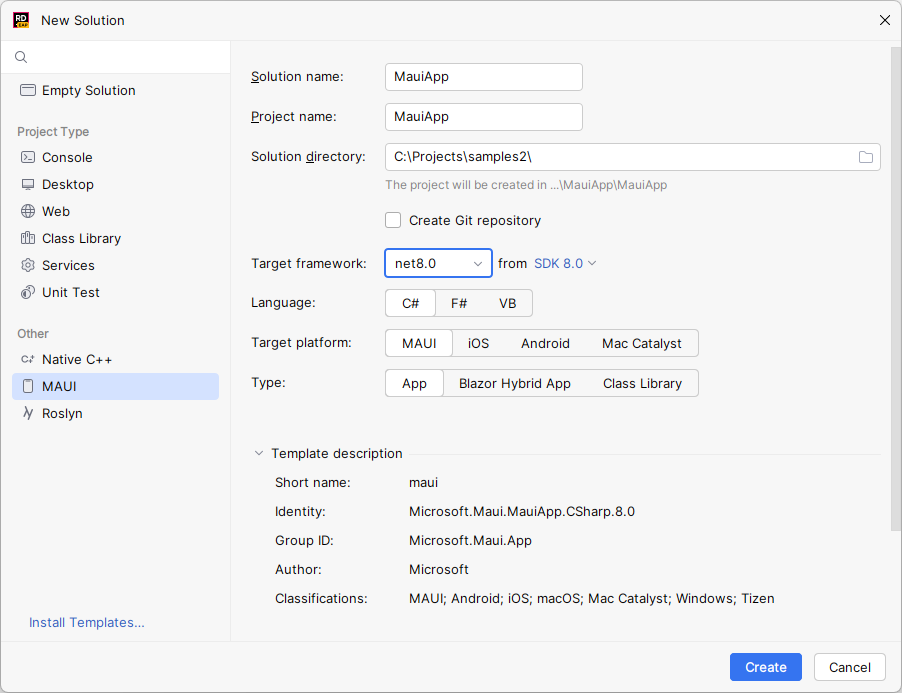

Create a new MAUI project
JetBrains Rider includes a configurable project template for new MAUI projects.
You can create a new MAUI project in a new solution using or add a new MAUI project to the existing solution by right-clicking the solution or solution folder node in the Solution Explorer, and choosing .
Edit XAML

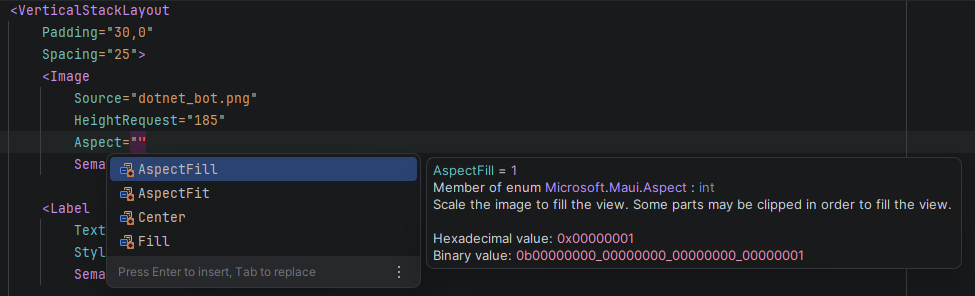

JetBrains Rider provides a rich XAML editing experience for .NET MAUI projects, including code completion, syntax highlighting, and error and warning analysis.
You can generate event handlers directly from XAML elements using the code completion popup. When you type an event attribute, JetBrains Rider suggests creating a new handler method in the code-behind file.
Use Find Usages to locate where MAUI controls and properties are referenced throughout the codebase. This is especially helpful in larger applications with many views and shared resources.
Run and debug MAUI applications
When you create or open a MAUI project, JetBrains Rider automatically creates several different run/debug configurations that you can use to run the project on different platforms.

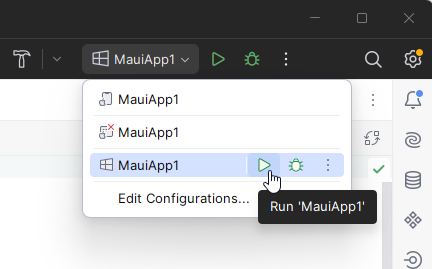

If you want to adjust something in the way your application starts and executes, you can edit and create new run/debug configurations. When you start a MAUI application from the IDE, you can use the corresponding selector on the toolbar to choose which configuration should be used:
Set breakpoints anywhere in your C# code and run the application in debug mode. When a breakpoint is hit, execution pauses, and you can inspect variables, evaluate expressions, and step through the code.
During a debugging session, you can also use XAML Hot Reload to update the UI without restarting the application. Change any XAML in the editor and see the changes reflected on the target device in real time.
Profile MAUI applications

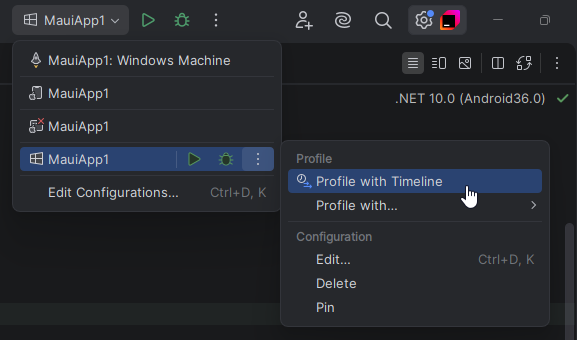

If you are targeting desktop applications on macOS with macCatalyst or on Windows, you can profile your application. Select the run configuration and use the Profile option to start a profiling session.
Once the application is running, capture snapshots to diagnose performance hotspots and identify resource-intensive parts of your application.
Logcat for Android
For Android applications, use the Logcat tool window to view all device logging from a physical or virtual device. This helps diagnose device-level issues that may indirectly affect your application's functionality and performance.
Publish MAUI applications
When your project is ready for deployment, you can create a platform-specific archive, such as .ipa for manual publishing.
JetBrains Rider uses run configurations of the Publish to folder kind to maintain multiple publishing profiles and build the target artifacts.
Provision a profile for Apple App Store
If you plan on publishing to the Apple App Store or run iOS applications on real Apple devices, you need to provision a signing profile. Right-click the MAUI project in the Solution Explorer and select Open in Xcode.
JetBrains Rider will create an Xcode project, launch Xcode, and watch for changes. In Xcode, configure the Signing & Capabilities settings using your Apple developer certificate. When you save changes in Xcode and switch back to JetBrains Rider, the changes are synced back into your MAUI project automatically.
Publish a MAUI app
Right-click a MAUI project and choose Publish.
In the Publish to popup that appears, select or create a publishing configuration. If you have no publishing configurations yet, click Local Folder.

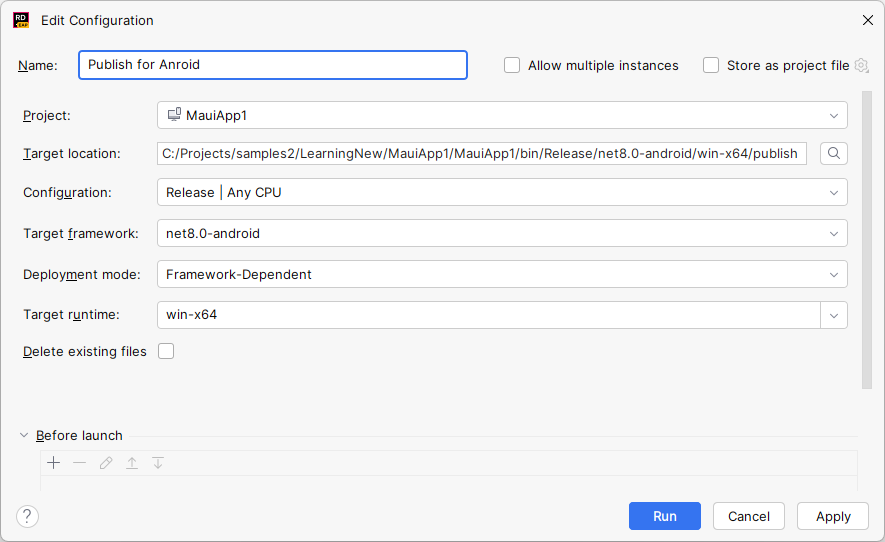

If you have chosen an existing publishing configuration, it will be started immediately. Otherwise, the Edit Configuration dialog opens where you can configure your publishing profile.
Use the Target framework selector to choose the target artifact kind. Configure additional options such as the signing identity, the publish location of the final artifact, and the build configuration.
If you want to maintain multiple publishing profiles, give each configuration a meaningful name.
Click Run. The progress of creating the artifact will be shown in the Build window. If the build succeeds, the artifact will be created in the specified location. You can then upload the artifact to the target platform's application store.
Independently of the build results, the publishing configuration will be saved for your solution. You can access it in the Run/debug configurations dialog ().
Hot Reload
The following table illustrates how Hot Reload is currently supported for MAUI apps in Rider.
XAML | C# | |
|---|---|---|
Android Simulator/physical device on Windows |
|
|
Android Simulator/physical device on macOS |
|
|
macOS apps on macOS |
|
|
iOS simulators/physical device on macOS |
|
|
Windows apps on Windows |
|
|
Xcode sync on macOS
When developing .NET MAUI applications on macOS, it is recommended to edit resource files and connect resources to code using Xcode.
You can use context menus of .storyboard, .xib, .plist files or of the .NET MAUI macios project node to open them in Xcode.
If the file or project has never been opened in Xcode before, JetBrains Rider will generate an Xcode project as follows:
xcodeproj project specifications (a project descriptor similar to csproj but for Xcode) is generated
Source files for all user types inherited
NSObject(forms, delegates, views, controls, and so on) in Objective C are generatedAll resources (images, designer files) are copied
When the project structure is ready, Xcode will start automatically, and you can use it to edit resources. Every time Rider receives focus, it looks for changes (edits in existing files, new files, removed files) and integrates these changes into the .NET MAUI .NET project. It modifies .designer.cs parts of user types (inherited from NSObject) and copies back all changed resources.

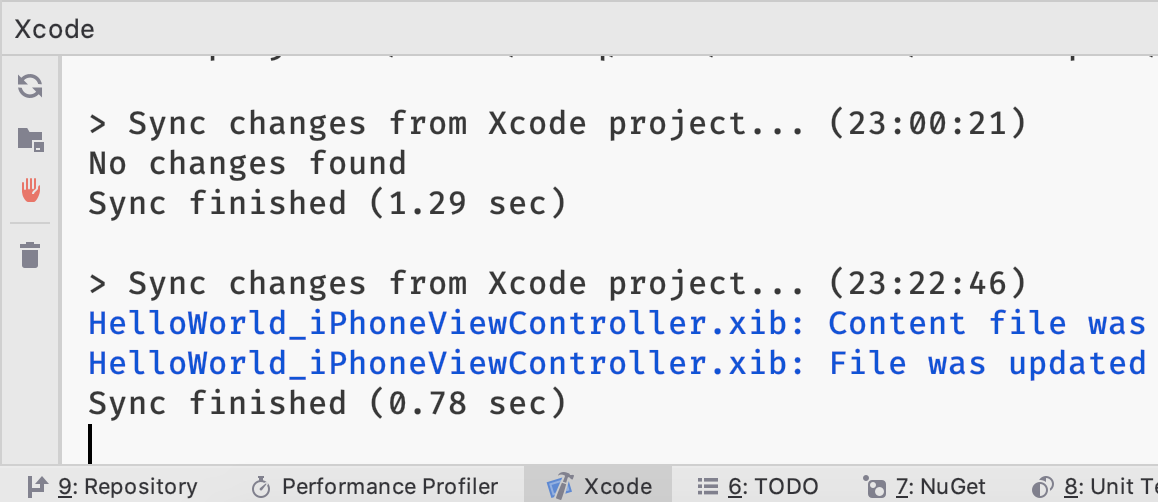

All Xcode-related events are printed in the Xcode console tool window, which appears when you open resources or projects in Xcode:
How it works under the hood
When you create a new .NET MAUI macios project
JetBrains Rider creates the corresponding xcodeproj project (pbxproj and other necessary files) project in the obj\xcode subdirectory with all required settings and configurations.
Copies of all content files (views, plist files, images, and so on) are created in that directory.
For each
ViewControllertype JetBrains Rider generates an objc class with actions and outlets.The generated project is opened automatically in Xcode.
When you make changes in Xcode and then switch to Rider
All modified content files are copied back into .NET project.
Settings are updated.
objc files are parsed and *.designer.cs files are regenerated for view controllers. For all these files you will see a generated header:
// WARNING // // This file has been generated automatically by Rider IDE // to store outlets and actions made in Xcode. // If it is removed, they will be lost. // Manual changes to this file may not be handled correctly.
