Run/Debug Configuration: .NET Executable

Run | Edit Configurations | Add New Configuration | .NET Executable

Use this run/debug configuration to launch .NET applications and processes. This kind of configuration can be helpful to have a specific setup for an application that you want to run and attach the debugger to, or you can use it as part of a compound run/debug configuration when you need to launch multiple executables at once.

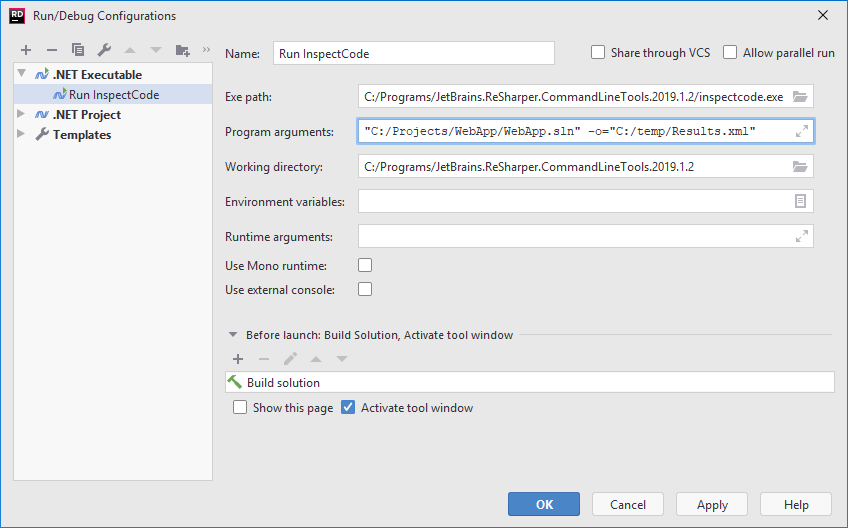

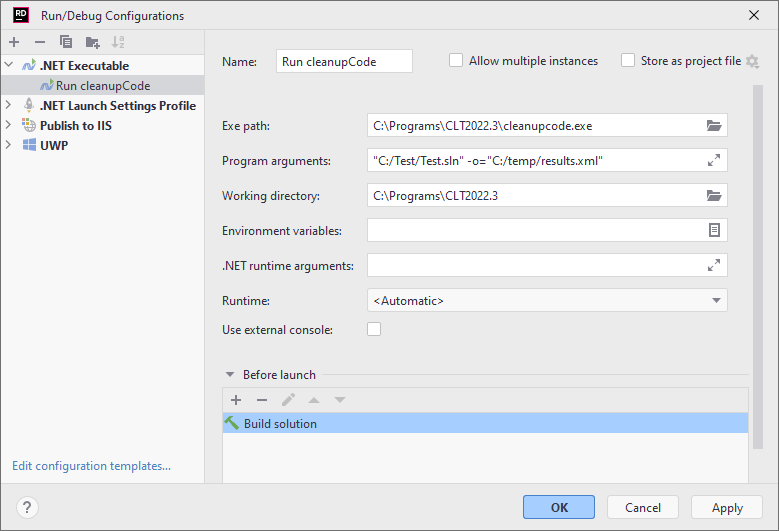

JetBrains Rider run configuration: .NET Executable
Exe path:

Target executable file that will be launched by this configuration

Program arguments:

Arguments that will be passed to the executable when the configuration is started.
Multiple arguments should be separated with whitespaces.

Working directory:

You can specify a custom working directory here, otherwise the directory of the target executable will be used.

Environmental variables:

Here you can specify custom environment variables for the target executable.

Runtime variables:

Both dotnet and Mono support setting custom runtime arguments when launching an application. For example Mono supports many runtime arguments to customize how your application is run. You can select the garbage collector to be used (--gc=boehm or --gc=sgen), on macOS you can select the runtime architecture to be used (--arch=32 or --arch=64), and more.

Use mono runtime If you are working on Windows, you can check how your application works with the mono runtime. JetBrains Rider will use the mono executable specified on the Build, Execution, Deployment | Toolset and Build page of JetBrains Rider settings Ctrl+Alt+S.
To debug with mono runtime, you need:
  • Mono 4.2+

  • Portable PDB in your projects — <debugtype>portable</debugtype> in the .csproj file, or alternatively, generate mdb with pdb2mdb.

Use external console:

By default, the output of .NET Core and Mono applications is shown in the Run or Debug window. Use this checkbox to show the output in an external window.
This checkbox does not affect classic .NET application types (for example, .NET Console Application) — their output in always shown in an external window.

Common

When you edit a run configuration (but not a run configuration template), you can specify the following options:

Item

Description

Name

Specify a name for the run/debug configuration to quickly identify it when editing or running the configuration, for example, from the Run popup Ctrl+Shift+Alt+R.

Allow parallel run

Select to allow running multiple instances of this run configuration in parallel.

By default, it is disabled, and when you start this configuration while another instance is still running, JetBrains Rider suggests to stop the running instance and start another one. This is helpful when a run/debug configuration consumes a lot of resources and there is no good reason to run multiple instances.

Store as project file

Save the file with the run configuration settings to share it with other team members. The default location is .idea/runConfigurations. However, if you do not want to share the .idea directory, you can save the configuration to any other directory within the project.

By default, it is disabled, and JetBrains Rider stores run configuration settings in .idea/workspace.xml.

Toolbar

The tree view of run/debug configurations has a toolbar that helps you manage configurations available in your solution as well as adjust default configurations templates.

Item

Shortcut

Description

the Add buttonCtrl+N

Create a run/debug configuration.

the Remove buttonCtrl+R, D

Delete the selected run/debug configuration. Note that you cannot delete default configurations.

Copy Ctrl+D

Create a copy of the selected run/debug configuration. Note that you create copies of default configurations.

Save configuration

The button is displayed only when you select a temporary configuration. Click this button to save a temporary configuration as permanent.

Edit Templates

View and edit the template (that is, the default run/debug configuration settings). The templates are displayed under the Templates node and used for newly created configurations.

Method up/Method down

Alt+Up/Alt+Down

Move the selected run/debug configuration up and down in the list.

The order of configurations in the list defines the order, in which the configurations appear when you choose a run/debug configuration.

Default templates of run/debug configurations are always sorted alphabetically.

Move into new folder / Create new folder

Move into new folder / Create new folder. You can group run/debug configurations by placing them into folders.

To create a folder, select the configurations within a category, click Folder, and specify the folder name. If only a category is in focus, an empty folder is created.

Then, to move a configuration into a folder, between the folders or out of a folder, use drag or Move Up and Move Down buttons.

To remove grouping, select a folder and click Remove Configuration.

Sort configurations

Click this button to sort configurations in the alphabetical order.

Before Launch

In this area you can specify tasks that must be performed before starting the selected run/debug configuration. The tasks are performed in the order they appear in the list.

Item

Shortcut

Description

the Add buttonCtrl+N

Click this icon to add one of the following available tasks:

  • Run External tool: select to run an external application. In the dialog that opens, select one or multiple applications you want to run. If it is not defined in JetBrains Rider yet, add its definition.

  • Run Another Configuration: select to execute another run/debug configuration. In the dialog that opens, select the configuration to be run.

  • Build solution: select this option to build the solution before launching the configuration.

  • Run File Watchers: select this option to have JetBrains Rider apply all the currently active File Watchers.

  • Run Grunt task: select this option to run a Grunt task.

    In the Grunt task dialog that opens, specify the Gruntfile.js where the required task is defined, select the task to execute, and specify the arguments to pass to the Grunt tool.

    Specify the location of the Node.js interpreter, the parameters to pass to it, and the path to the grunt-cli package.

  • Run Gulp task: select this option to run a Gulp task.

    In the Gulp task dialog that opens, specify the Gulpfile.js where the required task is defined, select the task to execute, and specify the arguments to pass to the Gulp tool.

    Specify the location of the Node.js interpreter, the parameters to pass to it, and the path to the gulp package.

  • Run npm Script: select this option to execute an npm script.

    In the NPM Script dialog that opens, specify the npm run/debug configuration settings.
  • Compile TypeScript: select to run the built-in TypeScript compiler and thus make sure that all the changes you made to your TypeScript code are reflected in the generated JavaScript files. In the TypeScript Compile Settings dialog that opens, select or clear the Check errors checkbox to configure the behaviour of the compiler in case any errors are detected:

    • If the Check errors checkbox is selected, the compiler will show all the errors and the run configuration will not start.

    • If the Check errors checkbox is cleared, the compiler will show all the detected errors but the run configuration still will be launched.

  • Generate CoffeeScript Source Maps: select this option to generate the source maps for your CoffeeScript sources. In the dialog that opens, specify where your CoffeeScript source files are located.

  • Upload files to Remote Host: select this option to have the application files automatically uploaded to the server according to the default server access configuration.

  • Run Remote External tool: adds a remote SSH external tool.

the Remove buttonCtrl+R, D

Click this icon to remove the selected task from the list.

Edit Enter

Click this icon to edit the selected task. Make the necessary changes in the dialog that opens.

Method up/Method down

Alt+Up/Alt+Down

Click these icons to move the selected task one line up or down in the list. The tasks are performed in the order that they appear in the list.

Show this page

Select this checkbox to show the run/debug configuration settings prior to actually starting the run/debug configuration.

Activate tool window

By default this checkbox is selected and the Run or the Debug tool window opens when you start the run/debug configuration.

Otherwise, if the checkbox is cleared, the tool window is hidden. However, when the configuration is running, you can open the corresponding tool window for it yourself by pressing Alt+4 or Alt+5.
