IntelliJ IDEA 2019.2 Help

Migrating From Eclipse to IntelliJ IDEA

Overview

Switching from Eclipse to IntelliJ IDEA, especially if you've been using Eclipse for a long time, requires understanding some fundamental differences between the two IDEs, including their user interfaces, compilation methods, shortcuts, project configuration and other aspects.

User Interface

No workspace

The first thing you'll notice when launching IntelliJ IDEA is that it has no workspace concept. This means that you can work with only one project at a time. While in Eclipse you normally have a set of projects that may depend on each other, in IntelliJ IDEA you have a single project that consists of a set of modules.

If you have several unrelated projects, you can open them in separate windows.

If you still want to have several unrelated projects opened in one window, as a workaround you can configure them all in IntelliJ IDEA as modules.

IntelliJ IDEA vs Eclipse terminology

The table below compares the terms in Eclipse and IntelliJ IDEA:

Eclipse

IntelliJ IDEA

Workspace

Project

Project

Module

Facet

Facet

Library

Library

JRE

SDK

Classpath variable

Path variable

No perspectives

The second big surprise when you switch to IntelliJ IDEA is that it has no perspectives.

It means that you don't need to switch between different workspace layouts manually to perform different tasks. The IDE follows your context and brings up the relevant tools automatically.

migration guide debugger 1

Tool windows

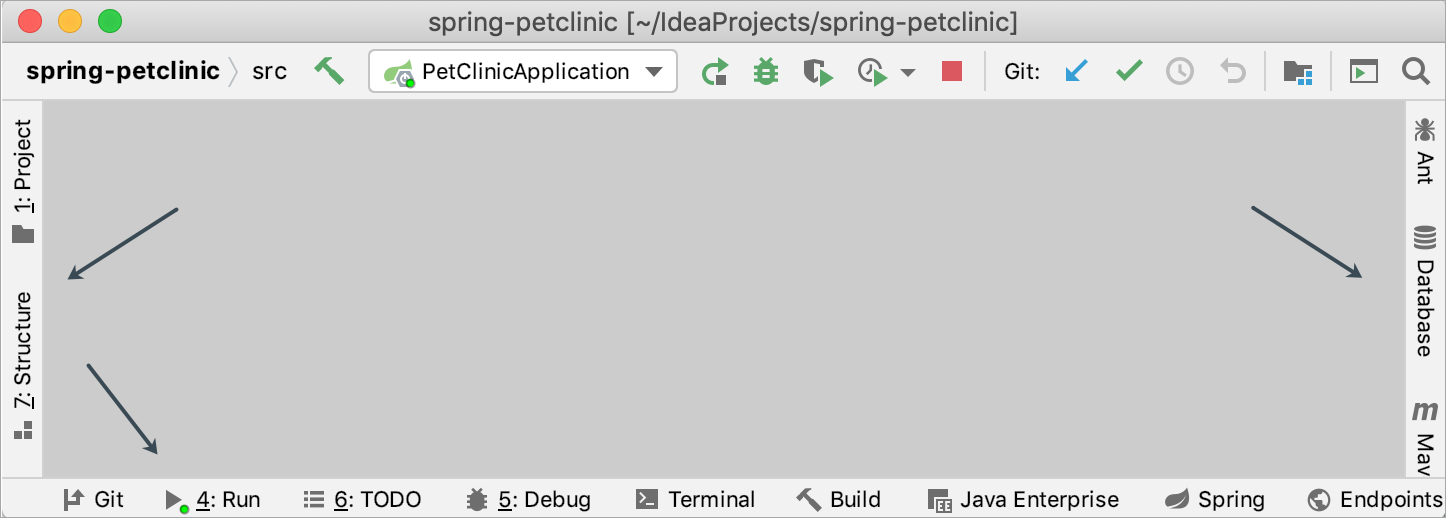

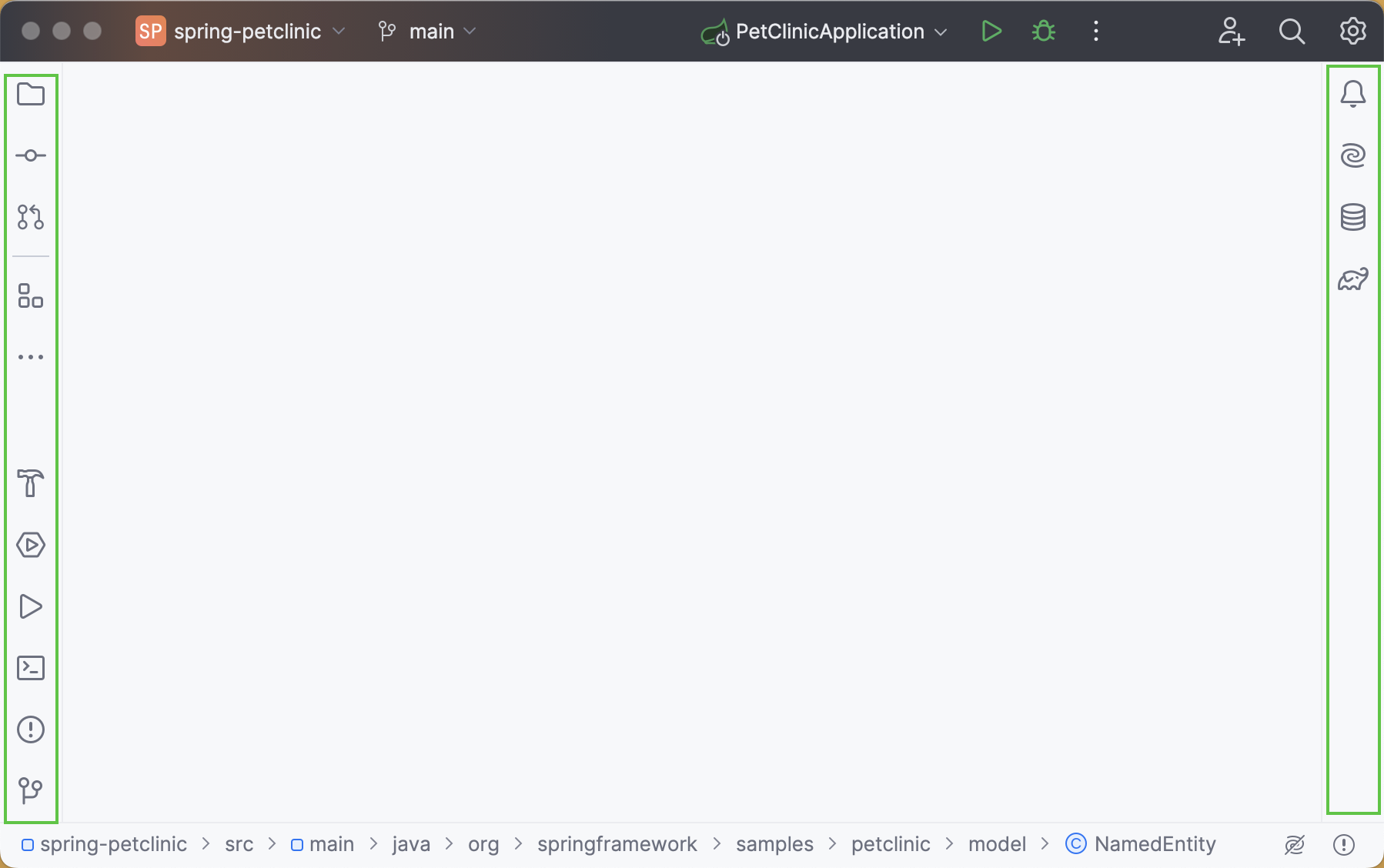

Just like in Eclipse, in IntelliJ IDEA you also have tool windows. To open a tool window, simply click it in the tool window bar:

migration guide tool window bar 2

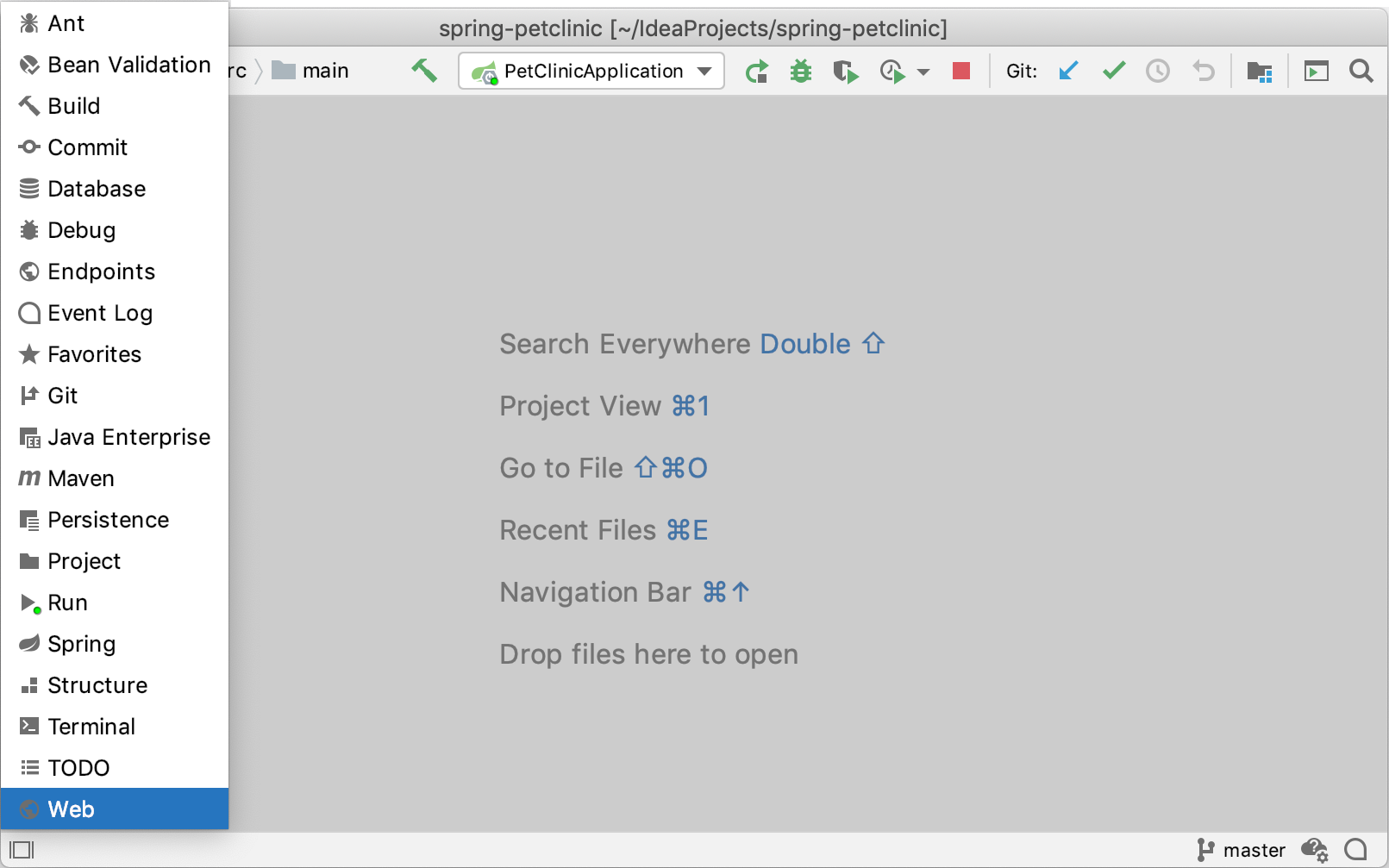

If the tool window bar is hidden, you can open any tool window by hovering over the corresponding icon in the bottom left corner:

migration guide tool window bar 1

If you want to make the tool window bar visible for a moment, you can press Alt twice and hold it.

If you don't want to use the mouse, you can always switch to any toolbar by pressing the shortcut assigned to it. The most important shortcuts to remember are:

  • Project: Alt+1

  • Version Control: Alt+9

  • Terminal: Alt+F12

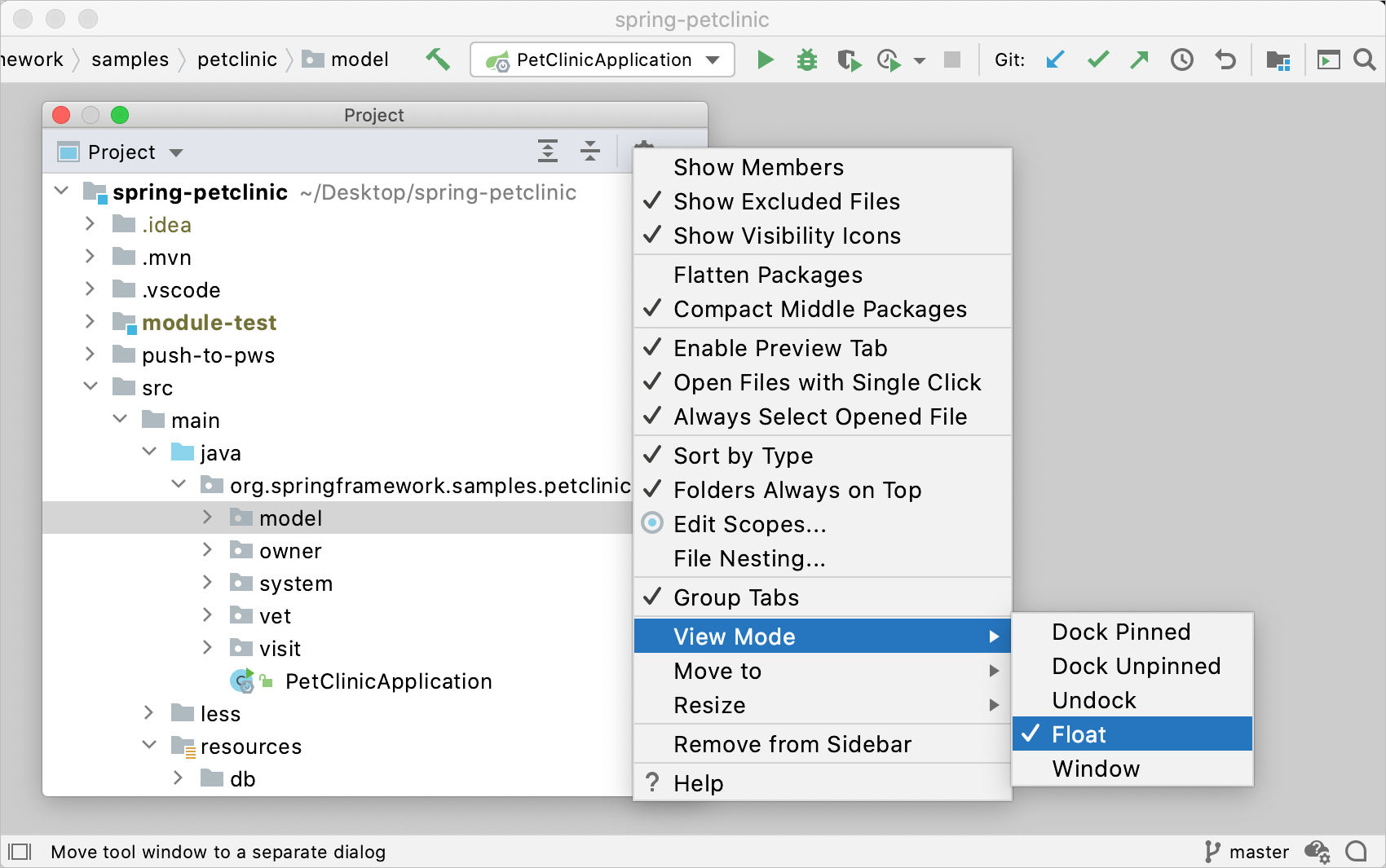

Another thing about tool windows is that you can drag, pin, unpin, attach and detach them:

migration guide tool windows

To help store/restore the tool windows layout, there are two useful commands:

  • Window | Store Current Layout as Default
  • Window | Restore Default Layout (also available via Ctrl+F12)

Multiple windows

Windows management in IntelliJ IDEA is slightly different from Eclipse. You can't open several windows with one project, but you can detach any number of editor tabs into separate windows.

Auto-scrolling to/from sources

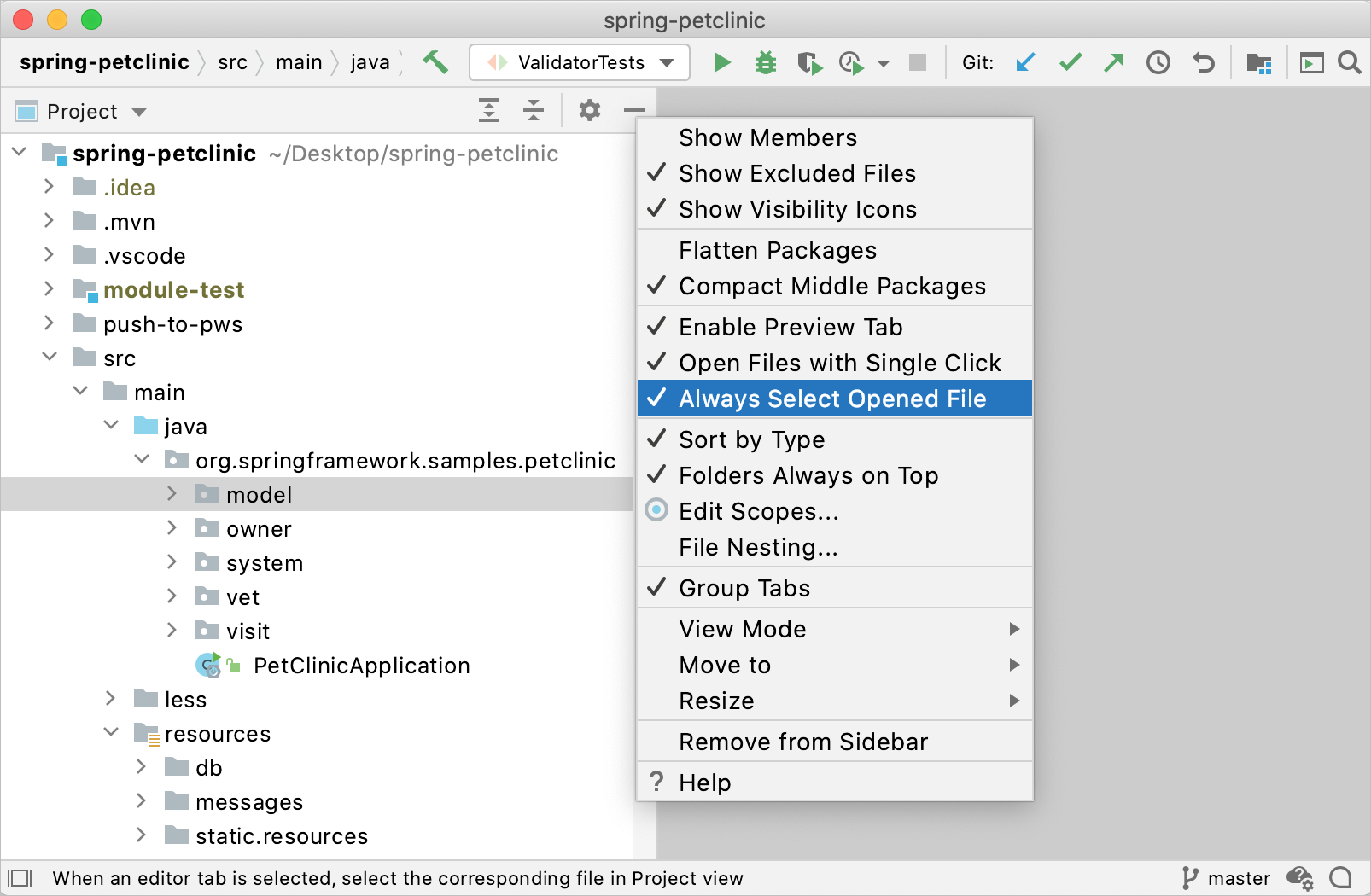

By default, IntelliJ IDEA doesn't change the selection in the Project Tool Window when you switch between editor tabs. However, you can enable it in the tool window settings:

migration guide auto scroll from source

Enabling line numbers

Line numbers are not shown in the editor by default. To enable them, go to Settings/Preferences | Editor | General | Appearance | Show line numbers. There you will also find other useful settings.

General workflows

No 'save' button

Time for some really shocking news: IntelliJ IDEA has no Save button. Since in IntelliJ IDEA you can undo refactorings and revert changes from Local History, it makes no sense to ask you to save your changes every time.

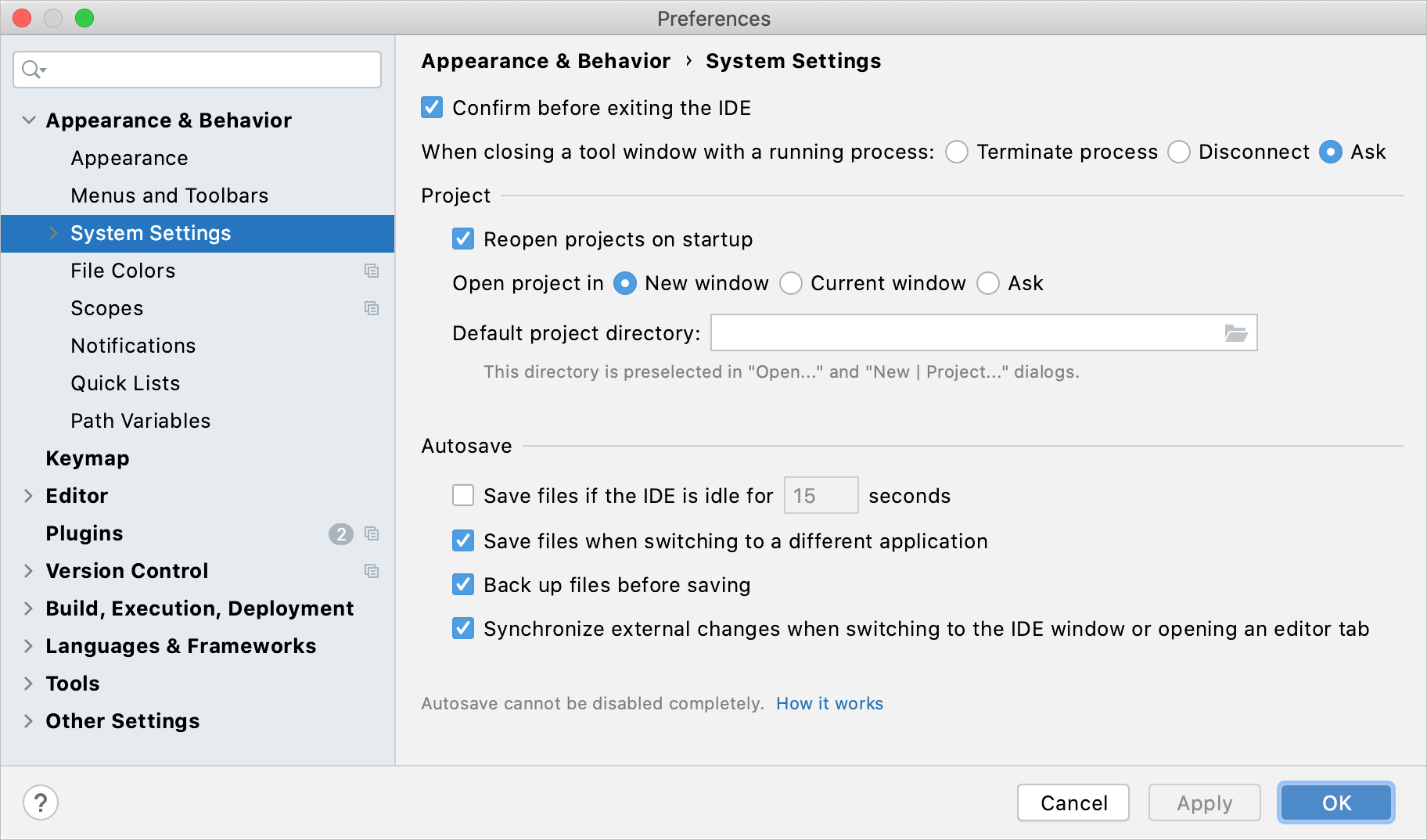

Still, it's worth knowing that physical saving to disk is triggered by certain events, including compilation, closing a file, switching focus out of the IDE, etc. You can change this behavior via Settings | Appearance & Behavior | System Settings:

migration guide save settings

No save actions

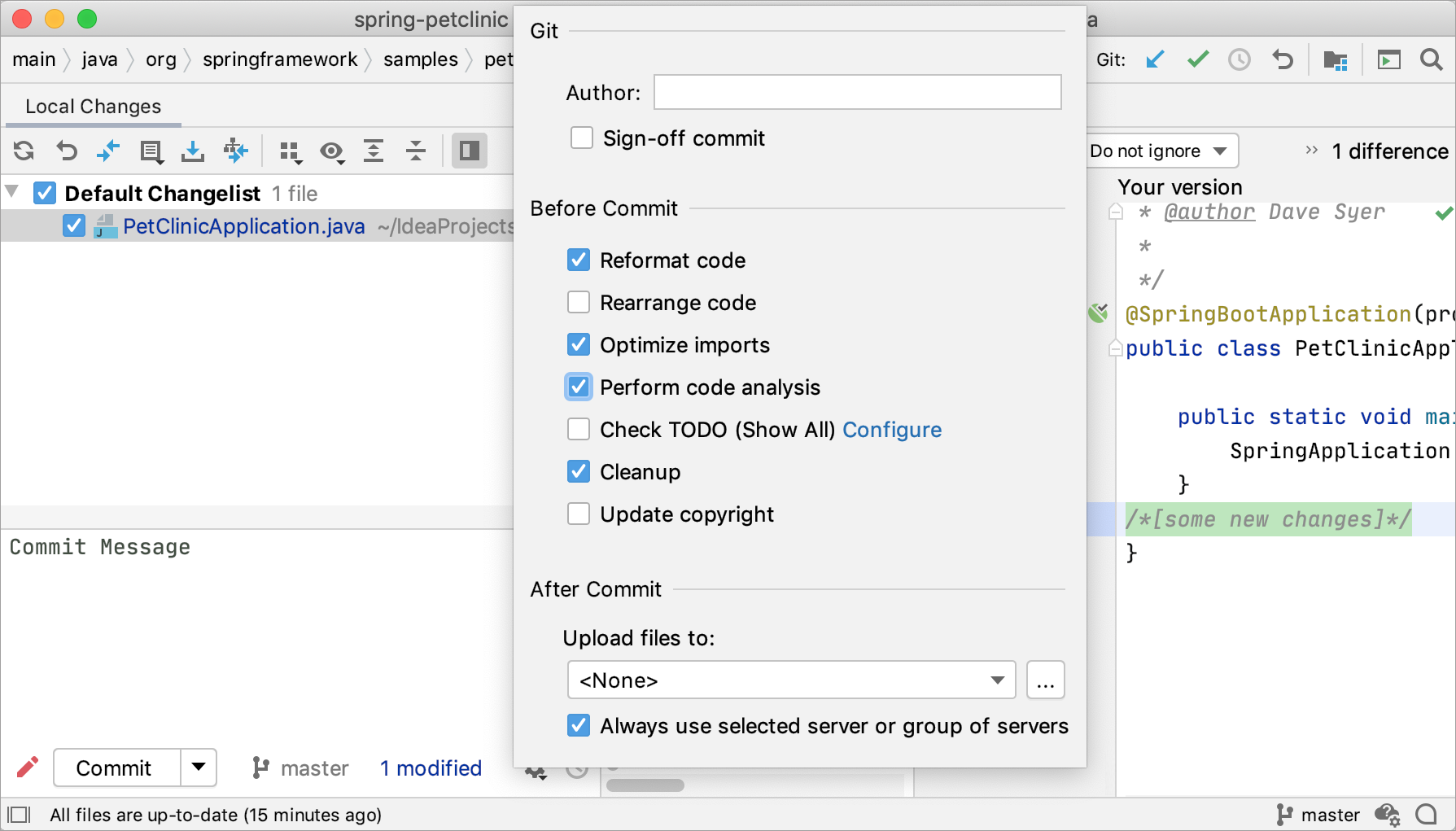

One of the features you may miss in IntelliJ IDEA as an Eclipse user is save actions, i.e. the actions triggered automatically on save, such as reformatting code, organizing imports, adding missing annotations and the final modifier, etc. Instead, IntelliJ IDEA offers you to run the corresponding actions automatically on commit:

migration guide commit

Or manually:

  • Code | Reformat Code Ctrl+Alt+L
  • Code | Optimize Imports Ctrl+Alt+O
  • Analyze | Code Cleanup

If, for some reason, you can't live without an Eclipse save action, you can install a plugin that imitates Eclipse save actions.

Compilation

The way IntelliJ IDEA compiles projects is different from Eclipse in a number of ways.

Auto-compilation

By default, IntelliJ IDEA doesn't automatically compile projects on saving because normally we don't invoke the save action explicitly in IntelliJ IDEA.

If you want to mimic the Eclipse behavior, you can invoke the Make Project action Ctrl+F9 - it will save the changed files and compile them. For your convenience, you can even reassign the Ctrl+S shortcut to the Make Project action.

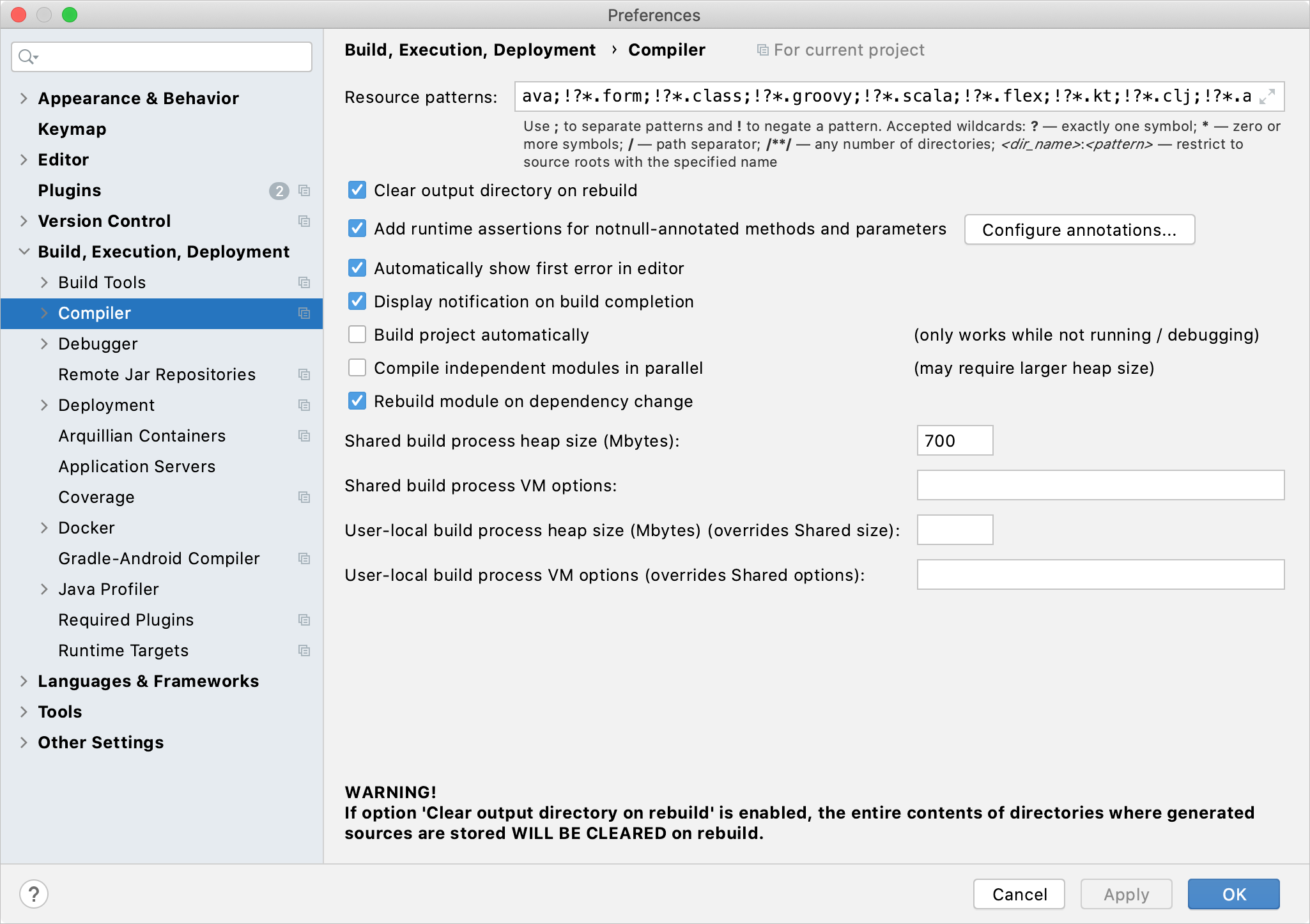

To enable automatic compilation, navigate to Settings/Preferences | Build, Execution, Deployment | Compiler and select the Make project automatically option:

migration guide complier settings

Note that automatic compilation in IntelliJ IDEA differs from that in Eclipse. In Eclipse it's not fully automatic, as it is triggered by the save action invoked by the user explicitly, whereas in IntelliJ IDEA it is invoked implicitly when you type in the editor.

This is why, even if the Make project automatically option is enabled, IntelliJ IDEA doesn't perform automatic compilation if at least one application is running: it will reload classes in the application implicitly. In this case you can call Build | Make Project Ctrl+F9.

Problems tool window

The Problems tool window appears if the Make project automatically option is enabled in the Compiler settings. It shows a list of problems that were detected on project compilation:

migration guide problems tool window

Eclipse compiler

While Eclipse uses its own compiler, IntelliJ IDEA uses the javac compiler bundled with the project JDK. If you must use the Eclipse compiler, navigate to Settings/Preferences | Build, Execution, Deployment | Compiler | Java Compiler and select it as shown below:

migration guide eclipse compiler

The biggest difference between the Eclipse and javac compilers is that the Eclipse compiler is more tolerant to errors, and sometimes lets you run code that doesn't compile.

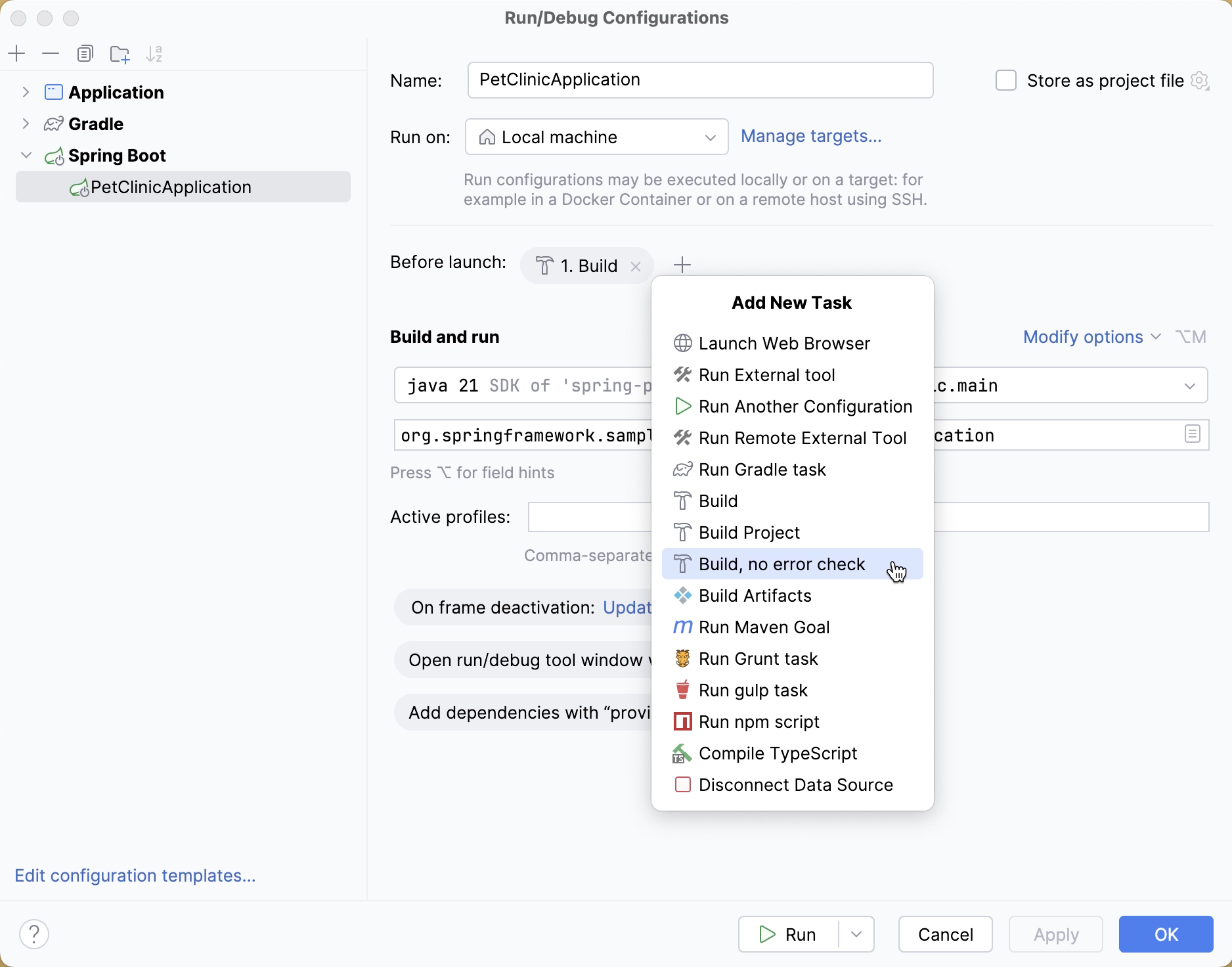

In situations when you need to run code with compilation errors in IntelliJ IDEA, replace the Make option in your run configuration with Make, no error check:

migration guide make no error check

Shortcuts

IntelliJ IDEA shortcuts are completely different from those in Eclipse.

The table below shows how the top Eclipse actions (and their shortcuts) are mapped to IntelliJ IDEA (you may want to print it out to always have it handy).

Eclipse

IntelliJ IDEA

Action Shortcut Action Shortcut

Code completion

Ctrl+Space

Basic completion

Ctrl+Space

-

-

Smart completion

Ctrl+Shift+Space

-

-

Statement completion

Ctrl+Shift+Enter

Quick access

Ctrl+3

Search everywhere

Shift x 2

Maximize active view or editor

Ctrl+M

Hide all tool windows

Ctrl+Shift+F12

Open type

Ctrl+Shift+T

Navigate to class

Ctrl+N

Open resource

Ctrl+Shift+R

Navigate to file

Ctrl+Shift+N

-

-

Navigate to symbol

Ctrl+Shift+Alt+N

Next view

Ctrl+F7

-

-

-

-

Recent files

Ctrl+E

-

-

Switcher

Ctrl+Tab

Quick outline

Ctrl+O

File structure

Ctrl+F12

Move lines

Alt+Up/Down

Move lines

Shift+Alt+Up/Shift+Alt+Down

Delete lines

Ctrl+D

Delete lines

Ctrl+Y

Quick fix

Ctrl+1

Show intention action

Alt+Enter

Quick switch editor

Ctrl+E

Switcher

Ctrl+Tab

-

-

Recent files

Ctrl+E

Quick hierarchy

Ctrl+T

Navigate to type hierarchy

Ctrl+H

-

-

Navigate to method hierarchy

Ctrl+Shift+H

-

-

Show UML popup

Ctrl+Alt+U

Last edit location

Ctrl+Q

Last edit location

Ctrl+Shift+Backspace

Next editor

Ctrl+F6

Select next tab

Alt+Right

Run

Ctrl+Shift+F11

Run

Shift+F10

Debug

Ctrl+F11

Debug

Shift+F9

Correct indentation

Ctrl+I

Auto-indent lines

Ctrl+Alt+I

Format

Ctrl+Shift+F

Reformat code

Ctrl+Alt+L

Surround with

Ctrl+Alt+Z

Surround with

Ctrl+Alt+T

-

-

Surround with live template

Ctrl+Alt+J

Open declaration

F3

Navigate to declaration

Ctrl+B

-

-

Quick definition

Ctrl+Shift+I

Open type hierarchy

F4

Navigate to type hierarchy

Ctrl+H

-

-

Show UML popup

Ctrl+Alt+U

References in workspace

Ctrl+Shift+G

Find usages

Alt+F7

-

-

Show usages

Ctrl+Alt+F7

-

-

Find usages settings

Ctrl+Shift+Alt+F7

Open search dialog

Ctrl+H

Find in path

Ctrl+Shift+F

Occurrences in file

Ctrl+Alt+U

Highlight usages in file

Ctrl+Shift+F7

Copy lines

Ctrl+Alt+Down

Duplicate lines

Ctrl+D

Extract local variable

Ctrl+Alt+L

Extract variable

Ctrl+Alt+V

Assign to field

Ctrl+2/Ctrl+F

Extract field

Ctrl+Alt+F

Show refactor quick menu

Ctrl+Alt+T

Refactor this

Ctrl+Shift+Alt+T

Rename

Ctrl+Alt+R

Rename

Shift+F6

Go to line

Ctrl+L

Navigate to line

Ctrl+G

Structured selection

Shift+Alt+Up/Shift+Alt+Down

Select word at caret

Ctrl+W/Ctrl+Shift+W

Find next

Ctrl+J

Find next

F3

Show in

Ctrl+Alt+W

Select in

Alt+F1

Back

Ctrl+[

Back

Ctrl+Alt+Left

Forward

Ctrl+]

Forward

Ctrl+Alt+Right

Eclipse keymap

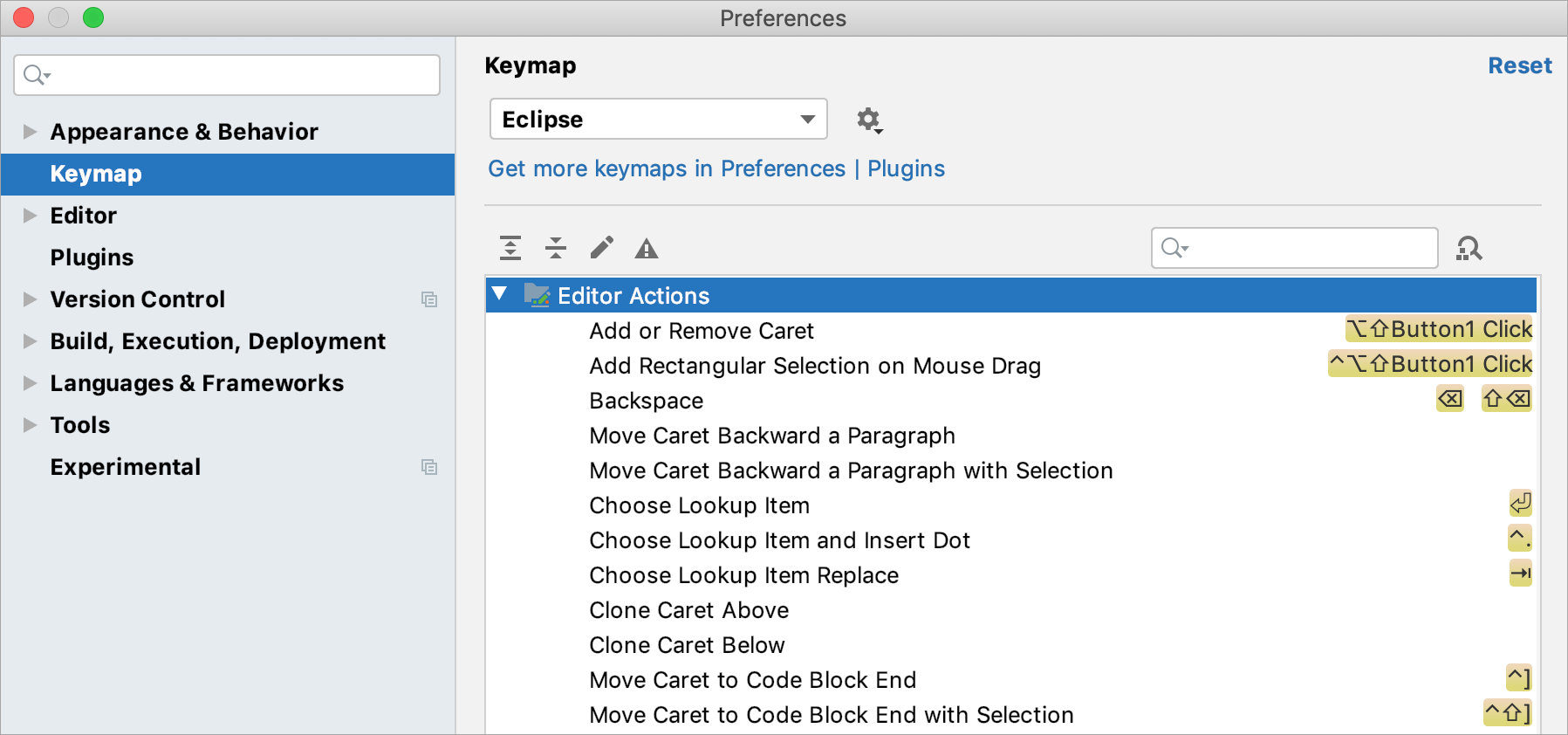

For Eclipse users who prefer not to learn new shortcuts, IntelliJ IDEA provides the Eclipse keymap which closely mimics its shortcuts:

migration guide eclipse keymap

Find action

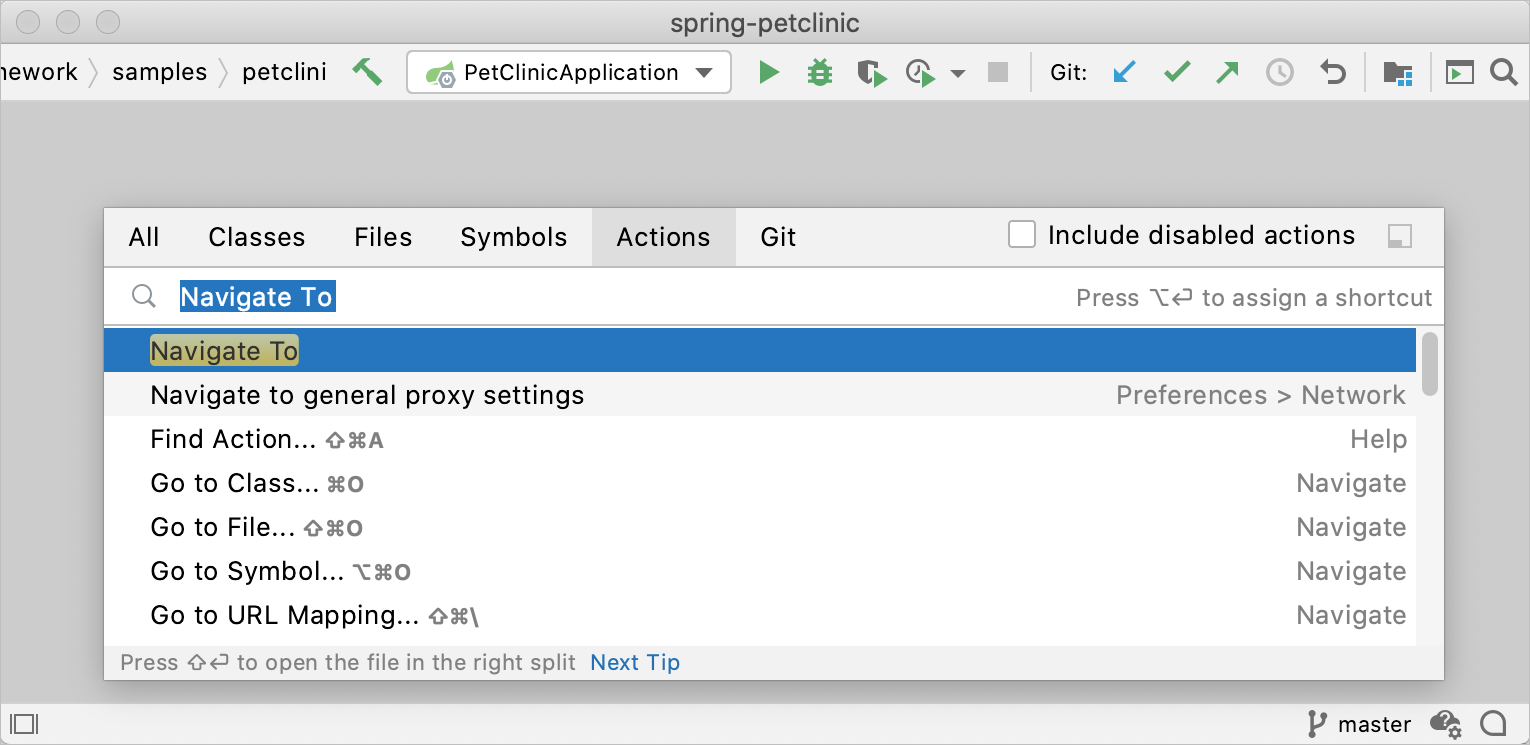

When you don't know the shortcut for some action, try using the Find action feature available via Ctrl+Shift+A. Start typing to find an action by its name, see its shortcut, or call it:

migration guide find action

Coding assistance

Both Eclipse and IntelliJ IDEA provide coding assistance features, such as code completion, code generation, quick-fixes, live templates, etc.

Quick-fixes

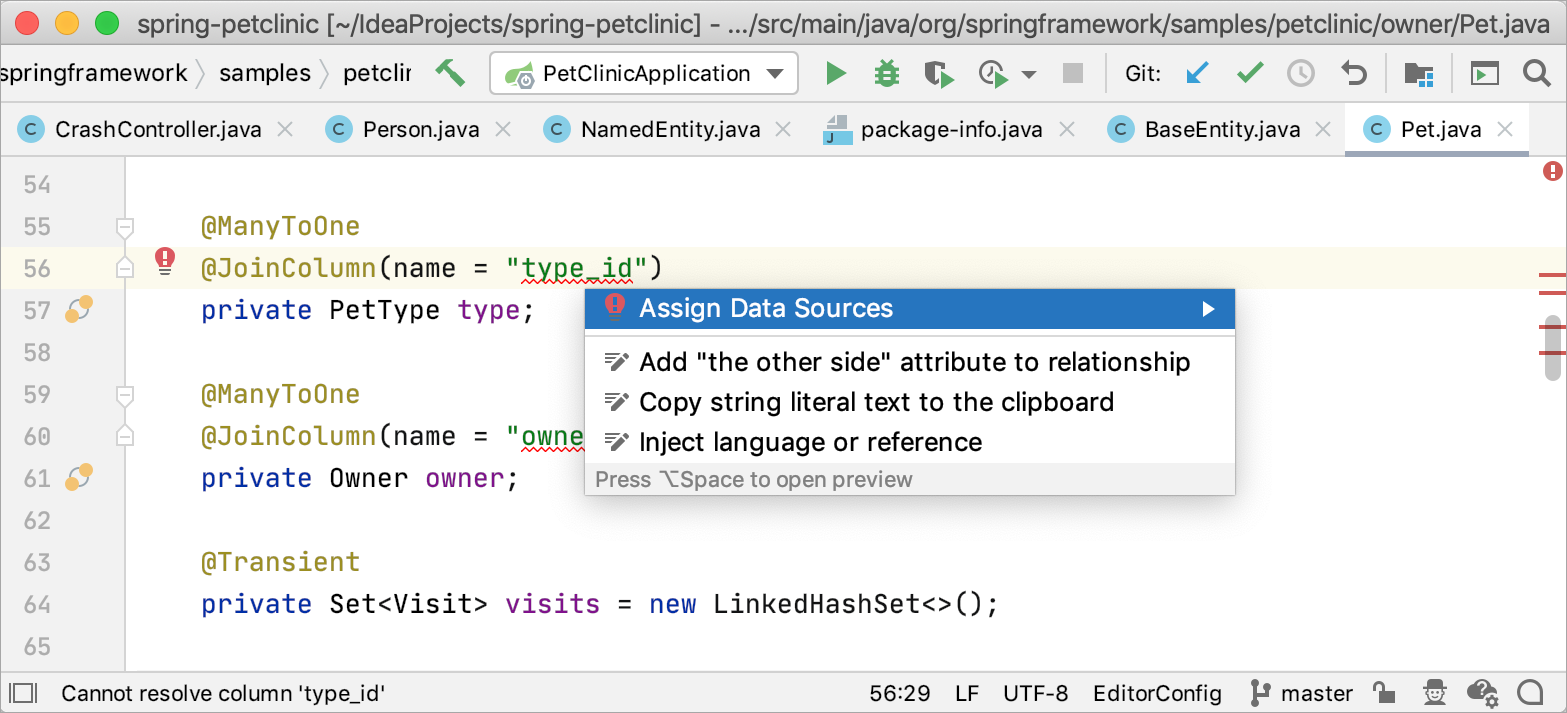

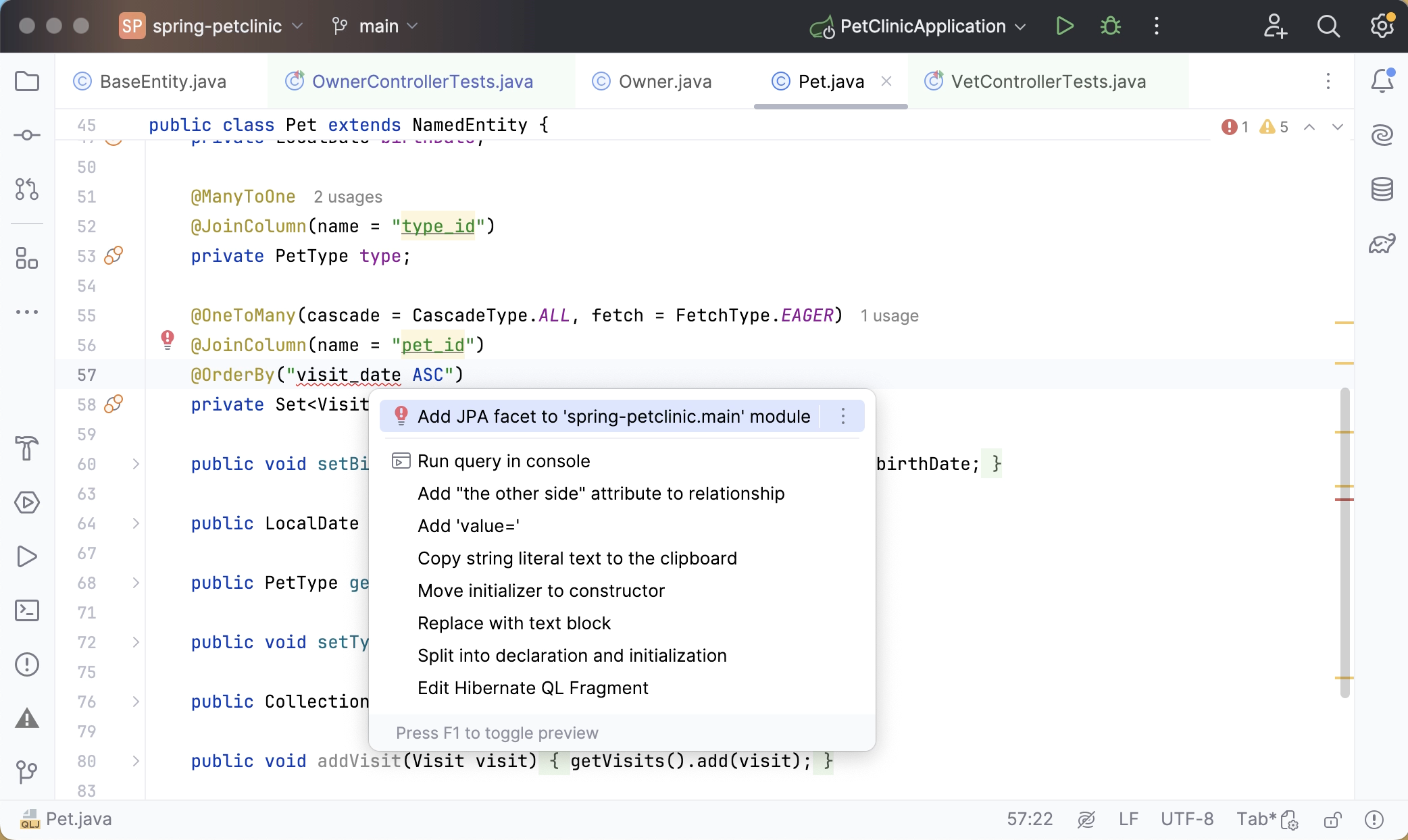

To apply a quick-fix in IntelliJ IDEA, press Alt+Enter:

migration guide quick fix

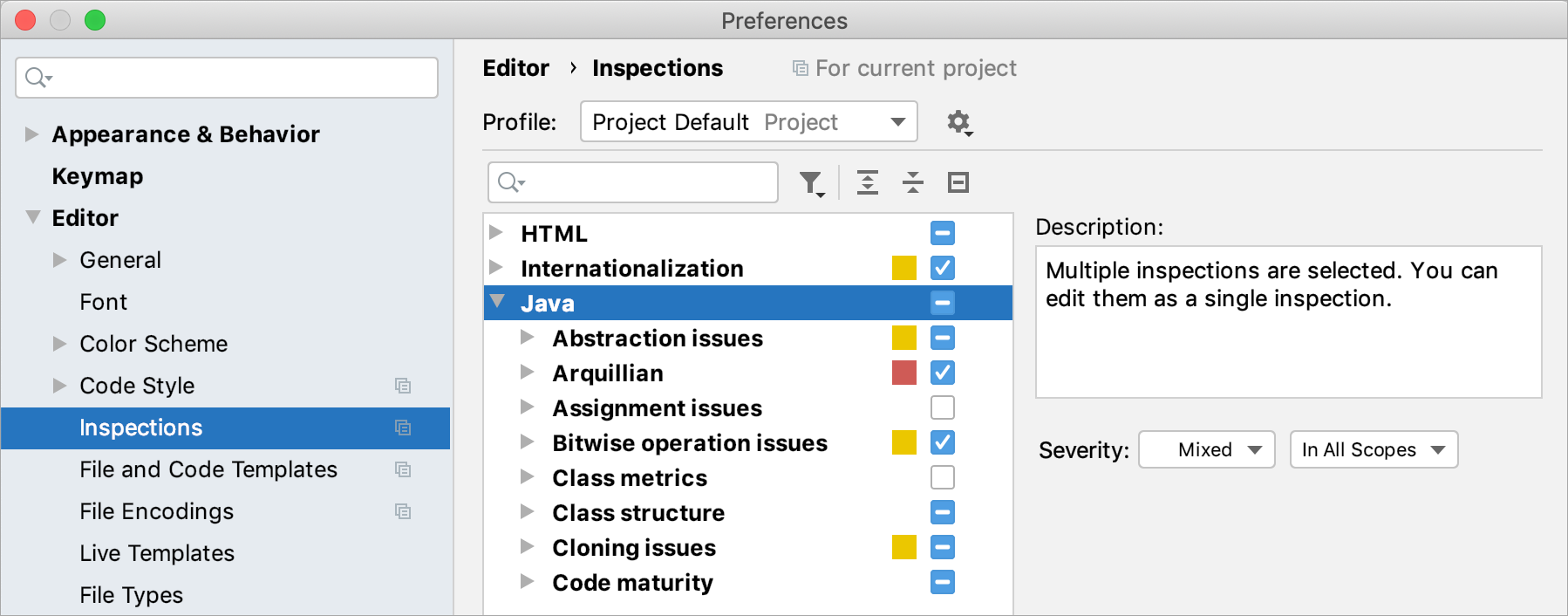

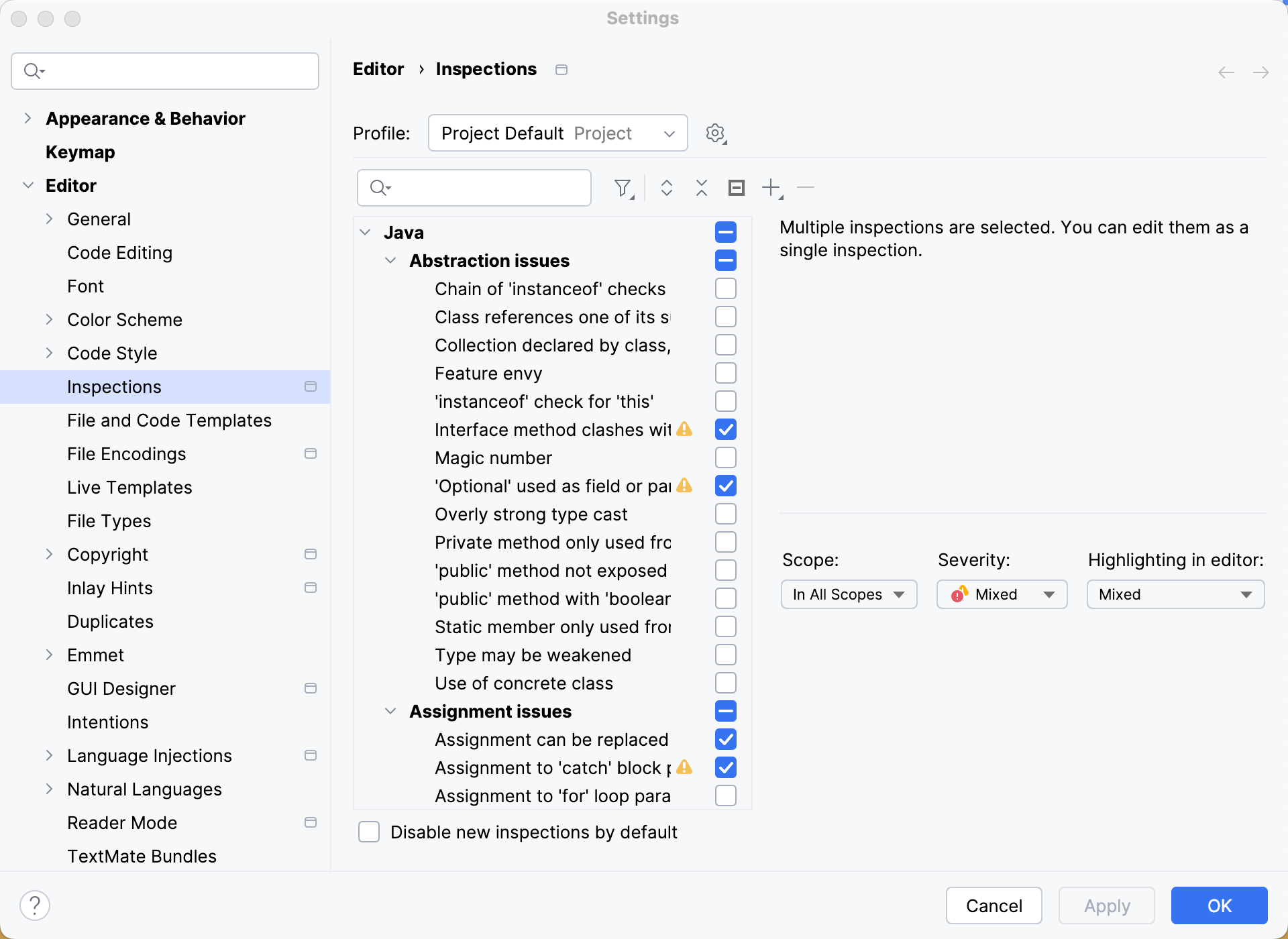

All quick-fixes are based on inspections configured in Settings | Editor | Inspections:

migration guide inspection settings

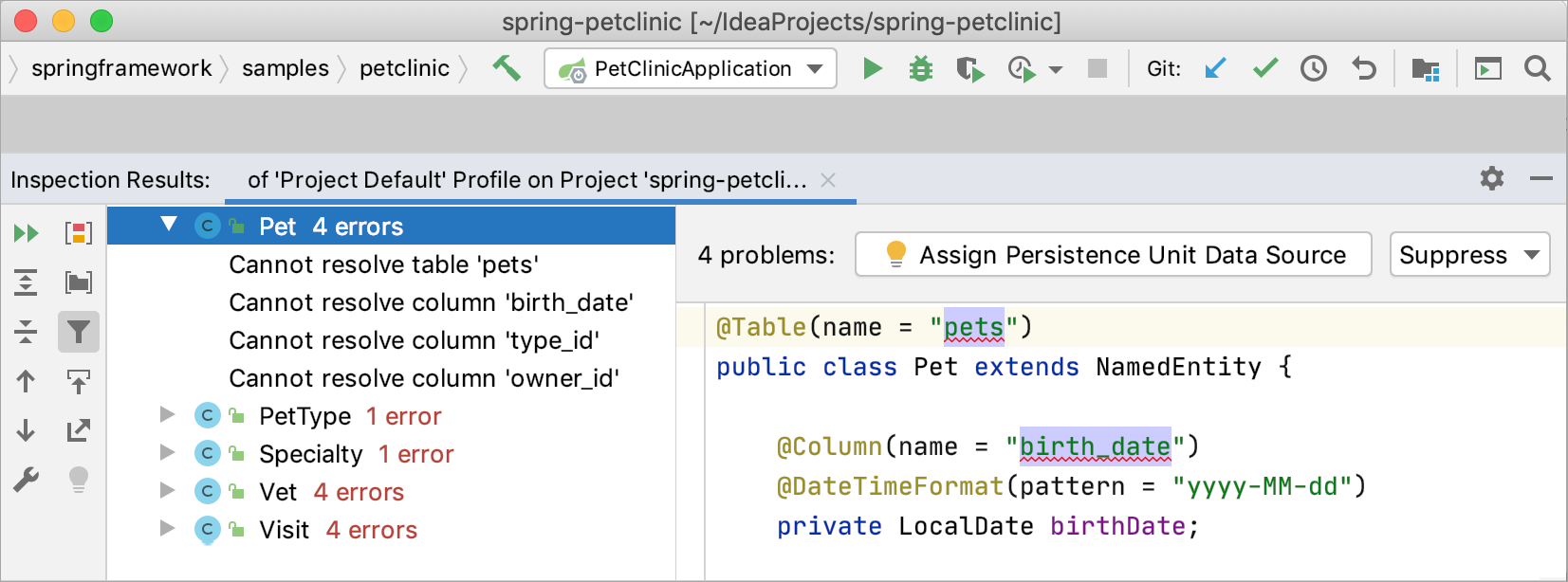

If you want to apply a quick-fix to several places at once (i.e. to a whole folder, module or even a project), you can do it by running the corresponding inspection via Analyze | Run Inspection By Name or by running the whole batch of inspections via Analyze | Inspect Code:

migration guide batch inspections

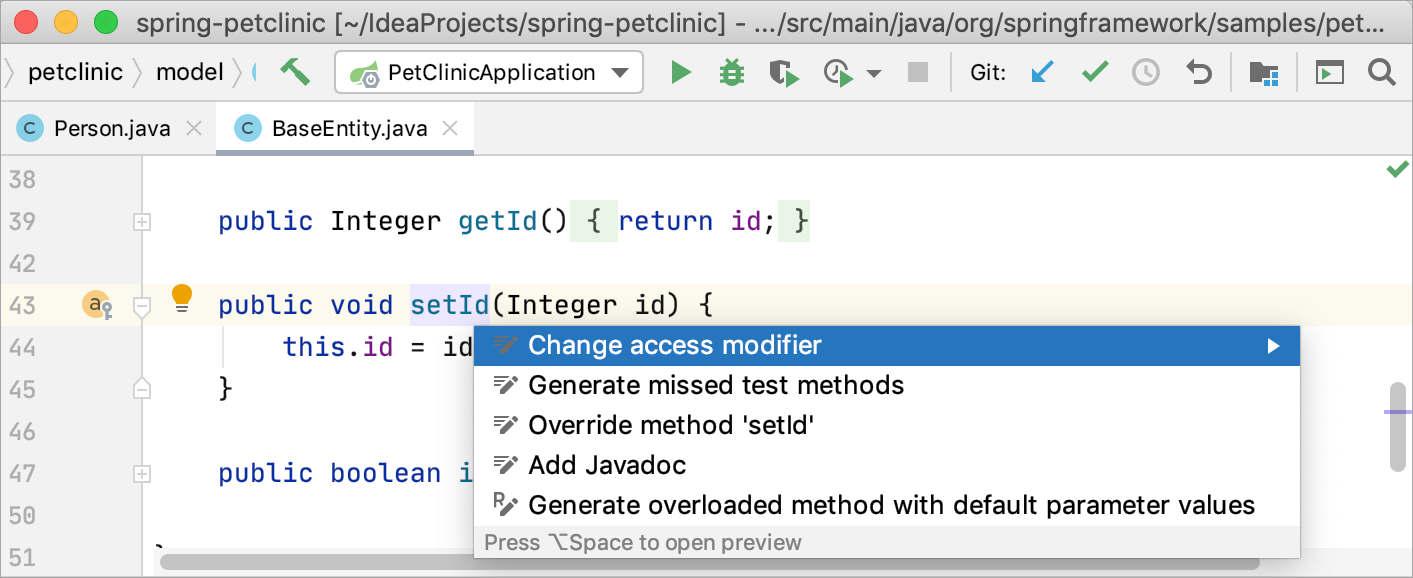

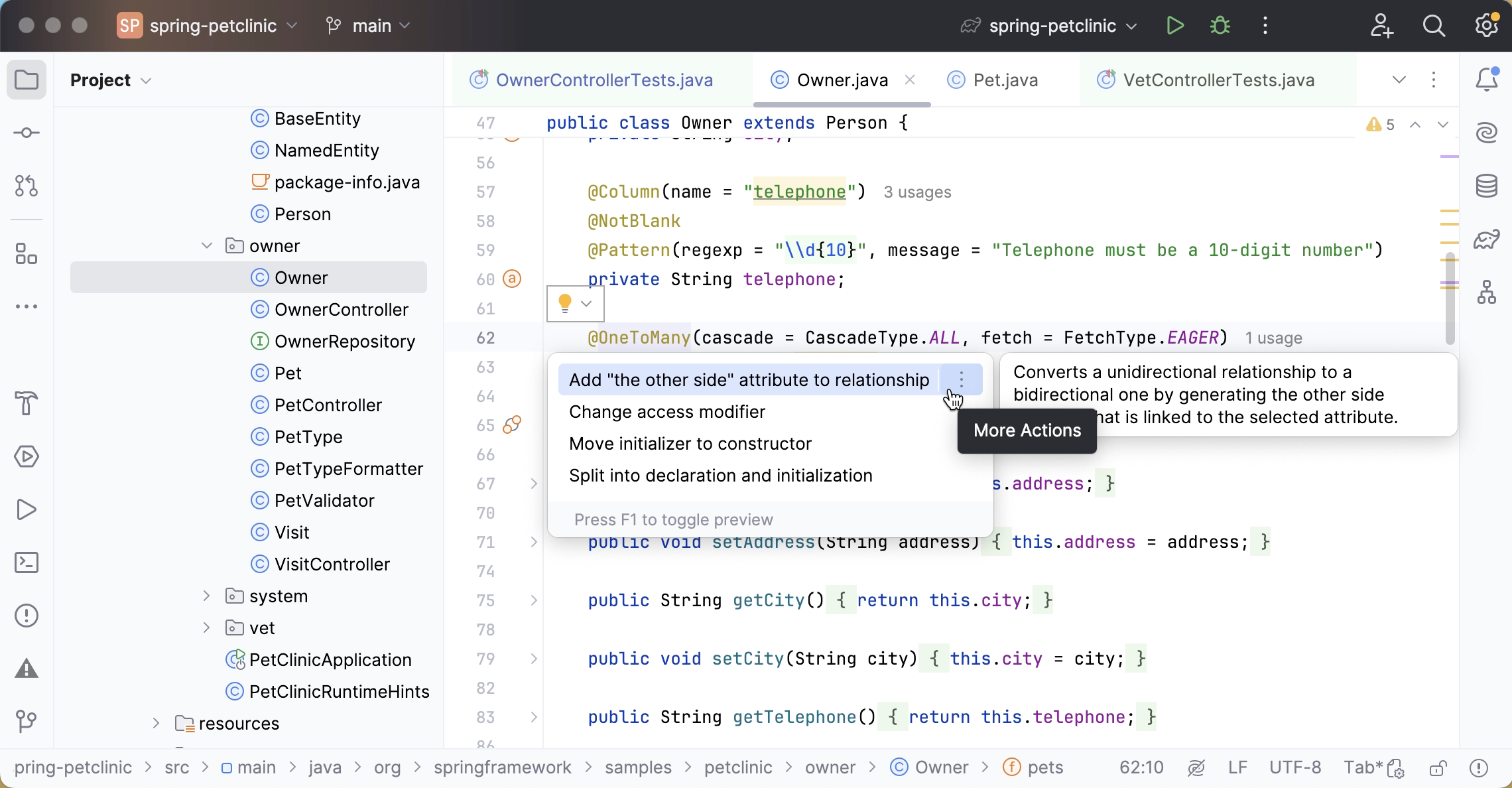

Apart from outright problems, IntelliJ IDEA also recognizes code constructs that can be improved or optimized via the so-called intentions (also available with Alt+Enter):

migration guide intention

Eclipse

IntelliJ IDEA

ActionShortcutActionShortcut

Quick fix

Ctrl+1

Show intention action

Alt+Enter

Generating code

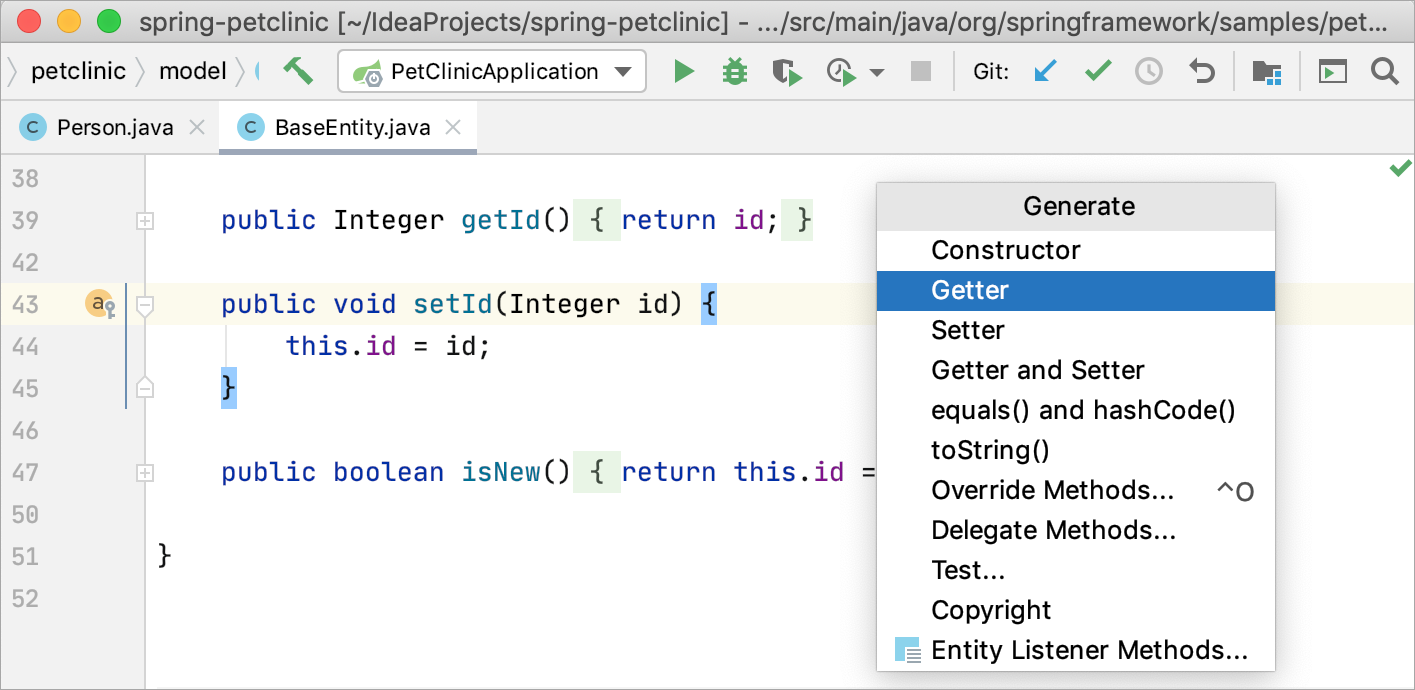

The key action for generating code is Code | Generate, available via Alt+Insert:

migration guide generate code

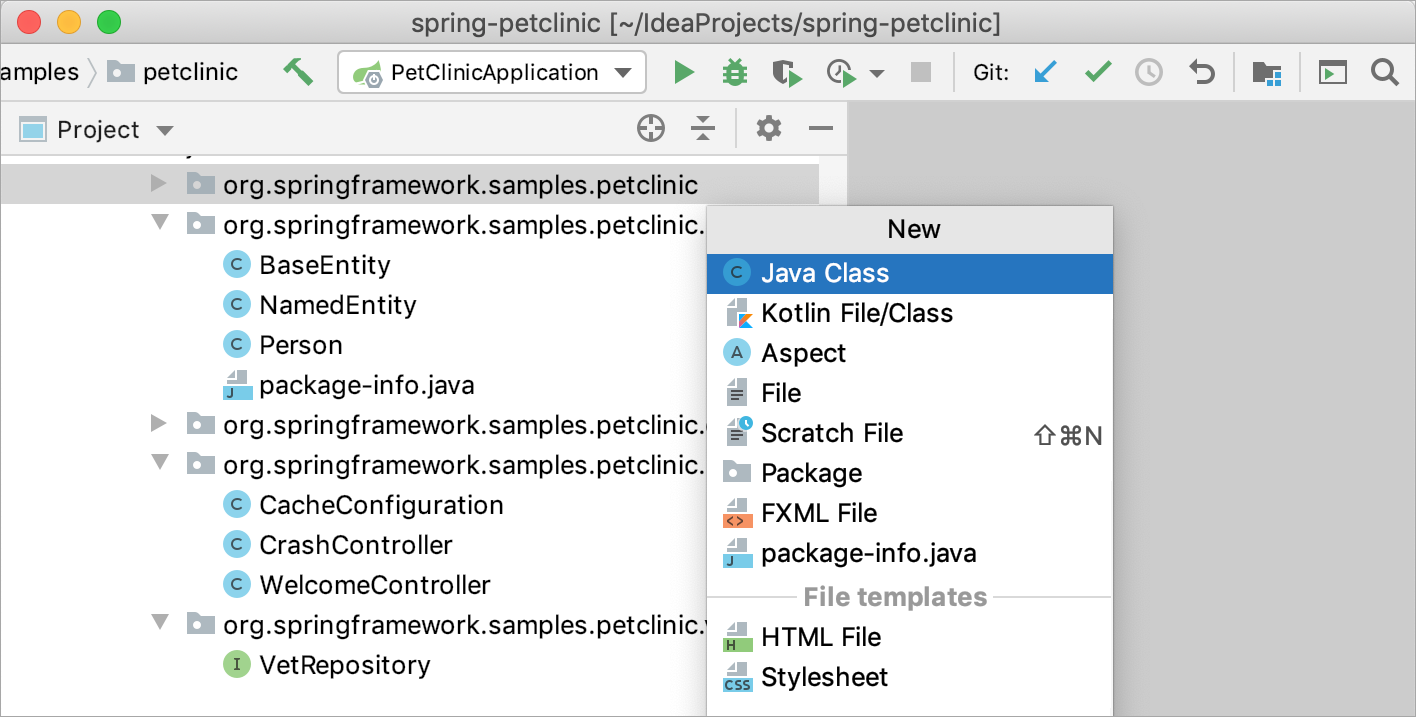

This action is context-sensitive and is available not only within the editor, but also in the Project Tool Window and the Navigation bar:

migration guide cgenerate code project tree

Code completion

IntelliJ IDEA provides several different types of code completion, which include:

  • Basic completion

  • Second basic completion

  • Smart completion

  • Second smart completion

  • Statement completion

To learn more about the differences between these completion types, refer to Top 20 Features of Code Completion in IntelliJ IDEA.

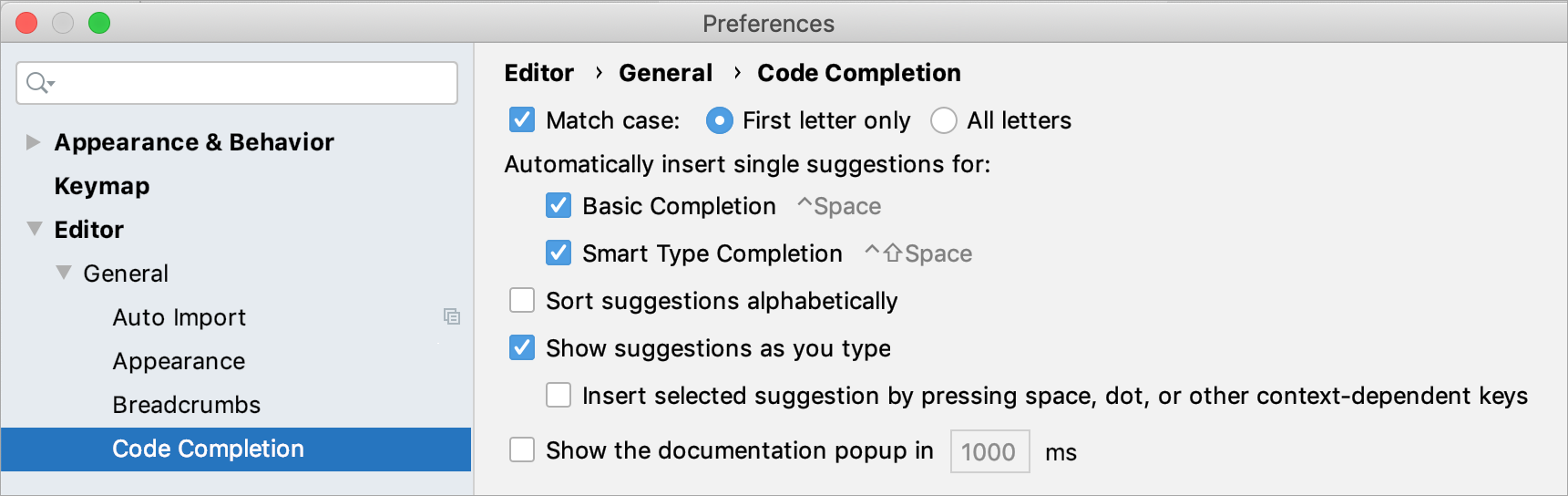

By default, IntelliJ IDEA doesn't show the Documentation popup for the selected item, but you can enable it in Settings/Preferences | Editor | Code Completion | Autopopup documentation in (ms):

migration guide code completion settings

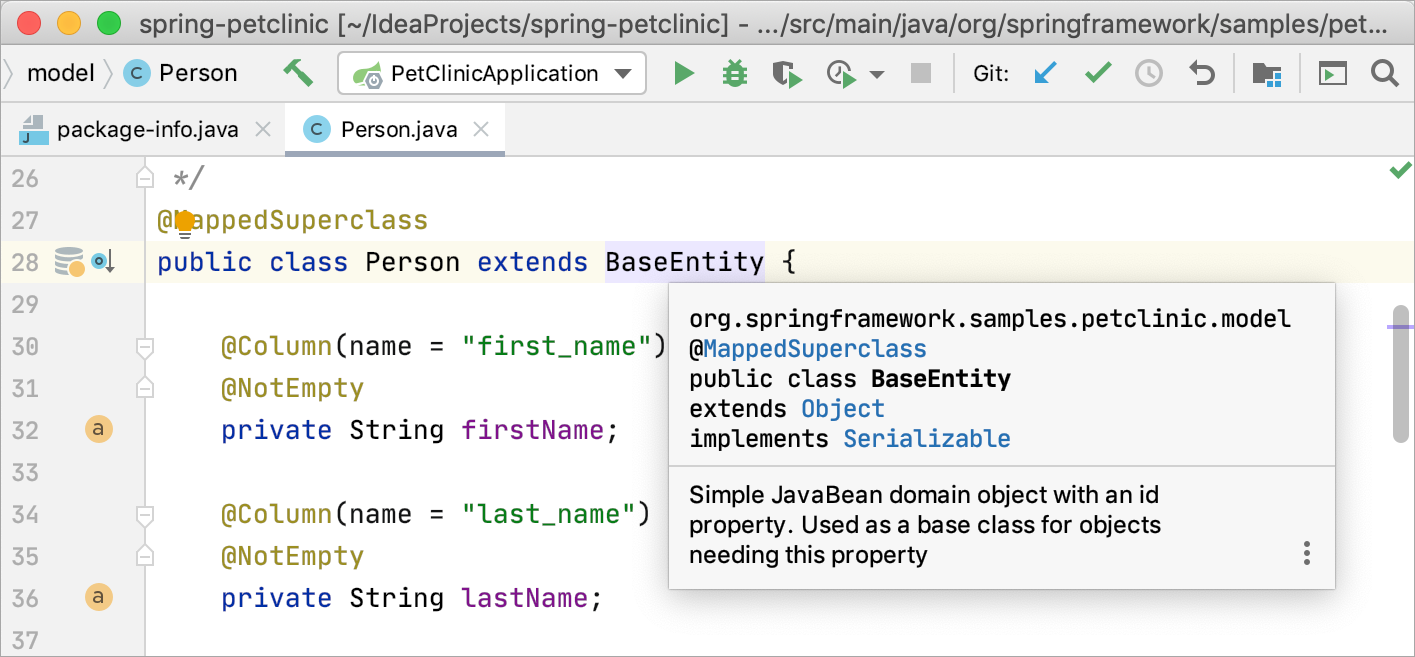

If you don't want to enable this option, you can manually invoke this popup by pressing Ctrl+Q when you need it:

migration guide code completion quick doc

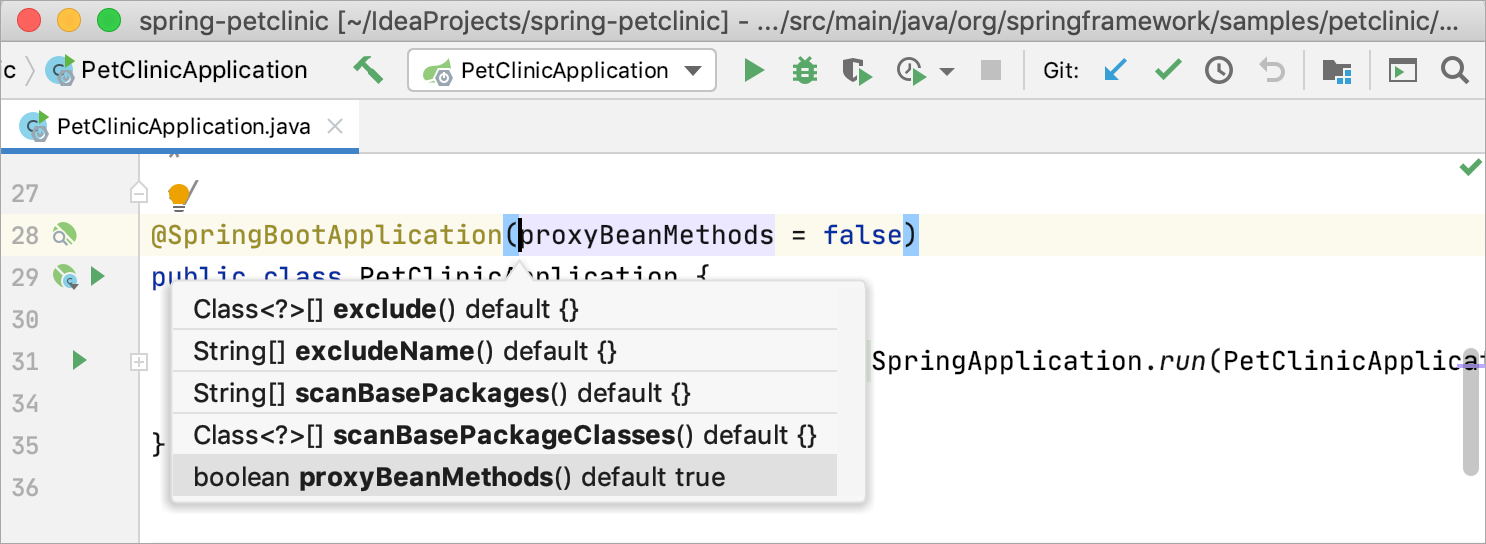

When the caret is within the brackets of a method or a constructor, you can get the info about the parameters by calling Parameter Info with Ctrl+P:

migration guide parameter info

Eclipse

IntelliJ IDEA

ActionShortcutActionShortcut

Code completion

Ctrl+Space

Basic completion

Ctrl+Space

-

-

Smart completion

Ctrl+Shift+Space

-

-

Statement completion

Ctrl+Shift+Enter

Templates

You may be used to typing main in the editor and then calling code completion to have it transformed into a main method definition. However, IntelliJ IDEA templates are a little different:

Template

Eclipse

IntelliJ IDEA

Define a main method

mainpsvm

Iterate over an array

foritar

Iterate over a collection

foritco

Iterate over a list

foritli

Iterate over an iterable using foreach syntax

foreachiter

Print to System.out

sysoutsout

Print to System.err

syserrserr

Define a static field

static_finalpsf

The list of available templates can be found in Settings/Preferences | Editor | Live Templates. There you can also add your own templates or modify any existing ones.

While IntelliJ IDEA suggests templates in code completion results, you can quickly expand any template without using code completion simply by pressing Tab.

Postfix templates

In addition to 'regular' templates, IntelliJ IDEA offers the so-called postfix templates. They are useful when you want to apply a template to an expression you've already typed. For instance, type a variable name, add .ifn and press Tab. IntelliJ IDEA will turn your expression into a if (...==null){...} statement.

To see a complete list of available postfix templates, go to Settings/Preferences | Editor | General | Postfix Completion.

Surround with live template

The surround with templates is another addition that works similarly to live templates but can be applied to the selected code with Ctrl+Alt+J.

To define your own surround with template, go to Settings/Preferences | Editor | Live Templates and use $SELECTION$ within the template text:

$LOCK$.readLock().lock(); try { $SELECTION$ } finally { $LOCK$.readLock().unlock(); }

Navigation

The table below roughly maps the navigation actions available in Eclipse with those in IntelliJ IDEA:

Eclipse

IntelliJ IDEA

ActionShortcutActionShortcut

Quick access

Ctrl+3

Search everywhere

Shift x 2

Open type

Ctrl+Shift+T

Navigate to class

Ctrl+N

Open resource

Ctrl+Shift+R

Navigate to file

Ctrl+Shift+N

-

-

Navigate to symbol

Ctrl+Shift+Alt+N

Quick switch editor

Ctrl+E

Switcher

Ctrl+Tab

-

-

Recent files

Ctrl+E

Open declaration

F3

Navigate to declaration

Ctrl+B

Open type hierarchy

F4

Navigate to type hierarchy

Ctrl+H

-

-

Show UML popup

Ctrl+Alt+U

Quick outline

Ctrl+O

File structure

Ctrl+F12

Back

Ctrl+[

Back

Ctrl+Alt+Left

Forward

Ctrl+]

Forward

Ctrl+Alt+Right

Later, when you get used to these navigation options and need more, refer to Top 20 Navigation Features in IntelliJ IDEA.

Refactorings

The following table maps the shortcuts for the most common refactorings in Eclipse with those in IntelliJ IDEA:

Eclipse

IntelliJ IDEA

ActionShortcutActionShortcut

Extract local variable

Ctrl+Alt+L

Extract variable

Ctrl+Alt+V

Assign to field

Ctrl+2

Extract field

Ctrl+Alt+F

Show refactor quick menu

Ctrl+Alt+T

Rafactor this

Ctrl+Shift+Alt+T

Rename

Ctrl+Alt+R

Rename

Shift+F6

To learn more about many additional refactorings that IntelliJ IDEA offers, refer to Top 20 Refactoring Features in IntelliJ IDEA

Undo

Sometimes, refactorings may affect a lot of files in a project. IntelliJ IDEA not only takes care of applying changes safely, but also lets you revert them. To undo the last refactoring, switch the focus to the Project Tool Window and press Ctrl+Z.

Search

Below is a map of the most common search actions and shortcuts:

Eclipse

IntelliJ IDEA

ActionShortcutActionShortcut

Open search dialog

Ctrl+H

Find in path

Ctrl+Shift+F

References in workspace

Ctrl+Shift+G

Find usages

Alt+F7

-

-

Show usages

Ctrl+Alt+F7

-

-

Find usages settings

Ctrl+Shift+Alt+F7

Occurrences in file

Ctrl+Alt+U

Highlight usages in file

Ctrl+F7

Code formatting

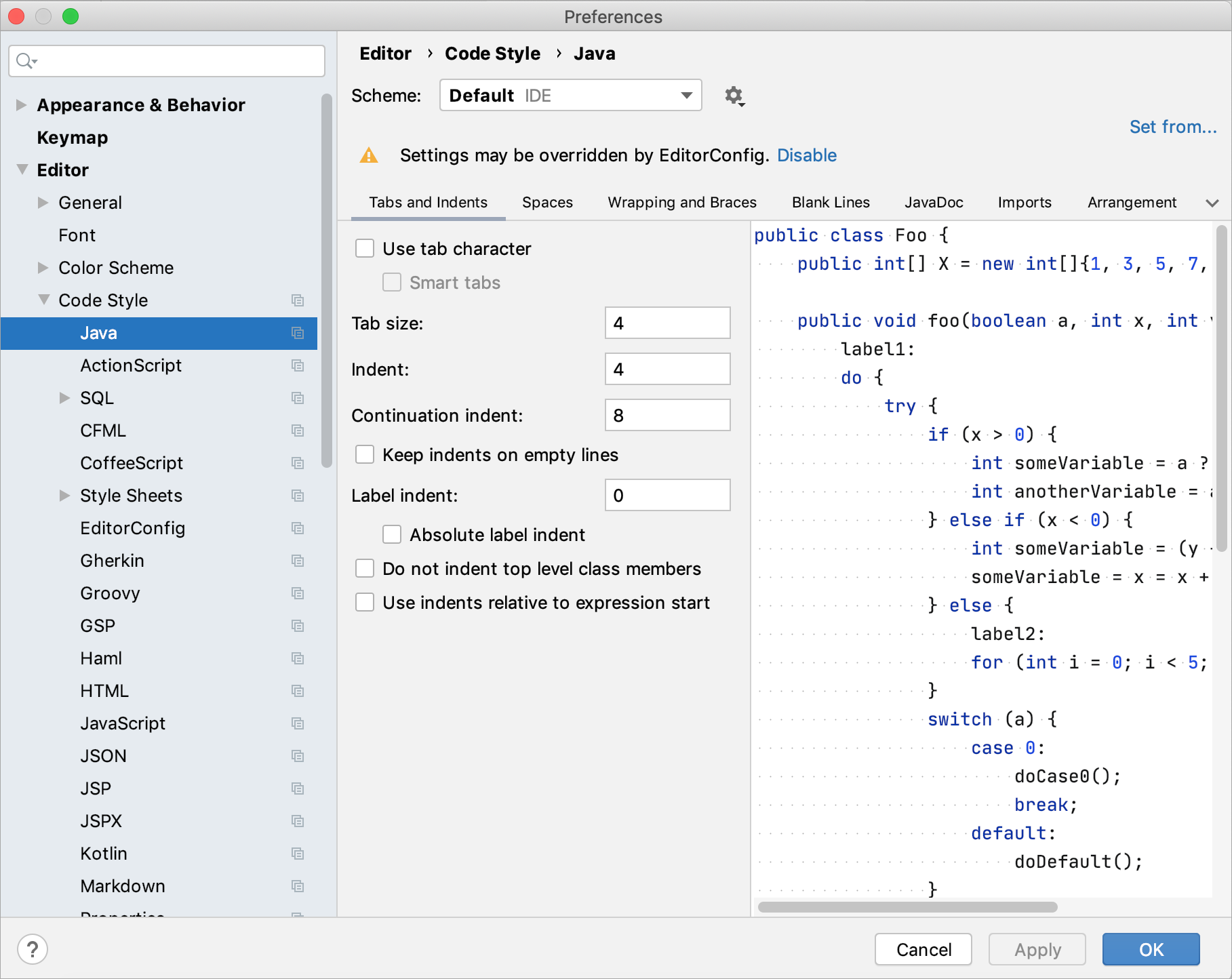

IntelliJ IDEA code formatting rules (available via Settings/Preferences | Editor | Code Style) are similar to those in Eclipse, with some minor differences. You may want to take note of the fact that the Using the Tab char option is disabled by default, the Indent size may be different, etc.

migration guide code style java

If you would like to import your Eclipse formatter settings, go to Settings/Preferences | Editor | Code Style | Java, click Manage, click Import and select the exported Eclipse formatter settings (an XML file).

Note that there may be some discrepancies between the code style settings in IntelliJ IDEA and Eclipse. For example, you cannot tell IntelliJ IDEA to put space after (but not before). If you want IntelliJ IDEA to use the Eclipse formatter, consider installing the Eclipse code formatter plugin.

Eclipse

IntelliJ IDEA

ActionShortcutActionShortcut

Format

Ctrl+Shift+F

Reformat code

Ctrl+Alt+L

Running and reloading changes

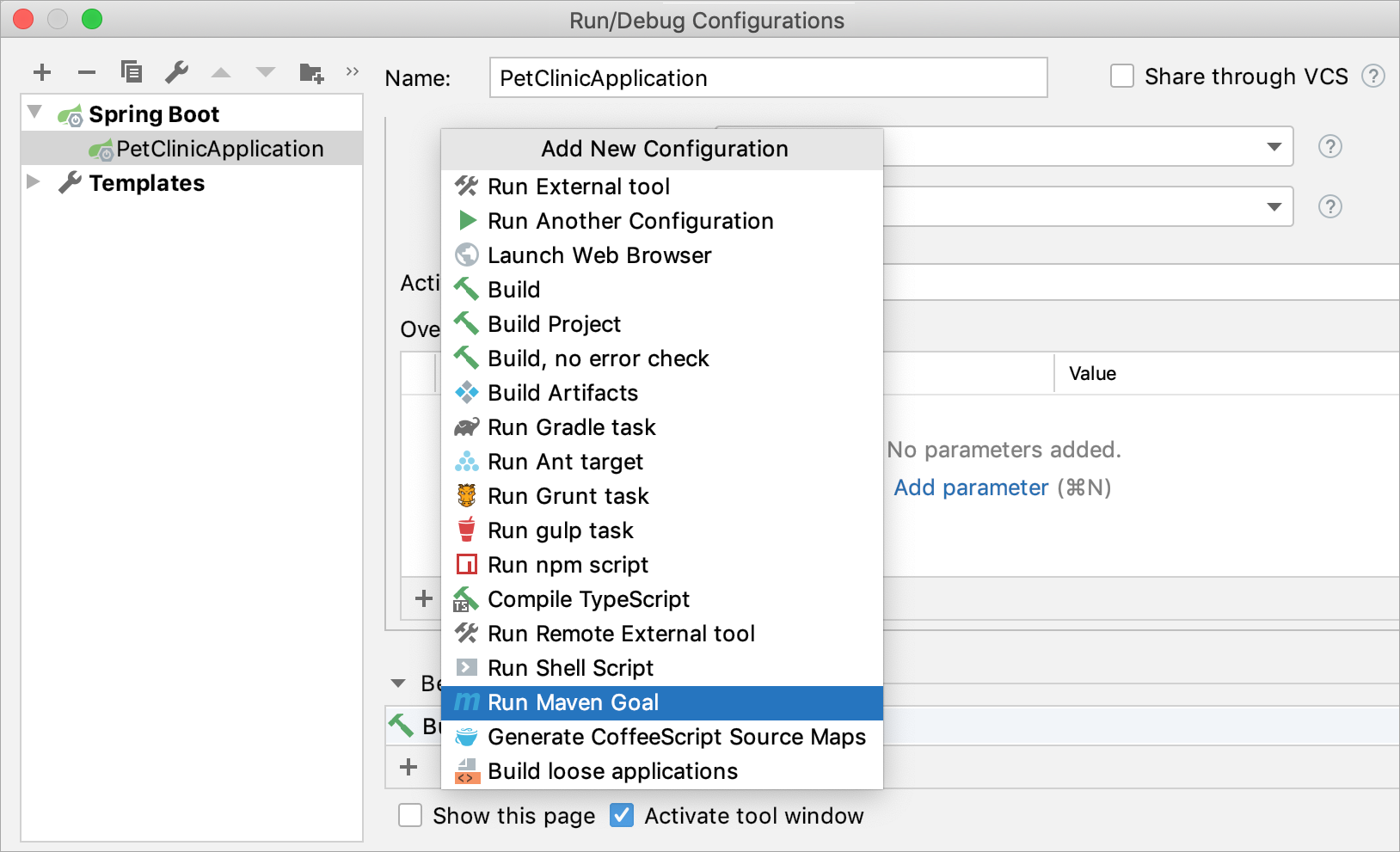

Similarly to Eclipse, IntelliJ IDEA also has Run/Debug Configurations Dialog that you can access either from the main toolbar, or the main menu. Compare the related shortcuts:

Eclipse

IntelliJ IDEA

ActionShortcutActionShortcut

Run

Ctrl+Shift+F11

Run

Shift+F10

Debug

Ctrl+F11

Debug

Shift+F9

-

-

Make

Ctrl+F9

-

-

Update application

N/A

As mentioned before, by default IntelliJ IDEA doesn't compile changed files automatically (unless you configure it to do so). That means the IDE doesn't reload changes automatically. To reload changed classes, call the Make action explicitly via Ctrl+F9. If your application is running on a server, in addition to reloading you can use the Update application action via N/A:

migration guide update application

Debugging

The debuggers in Eclipse and IntelliJ IDEA are similar but use different shortcuts:

Eclipse

IntelliJ IDEA

ActionShortcutActionShortcut

Step into

F5

Step into

F7

-

-

Smart step into

Shift+F7

Step over

F6

Step over

F8

Step out

F7

Step out

Shift+F8

Resume

F8

Resume

F9

Toggle breakpoint

Ctrl+Shift+B

Toggle breakpoint

Ctrl+F8

-

-

Evaluate expression

Alt+F8

Working with Application Servers (Tomcat/TomEE, JBoss EAP, Glassfish, WebLogic, WebSphere)

Deploying to application servers in IntelliJ IDEA is more or less similar to what you are probably used to in Eclipse. To deploy your application to a server:

  1. Configure your artifacts via Project Structure | Artifacts (done automatically for Maven and Gradle projects).

  2. Configure an application server via Settings | Application Servers.

  3. Create a run configuration, and then specify the artifacts to deploy and the server to deploy to.

You can always tell the IDE to build/rebuild your artifacts once the have been configured via Build | Build Artifacts.

Working with Build Tools (Maven/Gradle)

IntelliJ IDEA doesn't provide visual forms for editing Maven/Gradle configuration files. Once you've imported/created your Maven/Gradle project, you are free to edit its pom.xml/build.gradle files directly in the editor. Later, you can tell IntelliJ IDEA to synchronize the project model with the changed files on demand, or automatically import changes to the new build files. Any changes to the underlying build configuration will eventually need to be synced with the project model in IntelliJ IDEA.

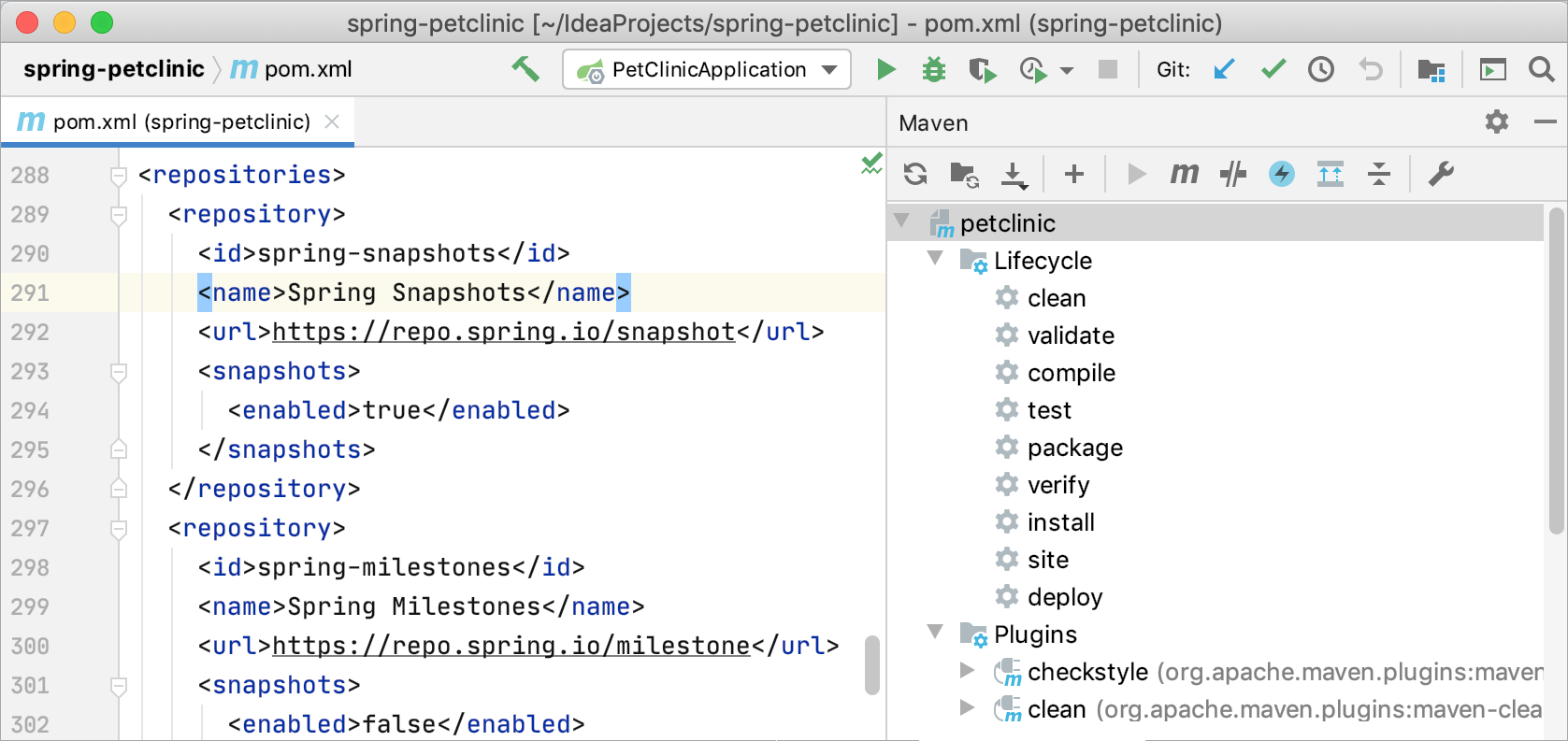

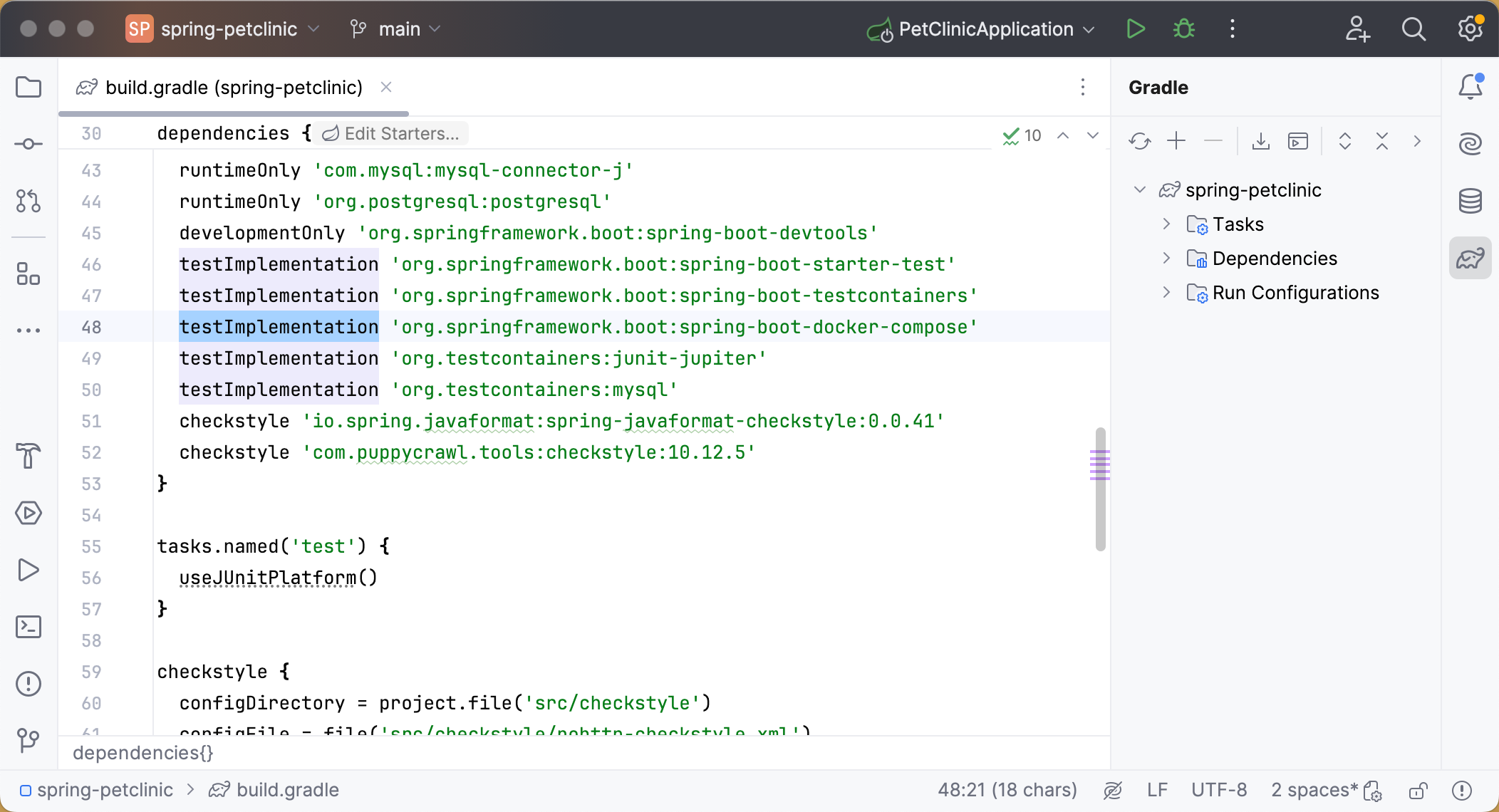

For operations specific to Maven/Gradle, IntelliJ IDEA provides the Maven Project tool window and the Gradle tool window. Apart from your project structure, these tool windows provide a list of goals/tasks plus a toolbar with the relevant actions.

migration guide maven

If you want the IDE to synchronize your changes immediately:

  • For pom.xml, enable the corresponding options in Settings | Build, Execution, Deployment | Build Tools | Maven | Importing | Import Maven projects automatically

  • For build.gradle, enable the corresponding option in Settings | Build, Execution, Deployment | Build Tools | Gradle | Use auto-import.

For manual synchronization, use the corresponding action on the Maven/Gradle tool window toolbar: icons actions refresh svg.

Running goals/tasks

Use the Maven/Gradle tool window to run any project goal/task. When you do, IntelliJ IDEA creates the corresponding run configuration which you can reuse later to run the goal/task quickly.

It's worth mentioning that any goal/task can be attached to be run before a Run Configuration. This may be useful when your goal/task generates specific files needed by the application.

migration guide run before

Both the Maven and Gradle tool windows provide the Run Task action. It runs a Maven/Gradle command similarly to how you'd run it using the console.

Configuring artifacts

If you have WAR artifacts configured in your pom.xml/build.gradle file, IntelliJ IDEA automatically configures the corresponding artifacts in Project Structure | Artifacts.

Note that when you compile your project or build an artifact, IntelliJ IDEA uses its own build process which may be faster, but is not guaranteed to be 100% accurate. If you notice inconsistent results when compiling your project with Make in IntelliJ IDEA, try using a Maven goal or a Gradle task instead.

Working with VCS (Git, Mercurial, Subversion, Perforce)

Configuring VCS roots

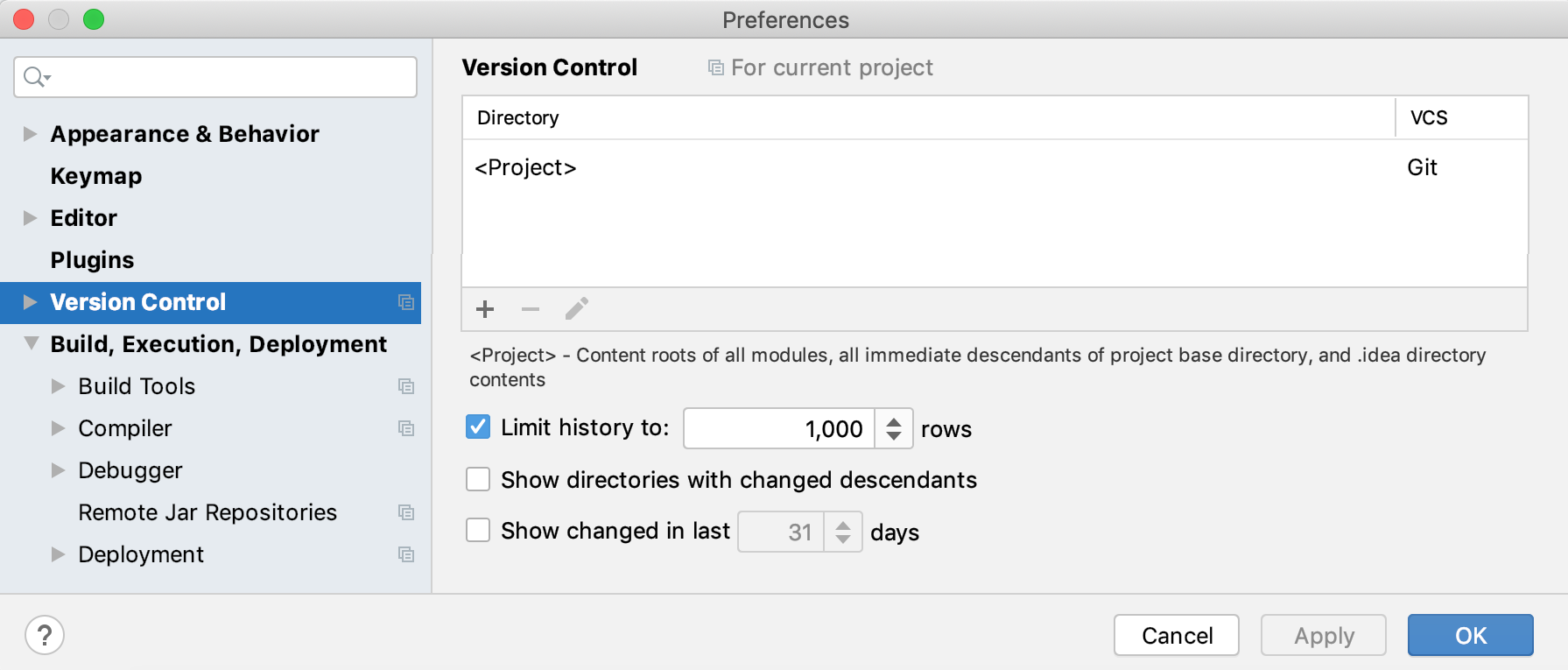

When you open a project located under a VCS root, IntelliJ IDEA automatically detects it and suggests adding this root to the project settings. To change version control-related project settings (or manually add a VCS root), go to Settings | Version Control:

migration guide vcs settings

IntelliJ IDEA works perfectly with multi-repository projects. Just map your project directories to VCS, and the IDE will take care of the rest. For Git and Mercurial, the IDE will even offer you synchronized branch control, so that you can perform branch operations on multiple repositories simultaneously (for more details, see Manage branches).

Editing VCS settings

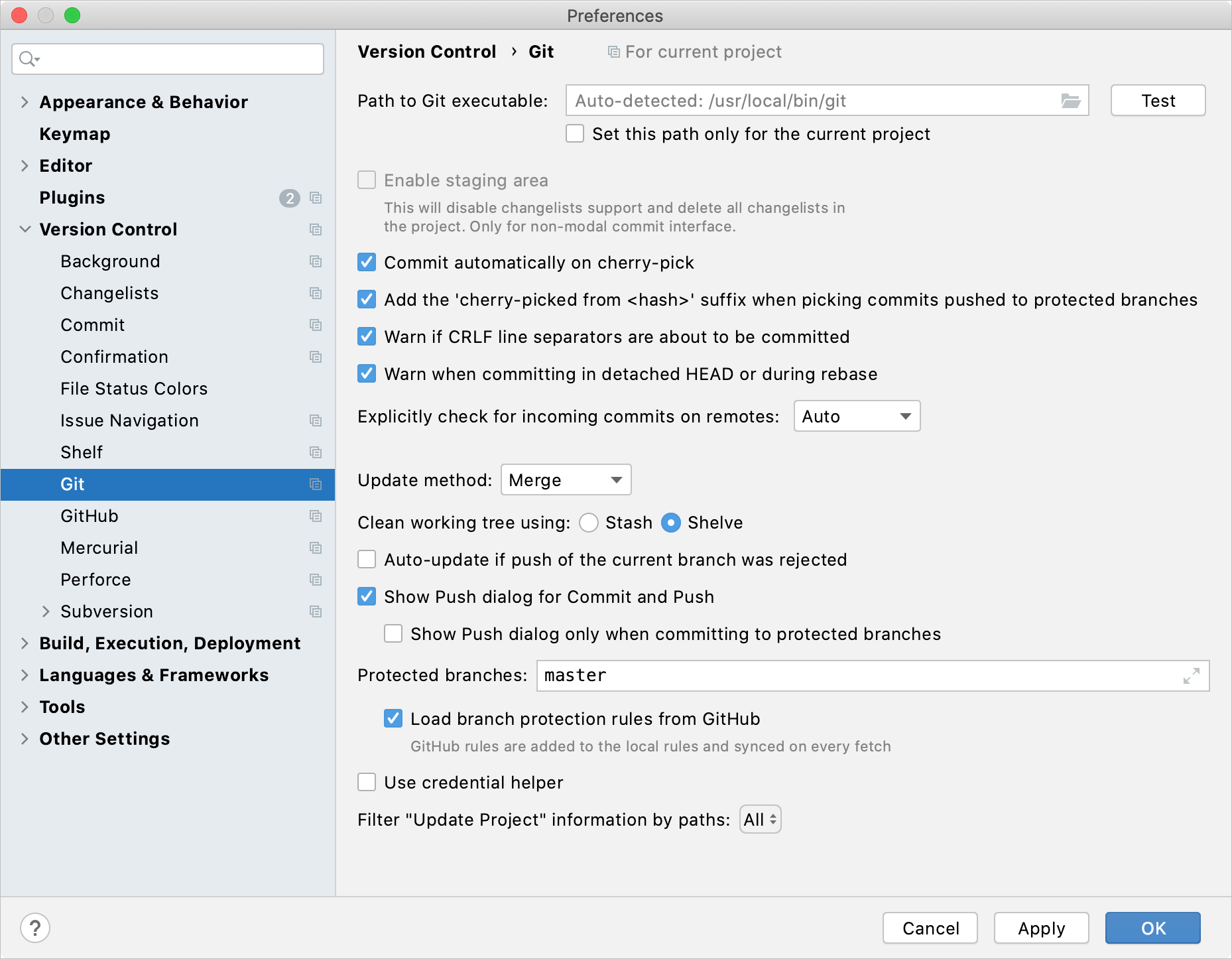

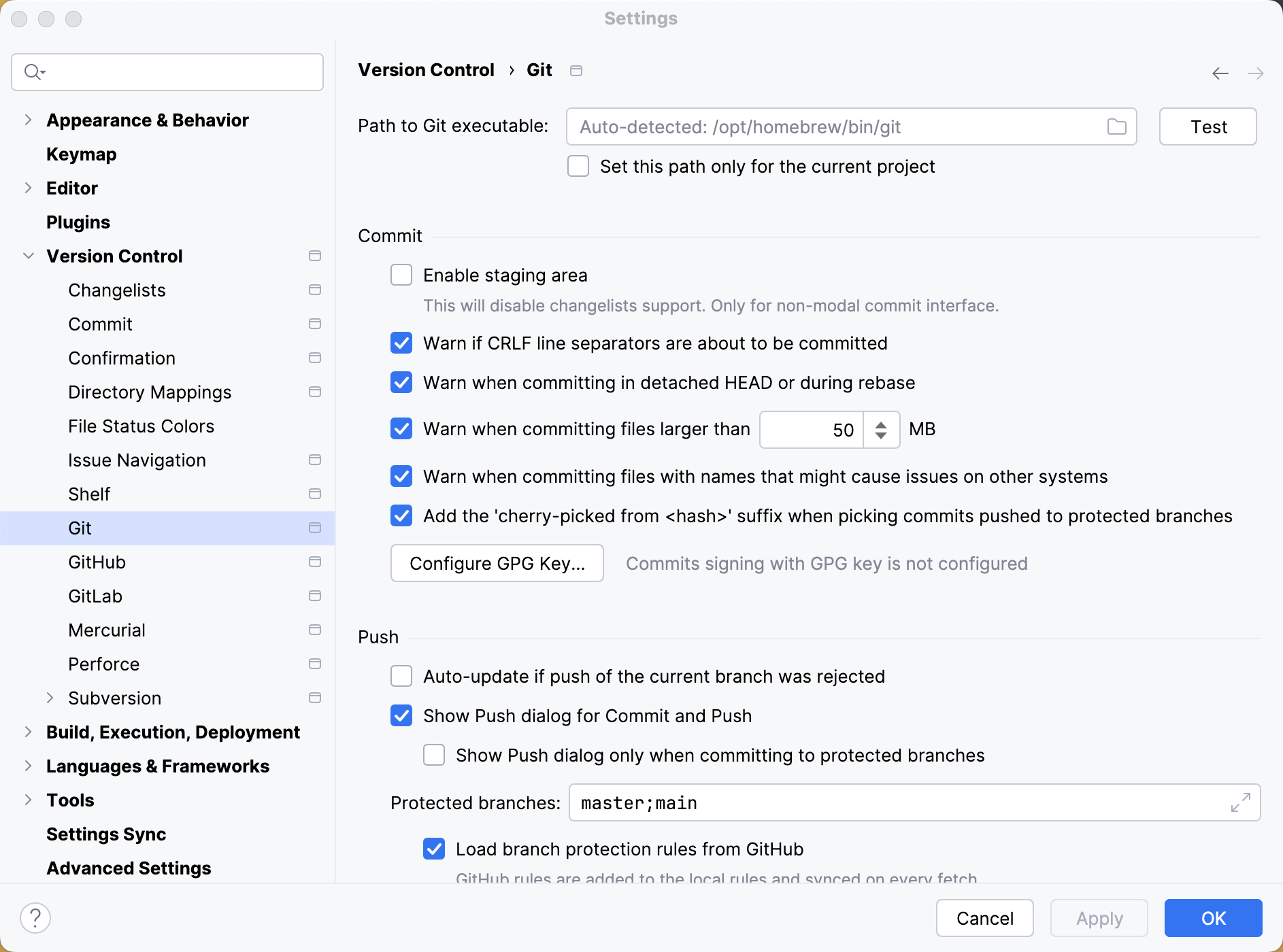

Every VCS may require specific settings, for example, Path to Git executable, GitHub/Perforce credentials, etc.:

migration guide git settings

Once you've configured the VCS settings, you'll see the Version Control tool window. You can invoke it any time by pressing Alt+9.

Checking projects out

To check out a project from a VCS, click Checkout from Version Control on the Welcome Screen, or in the main VCS menu.

Working with local changes

The Local Changes tab of the Version Control tool window shows your local changes: both staged and unstaged. To simplify managing changes, all changes are organized into changelists. Any changes made to source files are automatically included into the active changelist. You can create new changelists, delete the existing ones (except for the Default changelist), and move files between changelists.

migration guide changes

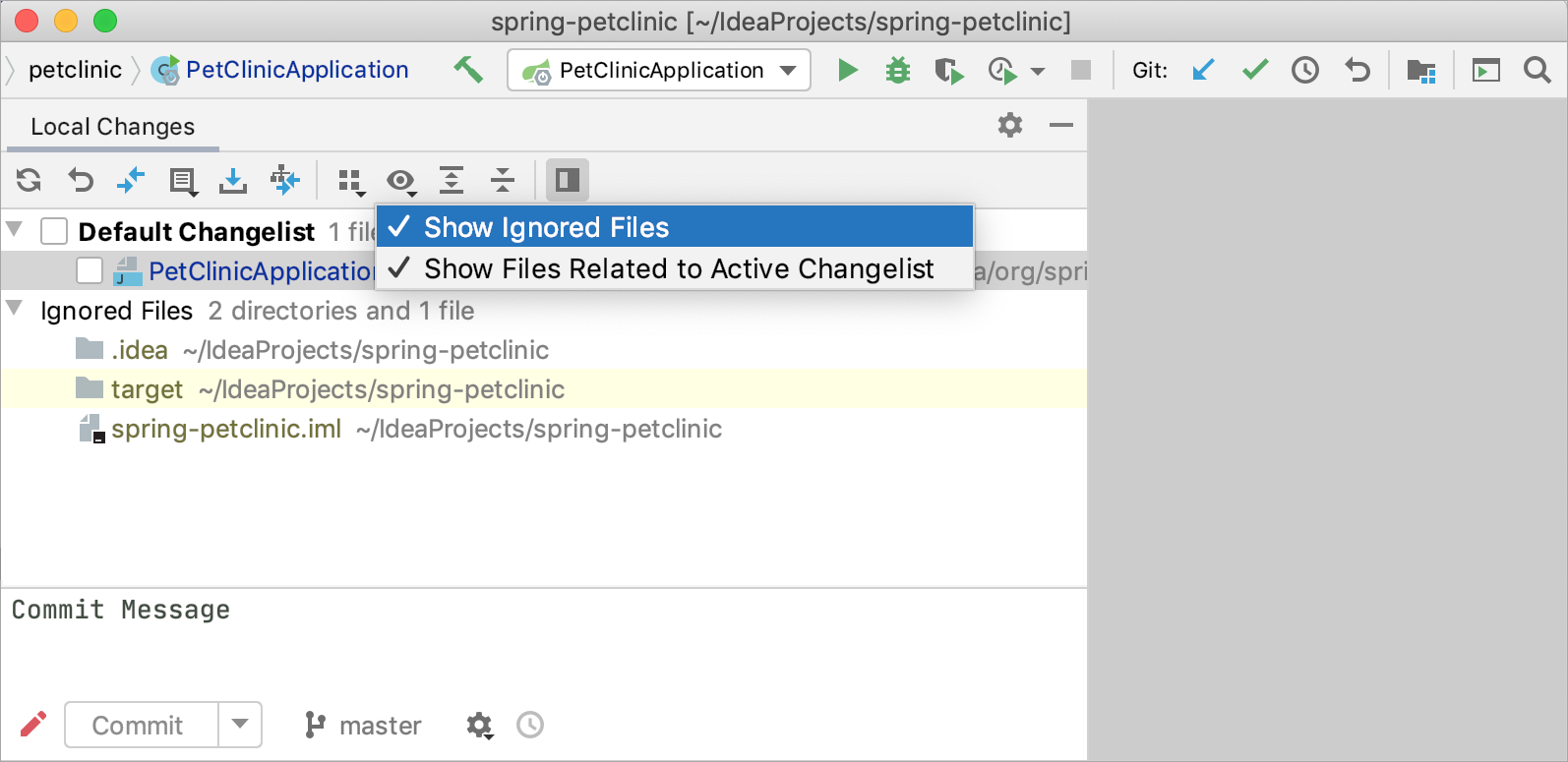

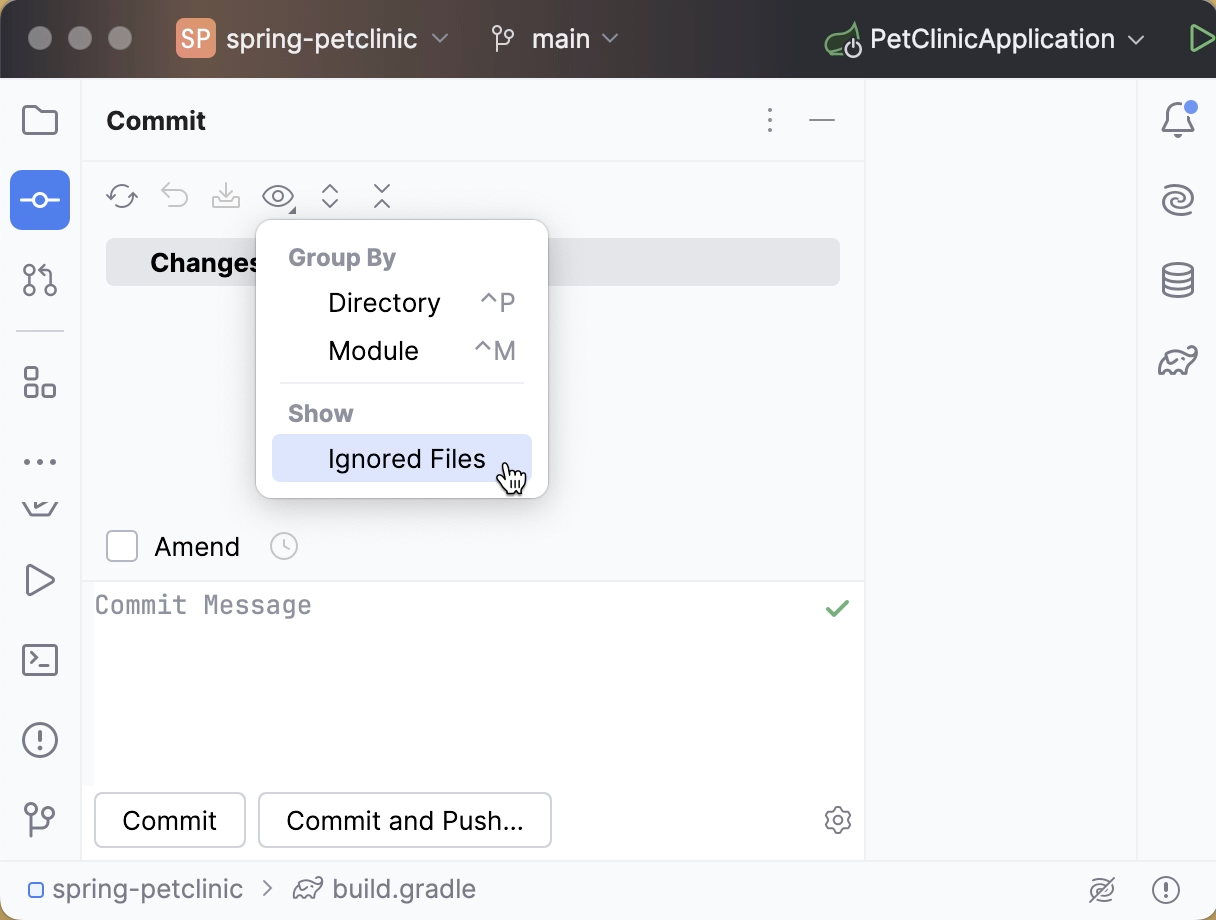

To configure ignored files, go to Settings | Version Control, or use the corresponding button in the Version Control tool window.

migration guide ignored files

Working with history

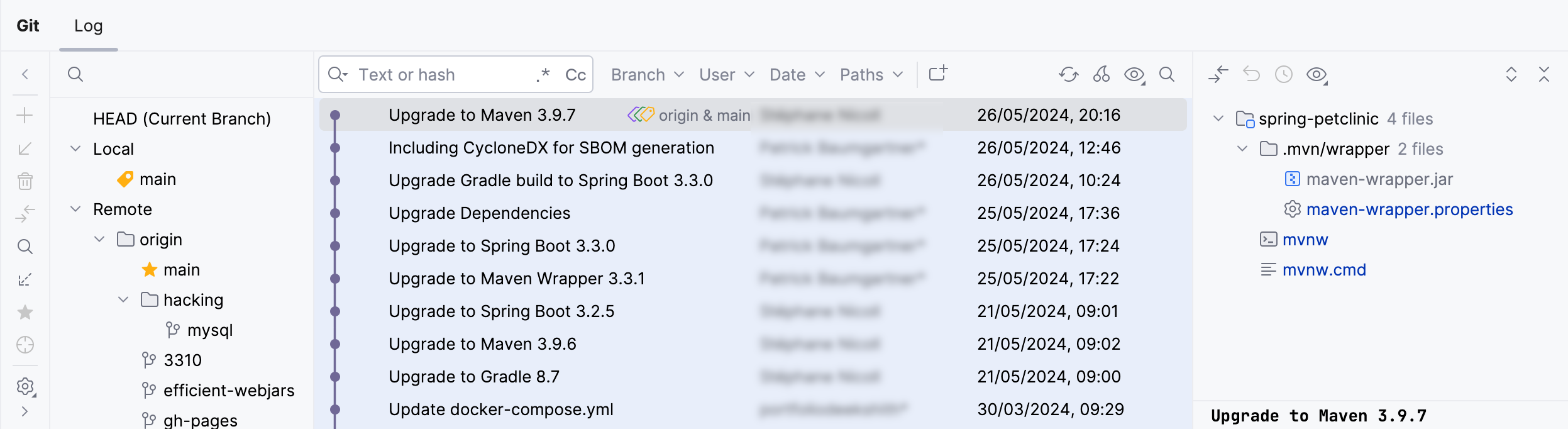

The Log tab of the Version Control tool window lets you see and search through the history of commits. You can sort and filter commits by the repository, branch, user, date, folder, or even a phrase in the description. You can find a particular commit, or just browse through the history and the branch tree:

migration guide log

Working with branches

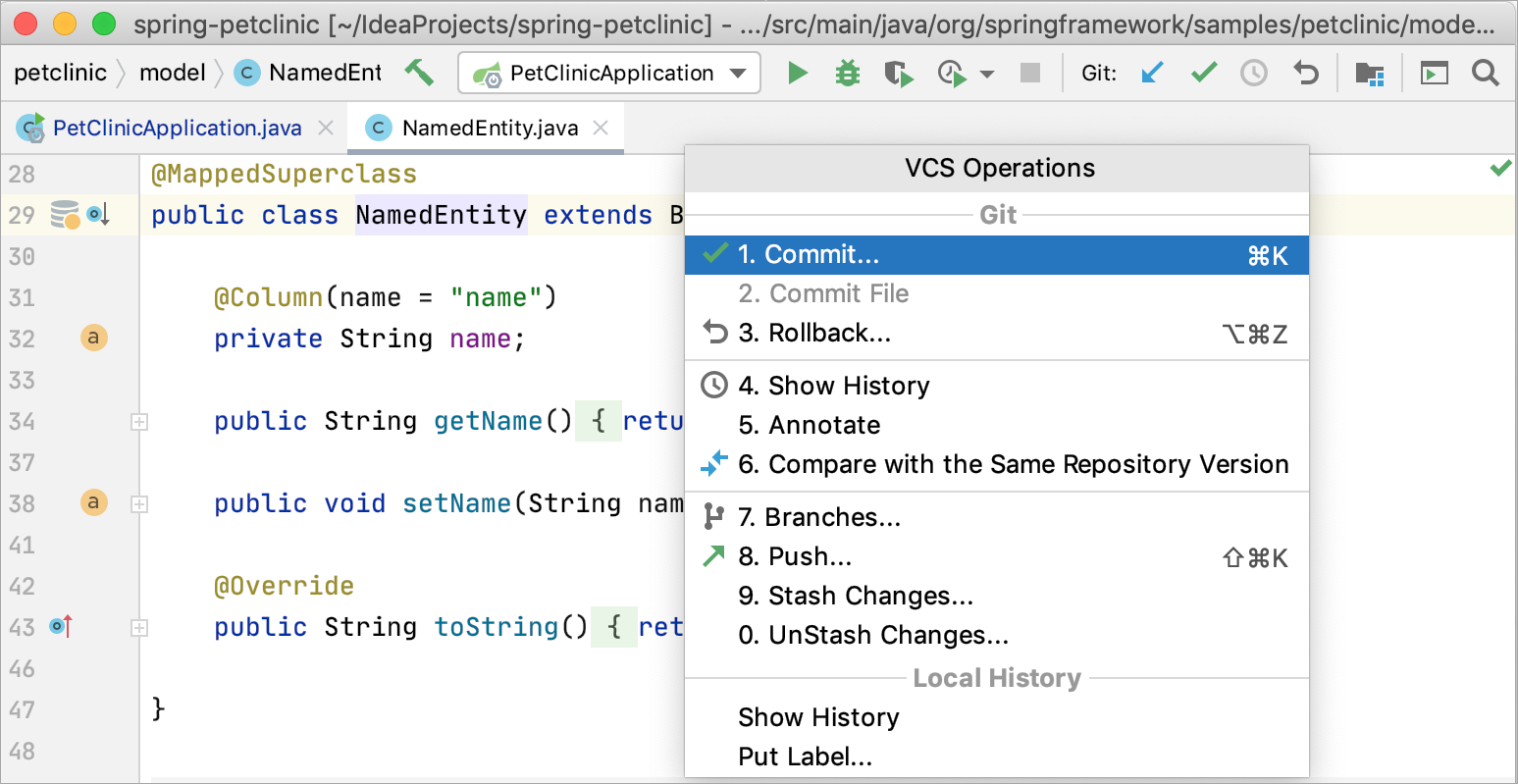

IntelliJ IDEA lets you create, switch, merge, compare and delete branches. For these operations, either use Branches from the main or context VCS menu, or the VCS operations popup (you can invoke it by pressing Alt+`, or the widget on the right of the status bar:

migration guide vcs popup

All VCS operations are available from the VCS main menu:

Action

Shortcut

Version Control tool window

Alt+9

VCS operations popup

Alt+`

Commit changes

Ctrl+K

Update project

Ctrl+T

Push commits

Ctrl+Shift+K

Importing an Eclipse project to IntelliJ IDEA

Despite these differences in terms and the UI, you can import either an Eclipse workspace or a single Eclipse project. To do this, click Import Project on the Welcome Screen, or select File | New | Project from Existing Sources in the main menu.

If your project uses a build tool such as Maven or Gradle, we recommend choosing the corresponding option when prompted in the Import Project wizard, and selecting the associated build file pom.xml or build.gradle:

migration guide import project

If you'd like to import your existing run configurations from Eclipse, consider using this third-party plugin.

Configuring PHP development environment

What configuration is needed before start?

A lot of IntelliJ IDEA features are available without any configuration right after you launch it. Still, to take full advantage of running your PHP application, you need to configure a PHP interpreter and a server.

If you plan to launch the application locally, you need a PHP engine installed and registered in IntelliJ IDEA, as well as a Web server installed, configured, and integrated with IntelliJ IDEA. You can install these components separately or use an AMP package. For more details about initial environment configuration, refer to Configuring PHP Development Environment.

If you are going to run and debug an application directly on a remote host, the only thing you need is register access to this host in IntelliJ IDEA to enable synchronization.

How do I start with deployment to a remote host?

If you've checked out your project from the remote host, the deployment server is already configured. Otherwise, you will need to get it configured (it can be FTP/SFTP/FTPS server or mounted/local folder) on the Deployment page of the Settings/Preferences dialog. The Remote Host Tool Window is available on the right-hand side of the IntelliJ IDEA window, which can be handy for browsing through your remote server and performing various actions.

See Deploying your application for details.

How do I start debugging?

IntelliJ IDEA comes with support for both Xdebug and Zend Debugger for debugging and profiling. There is a zero-configuration debugging workflow available, which means that to start debugging you only need to:

  • Click Start Listening for PHP Debugging Connections the Start Listening for PHP Debug Connections button on the toolbar of the IDE.

  • Place a breakpoint in code by clicking in the editor gutter next to the line.

  • Start debugging in the browser using a plugin or browser bookmarklets.

Last modified: 28 August 2019

See Also
