Resolve Merge Conflicts in VCS

Use VCS options in IntelliJ IDEA to resolve merge conflicts visually in the editor

Use ⇧⇧ (macOS) / Shift+Shift (Windows/Linux), to bring up the Search Everywhere dialog. You can now search for Resolve Conflicts to open the Conflicts dialog which helps you to visually resolve merge conflicts between two different versions of the code.

  • You can use the option available in the Merge Revisions dialog and you should carefully review before you accept or ignore code changes as well as resolving conflicts. This dialog visually helps you to review and resolve merge conflicts.

  • Note: The Resolve Conflicts option from the Search Everywhere dialog will only display the Conflicts dialog when there are merge conflicts in your code, otherwise you will get an error.

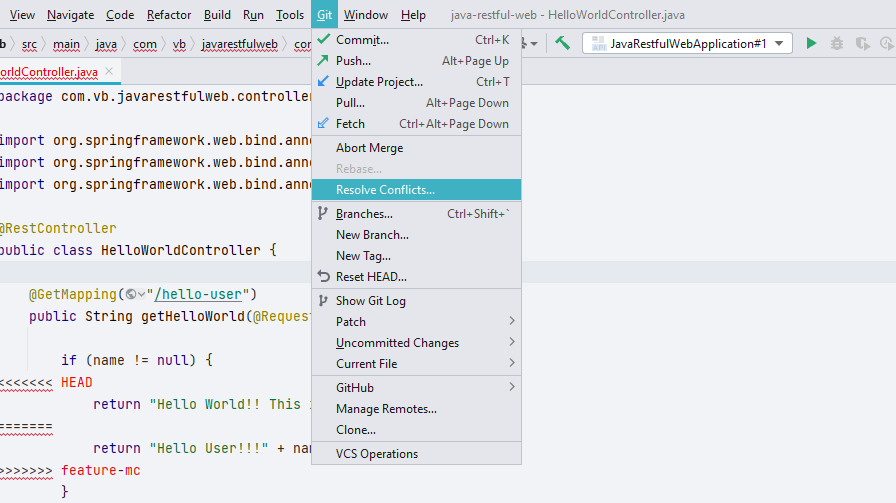

Resolving Conflicts Using Git Toolbar Options

Alternately, you can open the Conflicts dialog by using Git -> Resolve Conflicts option available from the menu.

Resolve Conflicts Using Git Toolbar

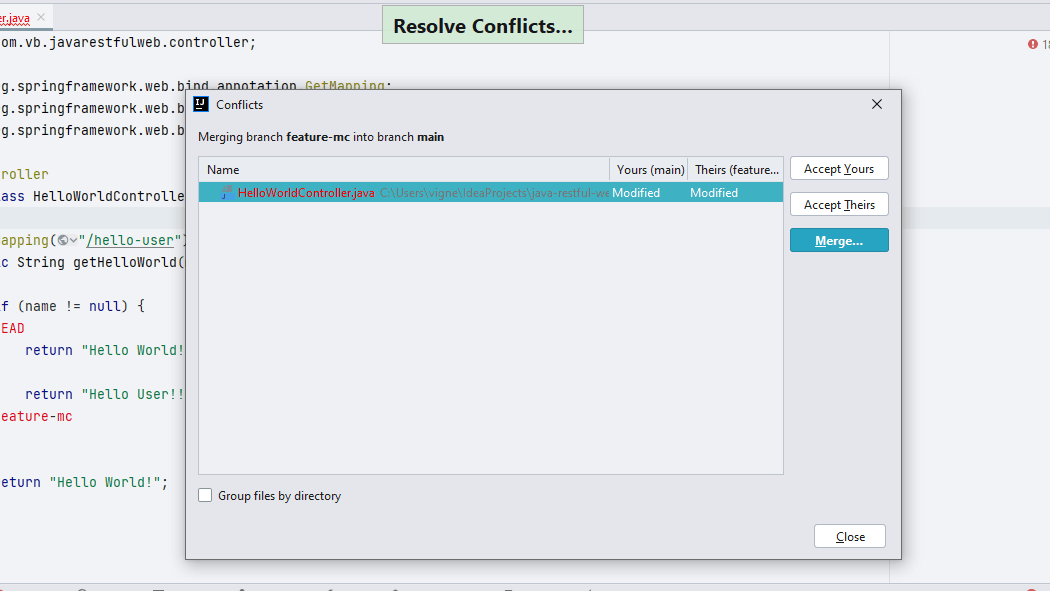

Conflicts Dialog

The Conflicts dialog shows a list of files that have merge conflicts. You can select files and merge manually, or you can accept either your changes or their (incoming) changes.

Conflicts Dialog Showing List of Conflicted Files

Manually Resolving Conflicts using Merge

When you manually merge changes, you use the Merge Revisions dialog which provides a visual view of changes and conflicts between two different versions of the code. It has three different views:

Merge Revisions Dialog

Left View

The Left view shows your changes of the file.

Result View

The Result view is where any changes made and conflicts resolved are shown visually. You can always refer to the Result View to keep making required changes and resolving conflicts.

Right View

The Right view shows the incoming file changes.

Resolving Merge Conflicts

You should carefully review the changes (highlighted in blue) and accept any one of the changes that are required. In case of conflicts (highlighted in red), you should accept the changes that you want, and ignore those that you don't.

Accepting Code Changes

Accept Code Change

To accept a code change, click on the >> symbol in the Left View or the << symbol in the Right View which is pointing towards the Result view. This will apply the corresponding change in the Result view.

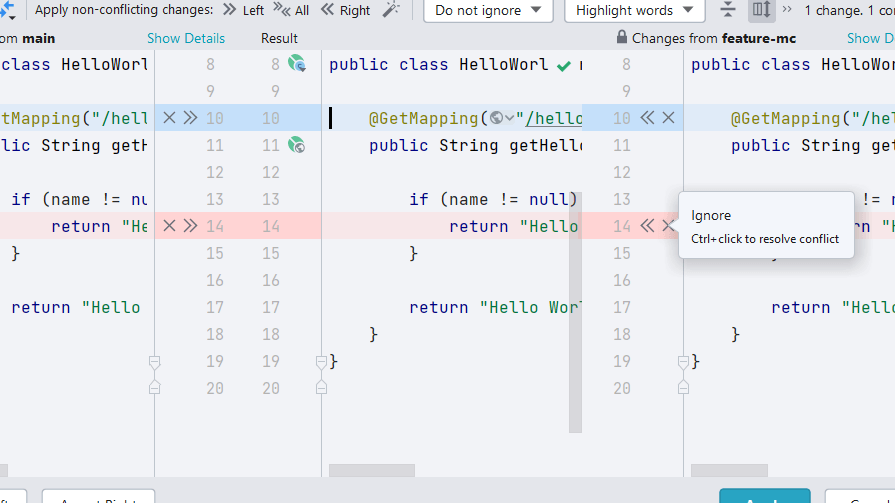

Ignoring Code Changes

Ignore Code Change

To ignore a code change, click on X. This means that the change is disregarded from the selected view (Left or Right). Ignoring code changes means that they are not applied to the Result view.

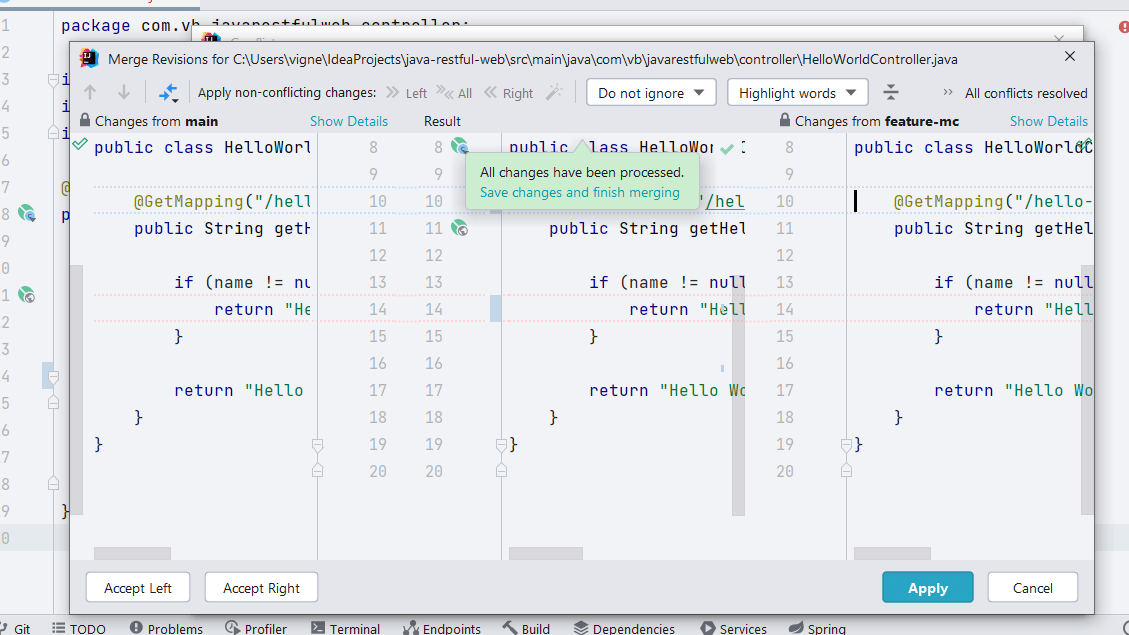

Finish Merging

Save Changes to Finish Merging

When you have successfully resolved all your merge conflicts, IntelliJ IDEA will prompt you that All Changes have been processed. When you press Apply the conflicts in the file are all resolved.
