AppCode 2019.3 Help

Quick start guide

Before you start

Before you start working with AppCode, make sure that you have the supported Xcode version installed on your macOS.

AppCode uses the same project model and synchronizes all changes with Xcode. You can work simultaneously in both IDEs and jump back and forth – AppCode will synchronize the changes and make sure everything is up to date.

Open/create a project in AppCode

Open an existing project

  1. From the Welcome screen, click Open Project.

    The Welcome screen
    Alternatively, when the IDE main window is open, select File | Open or File | Open Recent from the main menu.

  2. Select the xcodeproj or xcworkspace file or a directory containing these files.

Check out a project from Version Control

You can download sources from a VCS storage or repository.

  1. From the Welcome screen, click Check out from Version Control. Alternatively, when the IDE main window is open, select VCS | Checkout from Version Control from the main menu.

  2. Select your version control system from the list that opens.

  3. Enter a path to the sources and click Clone.

    Clone a repository

Create a new project

  1. From the Welcome screen, click New Project. Alternatively, when the IDE main window is open, select File | New Project from the main menu.

  2. In the dialog that opens, select a target and project template. AppCode supports all Xcode templates, so you can create new projects the same way you do in Xcode.

    Create New Project dialog page one

For more information on creating projects in AppCode, see Create a new project.

Look around

When a project is open, you can see the main window divided into several logical areas.

The Main window
  • The Project tool window on the left side presents your project in a familiar way, like Xcode does.

    Using the selector in the top right corner, you can switch between different views.

    Switch view
    The Project view reflects the logical structure of a project, whereas the Files view provides physical representation of a project in a file system. In the Files view, you can mark some directories of your project as excluded or as library files to exclude them from indexing.
  • The editor has tabs for easy navigation between the currently open files. You can also split the editor window to see several files at the same time. For more information on the editor, see Editor basics.

  • The navigation bar lets you navigate through the project structure and open necessary files.

  • From the toolbar, you can quickly access frequently used commands, such as Run the Run button, Debug the Debug button, Search Everywhere the Search Everywhere button, Run Anything the Run Anything button, and others.

    From the run/debug configuration selector, you can pick a configuration and choose a device or simulator to run your app on.

    If you use a version control system, the most popular VCS operations will be available from the toolbar.

    When the toolbar is disabled, all the buttons are placed next to the navigation bar.

  • The gutter shows the breakpoints and allows navigating through the code hierarchy, for example, going to definition, subclass and superclass, and so on. It also can show line numbers (right-click the gutter area and select Show Line Numbers) and per-line VCS history.

  • To the right of the editor, you can see the scrollbar that shows color stripes indicating errors and warnings in the current file.

  • Tool windows are specialized windows attached to the bottom and sides of your workspace. They provide access to typical tasks such as project management, source code search and navigation, running and debugging, integration with version control systems, and so on. For more information on tool windows, see Tool windows.

  • The status bar shows various warnings and information messages like file encoding, line separator, inspection profile, and so on. In addition, here you can find the Resolve Context selector for switching between the debug and release contexts to resolve your code in the IDE with the desired definitions.

Hide/show the interface elements

You can hide the UI elements that you don't need and show them again if necessary.

  • To hide/show tool windows, click View | Tool Windows from the main menu and select the tool window that you want to hide or show.

  • To hide/show other interface elements (status bar, navigation bar, and so on), click View | Appearance from the main menu and select or deselect the interface element from the list that opens.

  • Alternatively, press ⇧⌘A, type the UI element name, and use the switcher to show or hide the element:

    Hide or show UI elements via Find Action

Customize your environment

Feel free to tweak the IDE, so it suits your needs perfectly and is as helpful and comfortable as can be. Go to AppCode | Preferences to see the list of available customization options.

Appearance

Go to AppCode | Preferences | Appearance and Behavior | Appearance to select the UI theme: Light, Darcula, or High contrast.

Editor

Go to AppCode | Preferences | Editor to adjust the editor’s behavior. A lot of options are available here, such as drag'n'rop enabling, scrolling configuration, color configuration for each available languages, tabs and code folding settings, code completion behavior, and postfix templates. For more information on the editor settings, see Editor basics.

Code style

Code style settings can be defined for each language under AppCode | Preferences | Editor | Code Style. With settings, you can have your code automatically formatted as you type, without any additional actions. You can also create and save your own coding style schemes.

Keymap

AppCode uses the keyboard-centric approach, meaning that nearly all actions possible in the IDE are mapped to keyboard shortcuts.

AppCode supplies you with a default keymap. Select Keymap Reference from the main menu to see the whole list of predefined shortcuts.

However, you can always change it in AppCode | Preferences | Appearance and Behavior | Keymap. There are various predefined keymaps, such as Xcode, Emacs, Visual Studio, Eclipse, or NetBeans, and you can also create your own keymap based on an existing one.

Write code with smart assistance

The following features will help you save time and avoid errors when writing code.

Code completion

There are two types of code completion in AppCode: basic ⌃Space and smart ⌃⇧Space. Basic completion works as you type and completes any symbol instantly. Smart completion analyzes the context you’re currently working in and offers more accurate suggestions based on that analysis. It filters the list of functions and variables to match the expression type.

Smart type completion

Code generation

With AppCode, you can easily generate code for common constructs and frequently used elements, such us loops, conditions, enumerations, initializers, properties, methods' overrides, and more. When you create new files, AppCode also generates some initial content for them.

Use Generate popup menu

  • Press ⌘N or select Code | Generate from the main menu to generate such constructs as initializers, methods' implementations and overrides, and so on. Depending on the context and programming language, AppCode suggests different sets of available code constructs.

    Generate menu

  • To quickly add stub code for a method's implementation or override, press ⌃I or ⌃O respectively and find the method to override/implement in the list that opens.

Generate code from usage

  • You can also generate code from usage for properties that you want to use but have not yet defined. To do this, press ⌥⏎ and select Create property '<name>'.

Use live templates

Live templates are a tool to generate entire code constructs. Find the list of ready-to-use templates in Preferences | Editor | Live Templates.

  • To paste a template in your code, call Code | Insert Live Template or press ⌘J.

  • To quickly surround your code with loops and conditional statements like if, while, or for, click Code | Surround With from the main menu or press ⌥⌘T.

If there is no predefined template for code constructs which you want to add, you can create your own live template.

Refactoring

Refactorings help improve your code without adding new functionality. With refactorings, you can make your code cleaner and easier to read and maintain.

Select Refactor from the main menu or call the Refactor This popup ⌃T to get the list of refactorings available at the current location. Different sets of refactorings are available for Swift and Objective-C.

Refactor This popup

Rename ⇧F6

Renames an element and its usages.

Change signature ⌘F6

Changes the signature of a method.

Move and copy

F6/ F5

Moves/copies an element.

Safe delete ⌘⌦

Makes sure that you do not delete files referenced in your source code.

Extract method ⌥⌘M

Extracts code fragments into methods and helps you reduce code duplication.

Extract constant ⌥⌘C

Declares a new constant and initializes it with the selected expression.

Extract parameter ⌥⌘P

Adds a new parameter to a method declaration and updates the method calls accordingly.

Extract variable ⌥⌘V

Declares a new variable and initializes it with the selected expression.

Inline ⌥⌘N

Inlines an element. Acts as opposite of extracting.

Keep your code neat

Code inspections

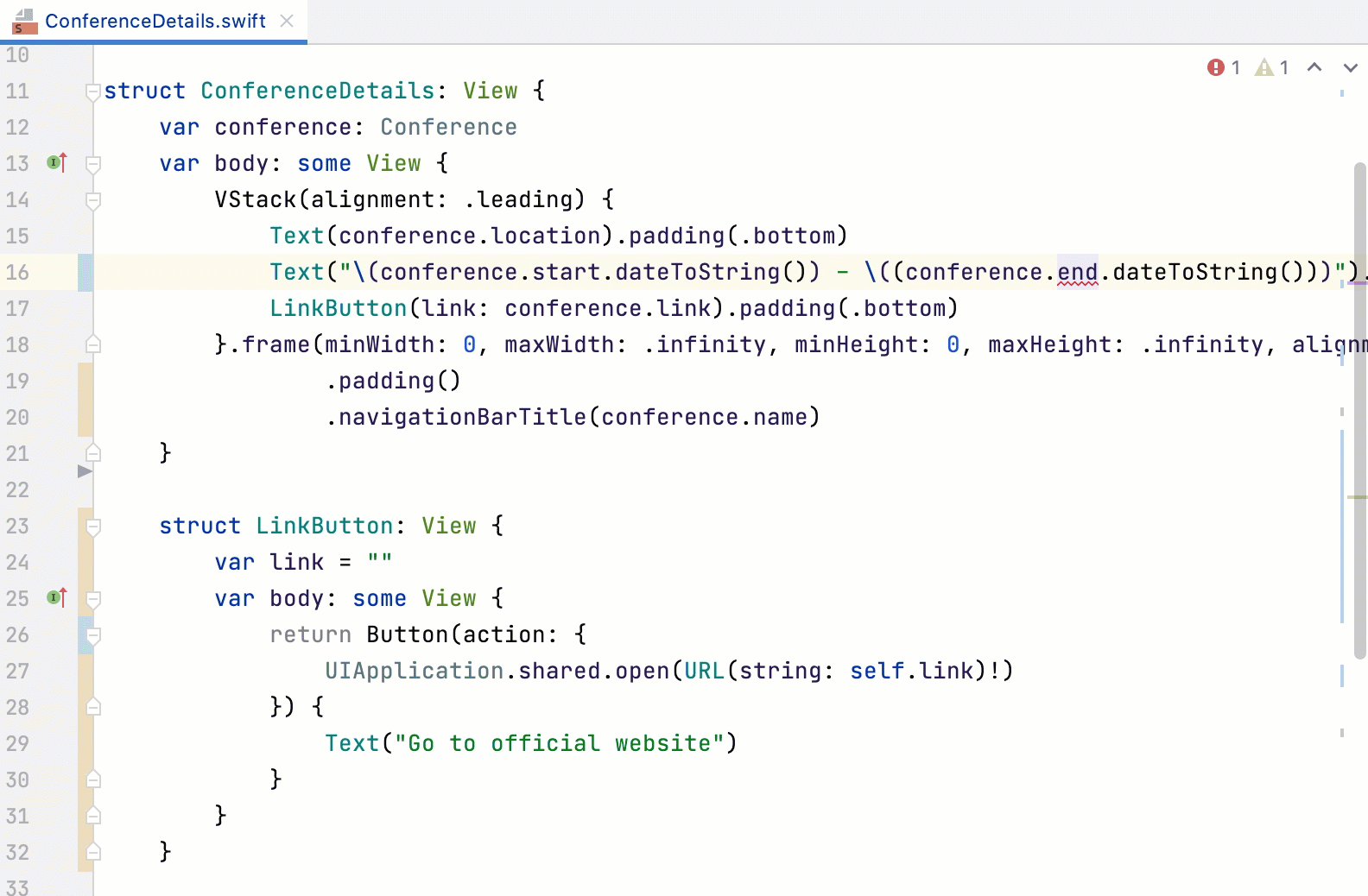

AppCode constantly tracks the quality of your code and detects potential errors and problems, such as unused code, unresolved methods, non-localized strings, or invalid parameters in a function. For this purpose, AppCode provides a set of code inspections. The detected issues are marked with color stripes in the scrollbar area.

When you place the caret at the problem code string, the light bulbs appear: yellow the Yellow bulb icon for warnings and red the Red bulb icon for errors. Click the bulb icon or press ⌥⏎ to call the list of suggested quick-fixes.

You can also run inspections manually to find potential problems in your project and fix them at once. To do so, choose Code | Inspect Code from the main menu.

You can see the whole list of inspection, change their severity level, and enable/disable them in AppCode | Preferences | Editor | Inspections.

Intention actions

Apart from the quick-fixes provided by code inspections, AppCode suggests intention actions for code fragments that can be altered and optimized. For example, you can remove explicit types from variable declarations in Swift:

You can see the whole list of intention actions and enable/disable them in AppCode | Preferences | Editor | Intentions.

Explore your code

When your project is big, or when you have to work with someone else’s code, it’s vital to be able to quickly find what you're looking for and dig into the code. This is why AppCode comes with a set of navigation and search features that help you find your way through any code no matter how tangled it is.

Find and replace

To find and replace code fragments, do the following:

Find usages

To find all usages of the symbol at the caret, run the Find Usages search by pressing ⌥F7.

Find usages

Search everywhere

  • To search for anything in AppCode, be it an item in your codebase, action, or UI element, press twice and start typing what you're looking for.

    Search Everywhere popup

  • Use the Find Action search ⇧⌘A to find any IDE command or setting by its name. When searching for a setting, type / to see the list of all settings that you can quickly access.

Source code navigation

Go to

Action

File by its name

⇧⌘O

Class by its name

⌘O

Symbol by its name

⌥⌘O
Declaration of a symbol

⌘B or the the Go to definition icon icon in the gutter (for Objective-C)

Type declaration

⇧⌘B
Implementation of a class/method

⌥⌘B or the the Implemented method icon/the Implementing method icon icons in the gutter

You can also navigate through the structure of the currently open file from the Structure popup ⌘F12 or Structure tool window ⌘7.

Structure View popup

Quick definition and documentation

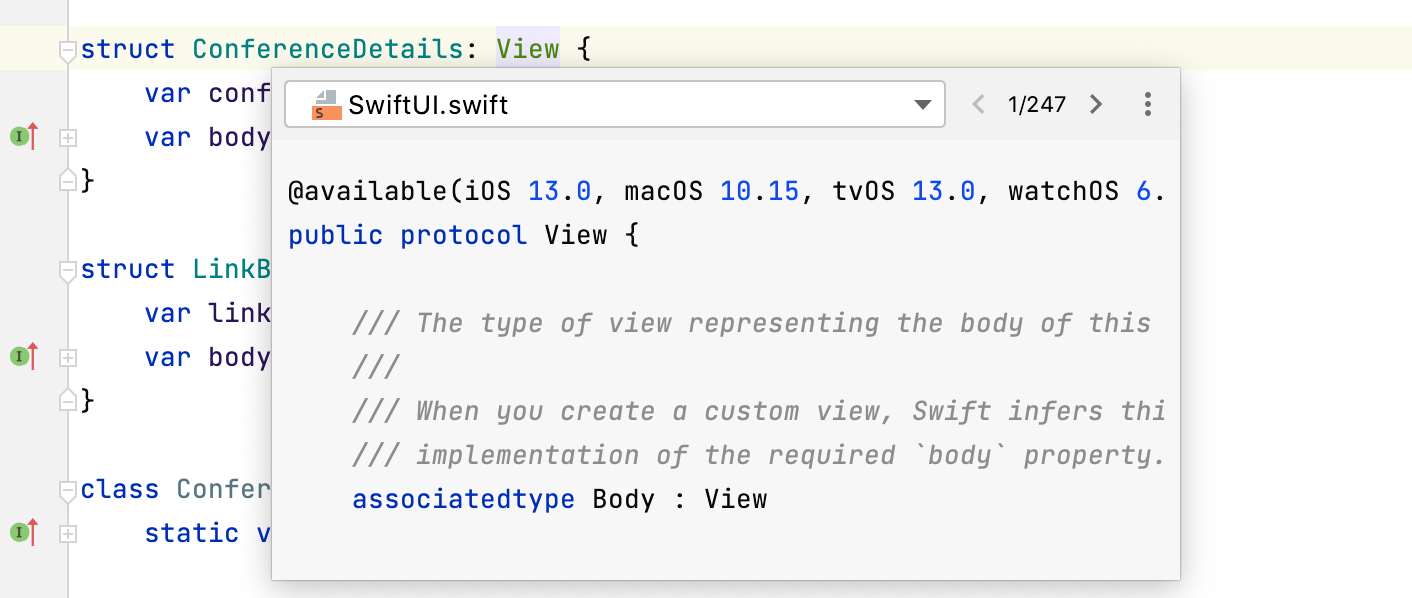

Quick definition ⌥Space helps you see the contents of a class or method without jumping to it.

Quick Definition popup

To see the list of parameters that a method can take, press ⌘P.

To view documentation for a symbol at the caret, press F1. Note that the symbol must be supplied with documentation comments created in accordance with AppleDoc/HeaderDoc/Doxygen markup, or with documentation from an SDK.

Also, AppCode shows external documentation for Foundation Framework Classes. To open external documentation, press ⇧F1.

Remembering all your activity in the project, AppCode can easily navigate you to the recent files ⌘E or recently changed files ⌥⇧C.

To go through the history of changes, use back/forward navigation ⌘[⌘] and/or go to last edit location ⇧⌘⌫.

Run, debug, and test your app

Running

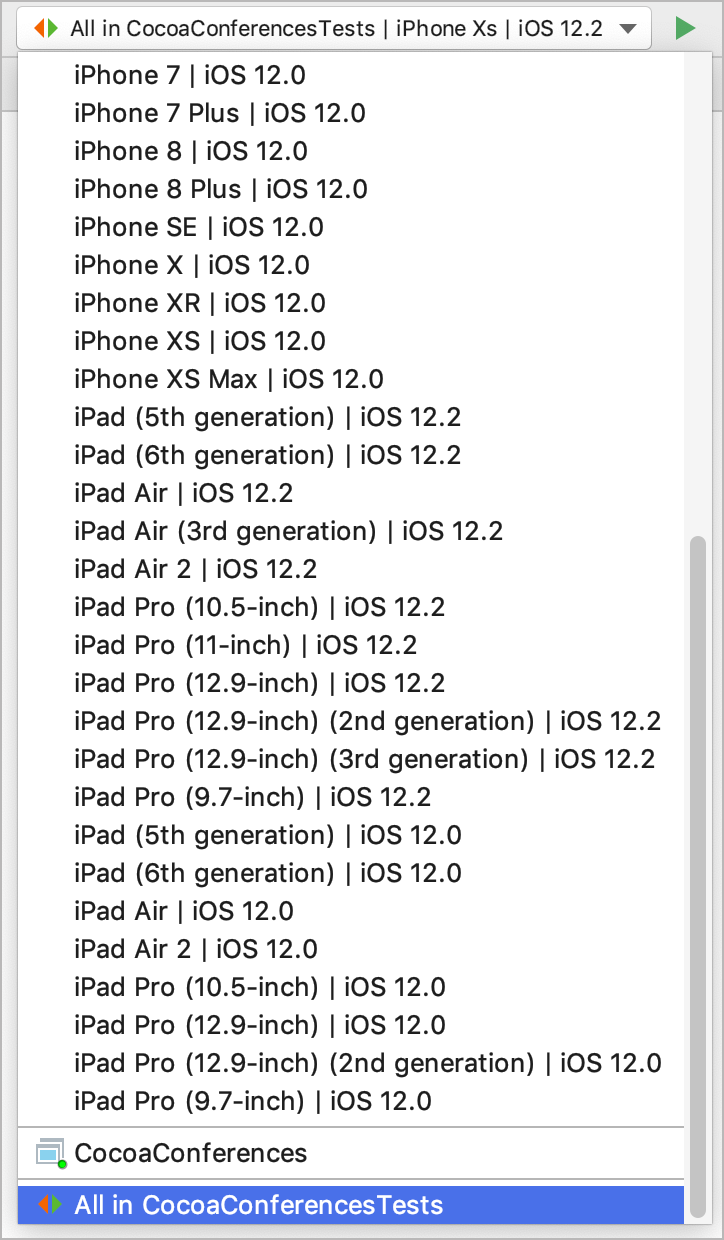

To run an app, select a run/debug configuration and a device or simulator from the run/debug configuration selector in the toolbar and click the Run button or press ⌃R.

Run Menu

Run/debug configuration is a named run/debug setup that includes target, executable, arguments to pass to the app, and other options.

Run/debug configurations in AppCode are the equivalents of the Xcode schemes, and they are kept synced with Xcode schemes.

AppCode creates a default run/debug configuration for each target and names it after your project. You can also add your own configurations based on available templates. Select Run | Edit Configurations from the main menu to see all available configurations, edit them, and add new ones.

Debugging

Debugging starts with placing breakpoints at which program execution will be suspended, so that you can explore the program data. Click the gutter of the line where you want the breakpoint to appear.

Set a breakpoint

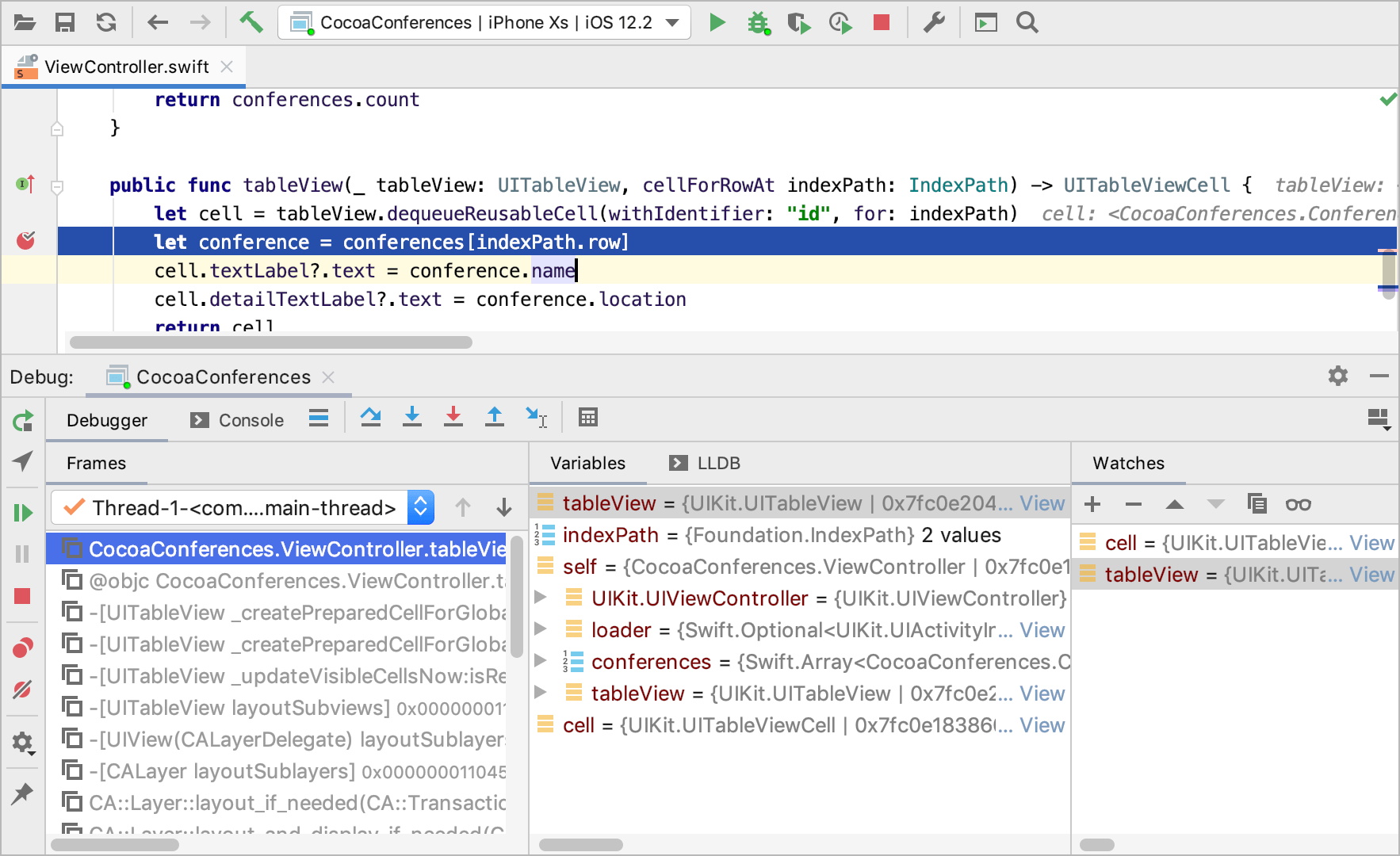

To start a debugging session, click the Debug icon or press ⌃D. The Debug tool window opens.

Debug tool window

Go through the program execution using the stepping actions: step over the Step Over icon, step into the Step Into icon, step out the Step Out button, and others.

You can set variable values, evaluate expressions, add watches, step into disassembled code, attach to local and remote processes, and more. Refer to the Debugging section to learn more about debugging features in AppCode.

Testing

AppCode supports Catch, Boost.Test, Google Test, and XCTest-based testing frameworks (including Quick and Kiwi) out of the box.

To create a test, right-click a node in the Project tool window, select File | New | File from Xcode template, and AppCode will generate a standard XCTest test from a template. You can also create your own template for a test or for any other file under Preferences | Editor | File and Code Templates.

Create a run/debug configuration for your test, choose it from the run/debug configuration selector, and click the Run button or press ⌃R.

Run the test

You can run several tests at once. To do so, create a compound run/debug configuration that includes your test configurations.

Test results are displayed in the dedicated view of the Run tool window. Here you can navigate to problems, see the test running statistics, and re-run failing tests.

Tests in the Run tool window

Run your unit tests with coverage to see how much of your code is being executed during the tests.

Keep your source code under version control

VCS

AppCode integrates with the following version control systems: Git (or GitHub), Mercurial, Perforce, and Subversion.

To specify credentials and any settings specific to a particular VCS, go to Preferences | Version Control. From the VCS menu, you can commit and push changes, update projects, and more. From the Version Control tool window ⌘9, it's possible to manage change lists.

Some basic commands can be easily accessed from the toolbar.

VCS toolbar

Local History

In addition to traditional version control, you can use Local History. With Local History, AppCode automatically tracks changes you make to the source code, the results of refactoring, and so on. Local History is always enabled. To view it for a file or a folder, select VCS | Local History | Show History. Here you can review the changes, revert them, or create a patch.

Local History

Learn more and get help

With any questions, visit our AppCode Discussion Forum, twitter and blog, where you can find news, updates, and useful tips and tricks. Also, don't hesitate to report any problems to our support team or the AppCode issue tracker.

Last modified: 4 December 2019
