Dependency Analyzer

Using the Dependency Analyzer in IntelliJ IDEA.

We can view our dependencies in the Maven or Gradle tool window. Here, we can expand dependencies to show their transitive dependencies, or collapse them again.

Maven tool window

Open the Dependency Analyzer

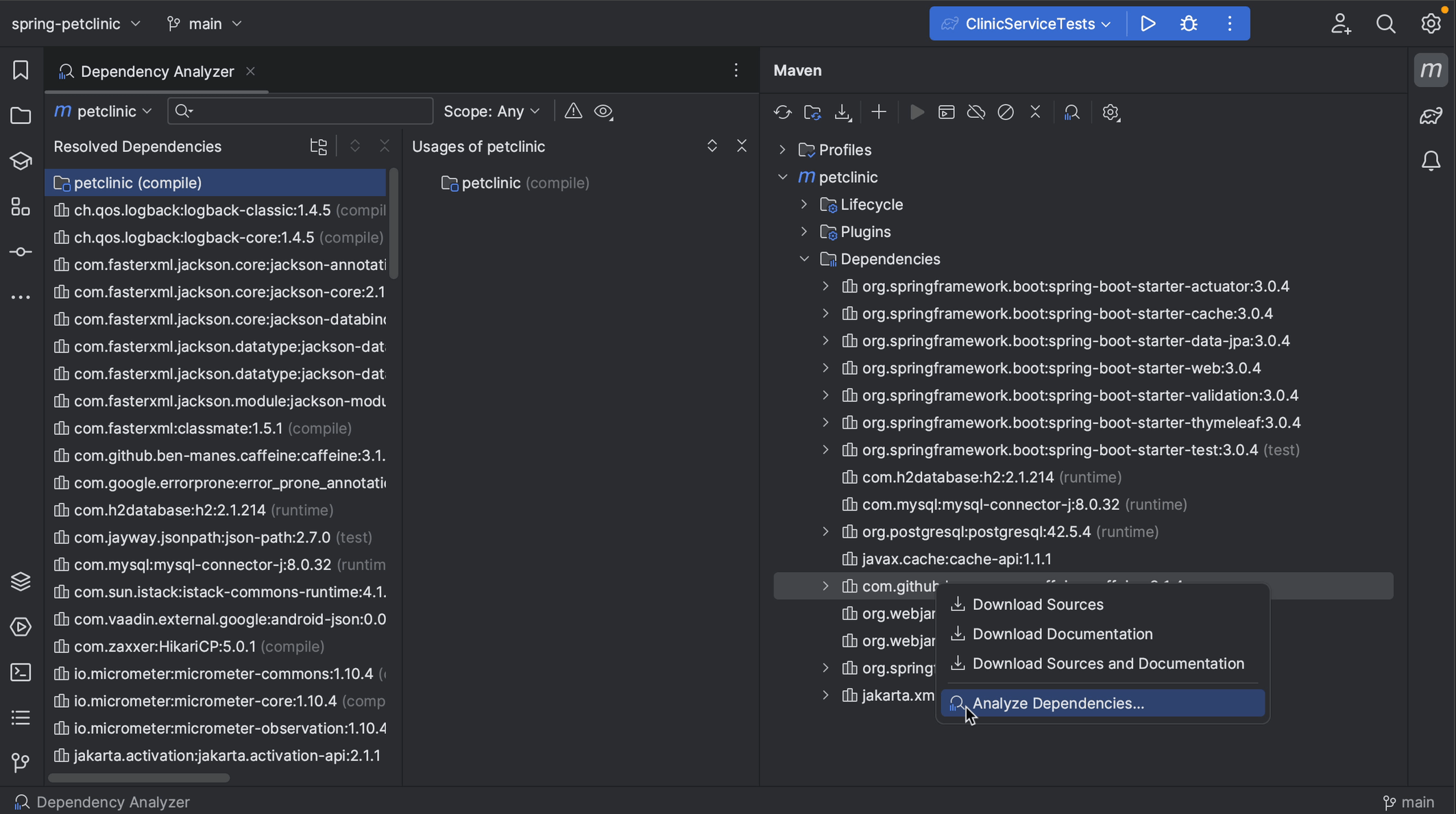

We can open the Dependency Analyzer from the Maven or Gradle tool window by clicking Analyze Dependencies…. This will open the Dependency Analyzer showing the Resolved Dependencies on the left and their Usages on the right.

Analyze Dependencies button

Alternatively, we can right-click a dependency in the Maven or Gradle tool window and select Analyze Dependencies from the context menu. This will open the Dependency Analyzer with the dependency selected.

Analyze Dependencies

We can hide all tool windows ⌘⇧F12 (macOS) / Ctrl+Shift+F12 (Windows/Linux), so we can focus on the dependencies.

Viewing dependencies in the Dependency Analyzer

Dependency Analyzer

We can view the dependencies as a tree by clicking Show as Tree and Expand or Collapse them as needed by pressing the corresponding buttons.

Show as Tree

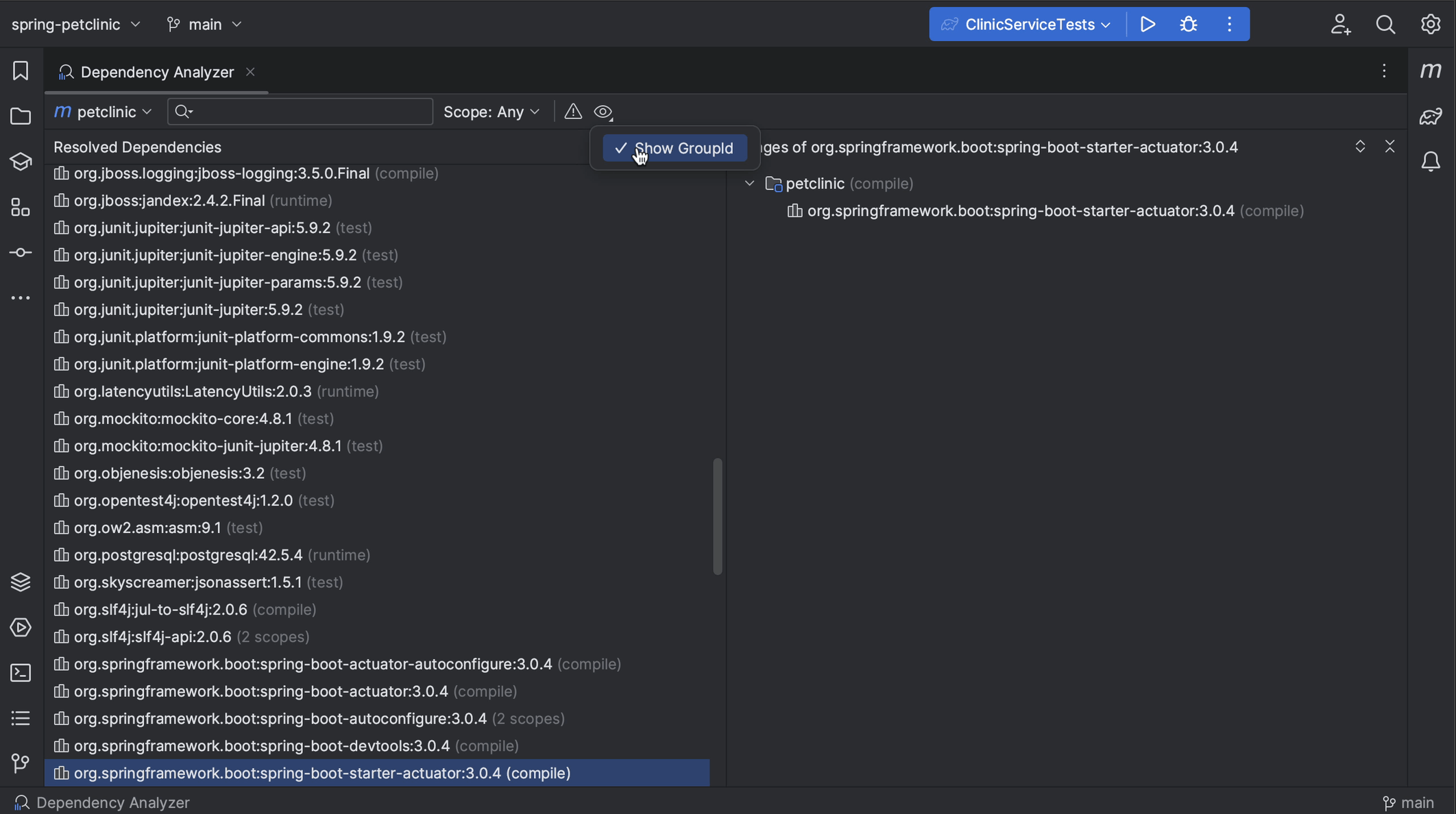

We can also click View Options and toggle Show GroupId, to show the GroupId for dependencies or not.

View Options

Finding a specific dependency

To see where we are getting a specific version of a particular library, we can search for that dependency. For example, when we search for "log4j" we see that we are only getting it via this spring-boot-starter, and it's a version newer than the one where log4shell was fixed.

Search for a specific dependency

Finding conflicts

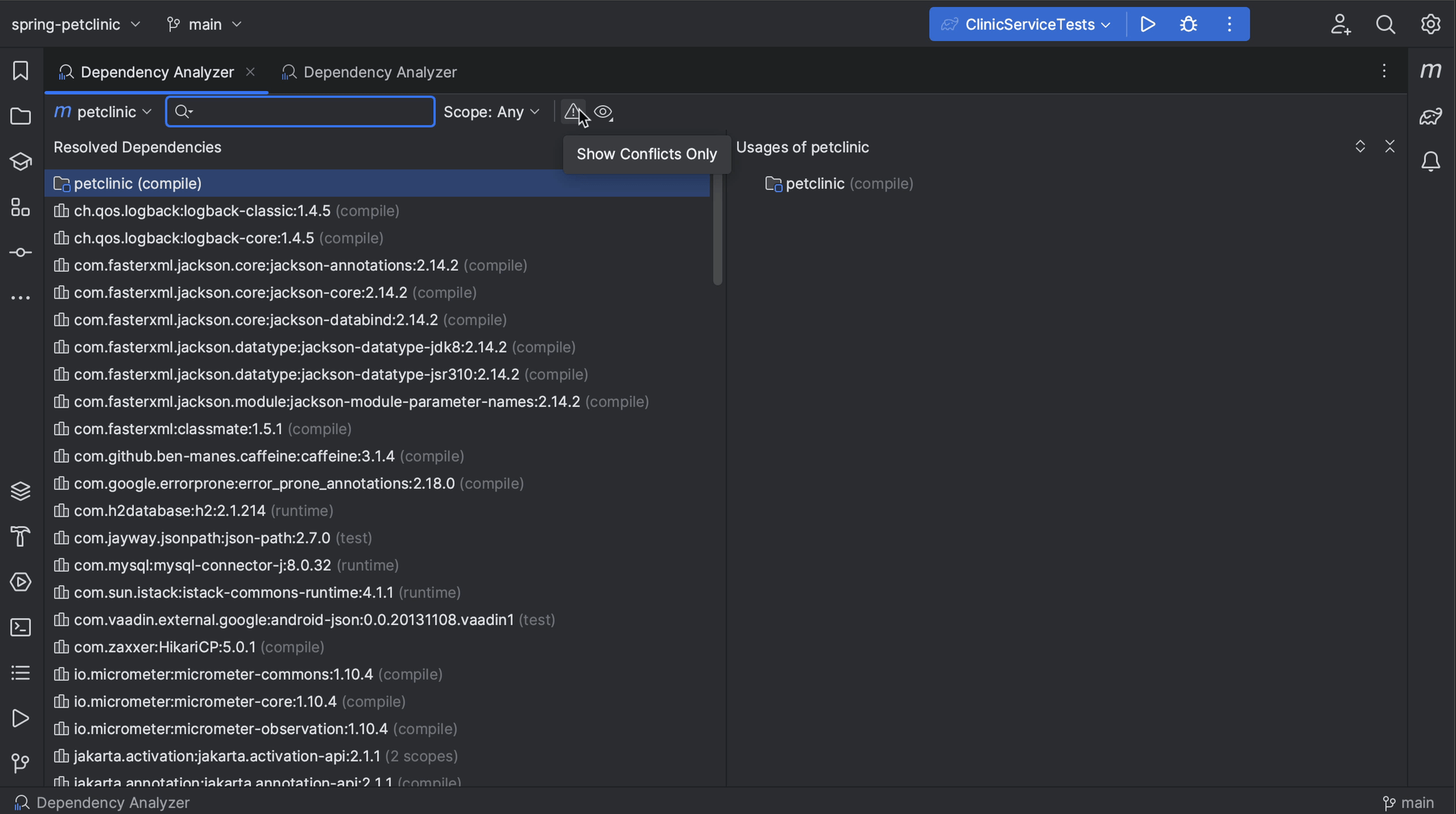

We might only want to look at dependencies that have conflicts. When we select Show Conflicts Only, we see only dependencies that have conflicts. In this example, we see that there is a conflict with the checker framework dependency. Fortunately, it's been resolved; we see that one version is greyed out. If we go back to the Maven tool window, we see that this version has been omitted for conflict. We can see that the version we are using is 3.5.0 which we get from postgres.

Show Conflicts Only button

Show Conflicts Only result

Omitted for conflict

Selecting scopes

We can also select a scope (for example, if we want to look at our test dependencies or exclude them from analysis). Since we've opened the Dependency Analyzer from the Maven tool window, we see the Maven scopes.

Show Maven Scopes

When we open the Dependency Analyzer from the Gradle tool window, the list of scopes will contain Gradle scopes.

Show Gradle Scopes

More context

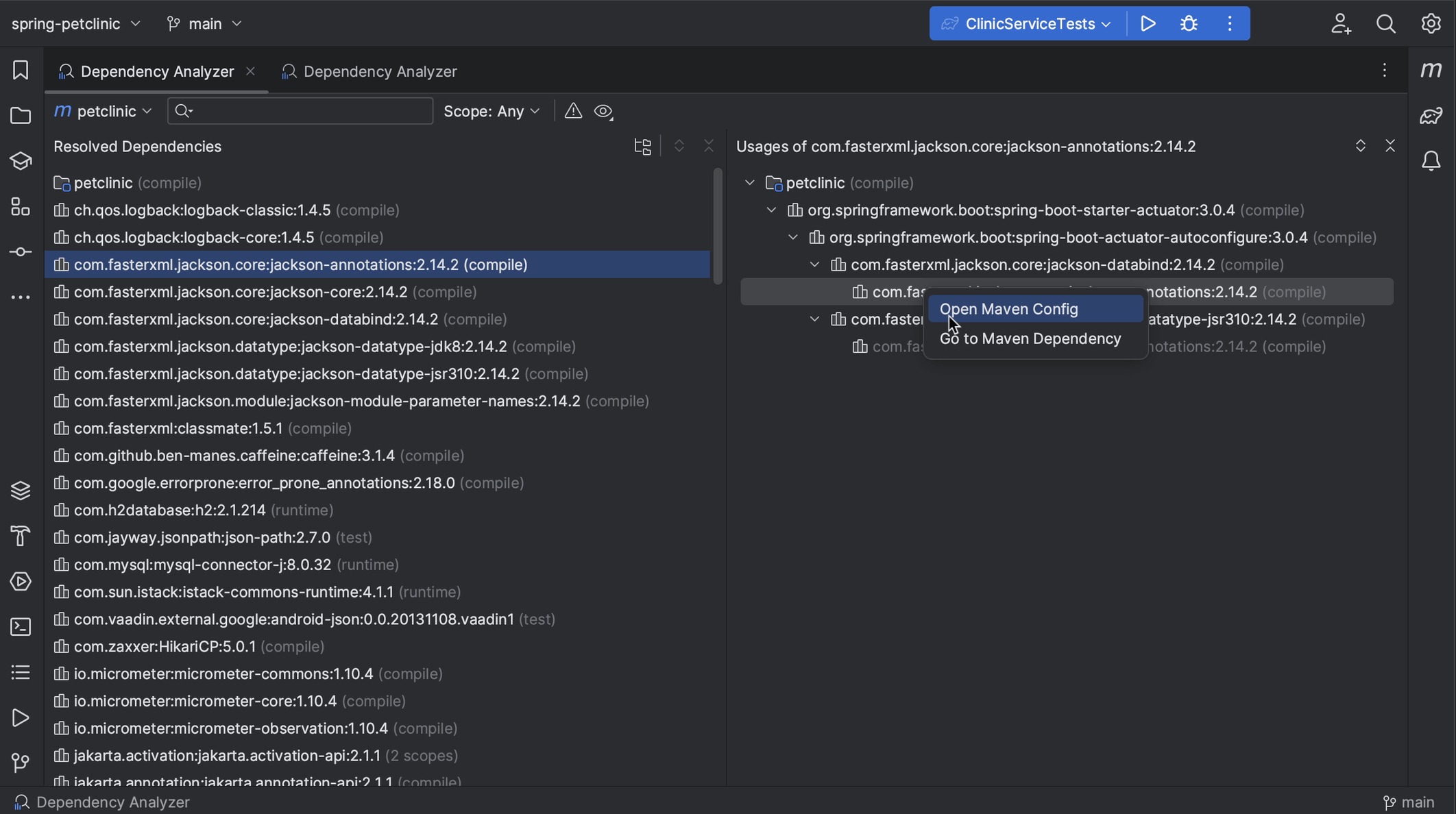

For more context, we can click a specific dependency and select Open Maven Config to open its pom.xml or Go to Maven Dependency to open the location in the pom.xml where this dependency is declared.

Open Maven Config
