Getting Into the TDD Flow

Setup your PyCharm project to help get into the flow of Test-Driven Development (TDD).

Players have parents, also known as guardians. Let's make a module for a Guardian class. This time let's do it with a bit of test-driven development (TDD) and show how to get PyCharm into a good "flow" for TDD.

Starter Tests

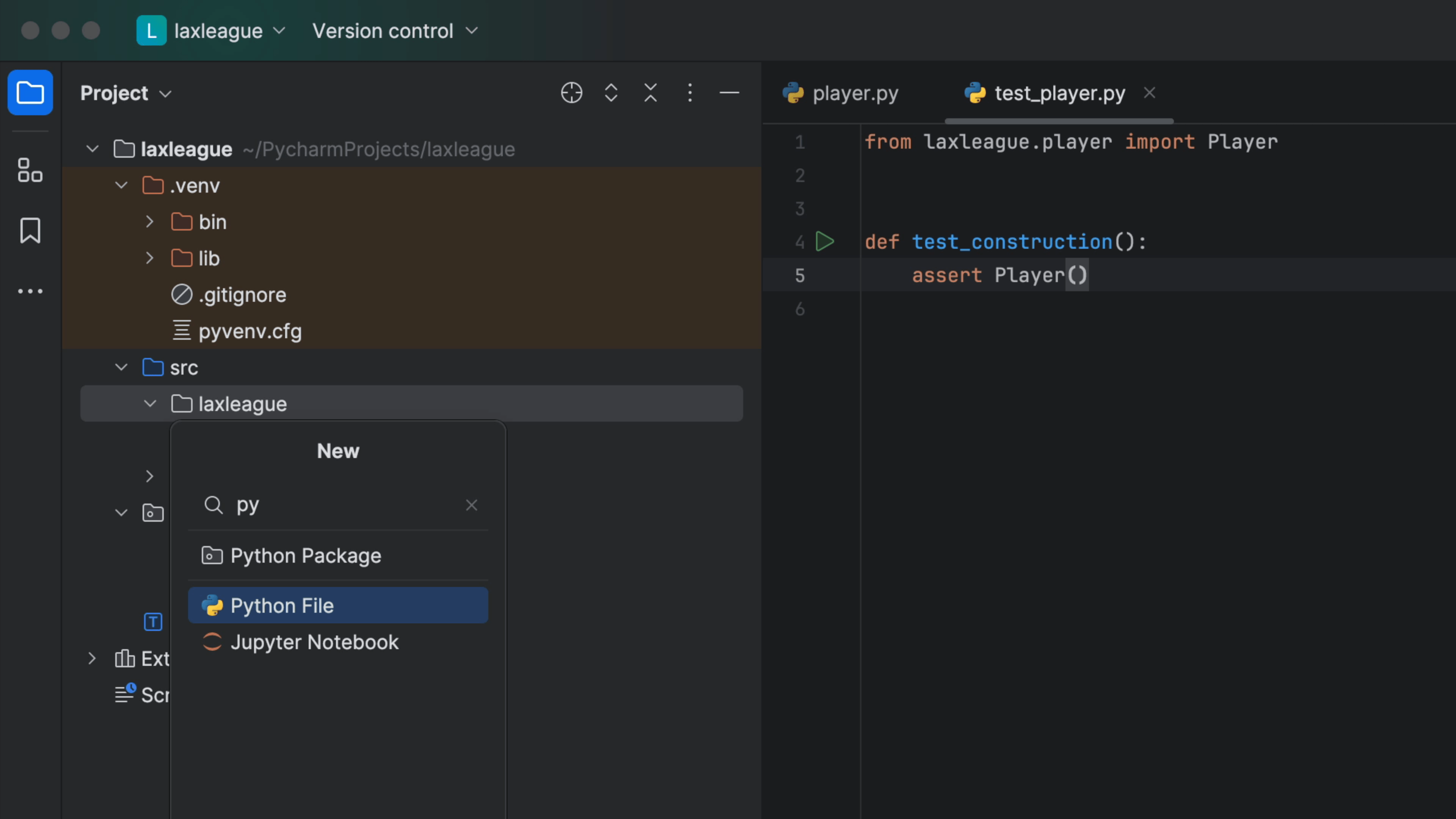

First, create src/laxleague/ with an empty class:

class Guardian:
    """ A guardian or parent in the league """

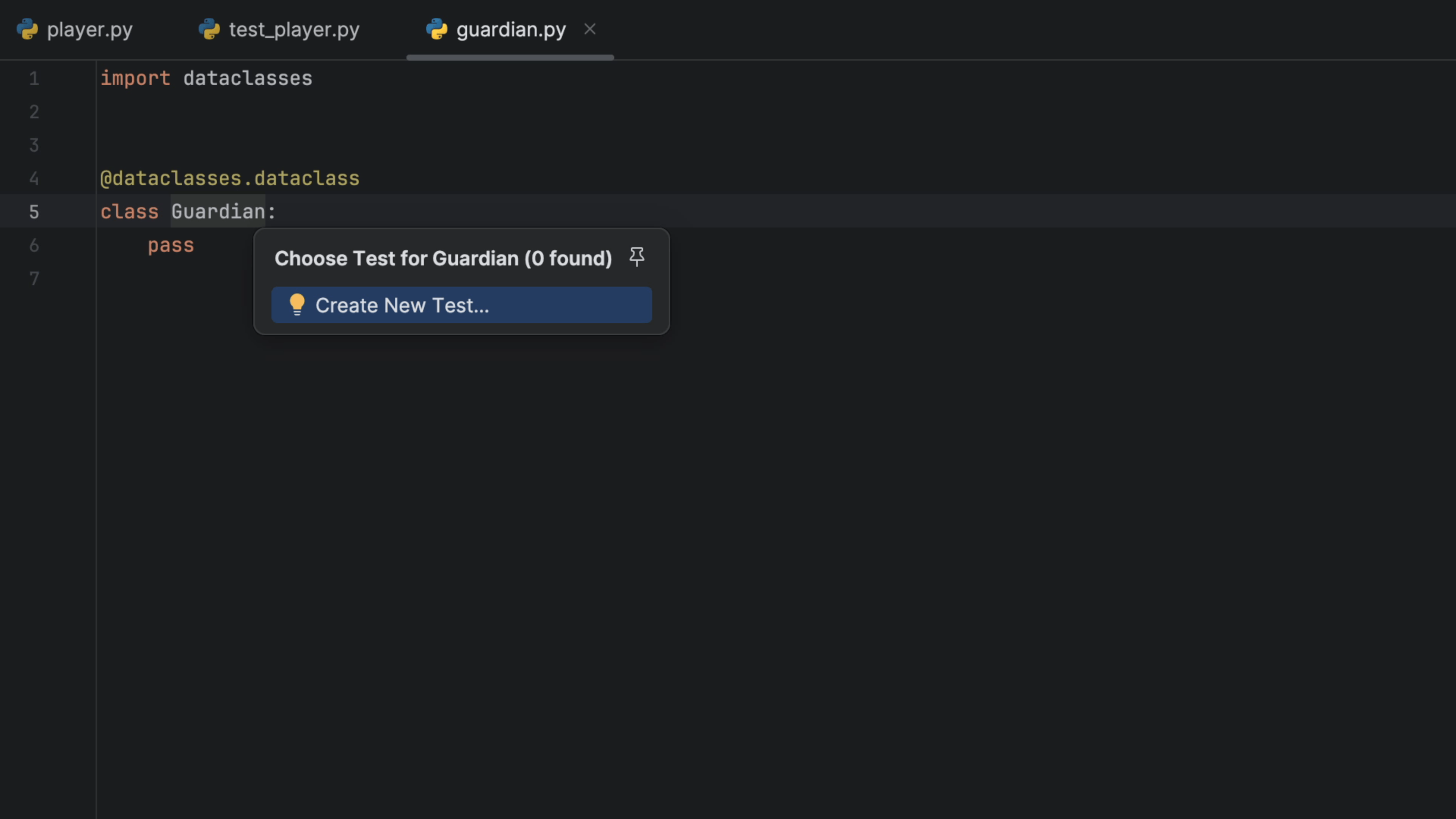

Why do we make an empty placeholder class? To let PyCharm generate the test for us. Use Navigate | Go To Test ⌘⇧T (macOS) / Ctrl+Shift+T (Windows/Linux) as explained in the last step to help generate tests/

In that file, change the first test to test_construction to "get me into the flow", letting PyCharm generate the import:

from import Guardian

def test_construction():
    assert Guardian()

Run the test by right-clicking in the editor outside any block and choosing to run it with pytest (bigger target area than the tab.)

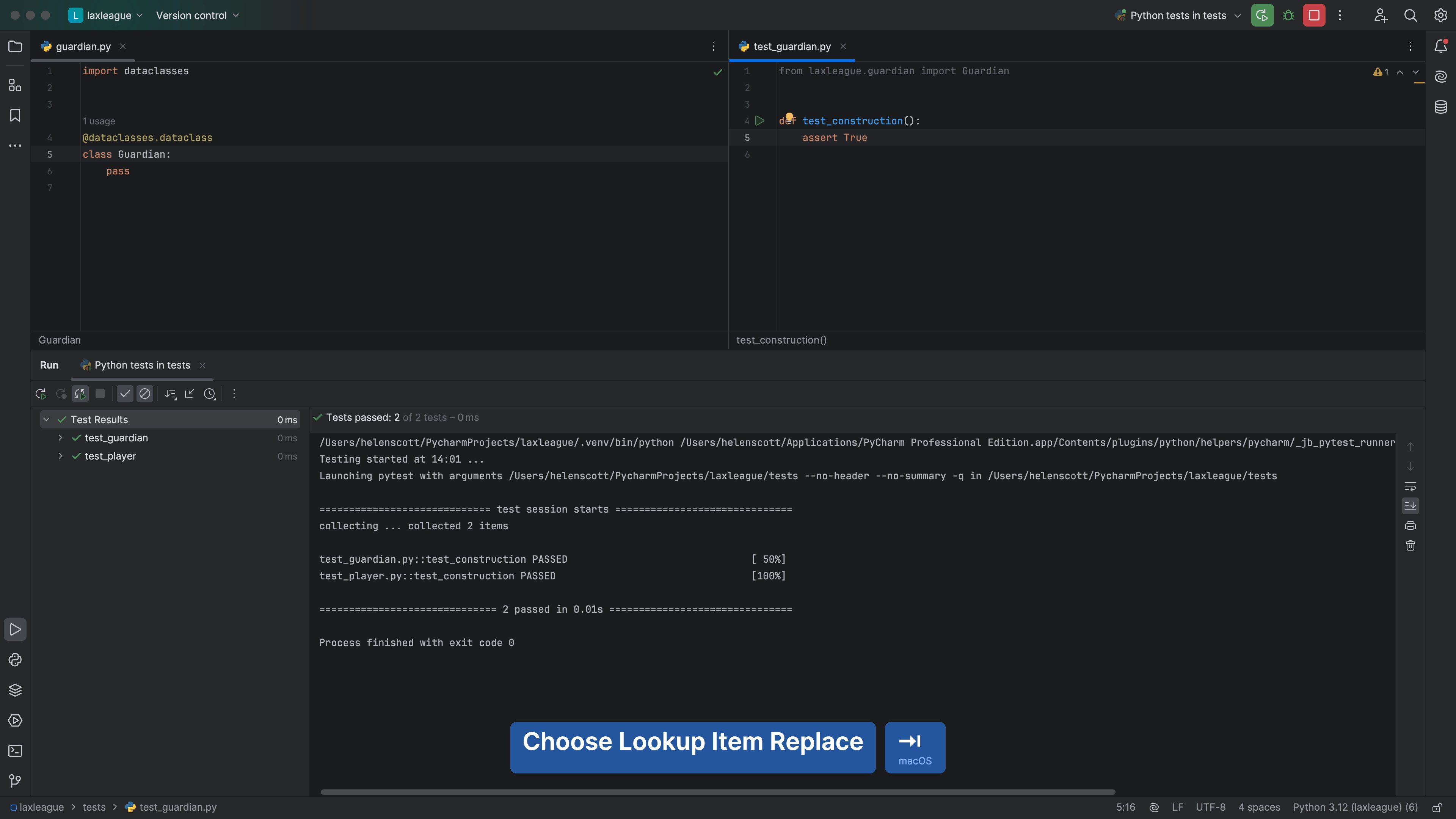

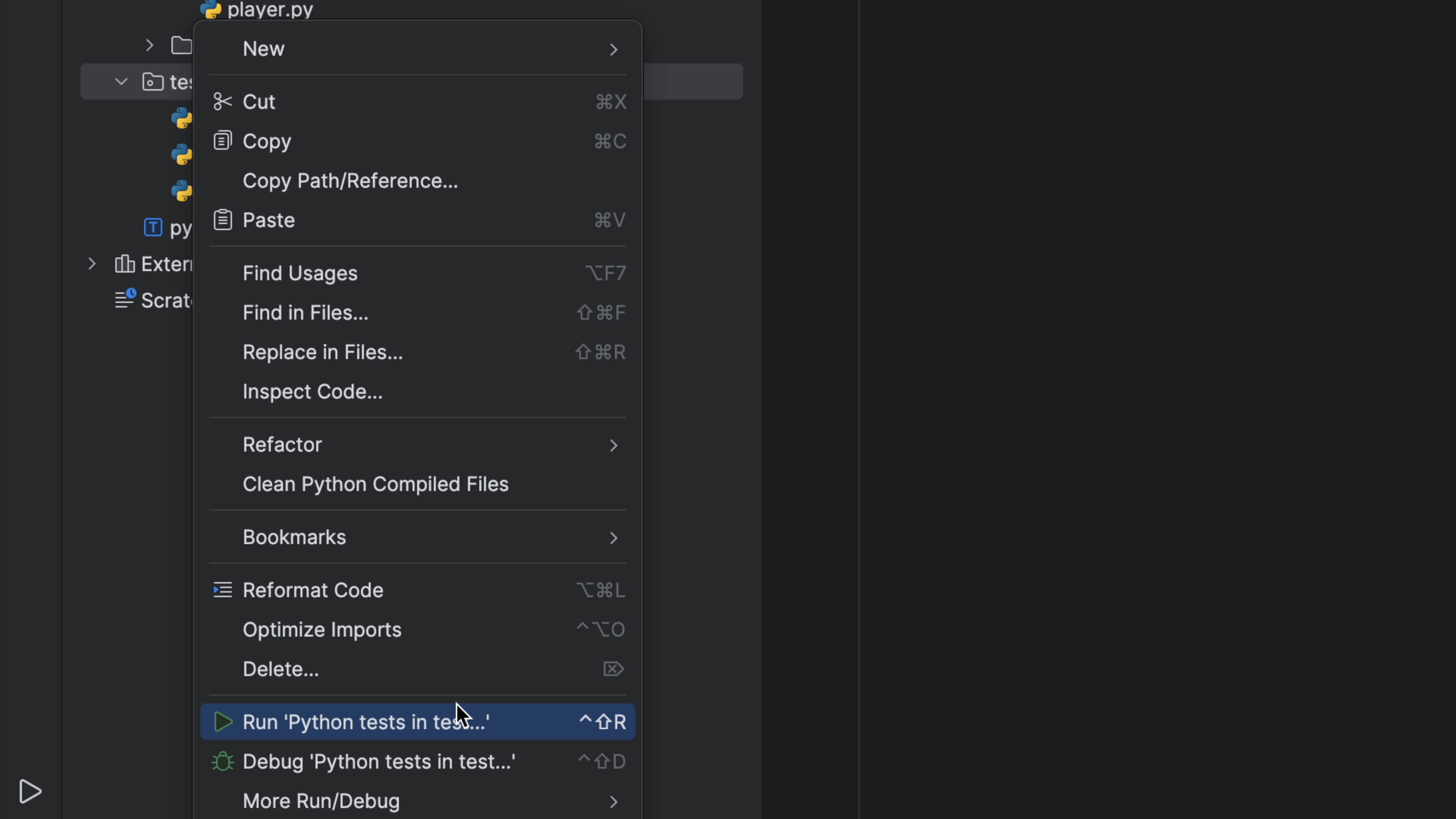

Yay, the test passes. Let's switch to running all of our tests. In the project tool window, right-click on tests and choose Run 'pytest in tests'. The test runner now shows a tab with pytest in tests, with 2 tests passing:

All Tests

Not a major victory, but allows us to start inching forward:

TDD Flow

Now let's get ourselves into a TDD flow. We'd like to easily look at the code we are writing and the tests we providing against that code. I like both visible, with my code on the left and the tests on the right.

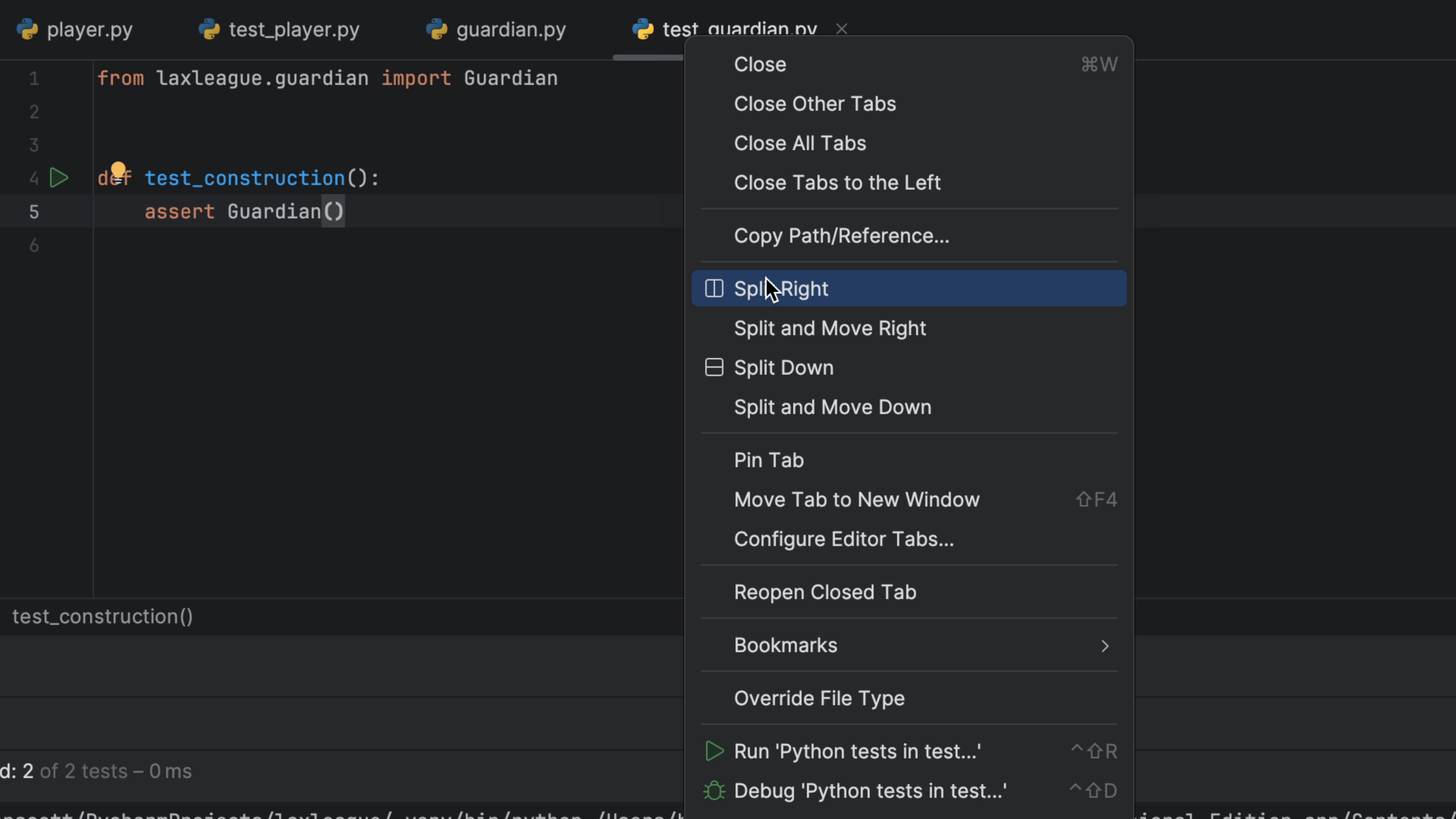

Invoke Find Action with ⌘⇧A (macOS) / Ctrl+Shift+A (Windows/Linux) and search for Split Vertically. On the left, open and on the right, make sure is still open. While we're at it, collapse the project tool window, turn off the toolbars and navigation bars, and tabs.

The run tool window stays on the bottom (though on wide monitors I put it on the right):

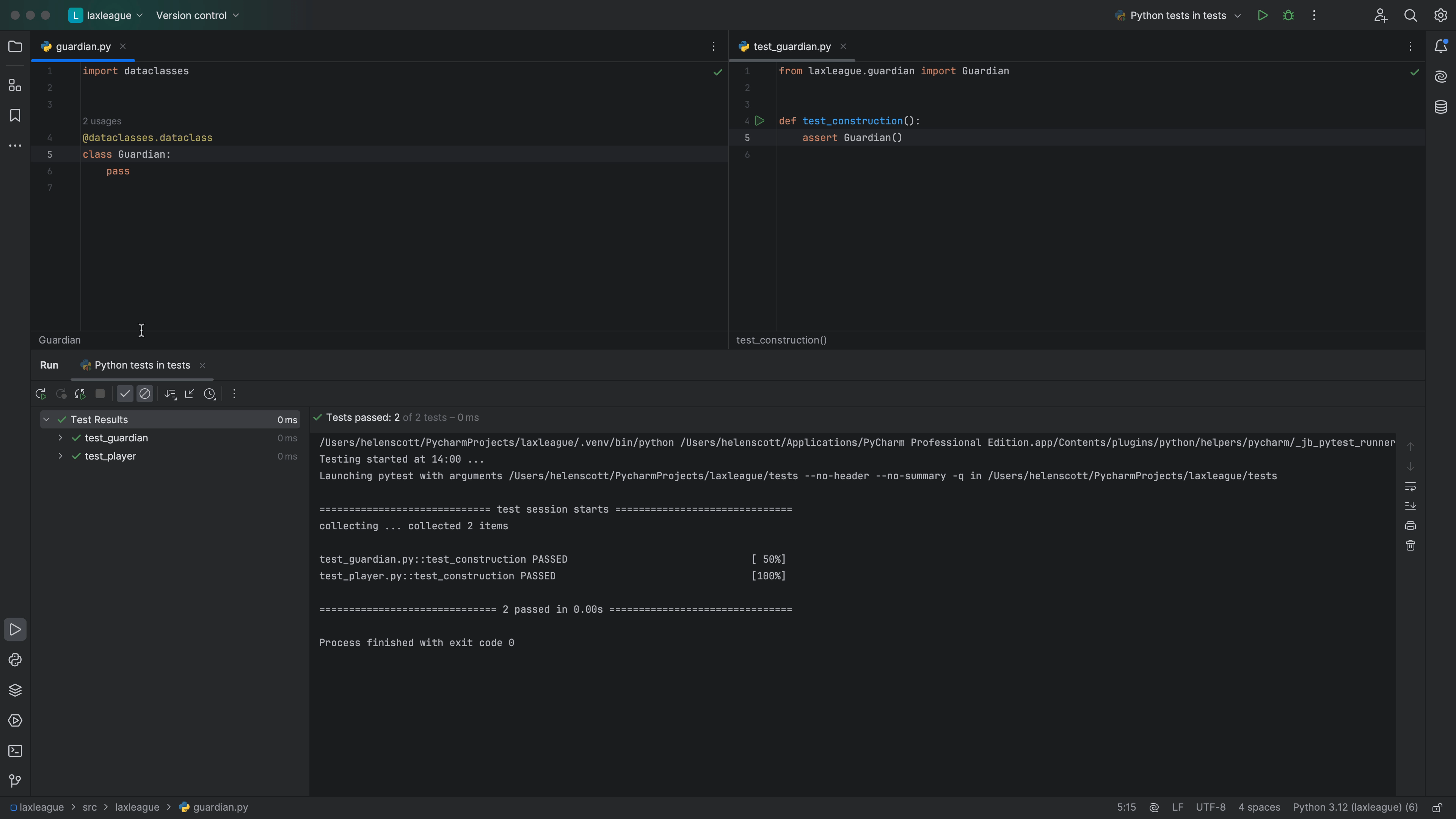

TDD Layout

There, that has a nice feel to it. Room to focus.

Now that our code is setup, let's get our test running "in the flow". Let's have our tests run, automatically, as we type. PyCharm makes this easy and visually convenient -- it even integrates with your desktop notification system when tests are finished running and PyCharm isn't visible.

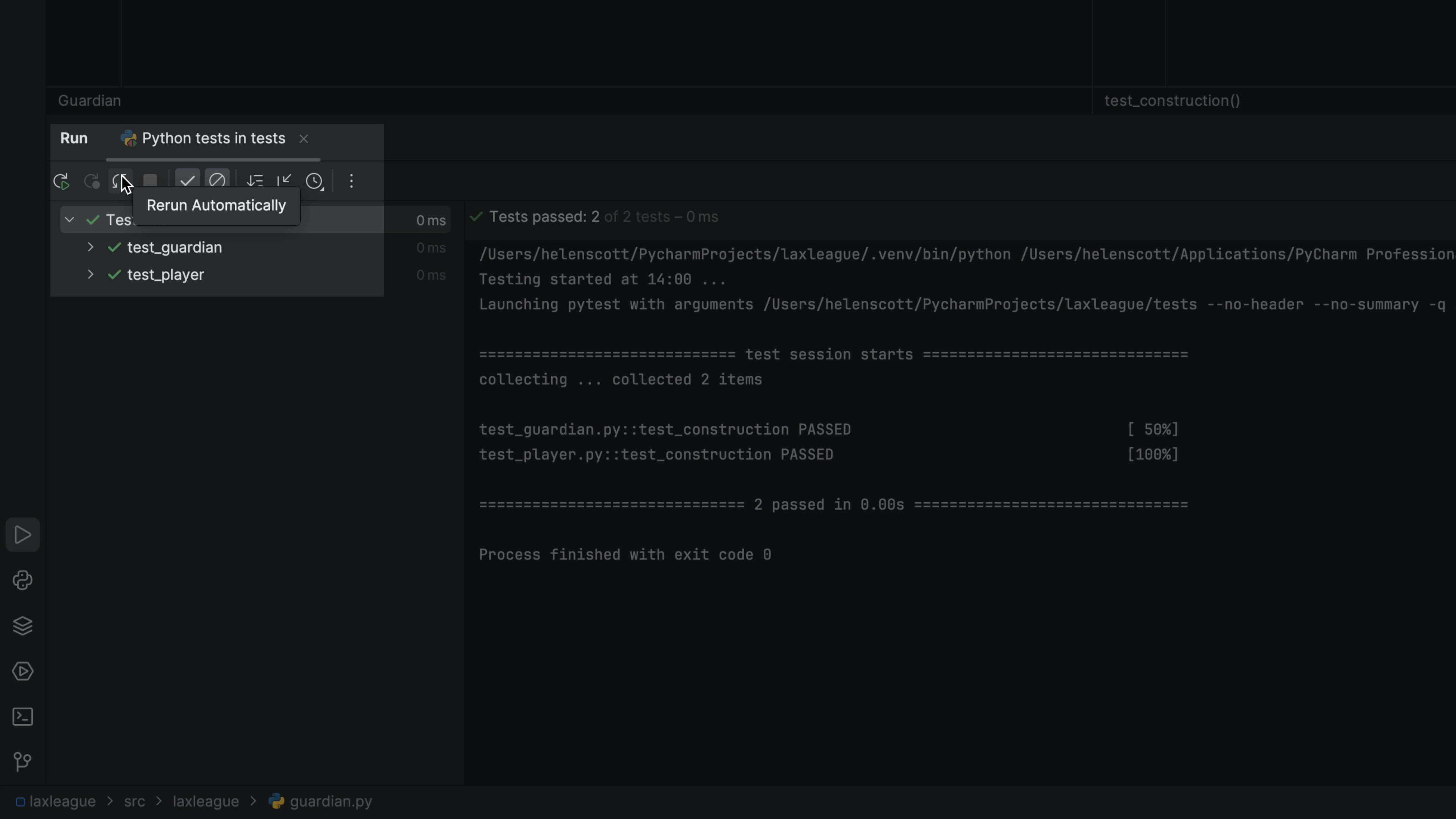

In the tool window for the test output, click on the Toggle auto-test icon, two icons below the green run arrow.

Toggle Auto Run

With autorun enabled, next click the big green run arrow again. Now, all your tests run automatically two seconds (configurable) after you stop typing.

One final point: you don't have to save changes to your code or tests. PyCharm has an auto-save virtual filesystem thingy.

To see this autorun in action, change something in one of your assert statements, without saving. After two seconds, you'll see the tests re-run, automatically.

That's a nice start to a good TDD flow. Let's write a failing test, then fix the implementation.

The Guardian

Our Guardian needs a constructor that takes and stores first_name and a last_name. Change the first test in tests/

from import Guardian

def test_construction():
    g = Guardian('Mary', 'Jones')

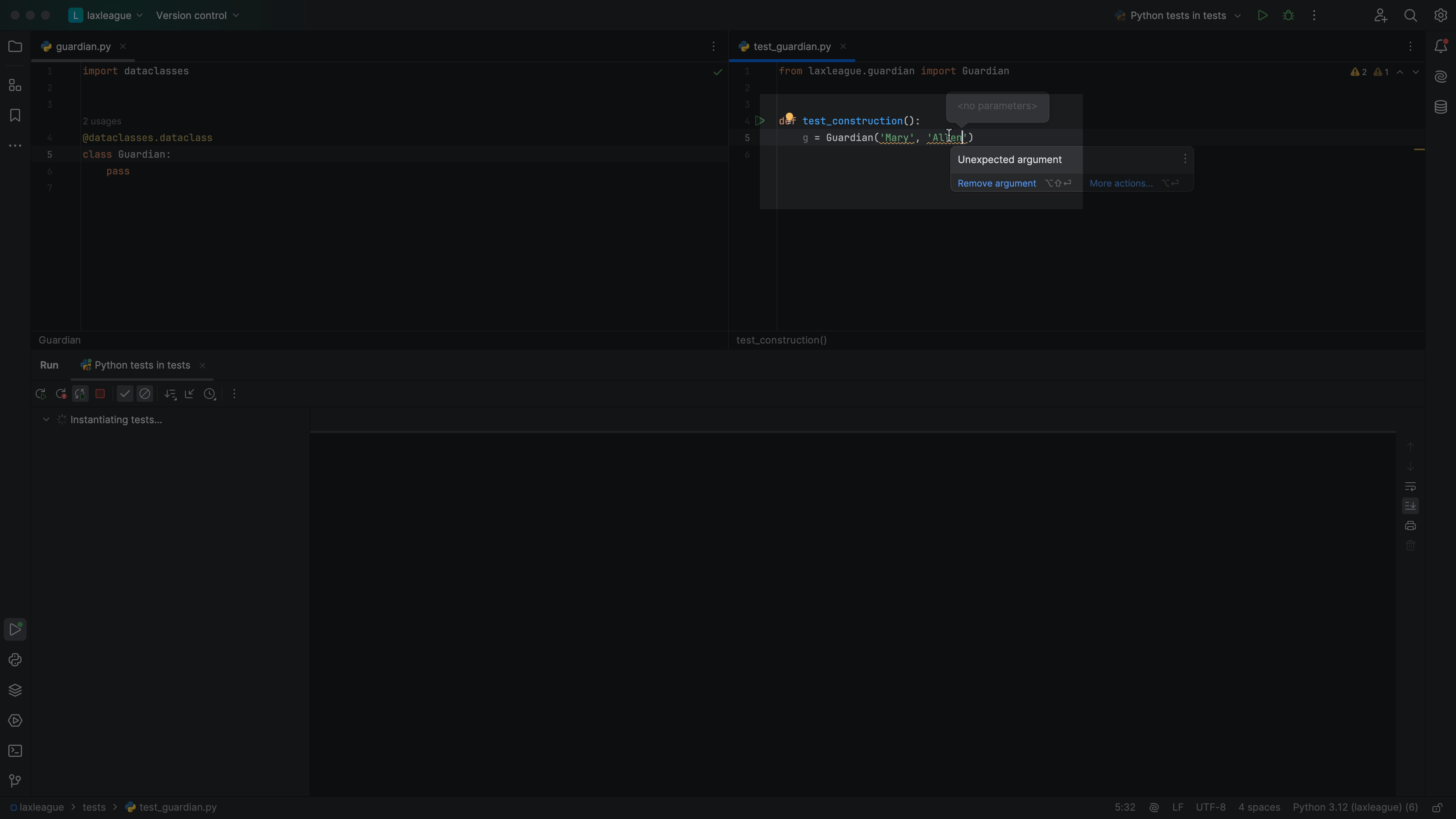

Notice that PyCharm warns you (on hovering) with 'Unexpected argument' when we supply arguments:

Unexpected Argument Warning

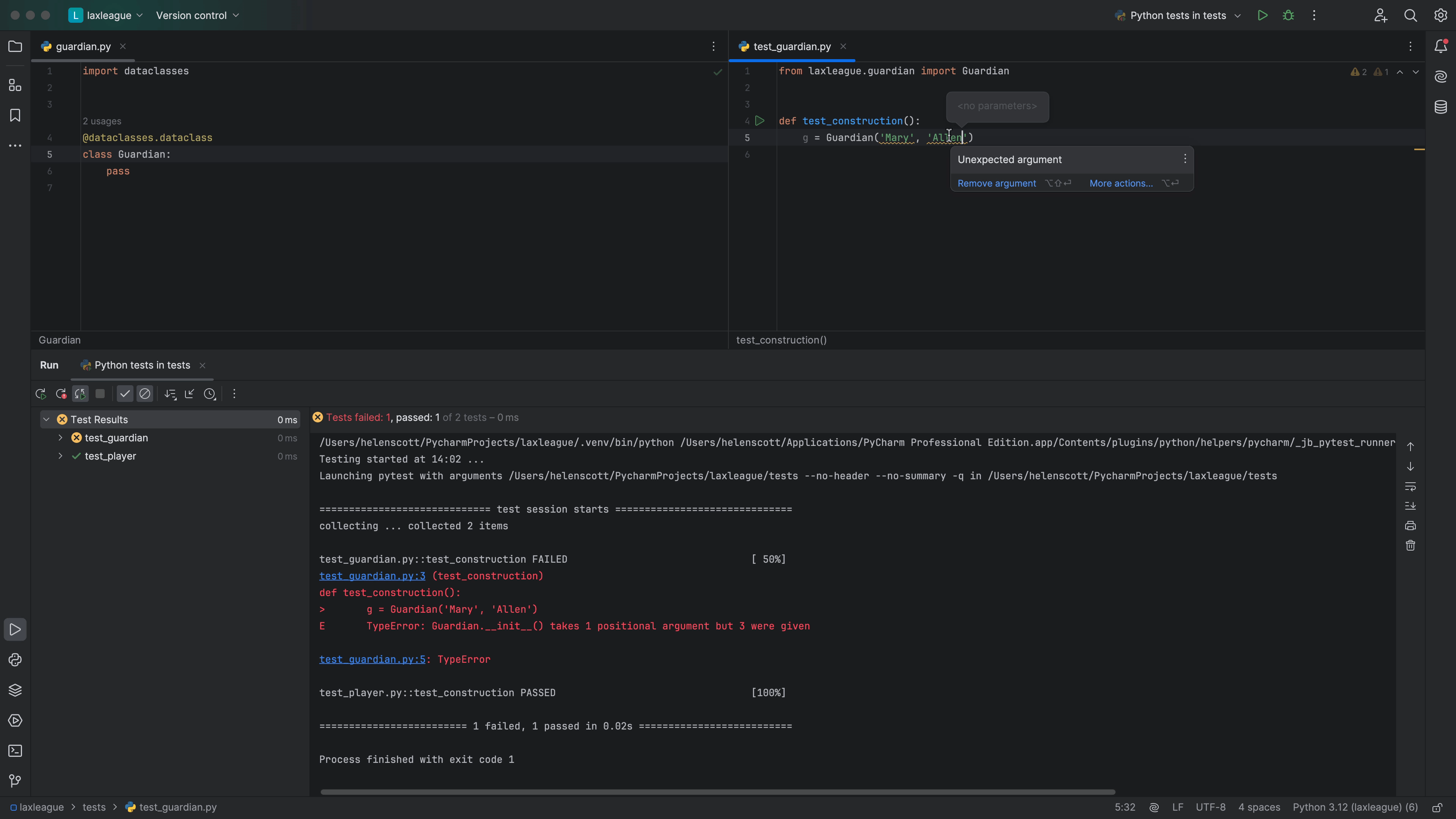

After two seconds, even without saving, our tests show as broken:

Failing Tests

Of course it breaks: Guardian has no constructor. Since it is the code we are writing tests for, the mistake is conveniently right there in our left tab. No need to think. Change laxleague/ to implement storing names on instances:

class Guardian:
    """ A guardian or parent in the league """

    def __init__(self, first_name, last_name):
        self.first_name = first_name
        self.last_name = last_name

As you are writing this, let PyCharm help you:

  • First, use autocomplete to finish __init__ and put your cursor in the right spot.

  • Next, when you type your constructor arguments, use Alt-Enter and choose Add field 'first_name' to Guardian. PyCharm will generate the self.first_name = first_name boilerplate for you.

  • Finally, if the generation is in the wrong order, use Press ⌥⇧↑ (macOS) / Alt+Shift+Up Arrow (Windows/Linux) or ⌥⇧↓ (macOS) / Alt+Shift+Down Arrow (Windows/Linux) to move the line, instead of cutting and pasting.

Our test now passes but doesn't do an assertion. Back in test_construction, let's show a bit about how PyCharm can help you be more productive and accurate.

First, hold down Ctrl and hover on the g. PyCharm tells you that g is of inferred type Guardian. Next, add an assertion:

assert g.first_name == 'Mary'

As you type first_name you can see PyCharm offering you the autocomplete. This is because PyCharm inferred the type of Guardian, thus speeding up your TDD.

Oops, we had poor style on that. In my projects, I prefer a testing convention for asserts with expected on the left, meaning expected == actual. While Guido declined to designate a winner, it seems Kent Beck did, and Brian Okken's examples also use that.

You can see this problem by changing the expected value of 'Mary' to a value of 'Expected'. PyCharm's test output now shows expected vs. actual, and Expected is in the wrong place.

We need to flip that, but good news: PyCharm excels at such janitorial work. Click on the double-equal, hit ⌥⏎ (macOS) / Alt+Enter (Windows/Linux), and choose Flip '==':

Flip Arguments

In fact, PyCharm will obey a style set by a project. Create a pytest.ini file at the root:


Let's write a test for last name, causing to finish like the following -- including the expected/actual ordering:

from import Guardian

def test_construction():
    g = Guardian('Mary', 'Jones')
    assert 'Mary' == g.first_name
    assert 'Jones' == g.last_name

One last point: PyCharm's tool window for testing shows passing tests by default. If you don't want to see them, and focus on failing tests instead, click on the Show Passed icon to the right of the green play button.
