CLion 2019.3 Help

Quick Start Guide

0. Before you start

Is CLion a cross-platform IDE?

Yes, you can install and run CLion on Windows, macOS, and Linux (for setup on FreeBSD, refer to this instruction).

What compilers and debuggers can I work with?

CLion supports GCC, Clang, and Microsoft Visual C++ compiler (note that debugging for MSVC is available as an experimental feature). You can also work with Intel C++ Compiler, however, mind that it is not officially supported (see the corresponding issue).

CLion bundles GDB and LLDB debuggers, and you can switch to a custom GDB binary (see the Debug chapter for details).

What build systems are supported? What are the project formats?

CLion fully integrates with the CMake build system: you can create, open, build and run/debug CMake projects seamlessly. CMake itself is bundled in CLion, so you don't need to install it separately unless you decide to use a custom version.

Apart from CMake, CLion supports compilation database and Gradle projects. Currently, you cannot create a new project of these types within CLion, but you can open and manage an existing one with full code insight available.

With Gradle support, you can work with new Gradle C++ projects and run Gradle tasks as regular applications.

Apart from CMake, CLion supports compilation database and Gradle projects. Currently, you cannot create a new project of these types within CLion, but you can open and manage an existing one with full code insight available.

Compilation database provides a way to develop non-CMake and non-Gradle projects in CLion. You can create a compile_commands.json for the sources that you build using another system, and then open this file as a project in CLion (for example, see how it helps managing Makefile applications). Custom targets enable you to build such projects with external tools and then run/debug them using custom configurations.

Do I need to install anything in advance?

For C/C++ projects, CLion uses GCC/G++, Clang, or MSVC toolset.

On Windows, it means that you can select between the MinGW / MinGW-w64 or Cygwin environment, WSL, or Visual Studio if you plan to use Microsoft Visual C++ compiler. For details, refer to Quick Tutorial: Configure CLion on Windows.

On macOS, the required tools might be already installed. If not, update command line developer tools as described in Configuring CLion on macOS.

On Linux, compilers and make might also be pre-installed. Otherwise, in case of Debian/Ubuntu, install the build_essentials package and, if required, the llvm package to get Clang.

Are other languages besides C++ supported as well?

Yes, CLion fully supports Python, Objective-C/C++, HTML (including HTML5), CSS, JavaScript, and XML. Support for these languages is implemented via the bundled plugins, which are enabled by default. See CLion Features in Different Languages for more details.

You can install other plugins to get more languages supported in CLion (such as Rust, Kotlin/Native, Swift, or Markdown). See Valuable language plugins and explore the Plugins page in Settings / Preferences Ctrl+Alt+S.

1. Open/Create a project

Open a local project

For CMake projects, use one of the following options:

  • Select File | Open and locate the project directory. This directory should contain a CMakeLists.txt file.

  • Select File | Open and point CLion to the top-level CMakeLists.txt file, then choose Open as Project.

  • Select File | Open and locate the CMakeCache.txt file then choose Open as Project.

To open a compilation database project, click File | Open, point CLion to the compile_commands.json, and choose Open as Project.

To open a Gradle project, click File | Open, point CLion to the build.gradle file, and choose Open as Project.

Checkout from a repository

  1. Click Checkout from Version Control on the Welcome screen or select VCS | Checkout from Version Control from the main menu and choose your version control system.

  2. Enter the credentials to access the storage and provide the path to the sources. CLion will clone the repository to a new CMake project.

Create a new CMake project

  1. Select File | New Project from the main menu or click New Project on the Welcome screen.

  2. Set the type of your project: either C or C++, an executable or a library.

    Note that STM32CubeMX Embedded is also a CMake-based project type. Refer to Embedded Development for details.

  3. Provide the root folder location and select the language standard.

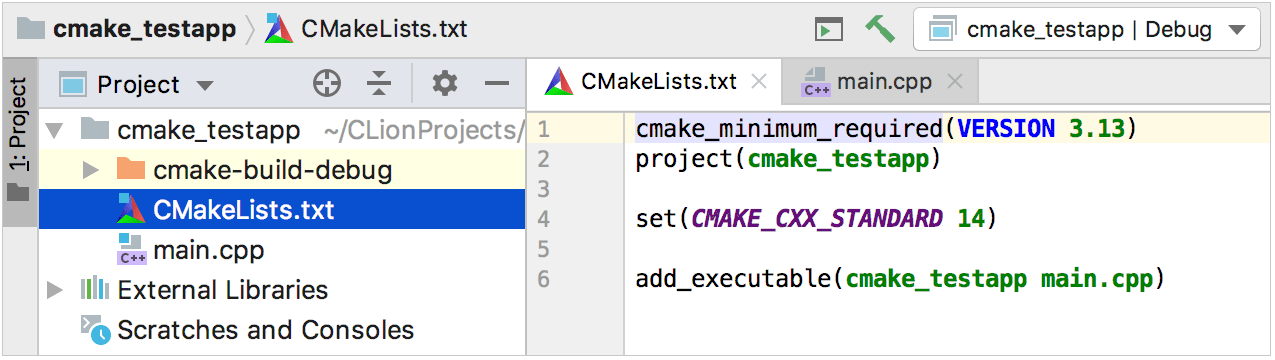

CLion creates a new CMake project and fills in the top-level CMakeLists.txt:

new cmake project

The initial CMakeLists.txt file already contains several commands. Find their description and more information on working with CMake in our tutorial.

2. Take a look around

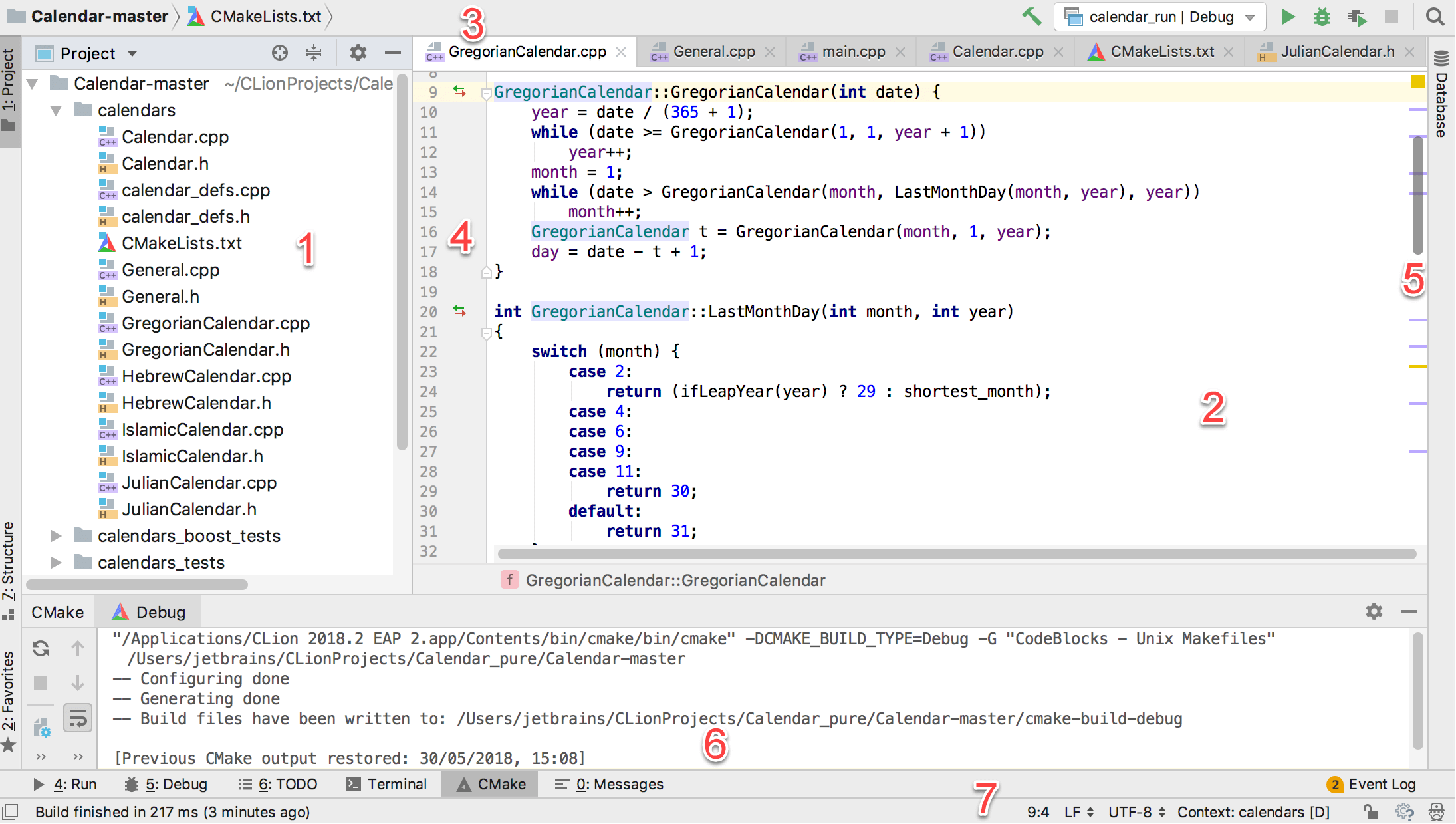

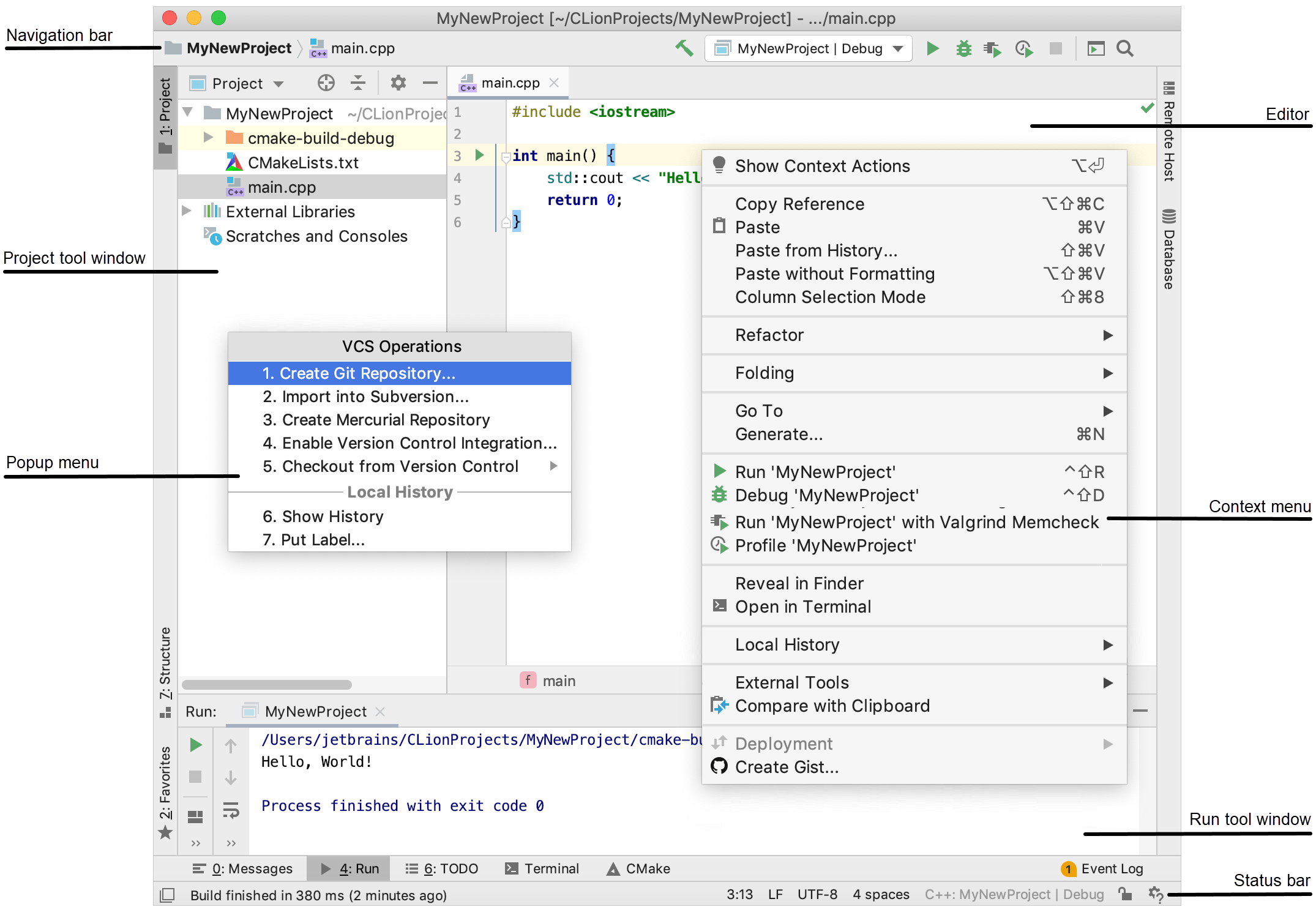

Look around
  1. Project view shows your project files and directories. From here, you can manage project folders (mark them as sources, libraries, or excluded items), add new files, reload the project, and call for other actions such as Recompile.

  2. Editor is where you view, write, and edit your code. The editor shows each file in a separate tab. You can also split the editor vertically icons actions splitVertically or horizontally icons actions splitHorizontally to view several tabs simultaneously.

  3. Navigation bar helps you switch between the files' tabs, and the Toolbar provides quick access to run/debug and VSC-related actions.

  4. Left gutter - the vertical stripe to the left of the editor - shows breakpoints and clickable icons to help you navigate through the code structure (for example, jump to a definition or declaration clion icons assocFile) and run icons actions execute main() or tests.

  5. Right gutter shows the code analysis results with the overall file status indicator at the top.

  6. Tool windows represent specific tools or tasks such as TODOs, CMake, terminal, or file structure.

  7. Status bar shows various indicators for your project and the entire IDE: file encoding, line separator, inspection profile icons ide hectorOn, memory usage, and others. Also, here you can find the resolve context switcher.

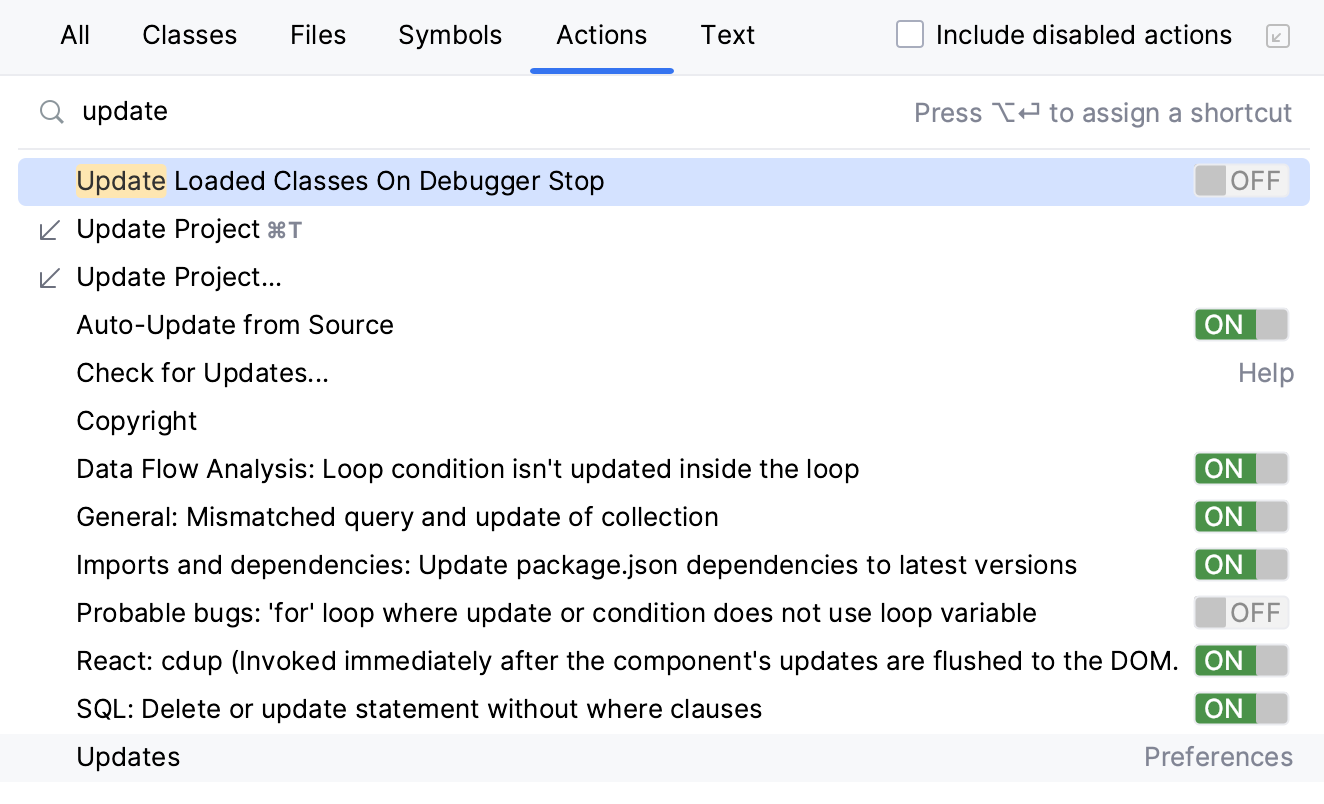

Any time you need to find an IDE action, press Ctrl+Shift+A or go to Help | Find Action and start typing the name of a command, setting, or even a UI element that you are looking for:

search for an ide action

3. Customize your environment

Change the IDE appearance

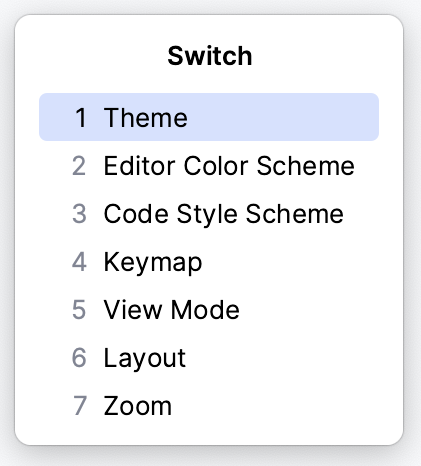

The quickest way to switch between the IDE's color schemes, code styles, keymaps, viewing modes, and look-and-feels (UI themes) is the Switch... pop-up. To invoke it, click View | Quick Switch Scheme or press Ctrl+`:

switch pop-up

To explore all the customizable options, go to the dedicated pages in Settings / PreferencesCtrl+Alt+S.

Tune the editor

Pages under the Editor node of the Settings / Preferences dialog help you adjust the editor’s behavior, from the most general settings (like Drag'n'Drop enabling and scroll configuration) to highlighting colors and code style options.

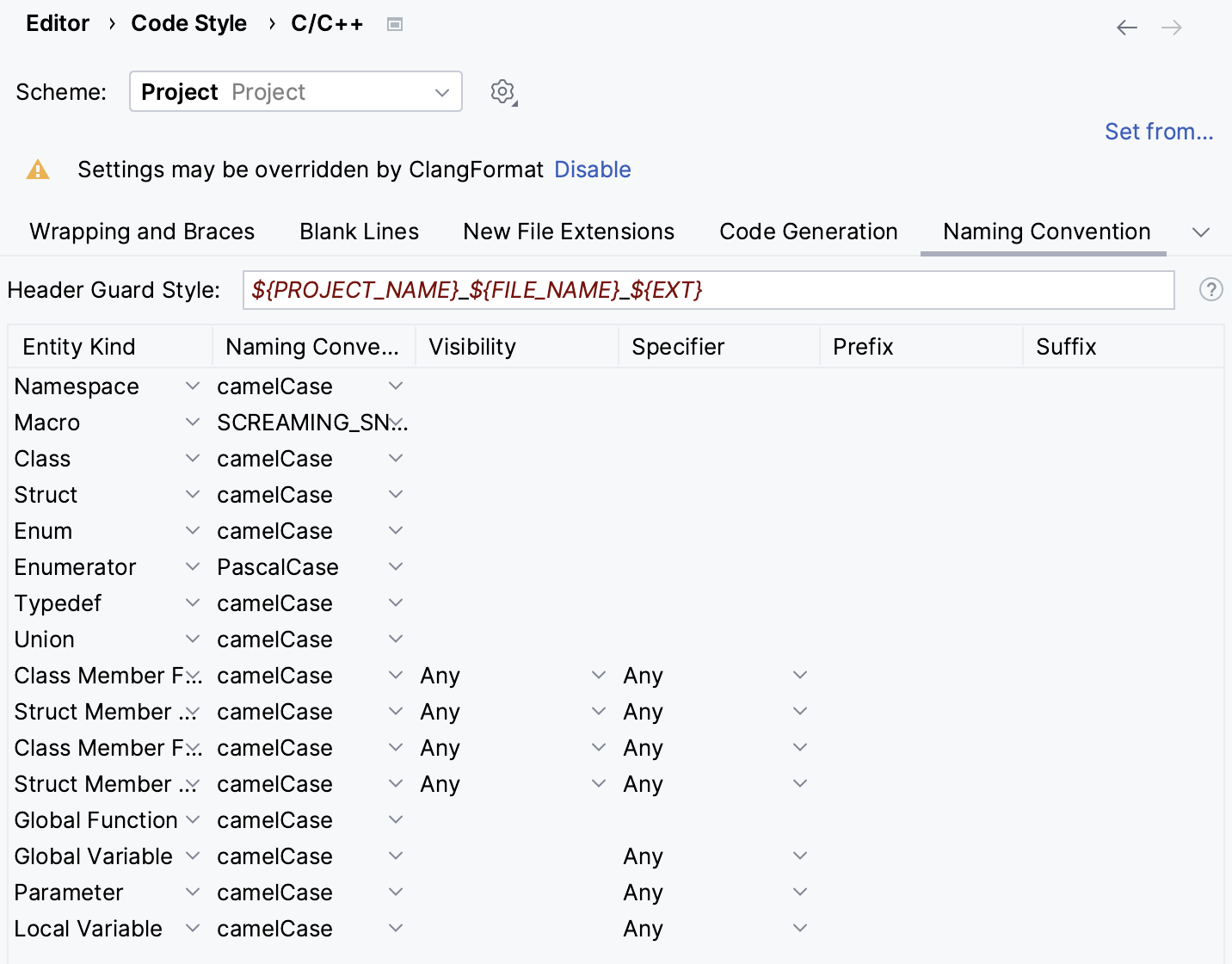

Code styles are configurable for each language separately in the pages under the Editor | Code Style node. For C/C++, you can set one of the predefined code styles or provide your own, and configure the desired naming convention including the header guard template:

Naming convention settings

Adjust the keymap

In CLion, almost every action possible in the IDE is mapped to a keyboard shortcut. To view the default mapping, call Help | Keymap Reference.

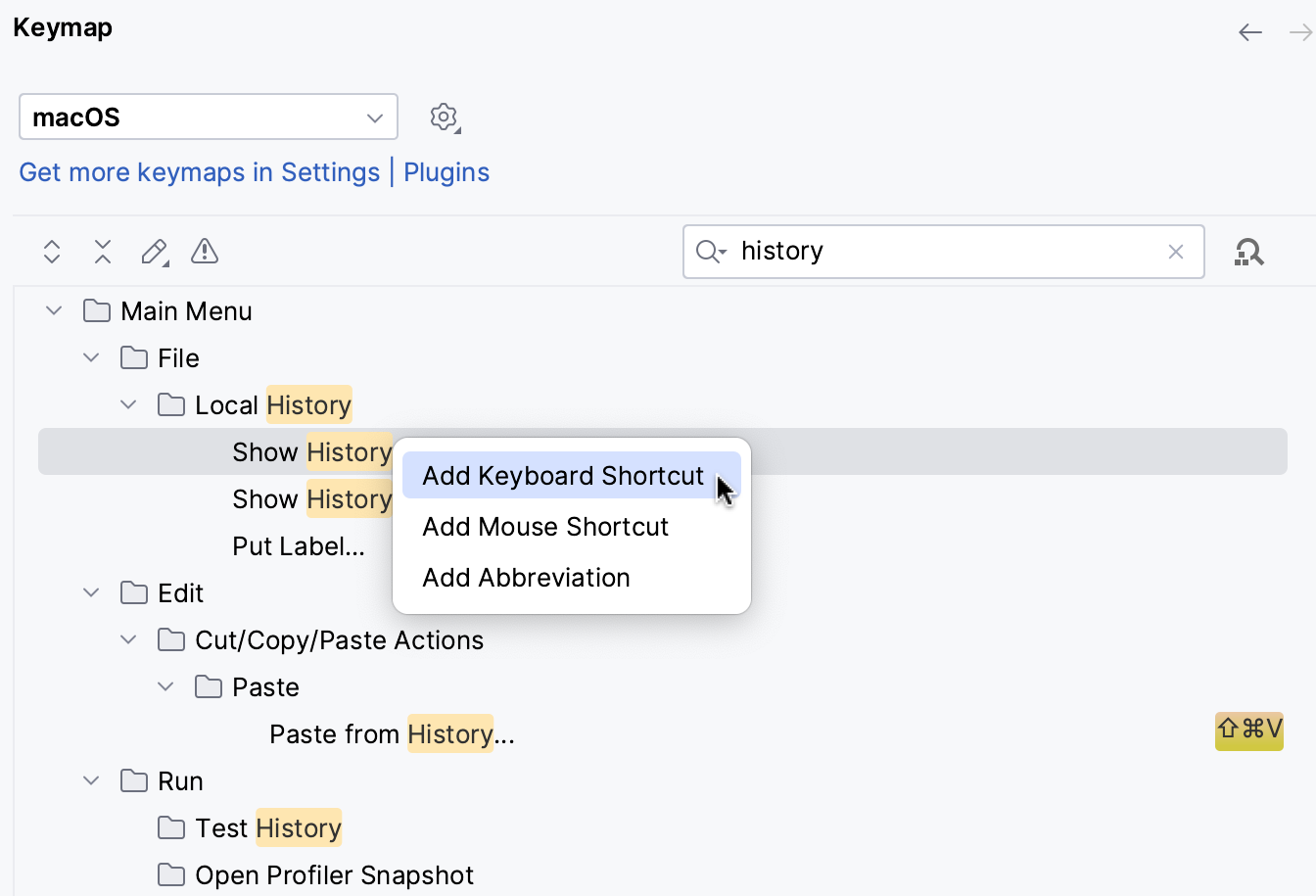

You can customize the shortcuts in Settings / Preferences| Keymap. Use one of the predefined keymaps (Visual Studio, Emacs, Eclipse, NetBeans, Xcode, and others) and tune it as required, or create your own keymap from scratch.

There are also plugins that extend the list of available keymaps. For example, VS Code Keymap or Vim emulation (which includes the Vim keymap). Find more useful plugins for the CLion editor in Valuable non-bundled plugins.

4. Code with assistance

Auto-completion

Basic completion Ctrl+Space in CLion works as you type and gives a list of all available completions. To filter this list and see only the suggestions that match the expected type, use Smart completion Ctrl+Shift+Space:

SmartType completion

Code generation

Even an empty class or a new C/C++ file contains boilerplate code, which CLion generates automatically. For example, when you add a new class, CLion creates a header with stub code and header guard already placed inside, and the corresponding source file that includes it.

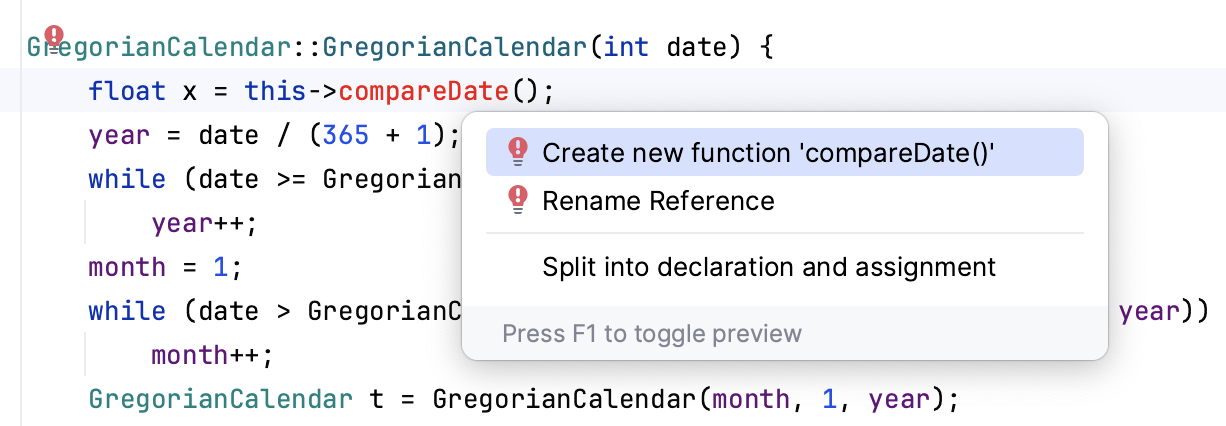

One of the most useful code generation features is create from usage. It helps you focus on the ideas as they come up and takes care of the routine. For example, when you call a function that is not yet implemented, there is no need to break the flow: press Alt+Enter to generate stub code that you can come back to later. Create from usage works for variables and classes as well:

generate code from usage

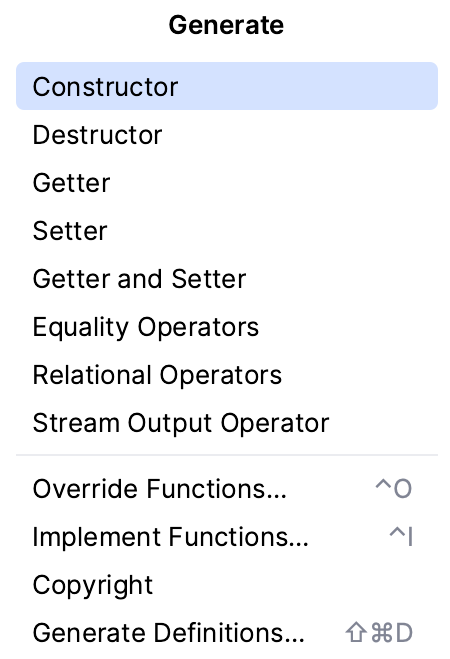

To get the list of code generation options at any place in your code, press Alt+Insert to invoke the Generate menu:

generate menu

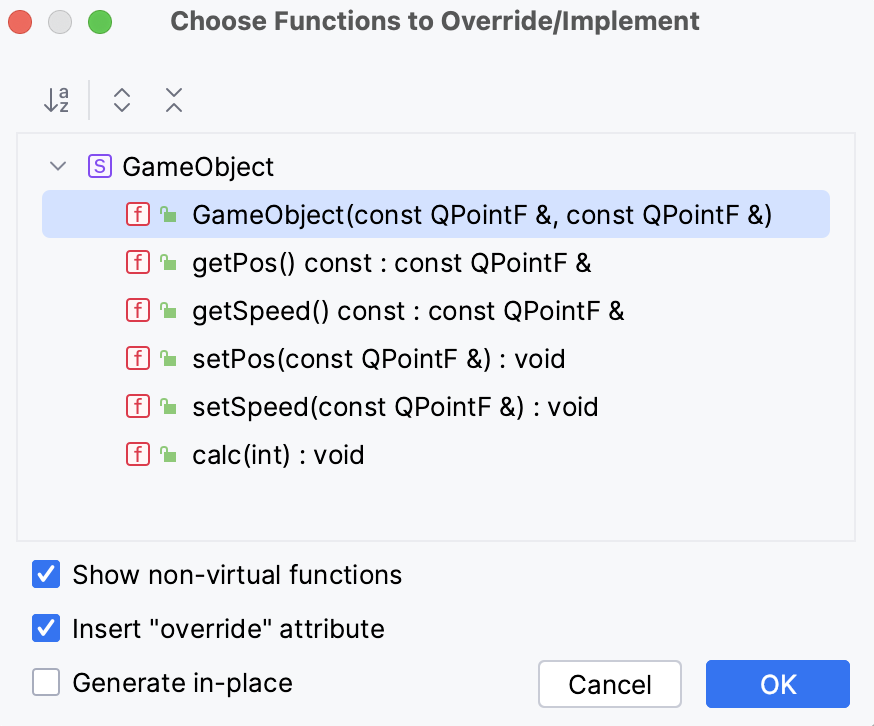

These options can help you skip a lot of code writing. In addition to generating constructors/destructors, getters/setters, and various operators, you can quickly override and implement functions:

cl QST impl over

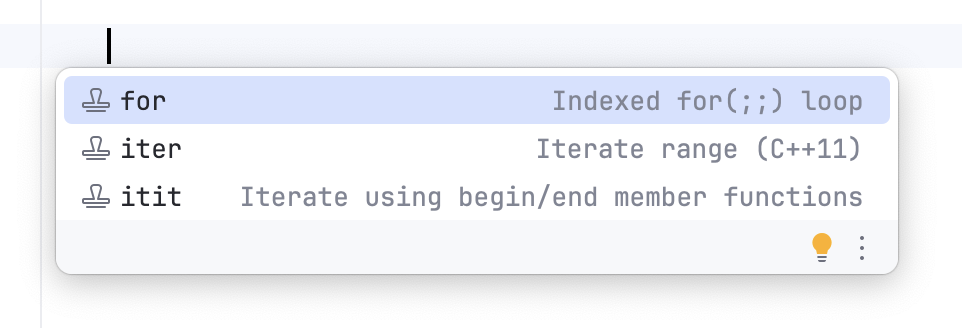

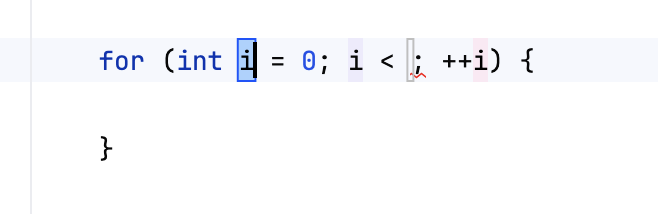

Live templates are the tool to generate entire code constructs. Find the list of ready-to-use templates in Settings / Preferences | Editor | Live Templates. To paste a template in your code, call Code | Insert Live Template or press Ctrl+J, for example:

live template example

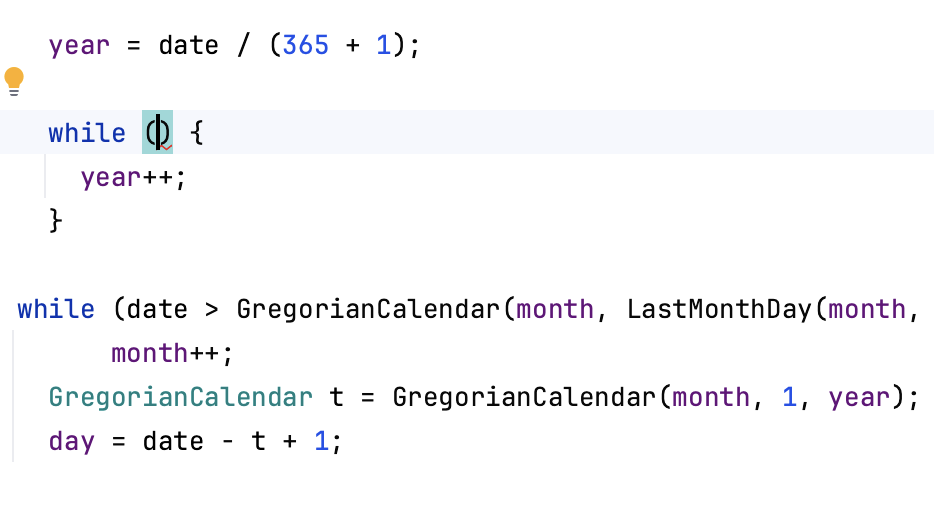

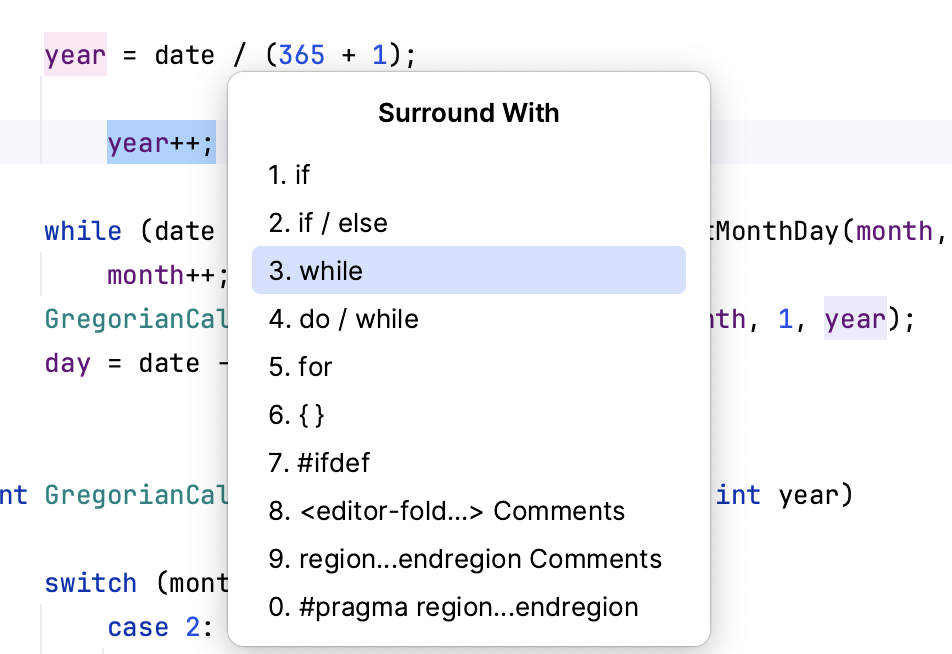

To quickly surround your code with loops and conditional statements like if, while, for, #ifdef, call Code | Surround With or press Ctrl+Alt+T:

surround with example

Intentions and quick-fixes

When you see a light bulb next to a symbol in your code, it means that CLion's code analysis has found a potential problem or a possible change to be made:

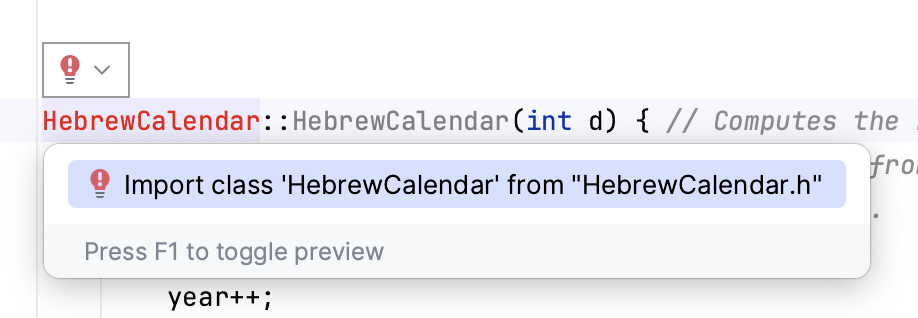

  • icons actions quickfixBulb indicates an error and lets you choose a quick fix for it,

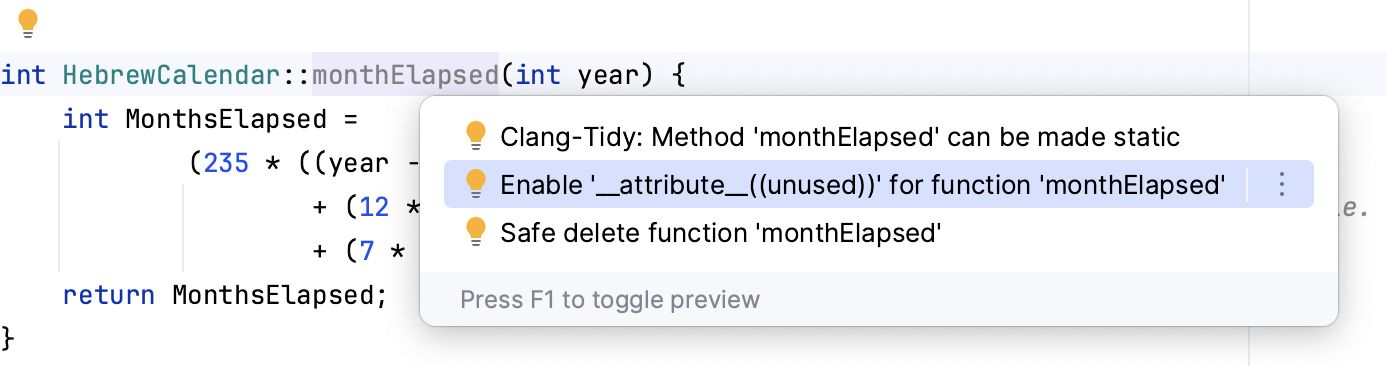

  • icons actions intentionBulb indicates that one or several intention actions are available.

Click the light bulb icon (or press Alt+Enter) and choose the most suitable action or quick-fix:

intentions actions and quick fixes

Inspections

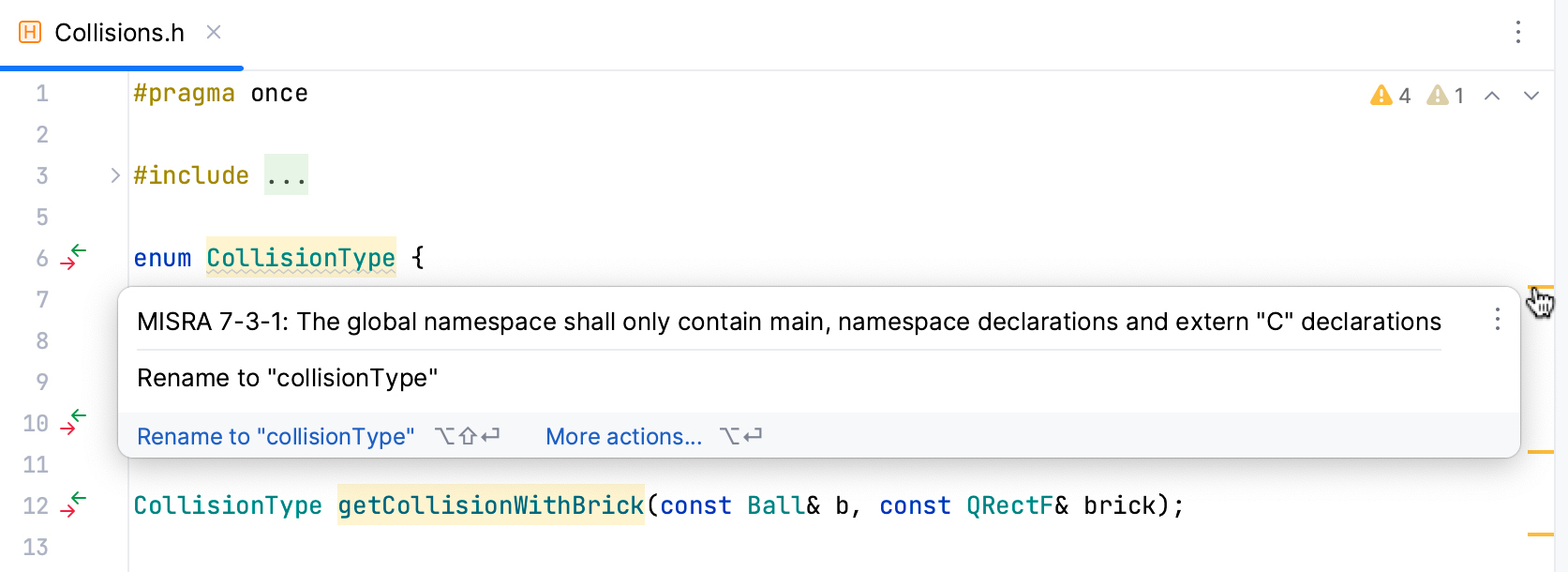

During on-the-fly code analysis, CLion highlights suspicious code and shows colored stripes in the right-hand gutter. You can hover the mouse over a stripe to view the problem description and click it to jump to the corresponding issue. The sign at the top of the gutter indicates the overall file status:

analysis results in right gutter

CLion detects not only compilation errors but also code inefficiencies like unused variables or dead code. Also, it integrates a customizable set of Clang-tidy checks.

To enable or disable inspections, configure their severity levels (whether an inspection should raise an error or just be shown as a warning) and set the scopes, go to Settings / Preferences | Editor | Inspections.

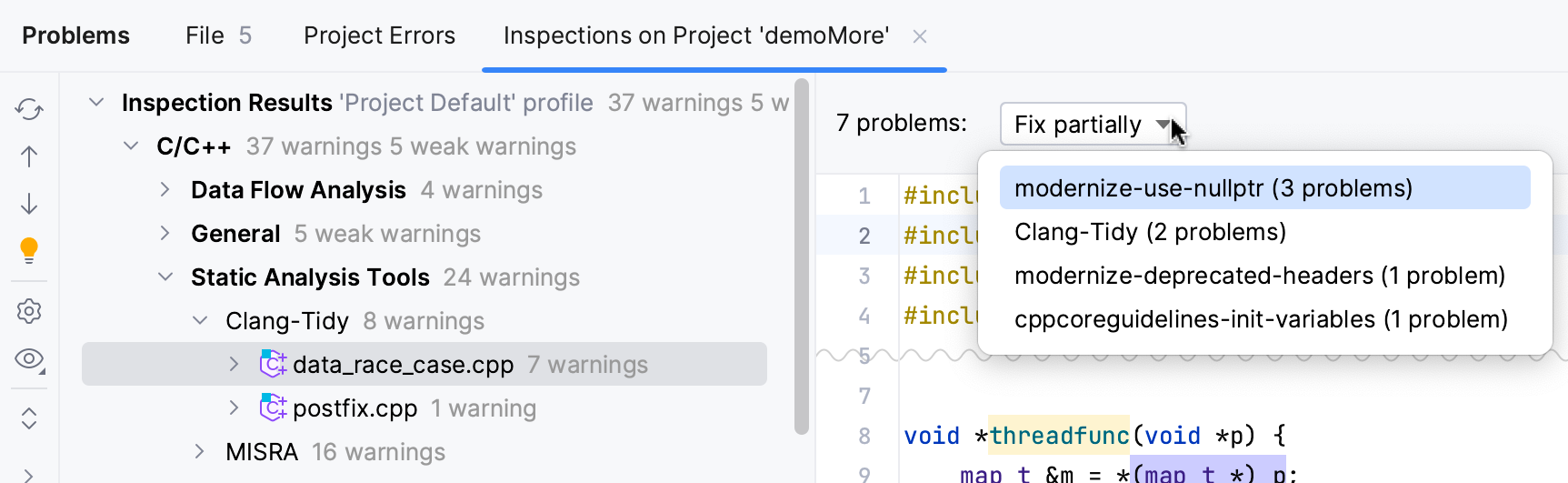

You can also run inspections on demand for the whole project or a custom scope, and view the results in a separate window. For this, call Code | Inspect Code or use Code | Run Inspection by Name Ctrl+Shift+Alt+I for a particular inspection. From the results window, you can batch-apply quick-fixes to several issues at a time: select the issues, click the bulb icons actions intentionBulb button (or press Alt+Enter) and select the resolution to be applied.

apply quick-fixes for several issues at a time

Refactorings

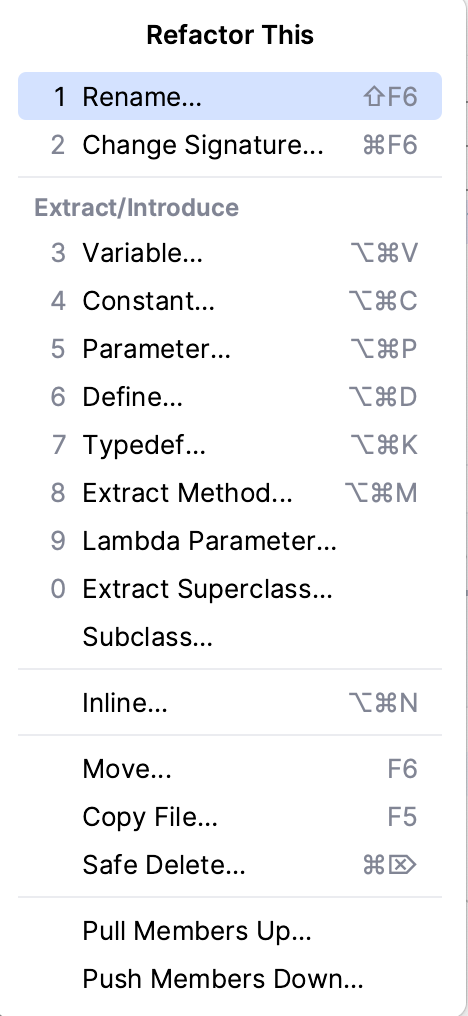

Refactorings help improve your code without adding new functionality, making it cleaner and easier to read and maintain. Use the Refactor menu or call Refactor This... Ctrl+Shift+Alt+T to get the list of refactorings available at the current location:

retactor this popup

For example,

  • Rename Shift+F6 renames a symbol in all references;

  • Change Signature Ctrl+F6 adds, removes, or reorders function parameters, changes the return type, or updates the function name (affecting all usages);

  • Inline Ctrl+Alt+N / Extract inlines or extracts a function, typedef, variable, parameter, define, or constant;

  • Pull Members Up/Down (Refactor | Pull Members Up / Push Members Down) safely moves class members to the base or subclass.

5. Explore your code

Search everywhere

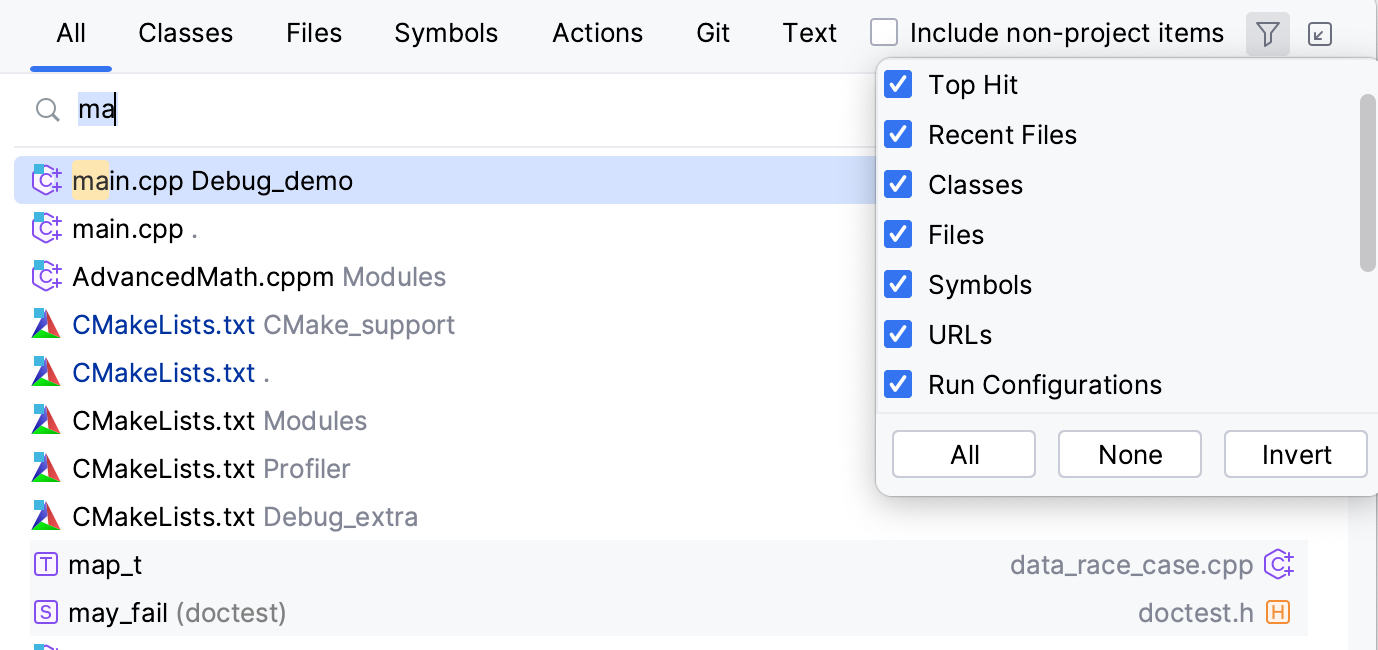

To search for anything in CLion, be it an item in your codebase, action, or UI element, press Shift twice and start typing what you are looking for in the Search Everywhere dialog. Use the filter filter menu to narrow your search:

search everywhere popup

Find usages

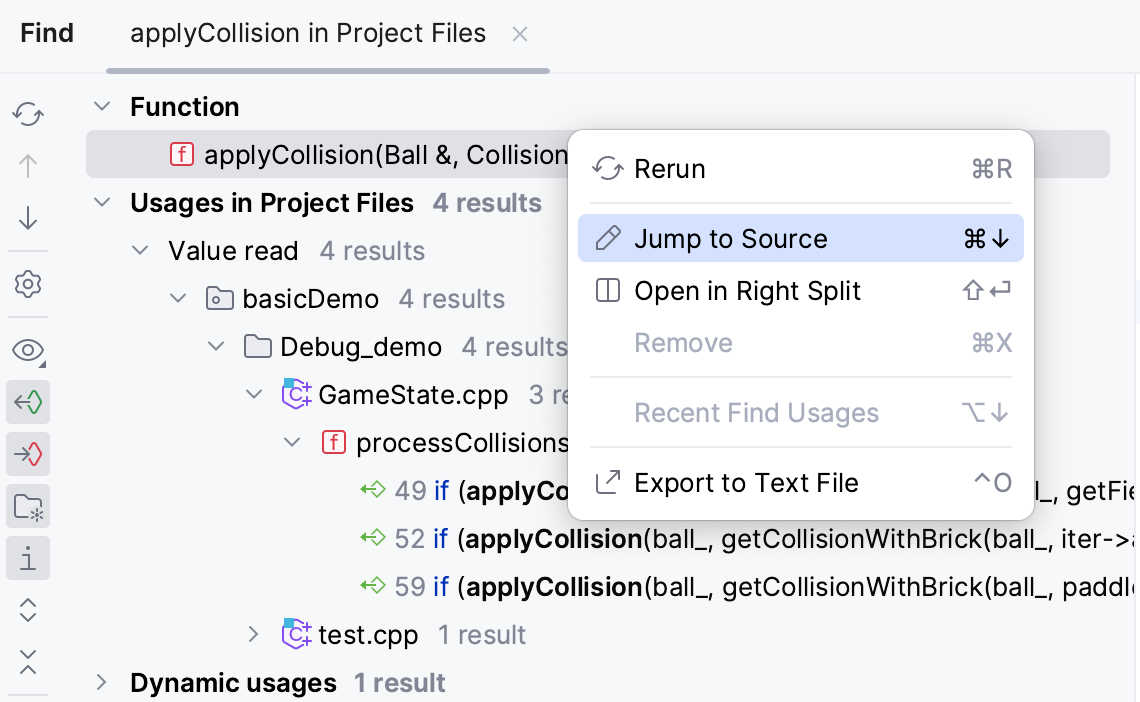

To locate the usage of any code symbol, call Find Usages (Alt+F7 or Edit | Find | Find Usages). You can filter the results and jump back to the source code:

find usages results

Navigate in the code structure

  • Switch between header and source file Ctrl+Alt+Home

  • Go to declaration/definition Ctrl+BCtrl+Alt+B

  • Show file structure Alt+7

  • View type hierarchy Ctrl+H

  • View call hierarchy Ctrl+Alt+H

  • View import hierarchy Shift+Alt+H

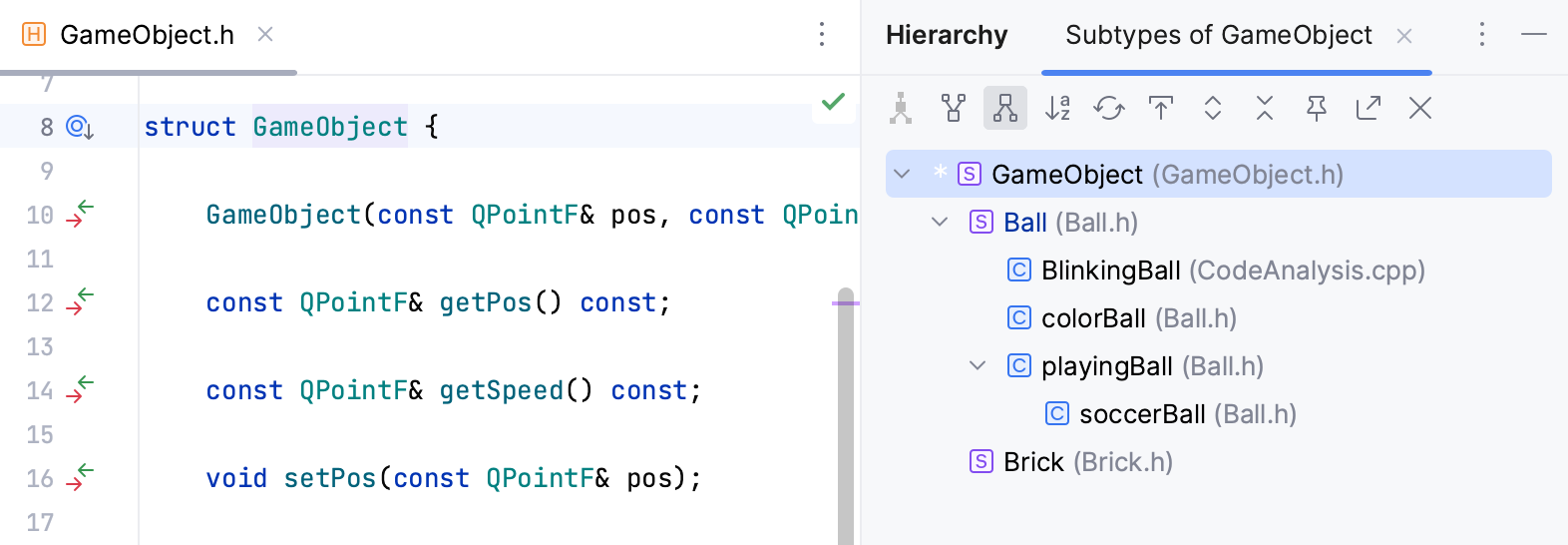

For your code, CLion builds the hierarchies of types, call, imports, and functions. To view them, use the shortcuts given above or the commands in the Navigate menu. For example, type hierarchy helps you not only to navigate the code but also to discover what type relationships exist in the your codebase:

type hierarchy

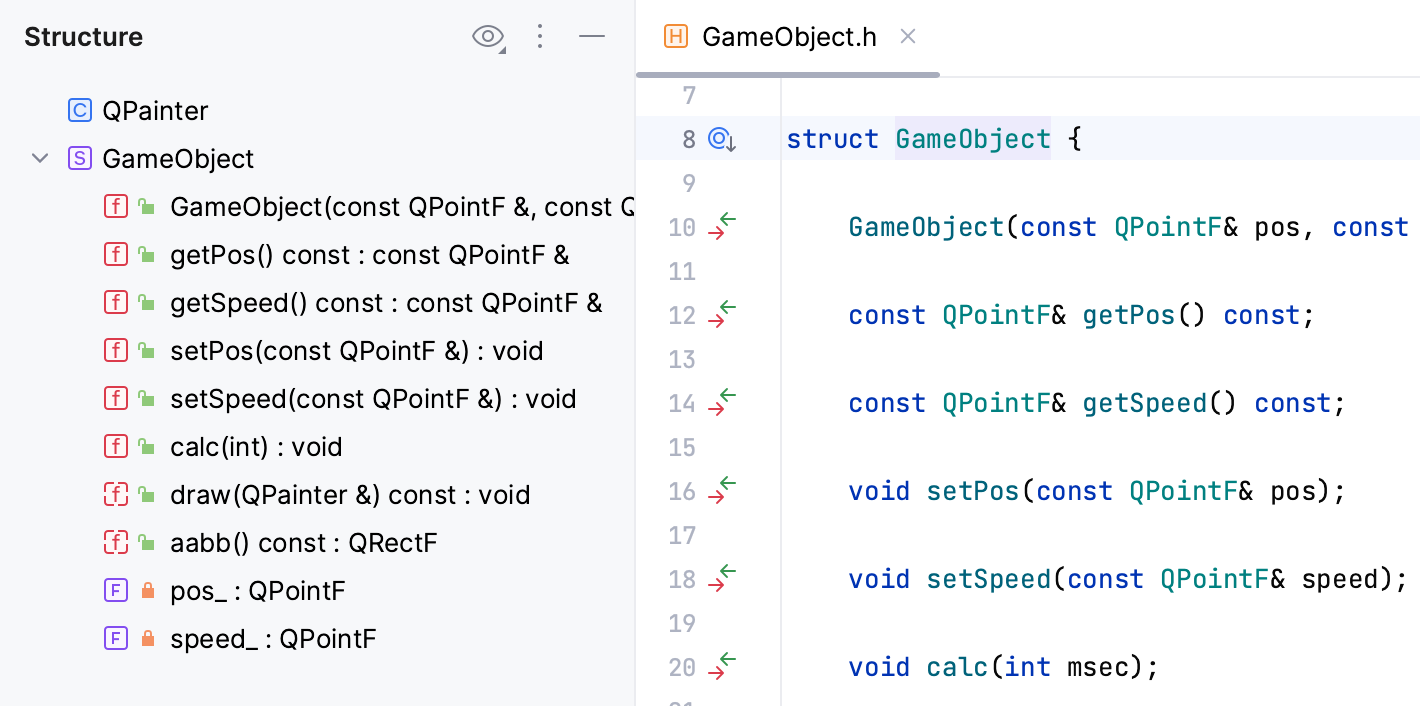

To explore the structure of the currently opened file, call View | Tool windows | Structure or press Alt+7:

file structure

Also, use the left gutter icons to quickly jump to a declaration/definitionclion icons assocFile or navigate through the class hierarchy(the Implemented method icon / the Implementing method icon, the Overridden method icon / the Overriding method icon).

Quick Documentation popup Ctrl+Q helps you get more information on a symbol at caret without leaving the current context. Depending on the element you call it for, the popup shows:

  • function signature details,

  • code documentation (either regular or Doxygen comments),

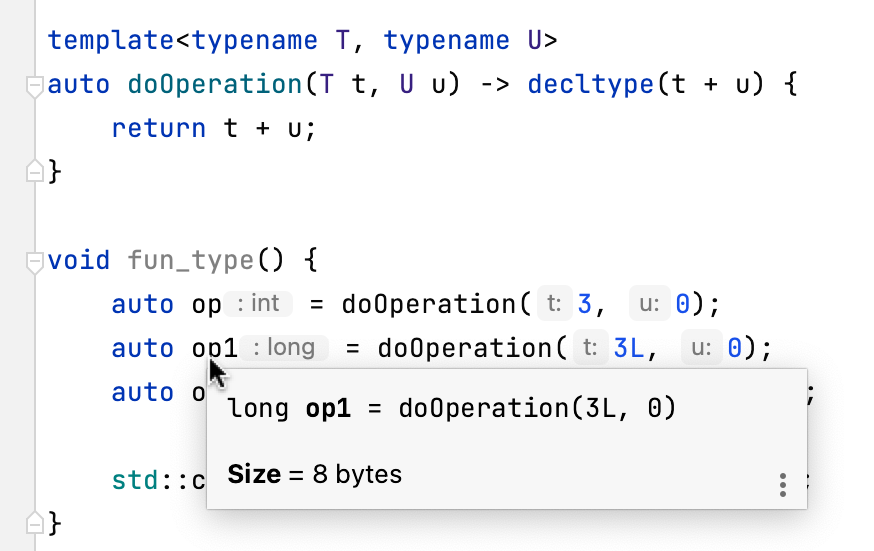

  • inferred types for variables declared as auto:

    c++ inferred type in quick documentation popup

  • formatted macro expansions:

    Formatted macro expansion in quick documentation popup

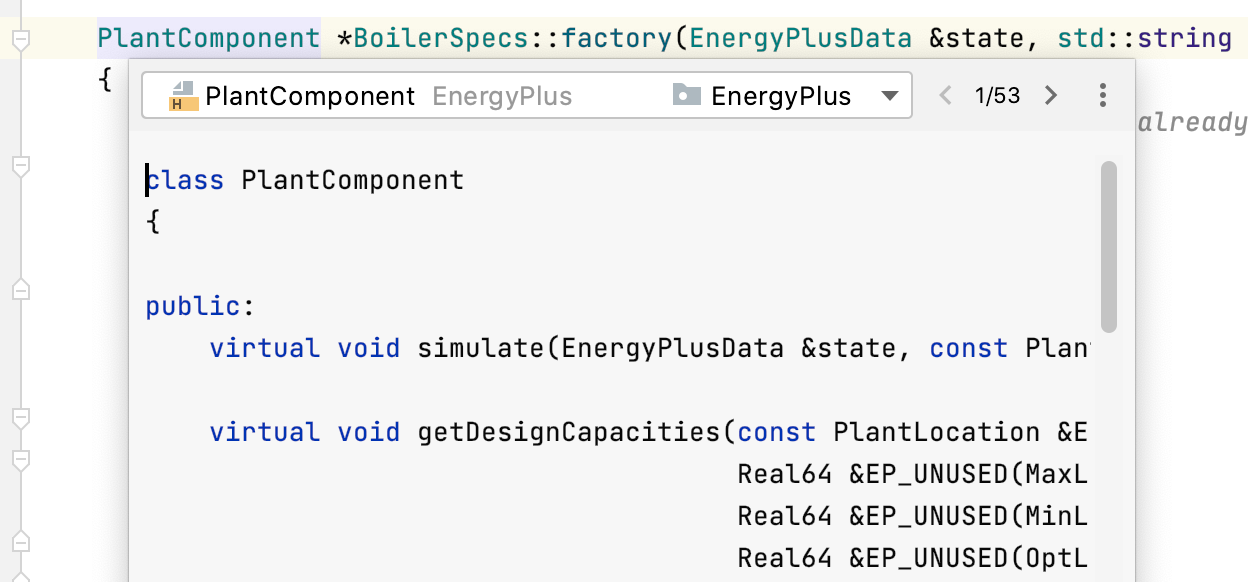

Besides, you can instantly view the definition of a symbol at caret. Press Ctrl+Shift+I to invoke the Quick Definition popup:

qucik definition

6. Build and run

Run/Debug configurations

For each target in a CMake or Gradle project, CLion creates a Run/Debug configuration. It is a named run/debug setup that includes target, executable, arguments to pass to the program, and other options.

Run/Debug configurations are generated from templates, such as CMake Application, Google Test, or Remote GDB Debug. The templates are customizable: when you edit a template parameter, you change the default settings of all configurations that will be created from this template later.

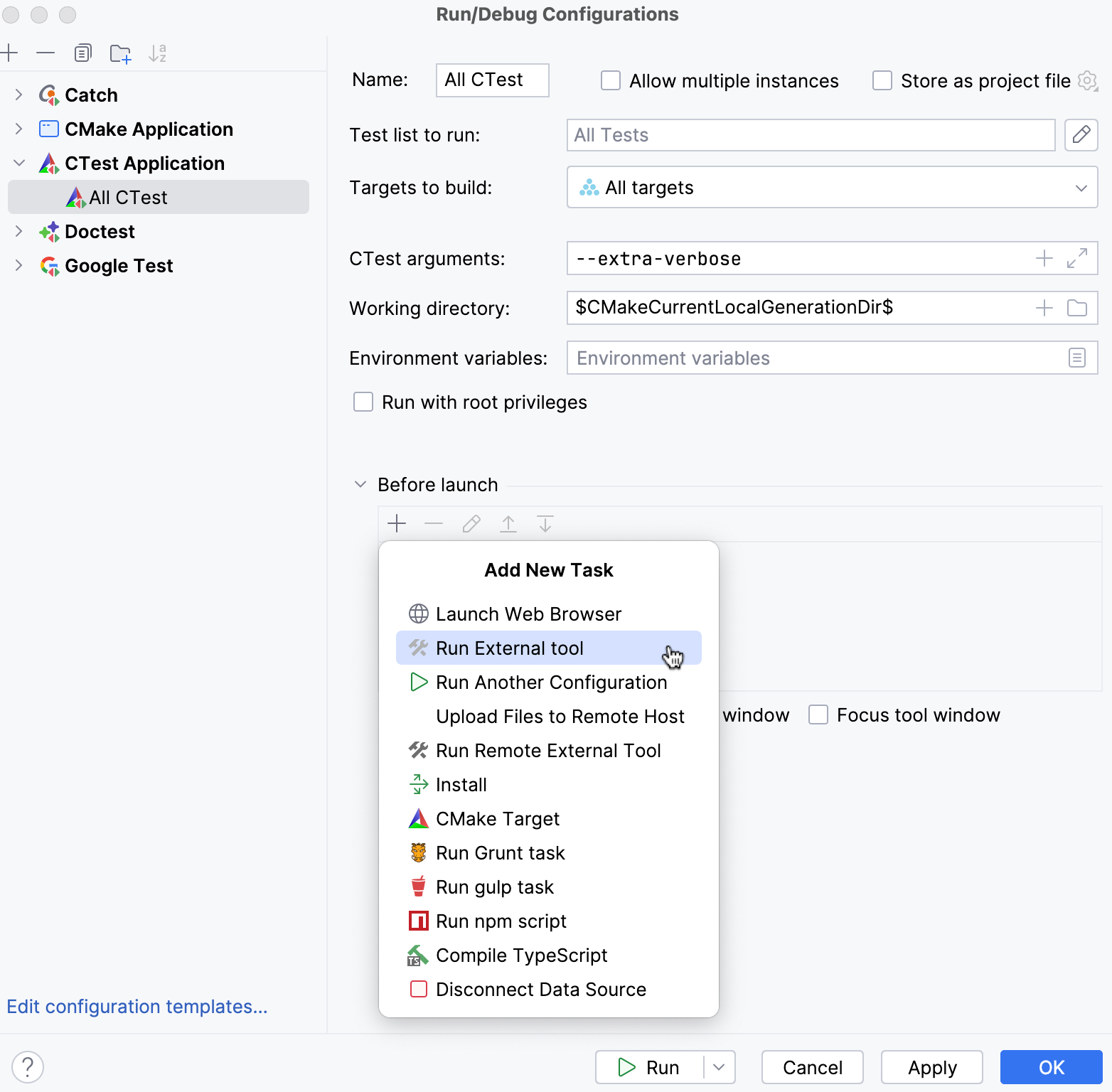

Edit Configurations dialog is accessible from the Run menu or the configuration switcher. Here you can manage the templates and add, delete, or edit your configurations. For example, you can customize the steps to be taken Before launch - call external tools (including the remote ones), use CMake install, or even run another configuration.

run/debug configurations dialog

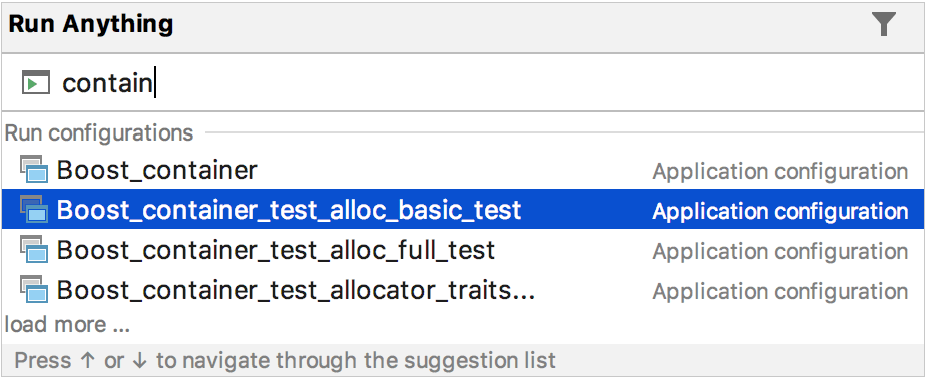

To launch your program, select the desired configuration and use commands from the icons actions executeRun menu or press Shift+F10. Alternatively, invoke the Run Anything dialog by pressing Ctrl twice and start typing the configuration name:

run anything dialog
Tip: hold down Shift to switch to Debug Anything.

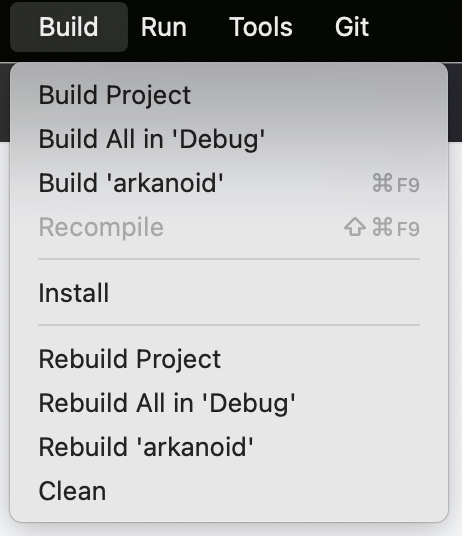

Build actions

Build is included in many Run/Debug configuration templates as a default pre-launch step. However, you can also perform it separately by calling the desired action from the Build menu:

build menu

Notice the Recompile option that compiles a selected file without building the whole project.

Remote and embedded development

With CLion, you can also build and run/debug on remote machines including embedded targets. Refer to Remote Development and STM32CubeMX Projects for details.

7. Debug

CLion integrates with the GDB backend on all platforms (on Windows, the bundled GDB is available only for MinGW) and LLDB on macOS/Linux. You can also switch to a custom version of GDB on all platforms. Currently, the versions of the bundled debuggers are:

  • LLDB v 9.0

  • GDB v 8.0.1 for macOS

  • GDB v 8.3 for Windows

  • GDB v 8.3 for Linux

  • Custom GDB v 7.8.x-8.3.x

To start a debug session, select the desired configuration and press Shift+F9 or click icons actions startDebugger. You can set breakpoints by clicking the gutter next to a code line. To follow through the execution process, use debugger's stepping actions stepping buttons.

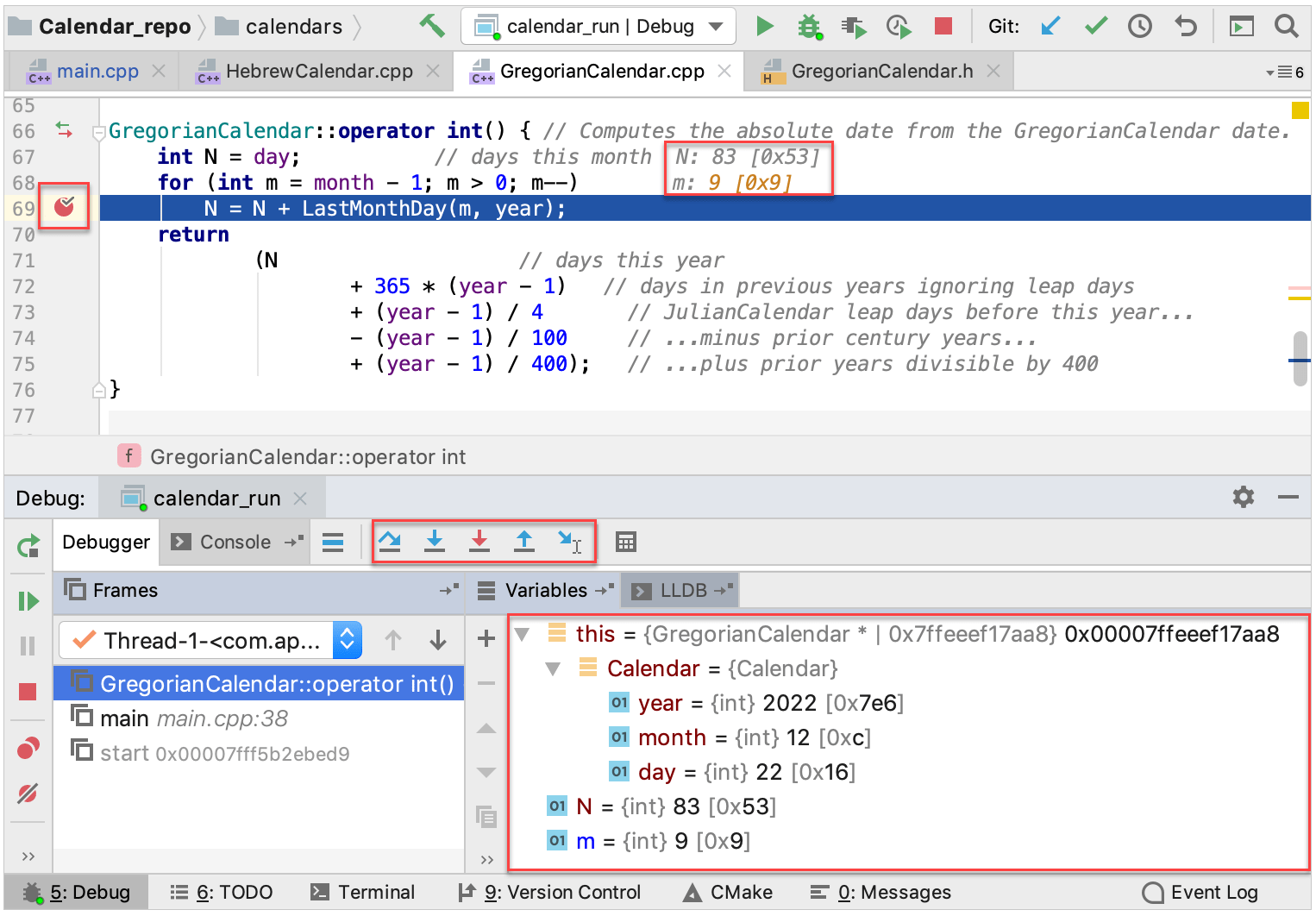

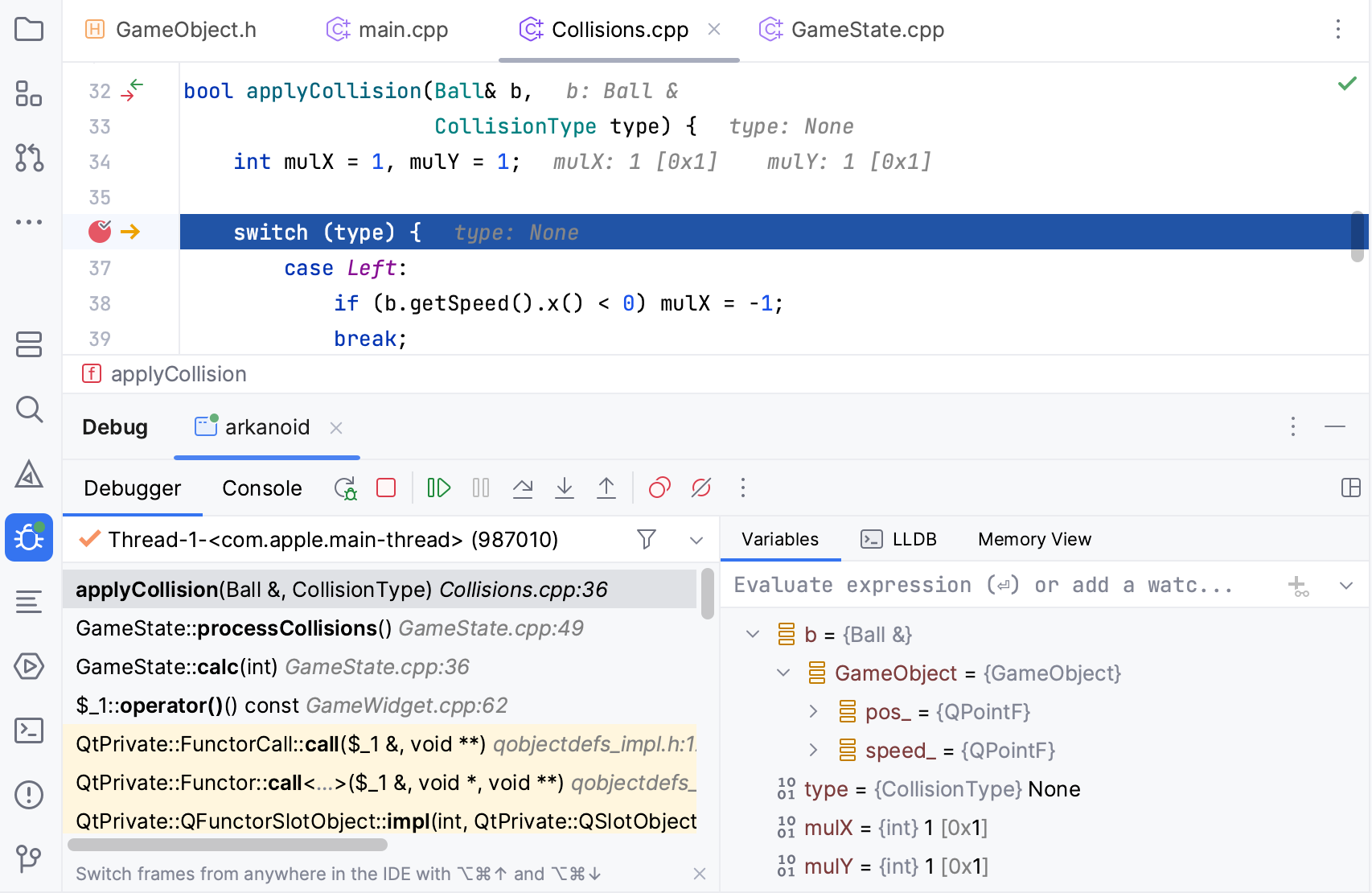

In the Variables tab of the debugger tool window, you can explore the values and change them without interrupting your debug session. To evaluate an expression, click icons debugger evaluateExpression or press Alt+F8. CLion also shows the current variables' values right in the editor, and in case you enable hex view, it is shown inlined as well:

clion debugger ui

Useful debugger shortcuts

Toggle breakpoint

Ctrl+F8

View breakpoint details/all breakpoints

Ctrl+Shift+F8

Step over

F8

Step into

F7

Stop

Ctrl+F2

Resume program

F9

Debug code at caret

Shift+F9 within main()

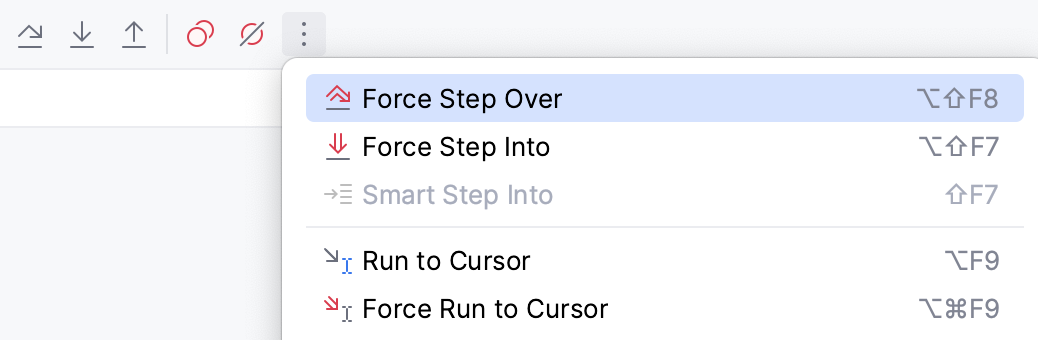

Besides, CLion debugger enables you to step into Disassembly, invoke Memory view, attach to a local process, and debug remotely using GDB/gdbserver.

8. Analyze at run-time

Some vulnerabilities and bugs can only be revealed during the program's execution: memory leaks, uninitialized accesses, concurrency issues, undefined behavior, and others. To help you catch run-time problems, CLion integrates Valgrind Memcheck and Google Sanitizers. Also, you can analyze your application performance using the built-in CPU Profiler. For these tools, CLion provides visualized output and handy features like the option to import/export analysis results.

Settings for Valgrind, Sanitizers, and Profile are located under Settings / Preferences | Build, Execution, Deployment | Dynamic Analysis Tools.

Valgrind Memcheck

Valgrind Memcheck in CLion works on Linux, macOS, and Windows via WSL. You need to install Valgrind, point CLion to the binary, set up the analysis flags, and run the program using Run | Run Valgrind Memcheck or icons actions startMemoryProfile.

Google Sanitizers

Google Sanitizers are supported on Linux for certain versions of Clang and GCC. Take a look at our detailed guide on using Sanitizers in CLion.

CPU Profiler

CLion’s profiler, available on Linux and macOS, collects performance data for both user and kernel code of your application. The profiler collects performance metrics and visualizes them in flame charts and statistic views. To run it, call Run | Profile or use the icons toolwindows toolWindowProfiler button in the navigation bar.

9. Add unit tests

CLion supports Google Test, Boost.Test, and Catch(2) test frameworks with the built-in test runner and dedicated Run/Debug configurations. For CMake targets linked with gtest or gmock, CLion creates Google Test configurations automatically.

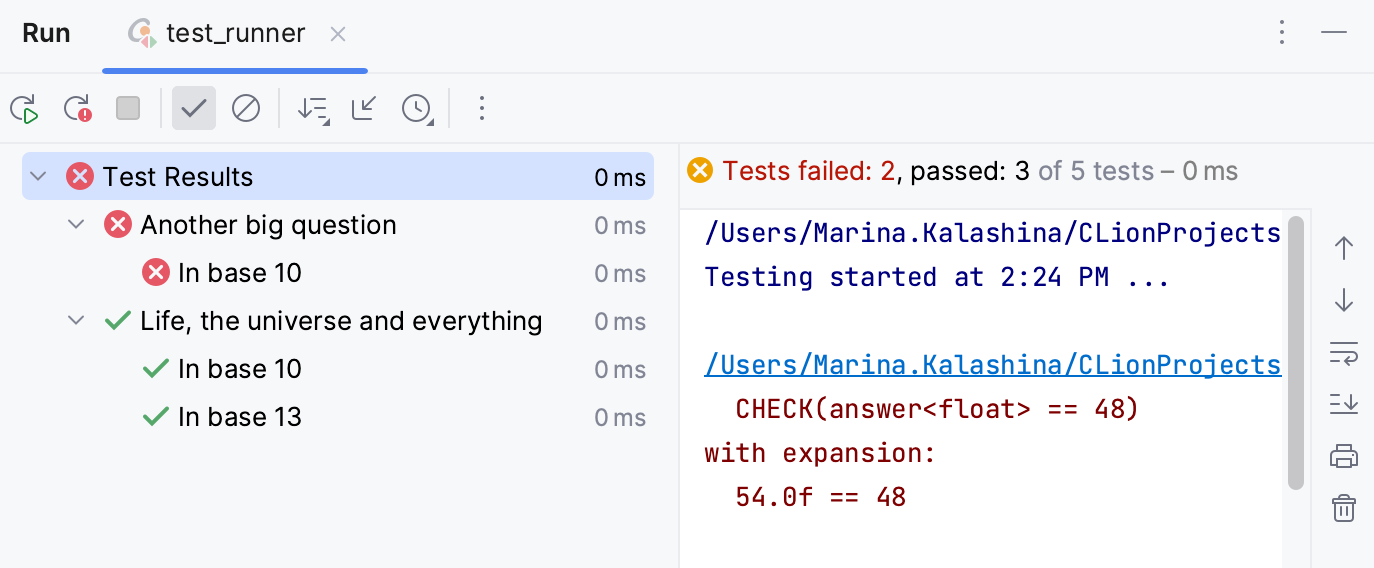

Running tests is similar to running a regular executable: CLion passes the specified test classes or methods to the test runner. Test runner shows the progress bar, output stream, and tree view of the running tests, and indicates their status and duration:

test runner

You can rerun particular tests, all of them, or only the failed ones icons runConfigurations rerunFailedTests, export test results and open previous results from the history.

Icons in the left gutter help you quickly run/debug tests and check the test status, success icons runConfigurations testState green2 or failure icons runConfigurations testState red2:

gutter icons for running tests

10. Keep it under version control

VCS

CLion integrates with several version control systems: Git (or GitHub), Mercurial, Perforce, and Subversion. To manage the settings of a particular VCS, go to Settings / Preferences | Version Control.

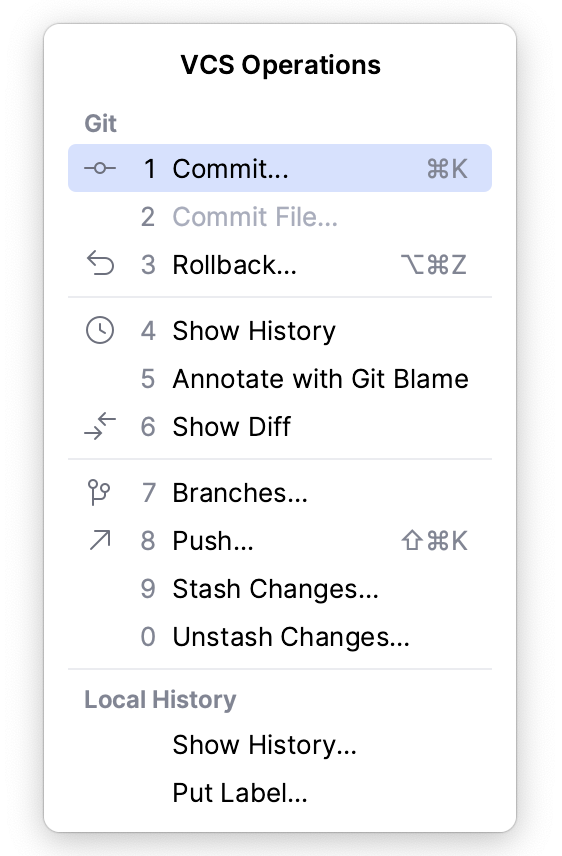

Use the VCS Operations Popup (Alt+` or VCS | VCS Operations Popup) to call version control commands. The list of actions in this popup includes both the currently enabled VCS and local history. For example:

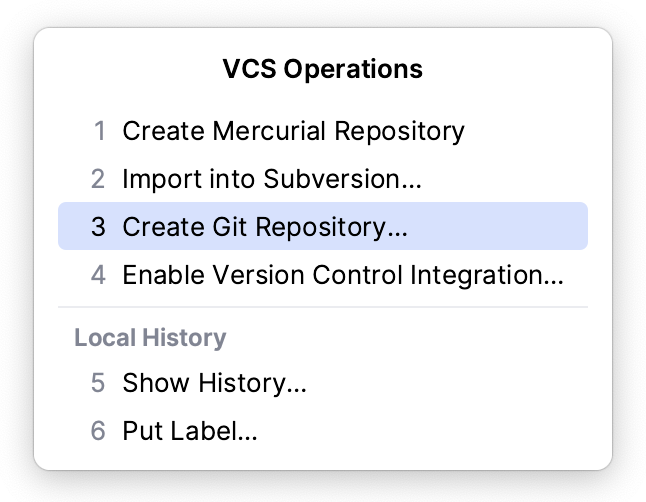

No VCS Enabled

VCS Enabled

cl vcs disabled
cl vcs enabled

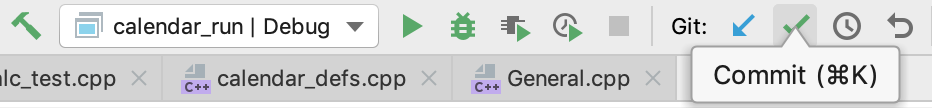

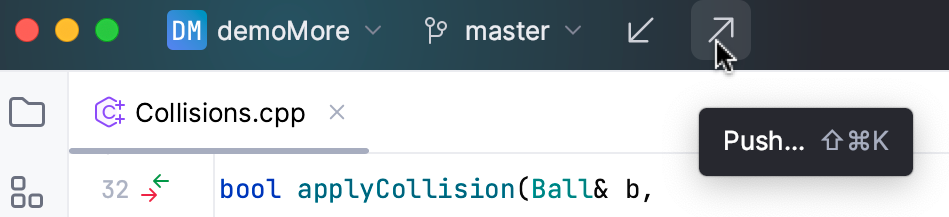

You can find all the available VCS commands in the VCS section of the main menu. Also, some basic commands are accessible from the toolbar:

vcs command in navigation bar

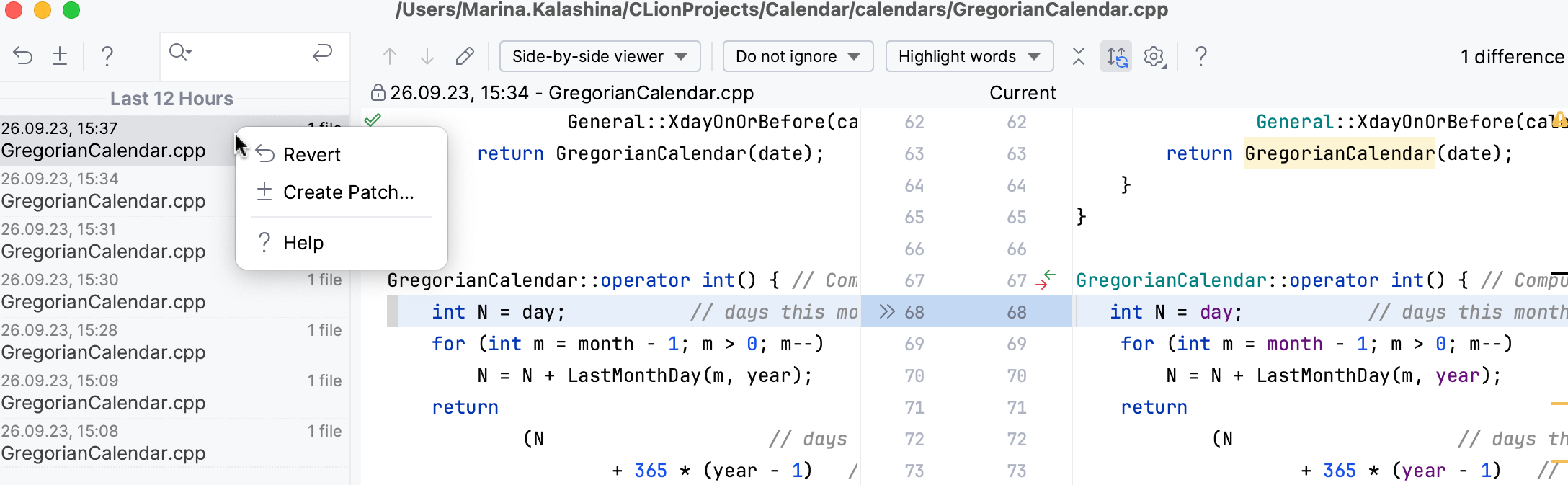

Local history

In addition to full version control, you can go back and review changes step by step by browsing the local history. To view it for a file or folder, call VCS | Local History | Show History. Here you can revert changes and create patches:

local history

11. Learn more

We hope this brief overview of the CLion essentials will give you a quick start. To dig deeper, take a look at other articles and sections in the webhelp, for example:

For news and useful tips, check our twitter and CLion blog.

Feel free to ask any questions on the community forum and don't hesitate to report problems in the CLion issue tracker.

Last modified: 6 December 2019
